(8 PCS) 164-9006-E Kobiconn HEADER IDC SOCKET 10 PIN W/STRAIN RELIEF ROHS
Tax included.
THIS IS FOR (8 PCS) OF 164-9006-E BY Kobiconn

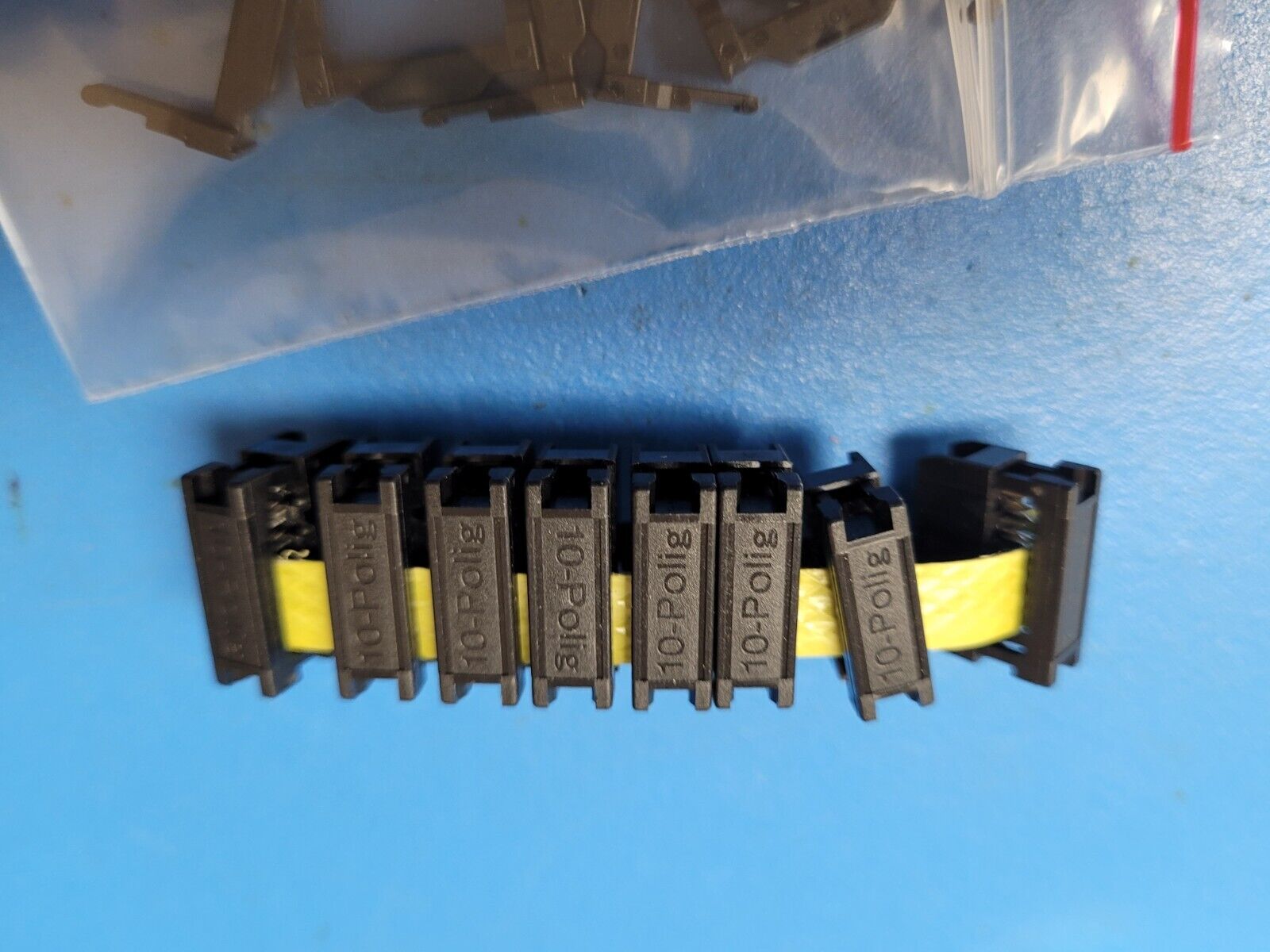

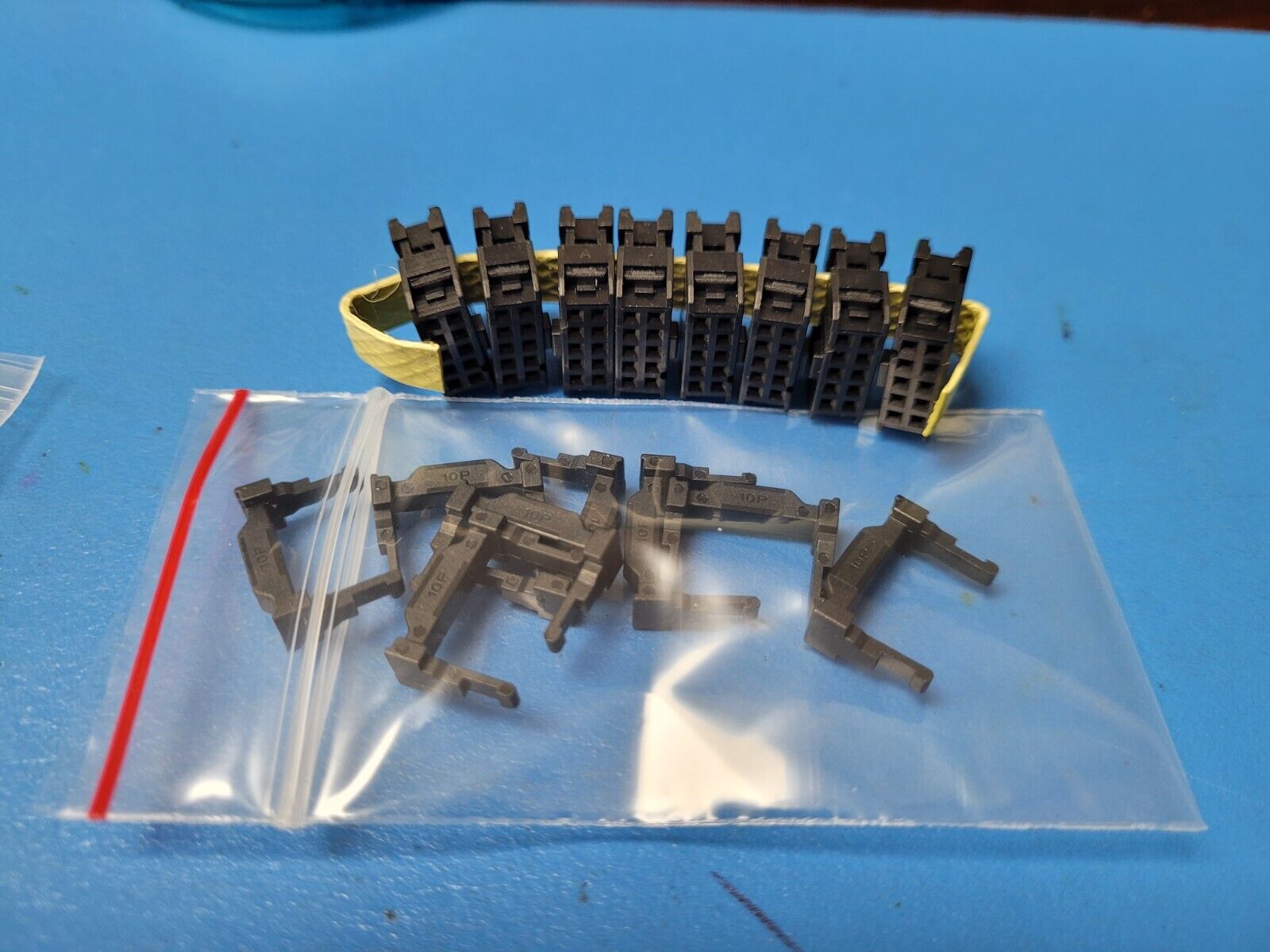

HEADER IDC SOCKET 10 PIN W/STRAIN RELIEF ROHS
Manufacturer: Kobiconn
Product Category: Headers & Wire Housings
RoHS: YES
Product: Wire Housings
Type: Receptacle Housing
Number of Positions: 10 Position
Pitch: 2.54 mm (0.1 in)
Number of Rows: 2 Row
Row Spacing: 2.54 mm (0.1 in)
Mounting Style: Cable Mount / Free Hanging
Termination Style: IDC
Mounting Angle: Straight
Contact Gender: Socket (Female)
Contact Plating: Gold
Series: 164-9000
Application: Board-to-Board
Wire Gauge: 28 AWG
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 105 C
Packaging: Tray
Brand: Kobiconn
Contact Material: Phosphor Bronze / Brass
Current Rating: 1 A
Housing Gender: Female
Housing Material: Polybutylene Terephthalate (PBT)
Insulation Resistance: 3 Ohms
Product Type: Headers & Wire Housings
