(7PCS) PIC16F628-04/P MICROCHIP TECHNOLOGY MCU 8-Bit 3.5KB Flash 3.3V/5V 18P DIP
Tax included.

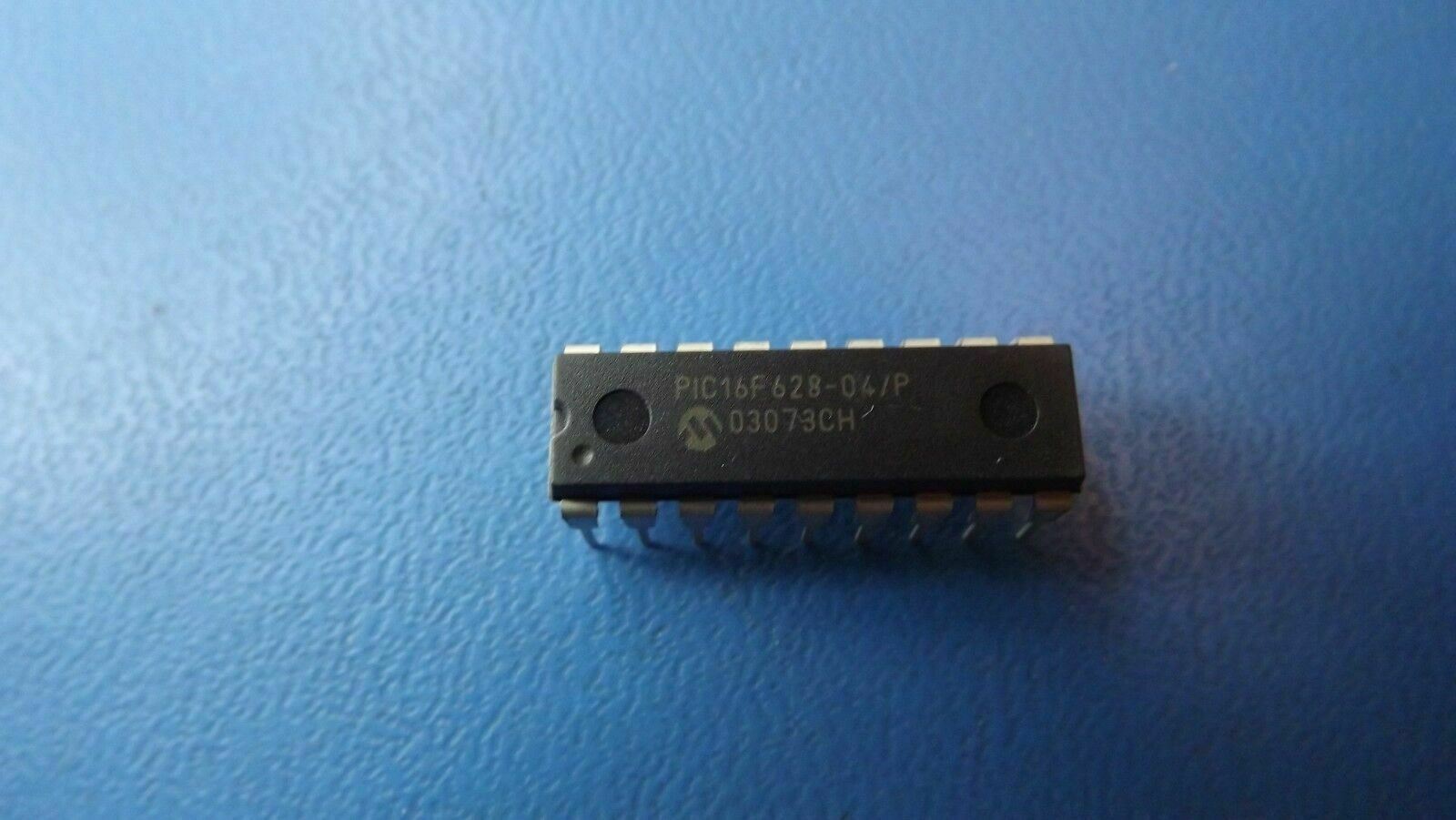

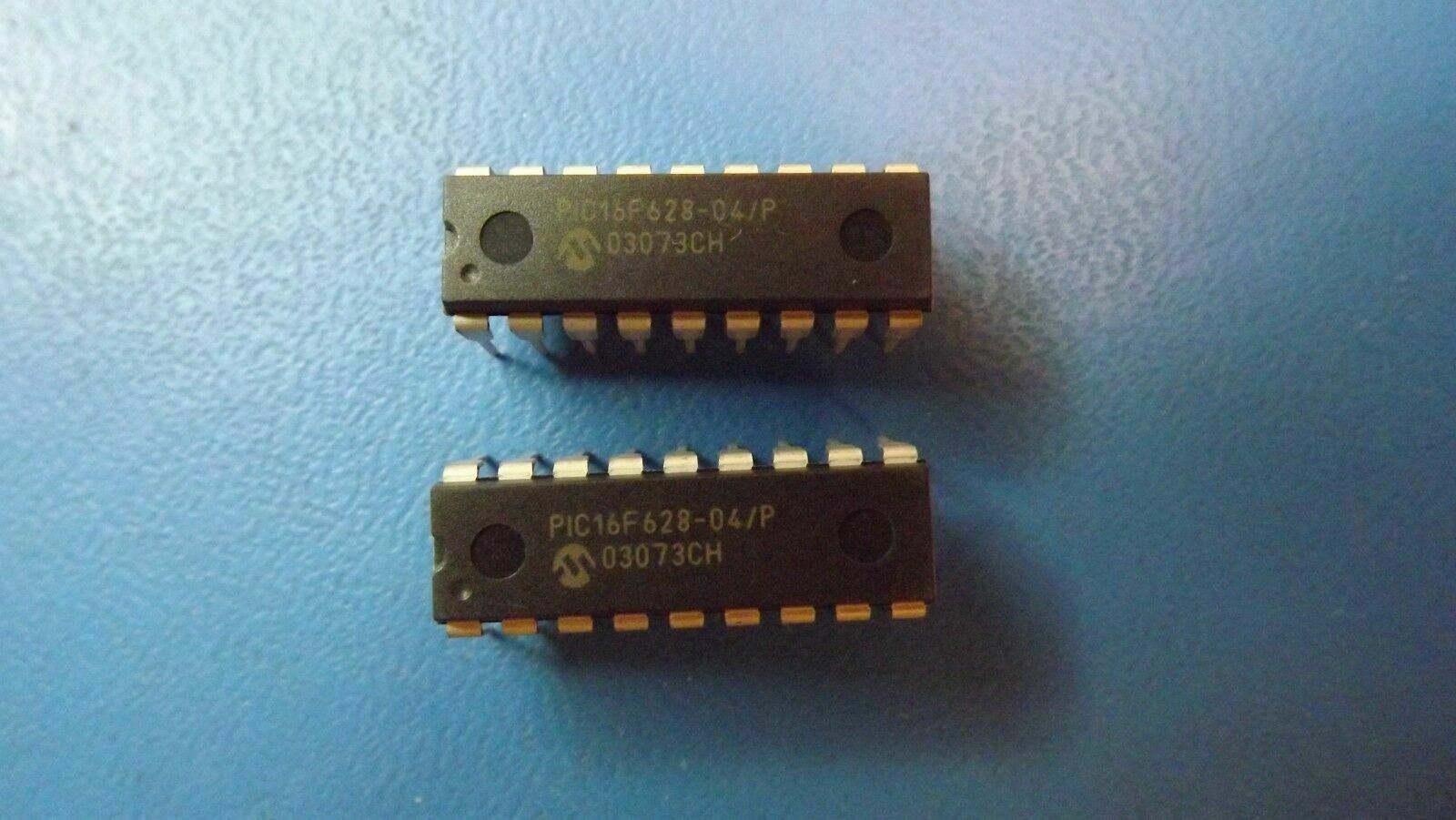

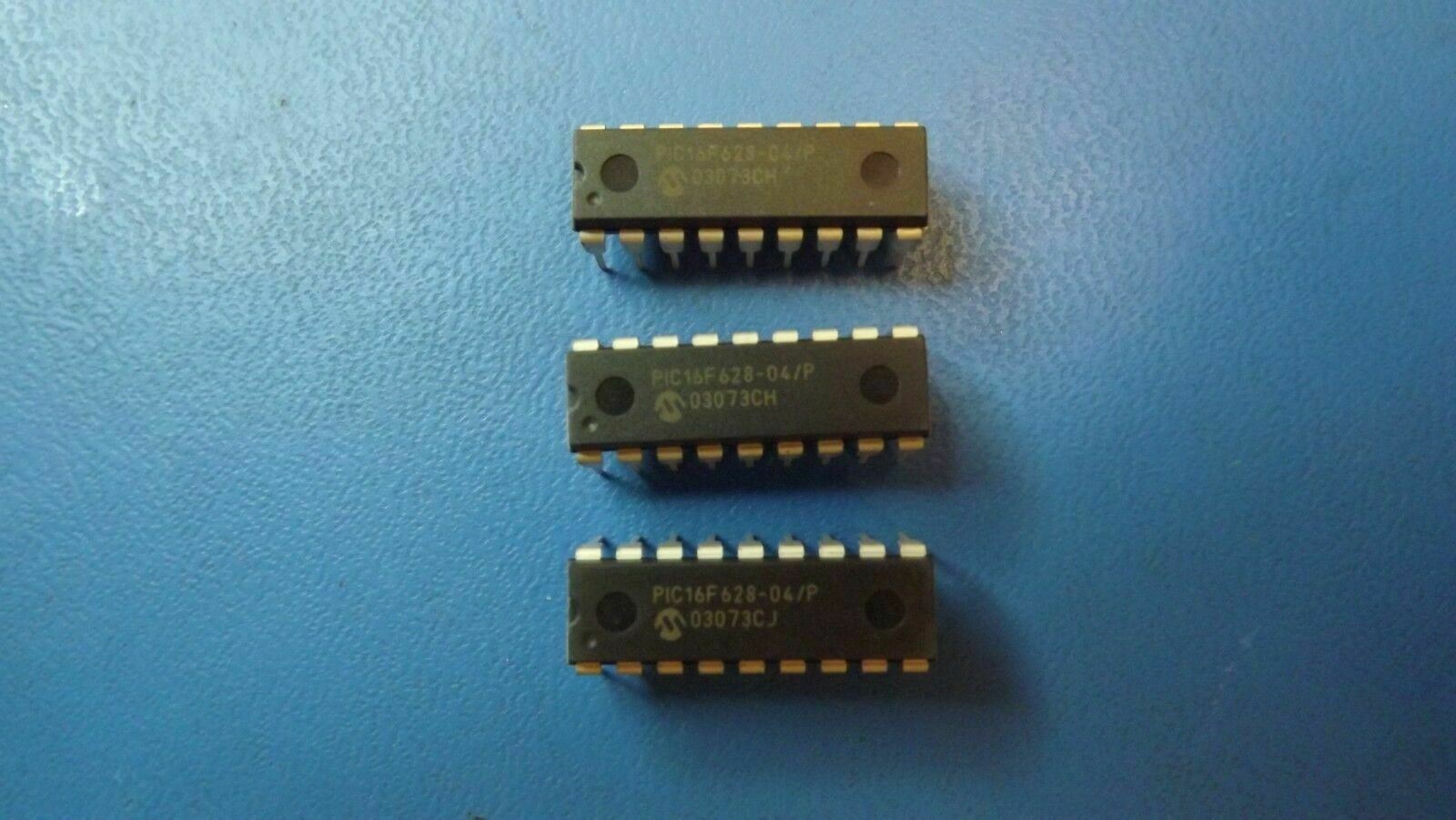

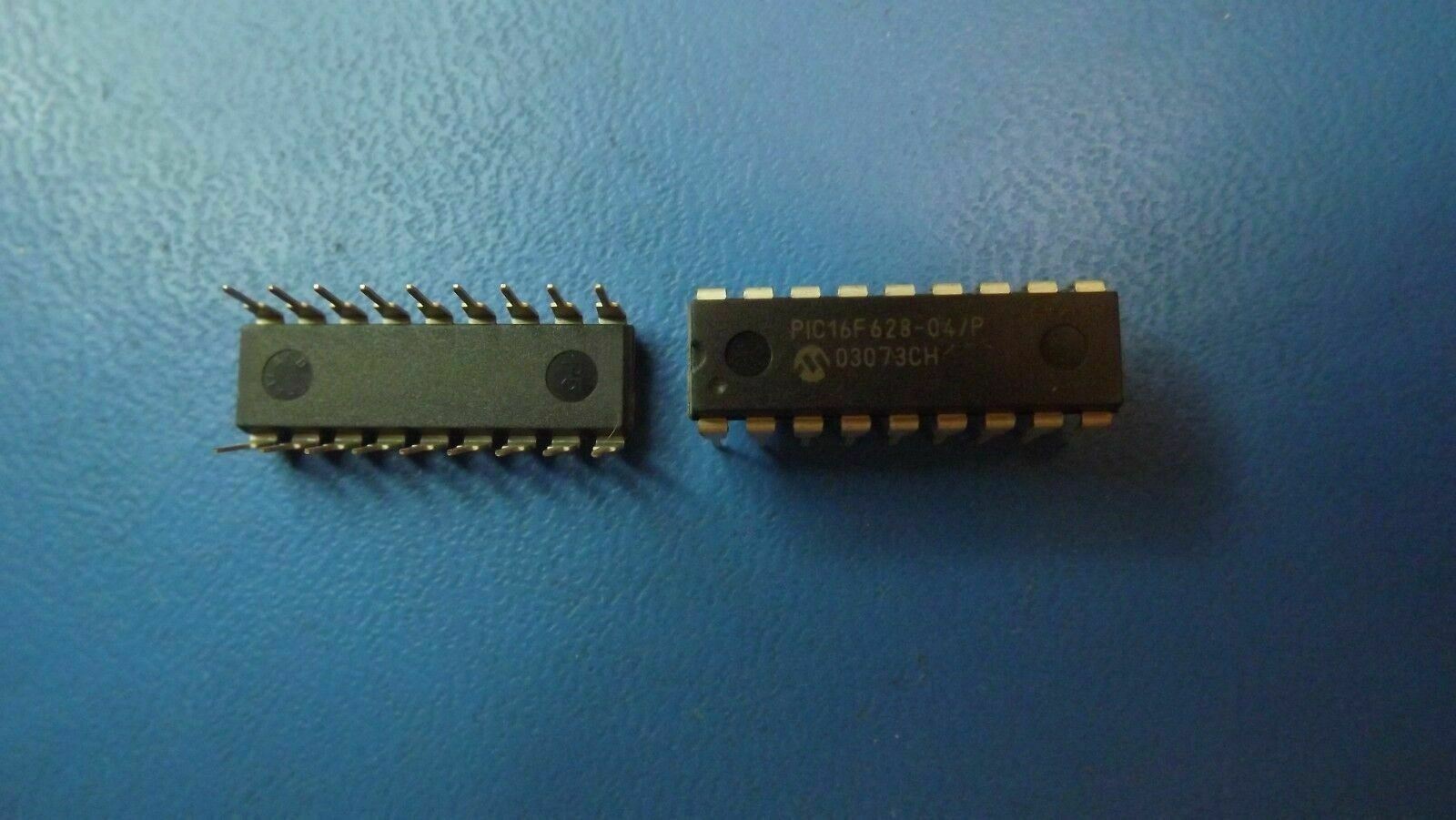

THIS LISTING IS FOR (7PCS) OF PIC16F628-04/P BY MICROCHIP TECHNOLOGY
SPECIFICATIONS
| Mfr Package Description | 0.300 INCH, PLASTIC, MS-001, DIP-18 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | NRFND |
| Microprocessor/Microcontroller/Peripheral IC Type | MICROCONTROLLER, RISC |
| ADC Channels | NO |
| Address Bus Width | 0.0 |
| Bit Size | 8 |
| Clock Frequency-Max | 4.0 MHz |
| CPU Family | PIC |
| DAC Channels | NO |
| DMA Channels | NO |
| External Data Bus Width | 0.0 |
| JESD-30 Code | R-PDIP-T18 |
| JESD-609 Code | e3 |
| Number of I/O Lines | 16.0 |
| Number of Terminals | 18 |
| On Chip Program ROM Width | 14.0 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP18,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 3.3/5 |
| PWM Channels | YES |
| Qualification Status | Not Qualified |
| RAM (bytes) | 224.0 |
| ROM Programmability | FLASH |
| ROM (words) | 2048 |
| Seated Height-Max | 3.94 mm |
| Speed | 4.0 MHz |
| Sub Category | Microcontrollers |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 3.0 V |
| Supply Voltage-Max | 5.5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 22.73 mm |
| Width | 7.62 mm |
