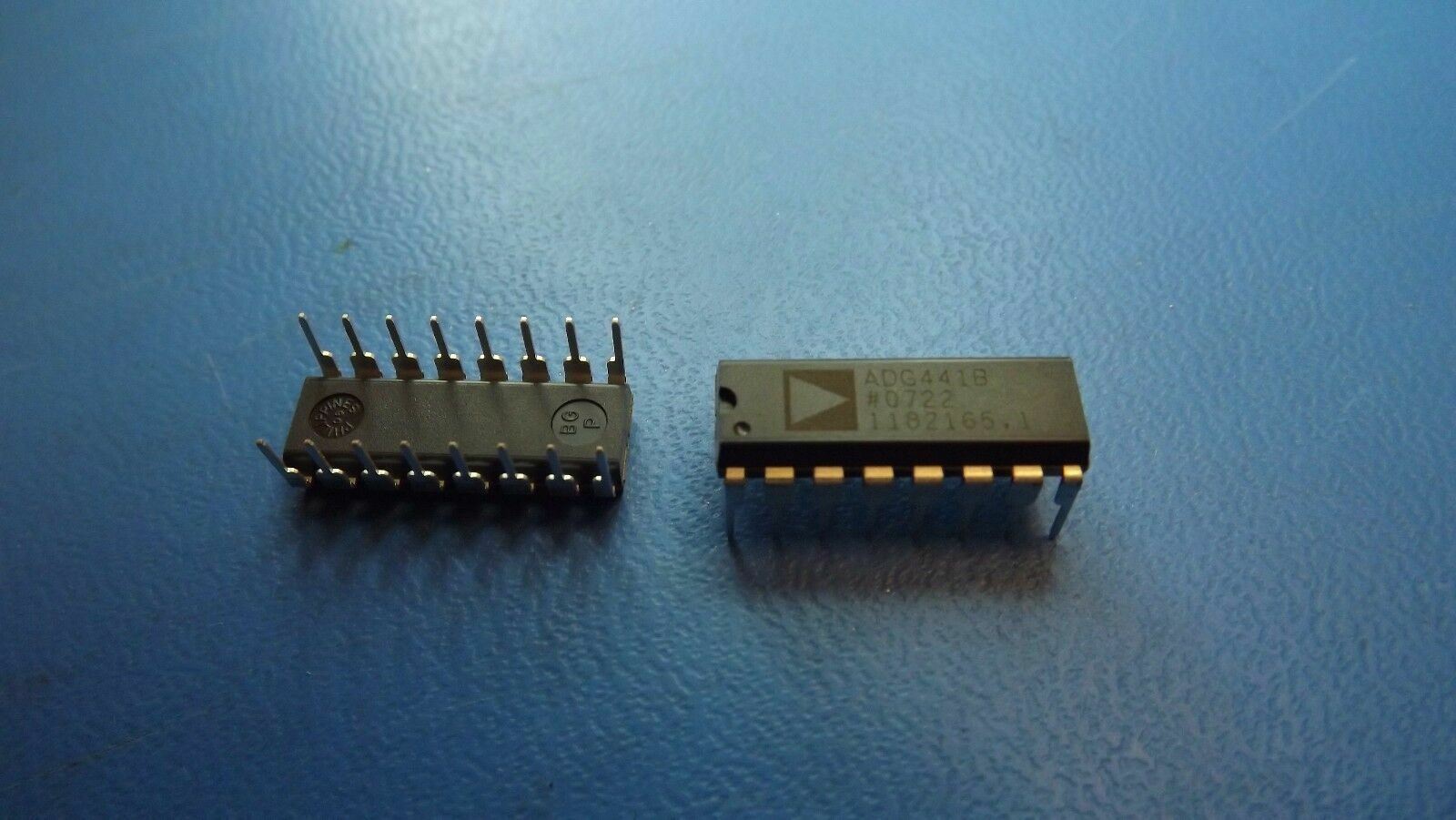

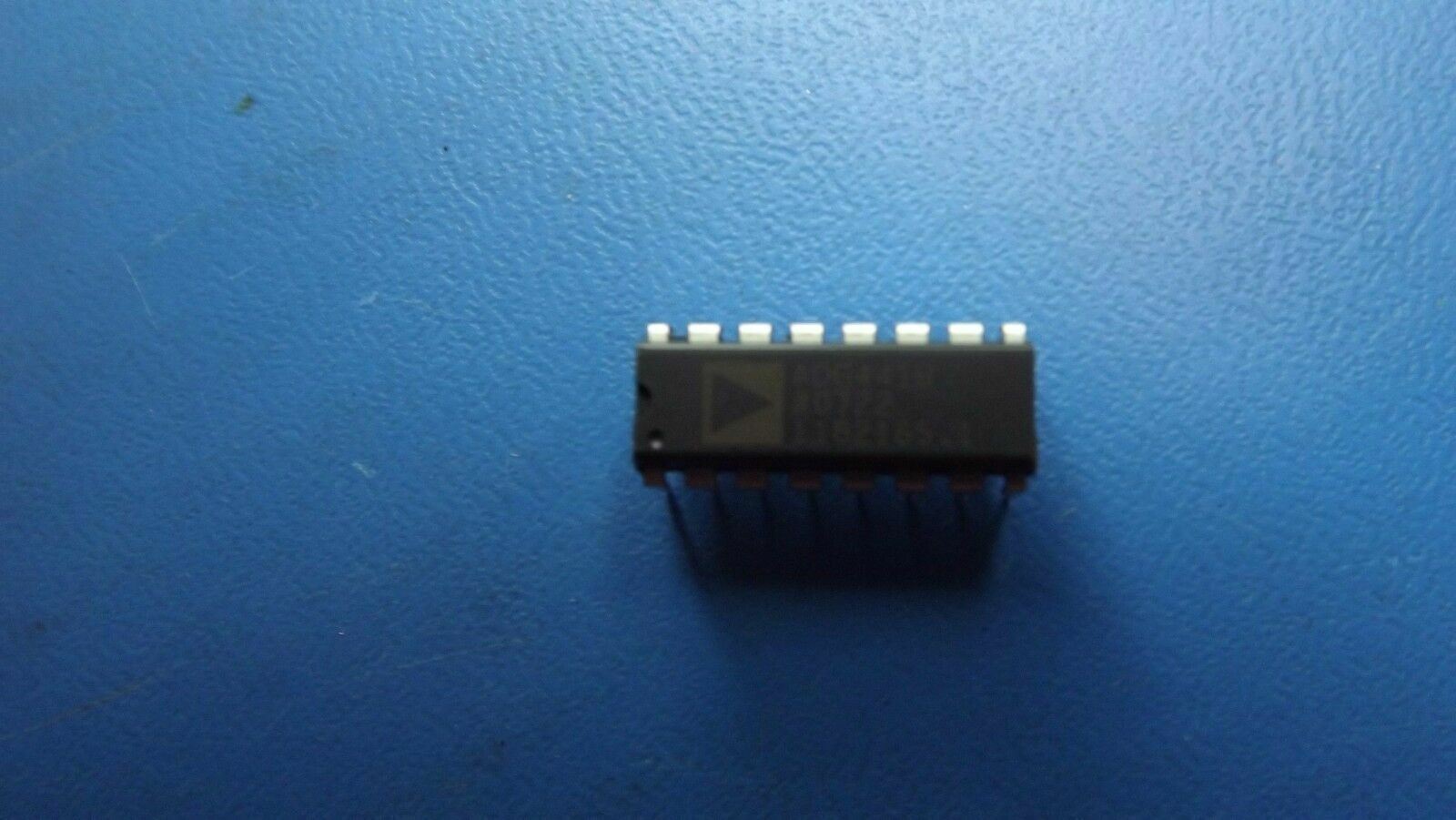

(7PCS) ADG441BNZ ANALOG DEVICES Analog Switch Quad SPST 16-Pin PDIP
Tax included.

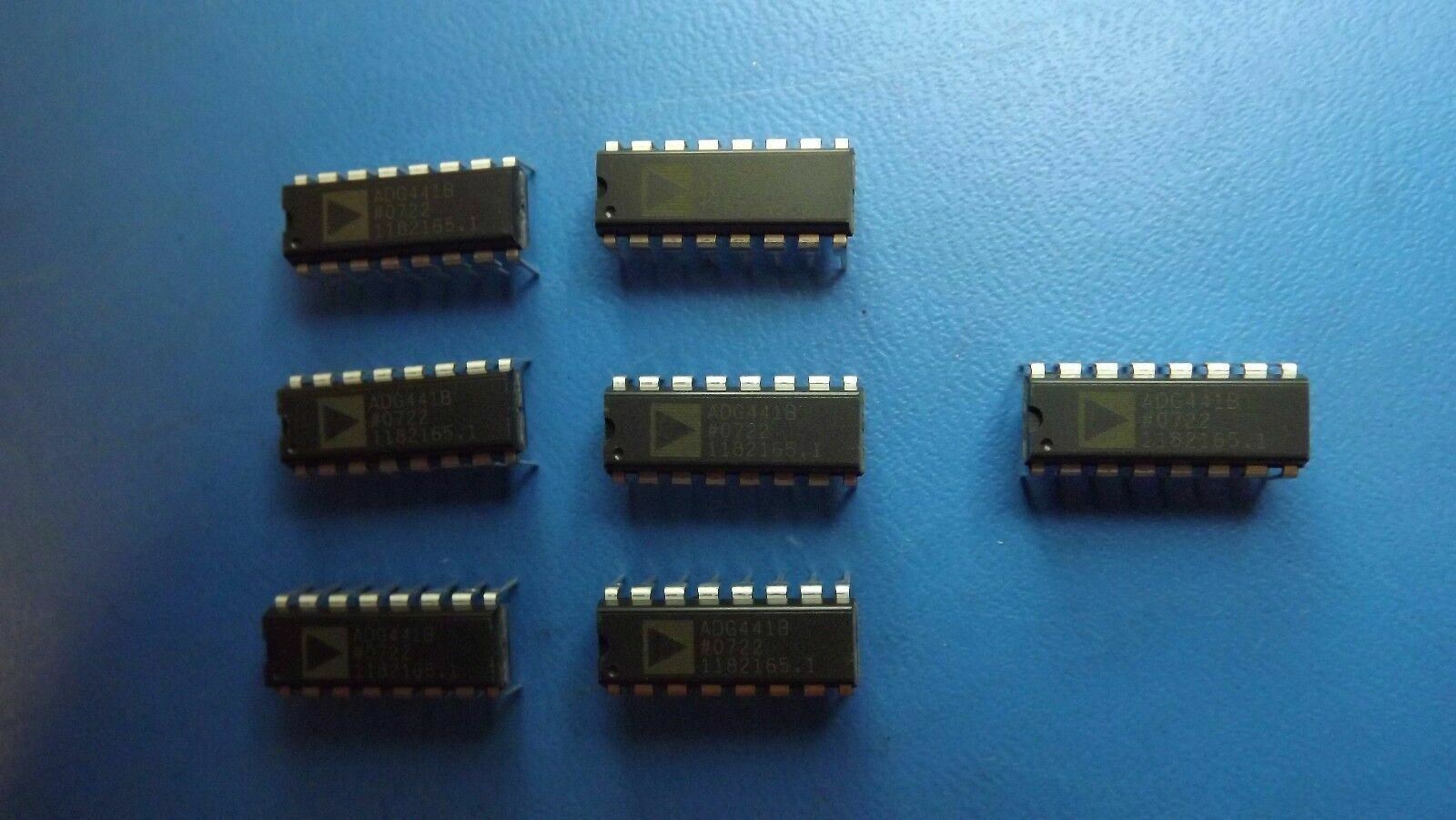

THIS LISTING IS FOR (7PCS) OF ADG441BNZ BY ANALOG DEVICES.
SPECIFICATIONS
| Mfr Package Description | PLASTIC, MO-095AC, DIP-16 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Analog IC - Other Type | SPST |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Neg Supply Voltage-Min (Vsup) | -13.5 V |
| Neg Supply Voltage-Max (Vsup) | -16.5 V |
| Normal Position (V) | NC |
| Number of Channels | 1 |
| Number of Functions | 4 |
| Number of Terminals | 16 |
| Off-state Isolation-Nom | 60.0 dB |
| On-state Resistance Match-Nom | 1.0 ohm |
| On-state Resistance-Max (Ron) | 70.0 ohm |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Power Supplies (V) | 12/+-15 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Sub Category | Multiplexer or Switches |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Supply Voltage-Min (Vsup) | 13.5 V |
| Supply Voltage-Max (Vsup) | 16.5 V |
| Surface Mount | NO |
| Switch-off Time-Max | 60.0 ns |
| Switch-on Time-Max | 110.0 ns |
| Switching (V) | BREAK-BEFORE-MAKE |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Length | 19.43 mm |
| Width | 7.62 mm |
| Additional Feature | CAN ALSO OPERATE WITH 12V SUPPLY |
