(750 PCS) TPSMB6.8A VISHAY Diode TVS Single Uni-Dir 5.8V 600W 2-Pin SMB T/R
Tax included.

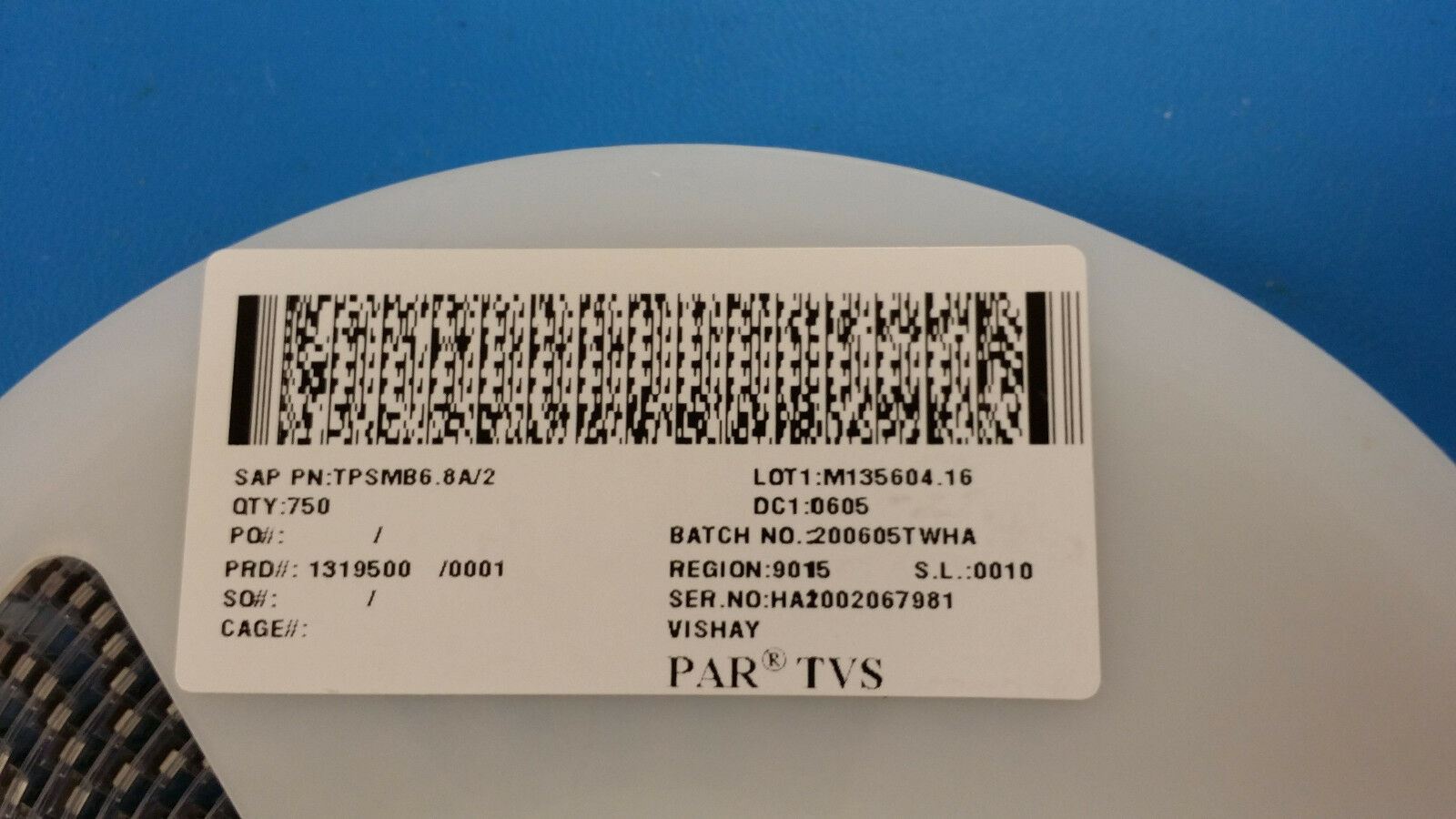

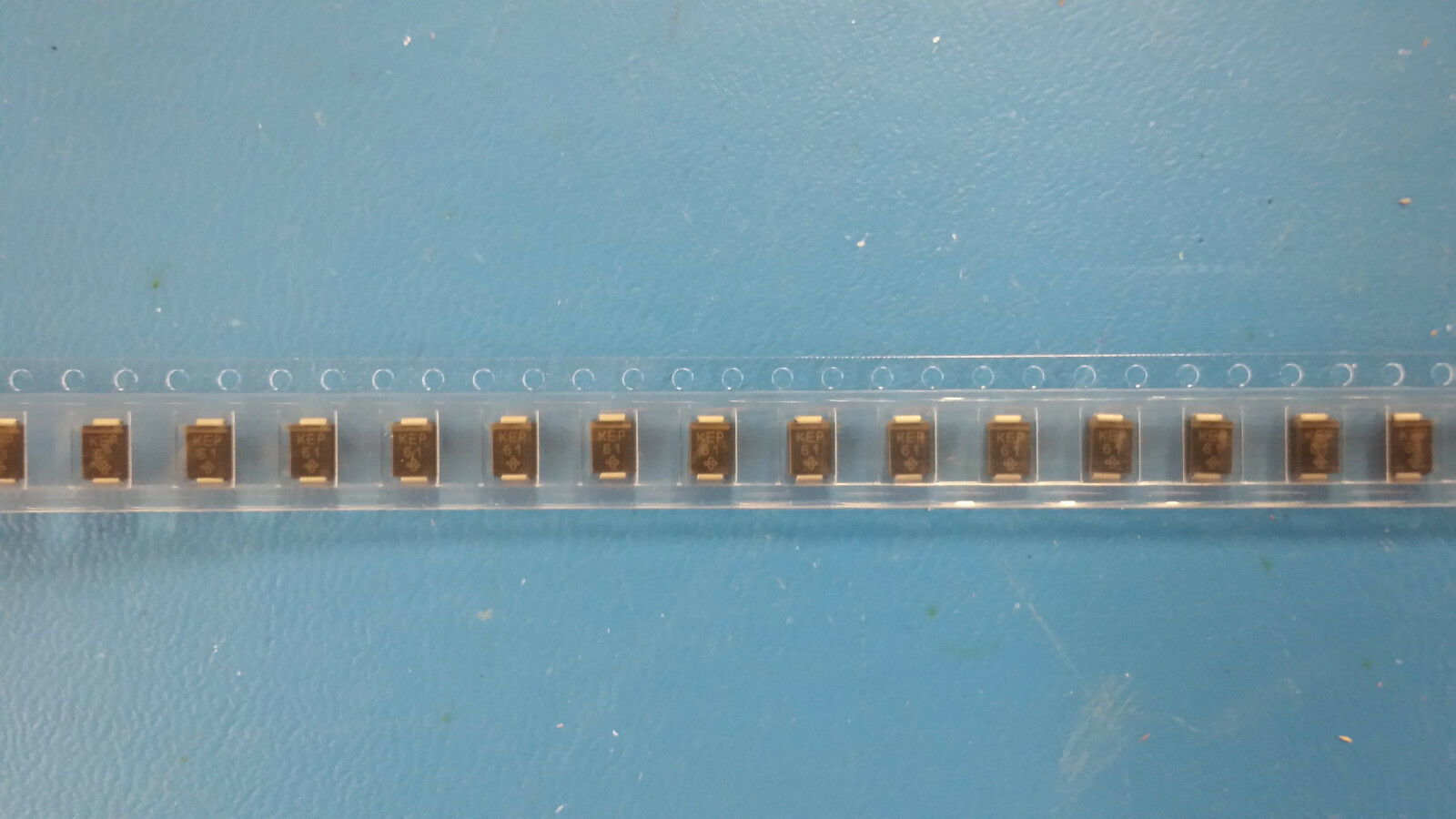

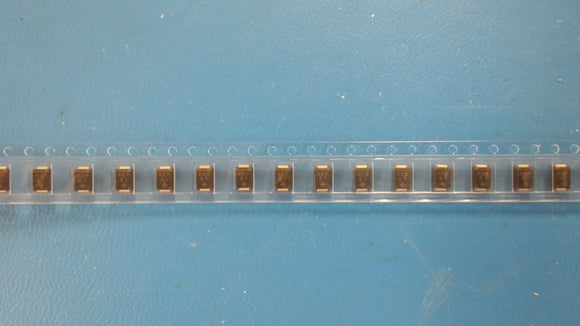

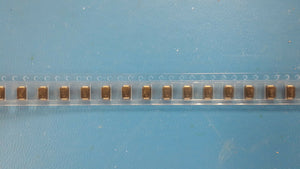

THIS LISTING IS FOR (1) 750 PC REEL OF TPSMB6.8A/2 BY VISHAY
Diode TVS Single Uni-Dir 5.8V 600W 2-Pin SMB T/R
Diode TVS Single Uni-Dir 5.8V 600W 2-Pin SMB T/R
| Package | 2SMB | ||
| Configuration | Single | ||
| Direction Type | Uni-Directional | ||
| Peak Pulse Power Dissipation | 600 W | ||
| Maximum Peak Pulse Current | 57.1 A | ||
| Maximum Reverse Leakage Current | 500 uA | ||
| Maximum Clamping Voltage | 10.5 V | ||
| Maximum Reverse Stand-off Voltage | 5.8 V | ||
| Minimum Breakdown Voltage | 6.45 V | ||
| Test Current | 10 mA | ||
| Operating Temperature | -65 to 185 °C | ||
| Mounting | Surface Mount | ||
| Category | TVS | ||
| Manufacturer | Vishay / Semiconductor |
