(750 PCS) TFDS3000 Integrated Infrared Transceiver Module IrDA (SIR)
Tax included.

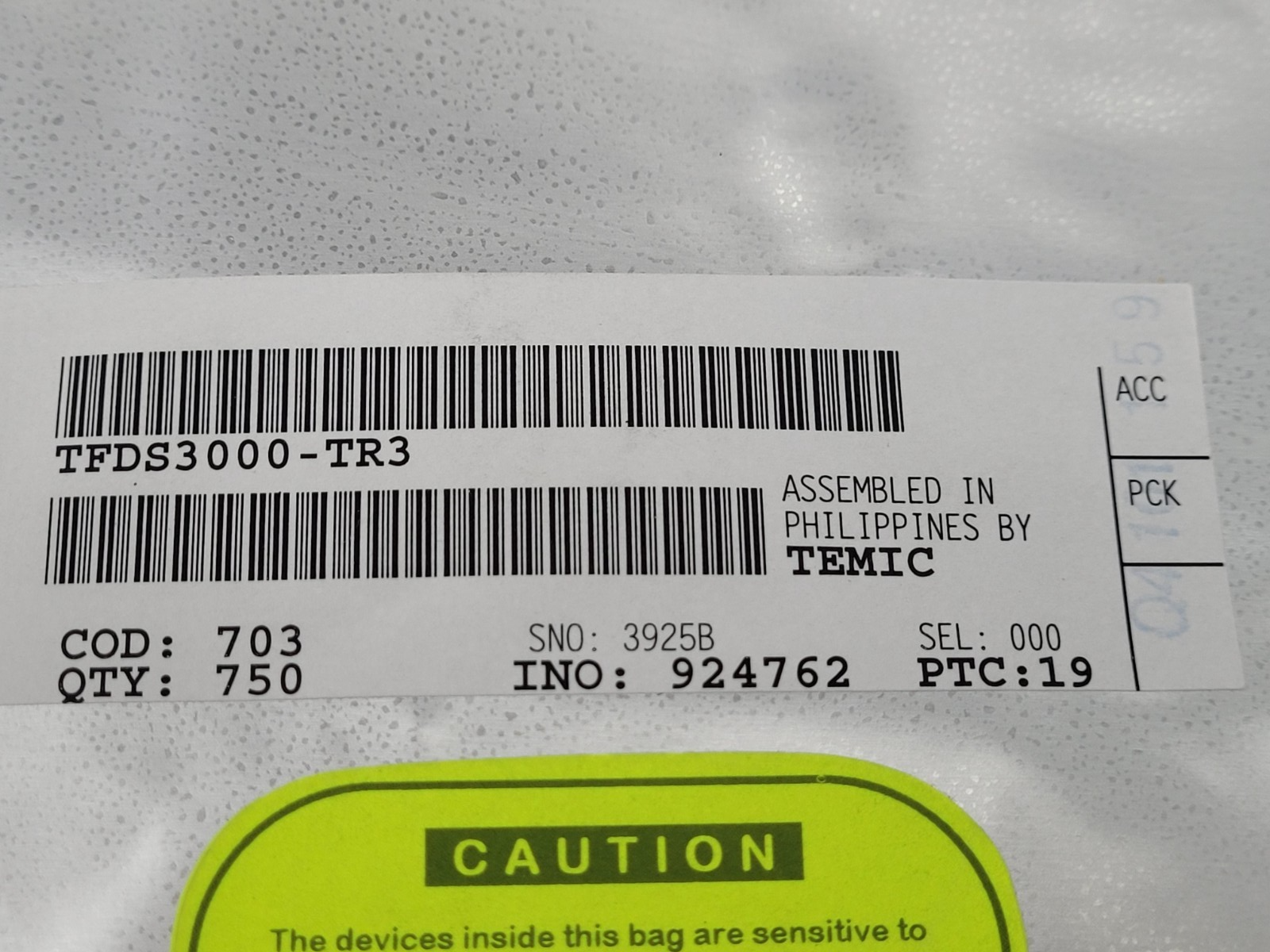

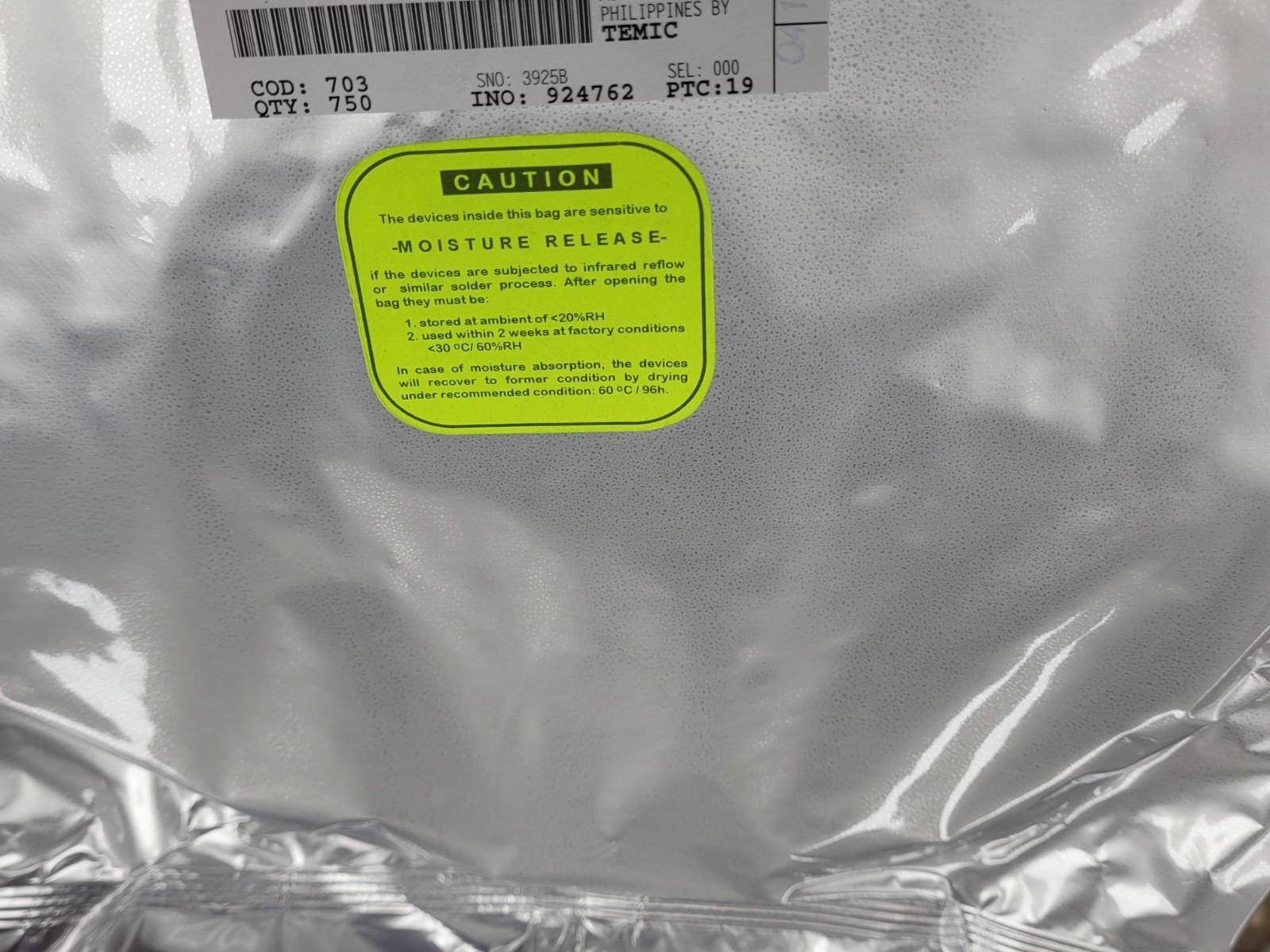

THIS IS FOR (750 PCS) OF TFDS3000 BY TEMIC
Integrated Infrared Transceiver Module IrDA (SIR)
Description
The TFDS3000 is an infrared transceiver for data communication systems. The transceiver is compatible to the
IrDA standard which allows data rates up to 115 kB/s.
Features
Compatible to IrDA standard
SMD side view
Low profile (height = 5.6 mm max.)
Microcomputer compatible
An internal AGC (Automatic Gain Control) ensures
proper operation under EMI conditions.
No external components
Low power consumption
Wide supply voltage range (3 to 5.5 V)
AGC for EMI immunity
Pin description:
1: IRED cathode
2: Rxd (output)
3: Vcc (supply voltage)
4: Ground
5: NC*)
6: **)
7: Txd (input)
8: IRED anode
Guide pins internally connected to ground
