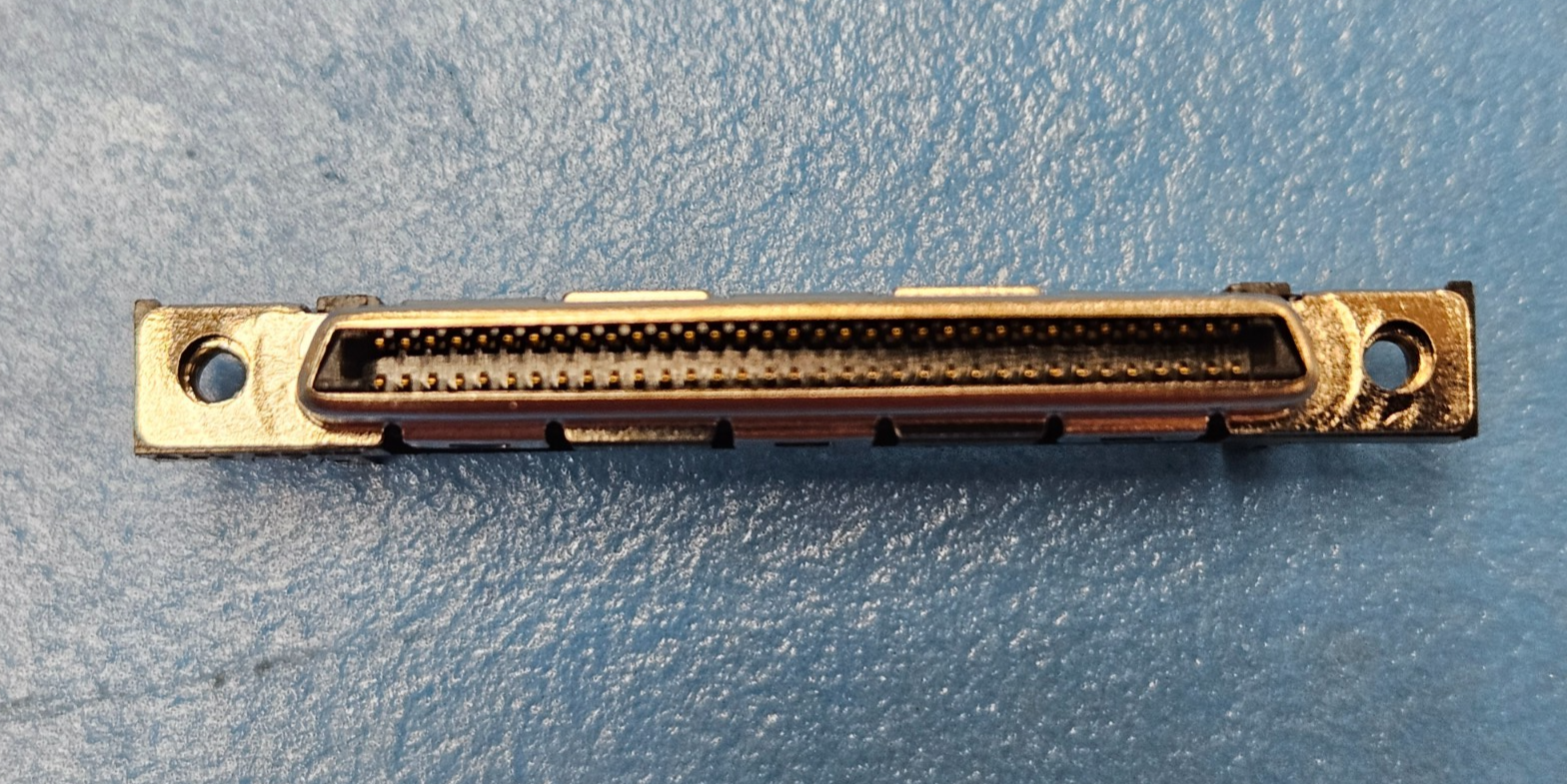

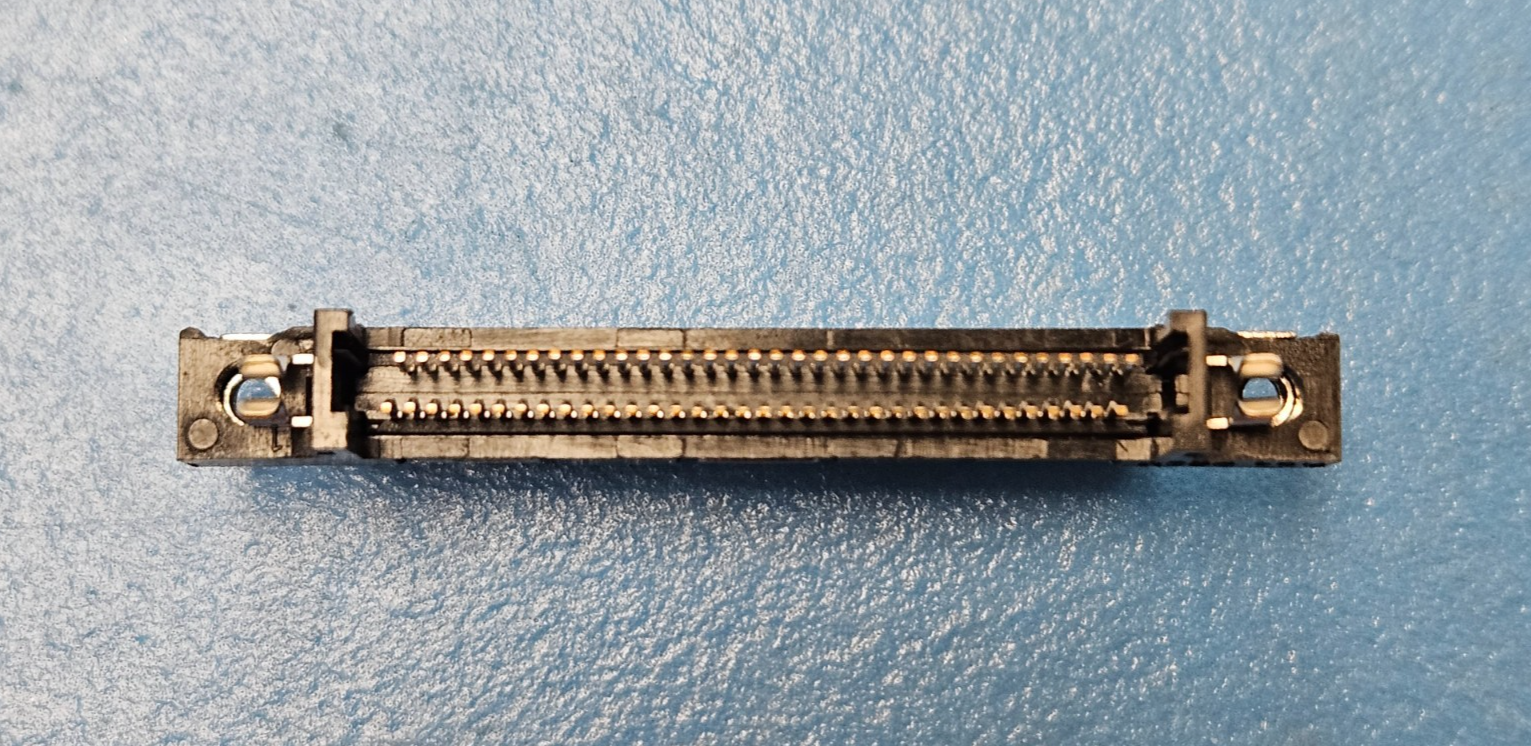

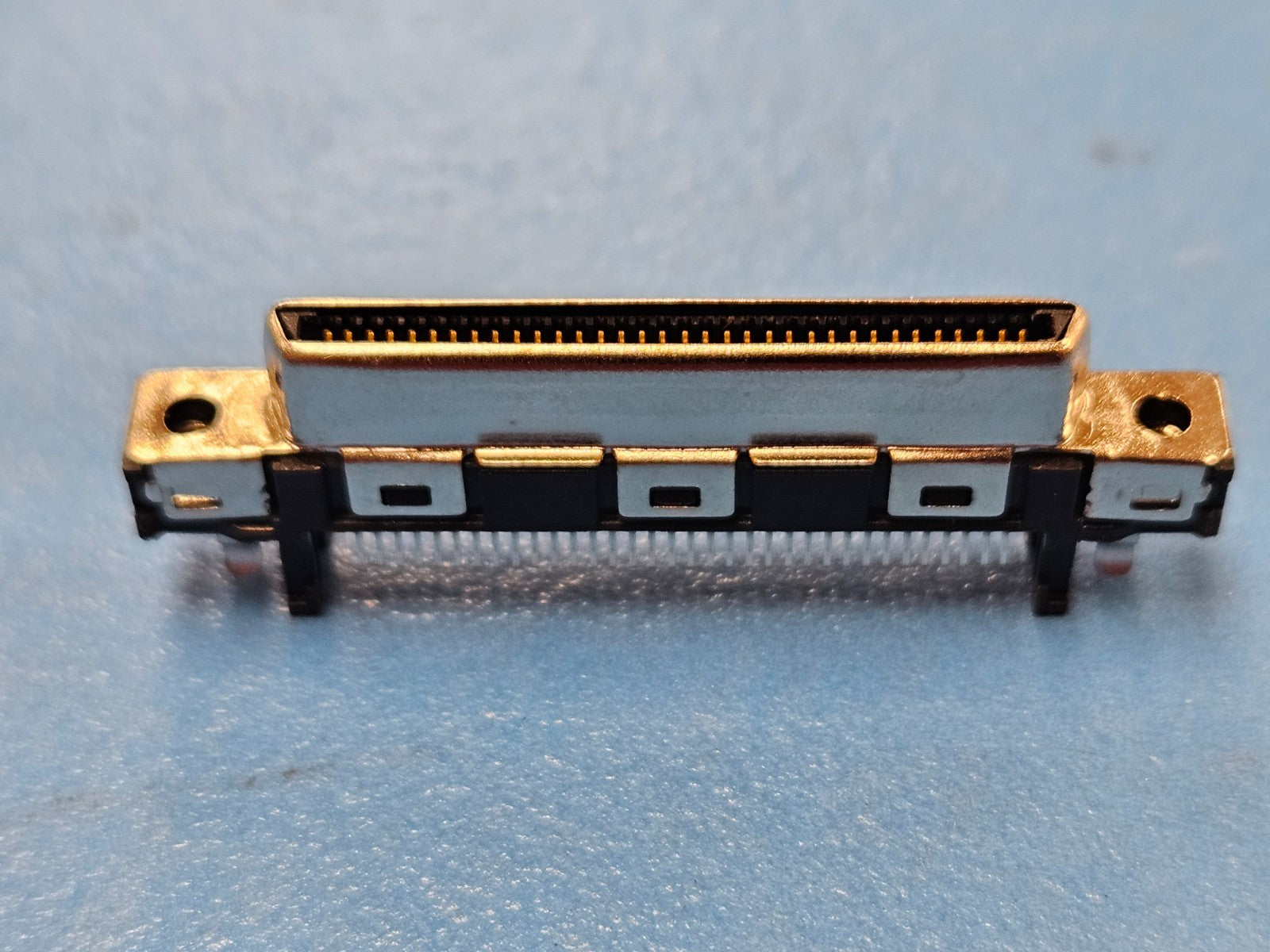

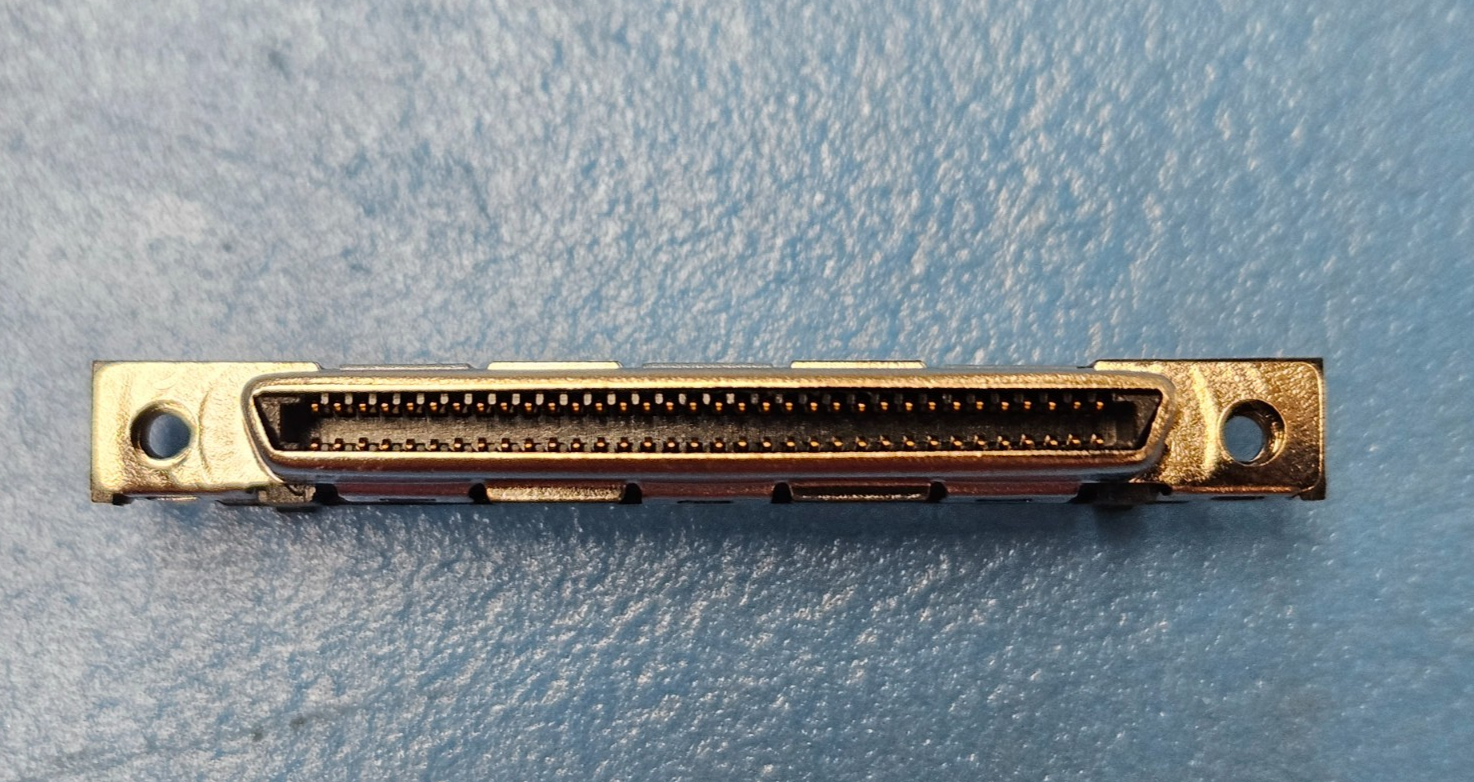

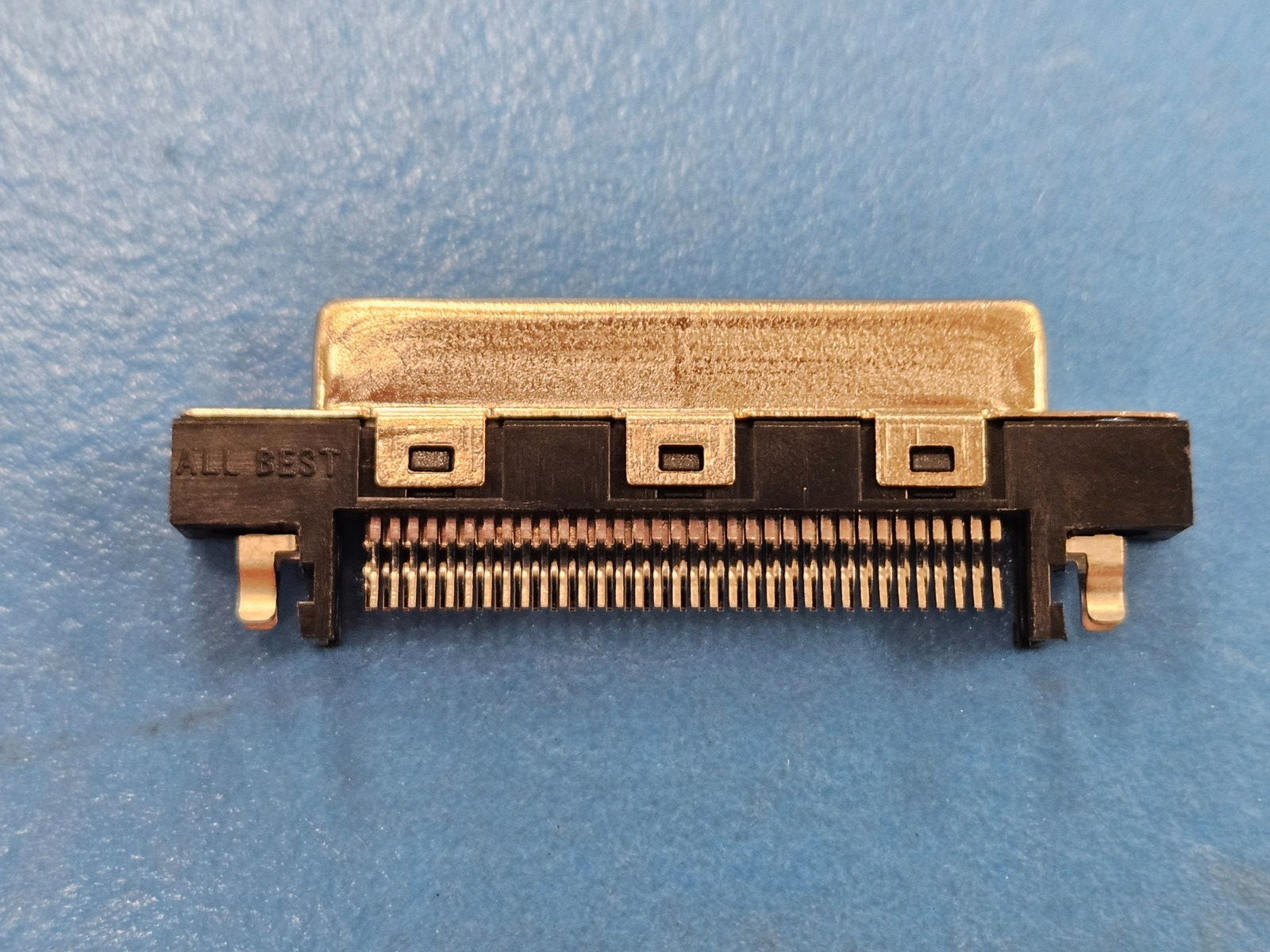

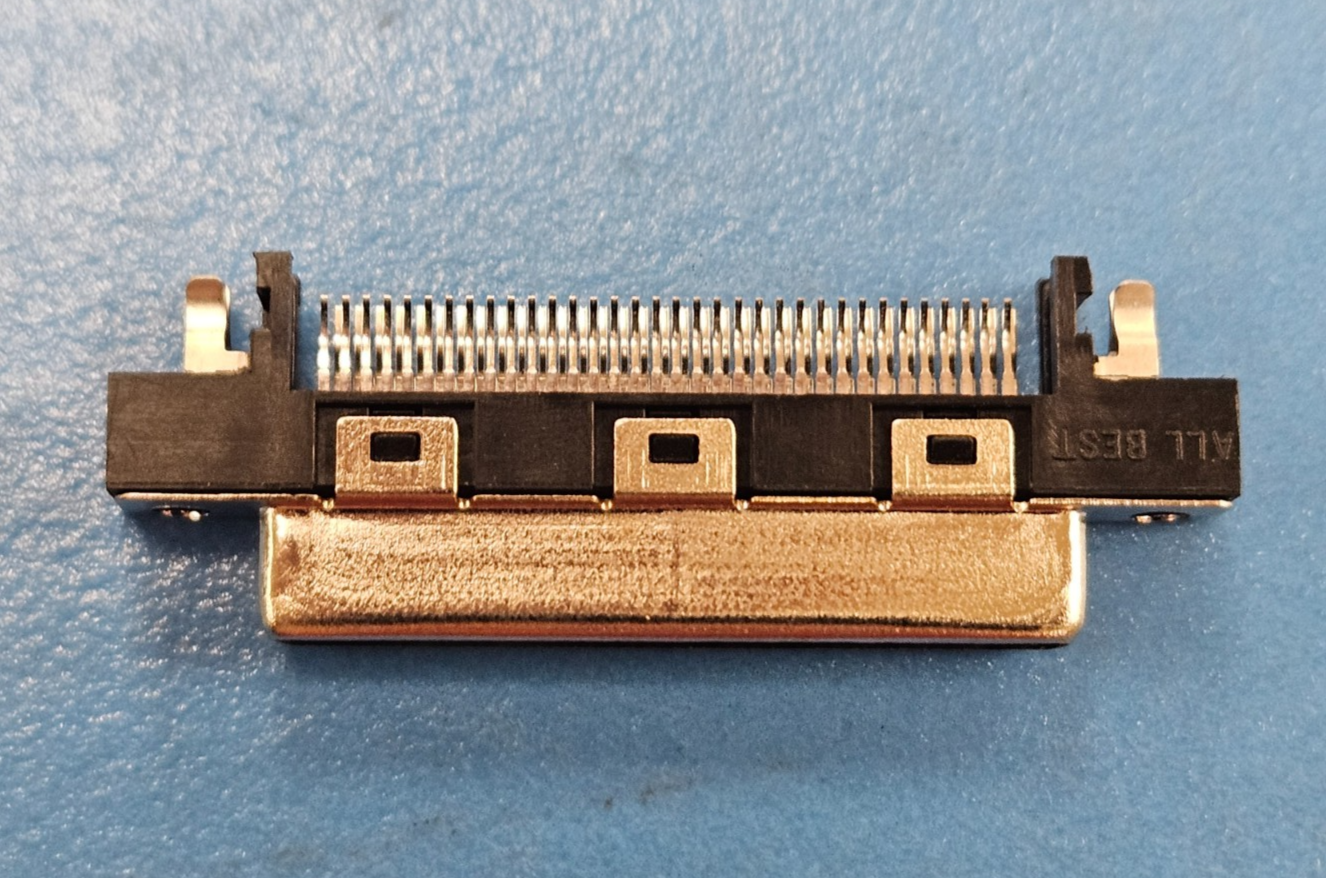

72405-002 FCI Telecom and Datacom Connector, 68 Contact
Tax included.

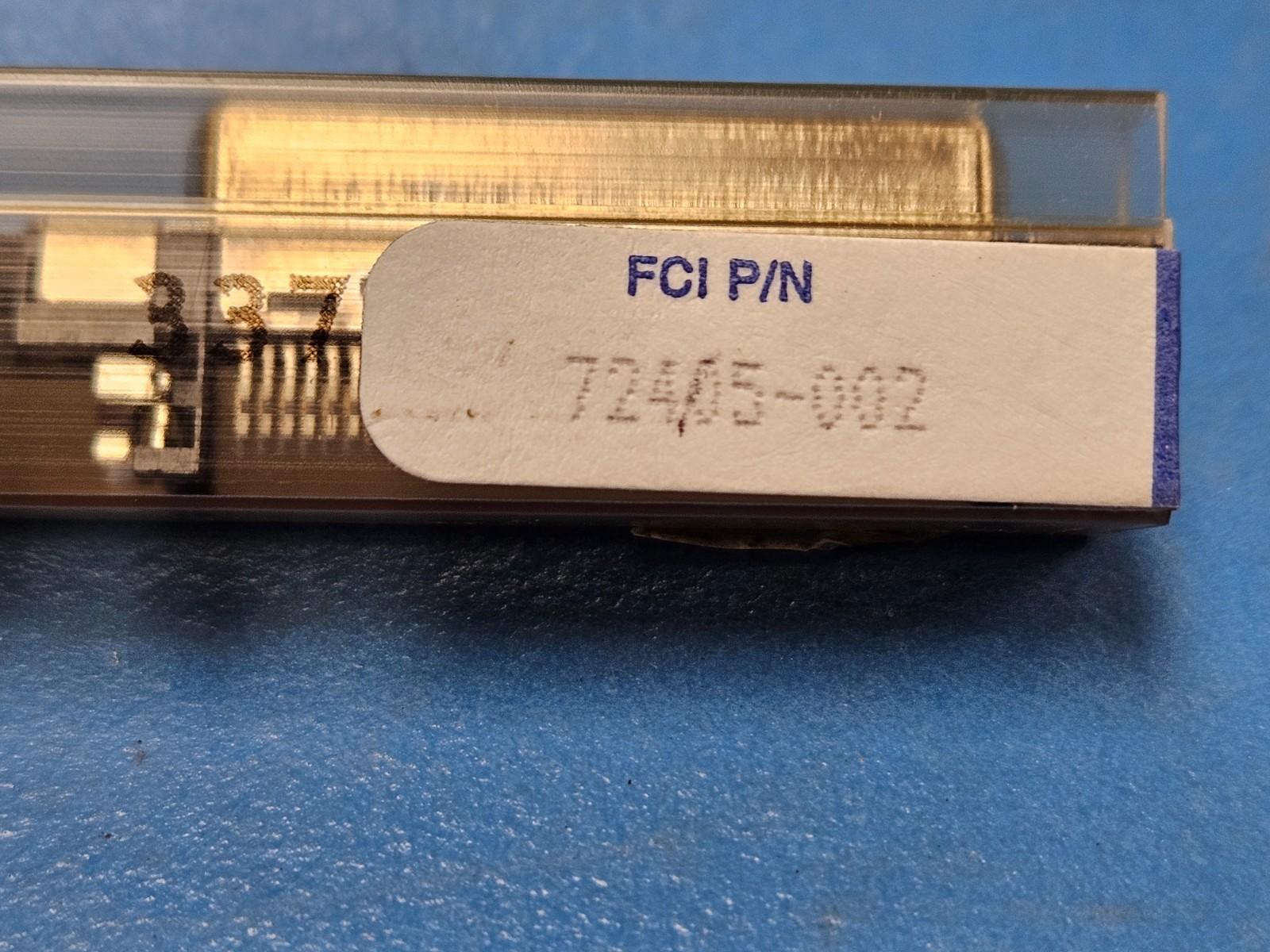

This listing is for (1PC) of 72405-002 by FCI
Status Discontinued
Additional Feature POLARIZED
Board Mounting Option EDGE MOUNT
Body Breadth (inch) 0.197000
Body Depth (inch) 0.372000
Body Length (inch) 1.681000
Body/Shell Style RECEPTACLE
Connector Type TELECOM AND DATACOM CONNECTOR
Contact Design PREASSEM CONN
Contact Finish - Mating AU ON PD-NI
Contact Gender FEMALE
Contact Material BERYLLIUM COPPER
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 60.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 250VAC
Durability (Cycles) 2000
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) .556
Insulation Resistance (ohm) 500000000.000000000000000
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mating Contact Pitch (inch) 0.031
Mixed Contacts NO
Mounting Option 1 M2X0.4
Mounting Type BOARD
Number of Rows Loaded 2
Option GENERAL PURPOSE
Plating Thickness (inch) FLASH
Rated Current (Signal) (A) 1.5000000000000000
Screening Level / Reference Standard CSA, UL
Shell Finish NICKEL
Shell Material STEEL
Termination Type SURFACE MOUNT
Number of Contacts 68
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .1946
