(700 PCS) A04TJLC COILCRAFT Fixed Inductors A0XT AEC-Q200 12.5 nH 5% 4A ROHS
(700 PCS) A04TJLC COILCRAFT Fixed Inductors A0XT AEC-Q200 12.5 nH 5% 4A ROHS

(700 PCS) A04TJLC COILCRAFT Fixed Inductors A0XT AEC-Q200 12.5 nH 5% 4A ROHS

Tax included.
Only 3 left!

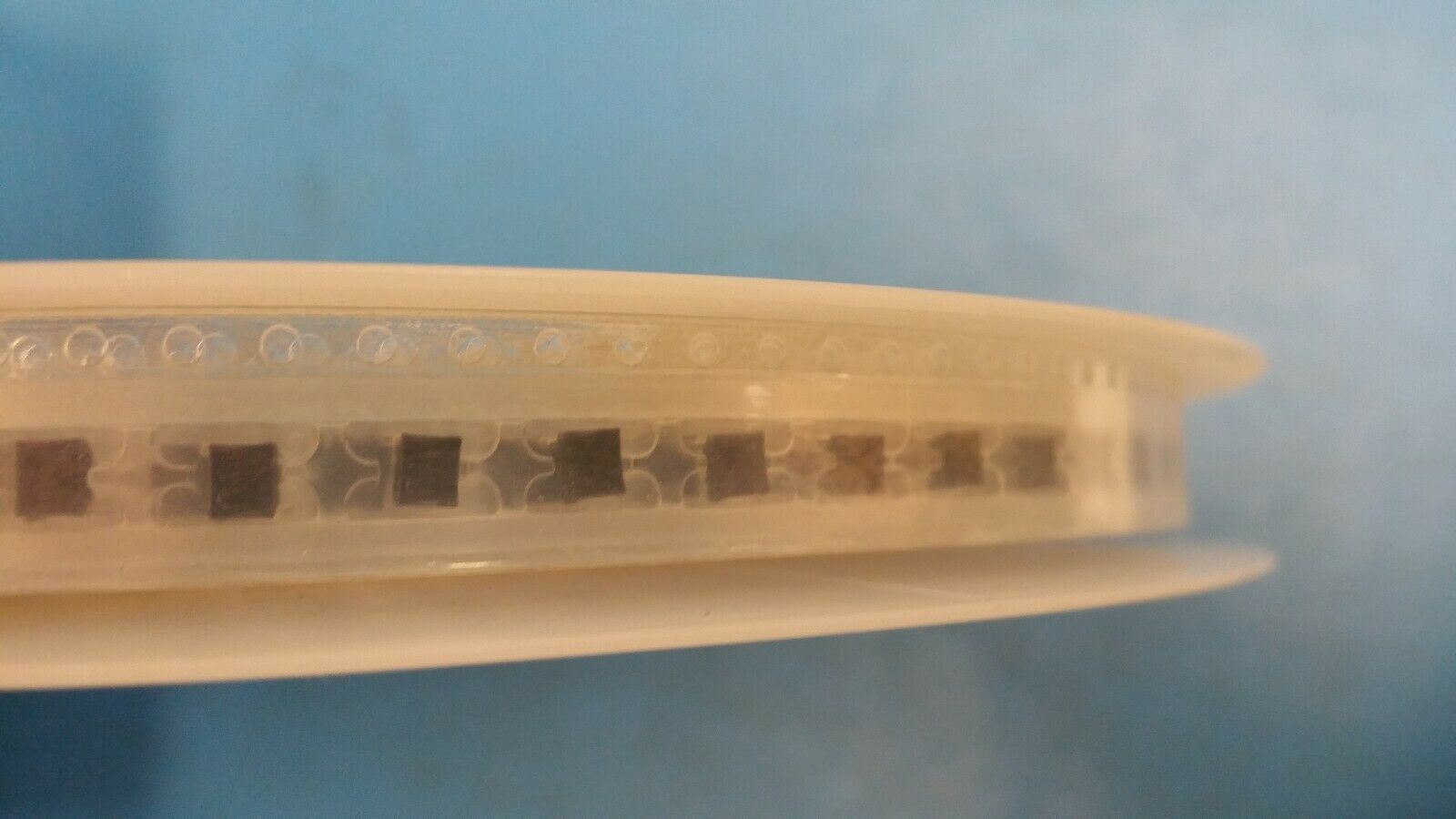

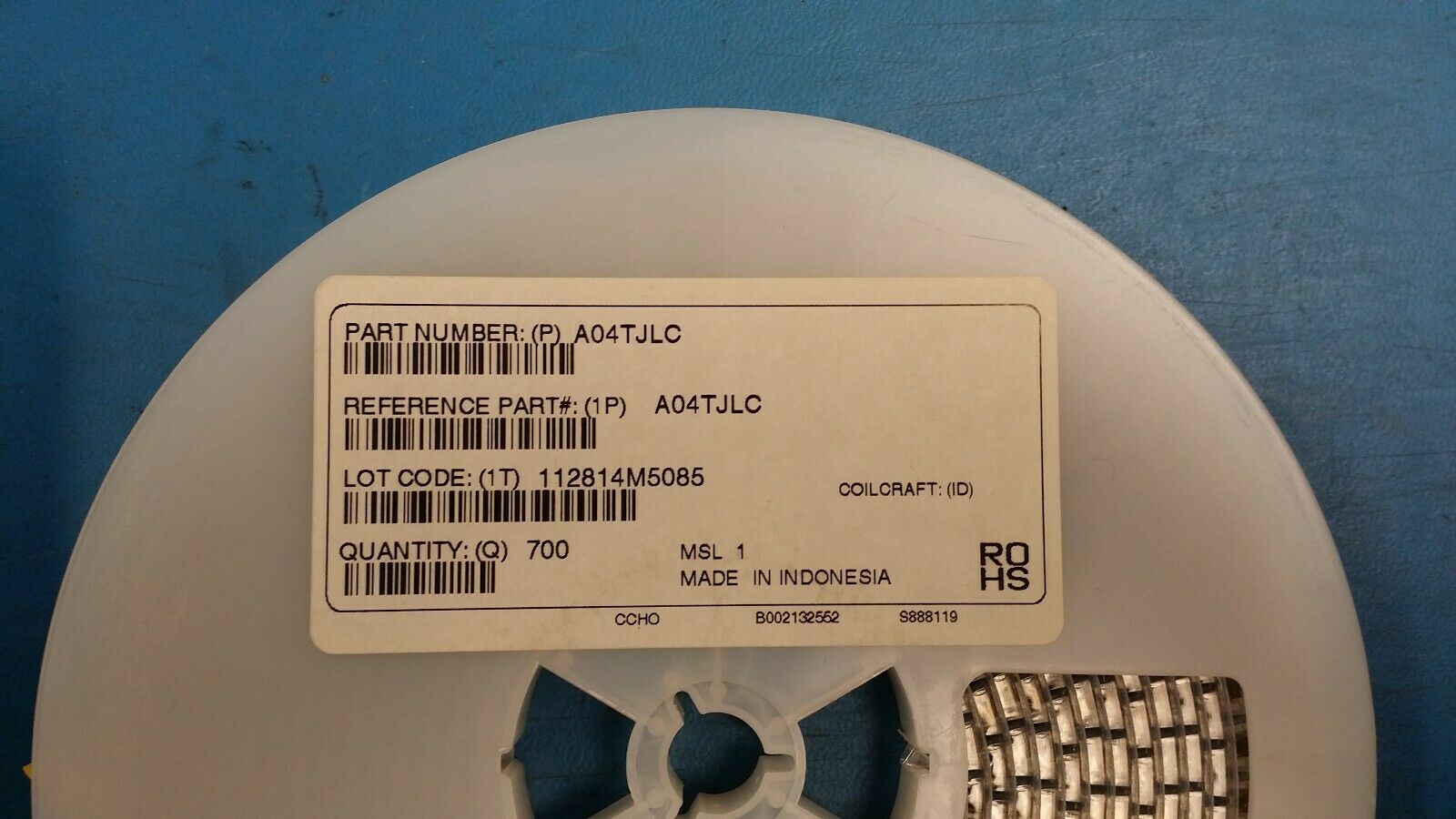

THIS LISTING IS FOR (700 PCS) OF A04TJLC BY COILCRAFT
Fixed Inductors A0XT AEC-Q200 12.5 nH 5 % 4A ROHS

Manufacturer: Coilcraft
Product Category: Fixed Inductors
RoHS:  Yes
Termination Style: SMD/SMT
Shielding: Unshielded
Inductance: 12.5 nH
Tolerance: 5 %
Maximum DC Current: 4 A
Maximum DC Resistance: 3.4 mOhms
Self Resonant Frequency: 3300 MHz
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Q Minimum: 137
Test Frequency: 150 MHz
Termination: -
Mounting Style: PCB Mount
Length: 4.45 mm
Width: 3.94 mm
Height: 3.15 mm
Application: Automotive
Qualification: AEC-Q200
Series: A0XT
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Product: Fixed Inductors
Brand: Coilcraft
Product Type: Fixed Inductors
Factory Pack Quantity: 700
Subcategory: Inductors, Chokes & Coils
Tradename: MINI-SPRING
Part # Aliases: A04TJLB
Unit Weight: 0.002751 oz
