(7 PCS) FQD8P10TM FSC Trans MOSFET P-CH 100V 6.6A 3-Pin(2+Tab) DPAK
Tax included.

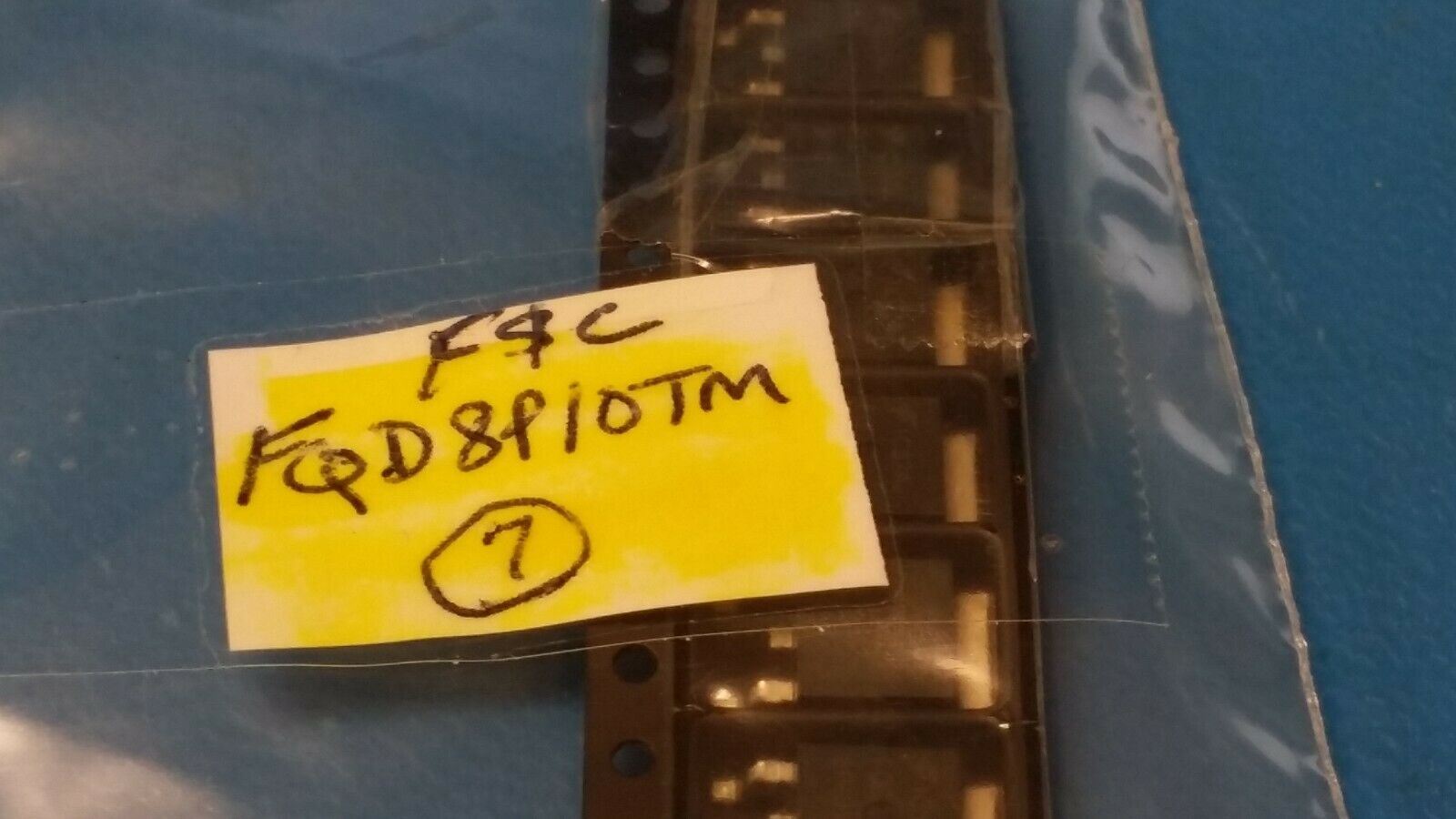

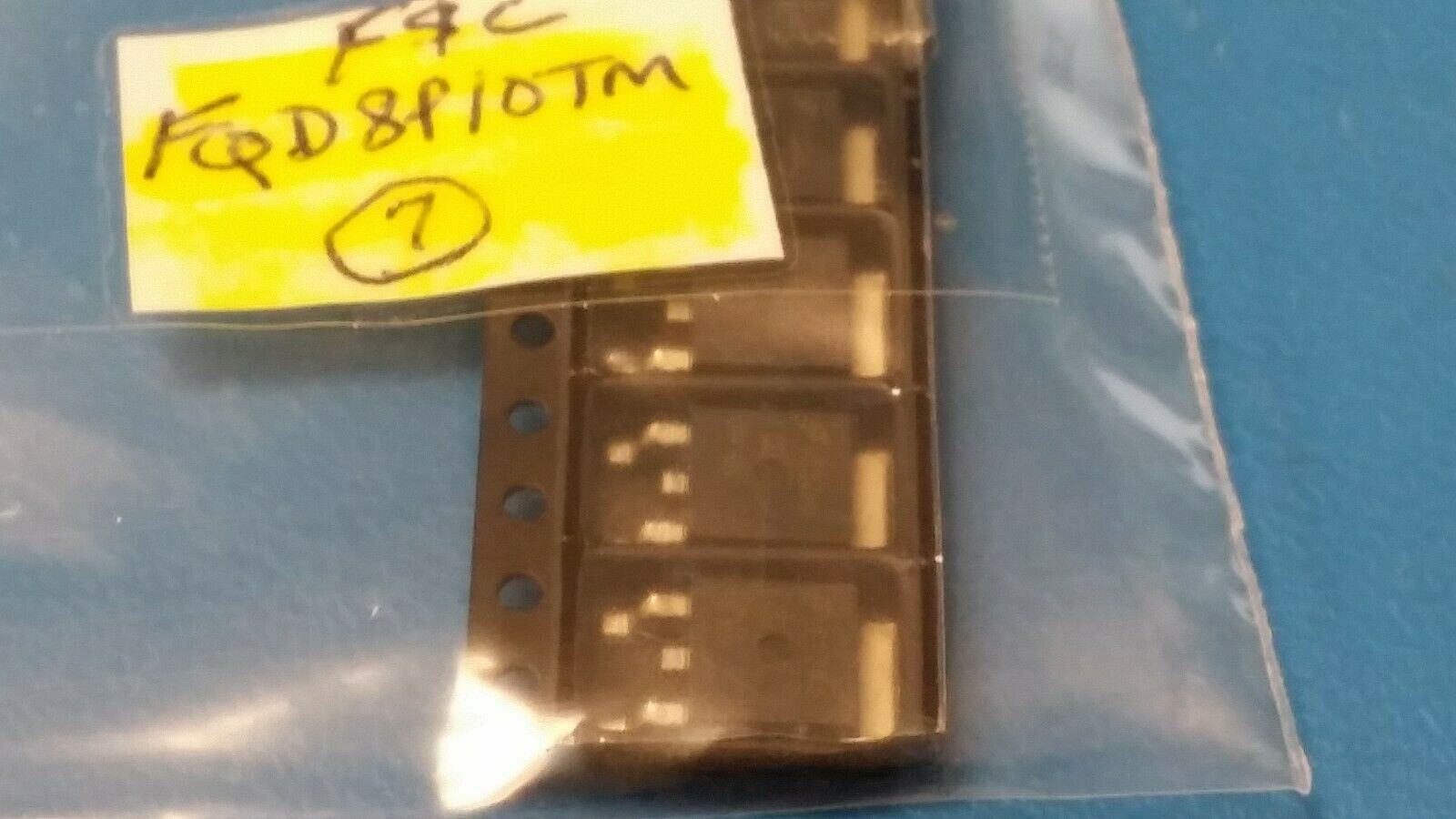

THIS LISTING IS FOR (7 PCS) OF FQD8P10TM BY FSC
Trans MOSFET P-CH 100V 6.6A 3-Pin(2+Tab) DPAK
Manufacturer: ON Semiconductor
Product Category: MOSFET
Technology: Si
Mounting Style: SMD/SMT
Package / Case: TO-252-3
Transistor Polarity: P-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 100 V
Id - Continuous Drain Current: 6.6 A
Rds On - Drain-Source Resistance: 530 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Qg - Gate Charge: 15 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 2.5 W
Channel Mode: Enhancement
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Configuration: Single
Height: 2.39 mm
Length: 6.73 mm
Series: FQD8P10
Transistor Type: 1 P-Channel
Type: MOSFET
Width: 6.22 mm
Brand: ON Semiconductor / Fairchild
Forward Transconductance - Min: 4.1 S
Fall Time: 35 ns
Product Type: MOSFET
Rise Time: 110 ns
Factory Pack Quantity: 2500
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 20 ns
Typical Turn-On Delay Time: 11 ns
Part # Aliases: FQD8P10TM_NL
