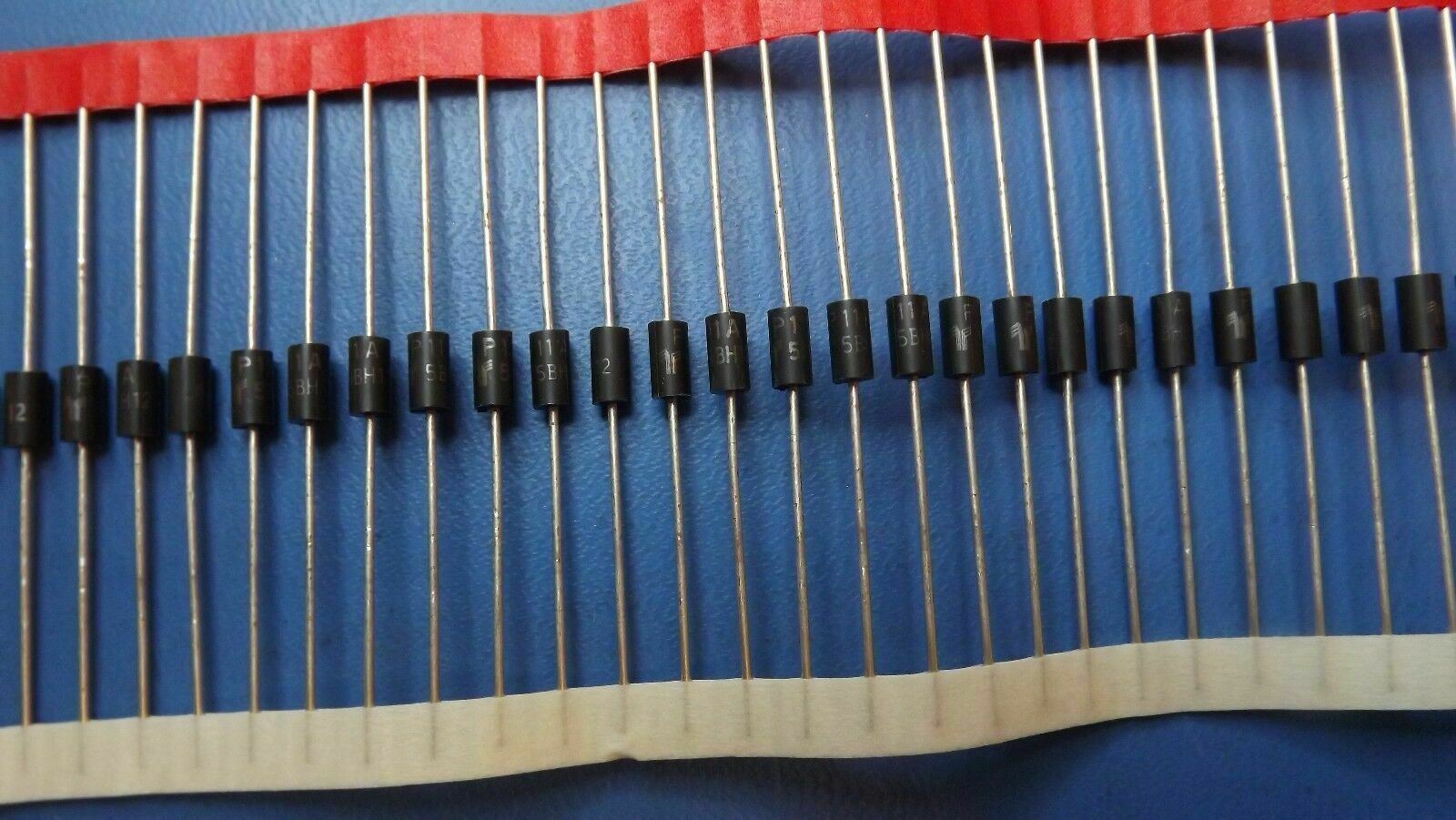

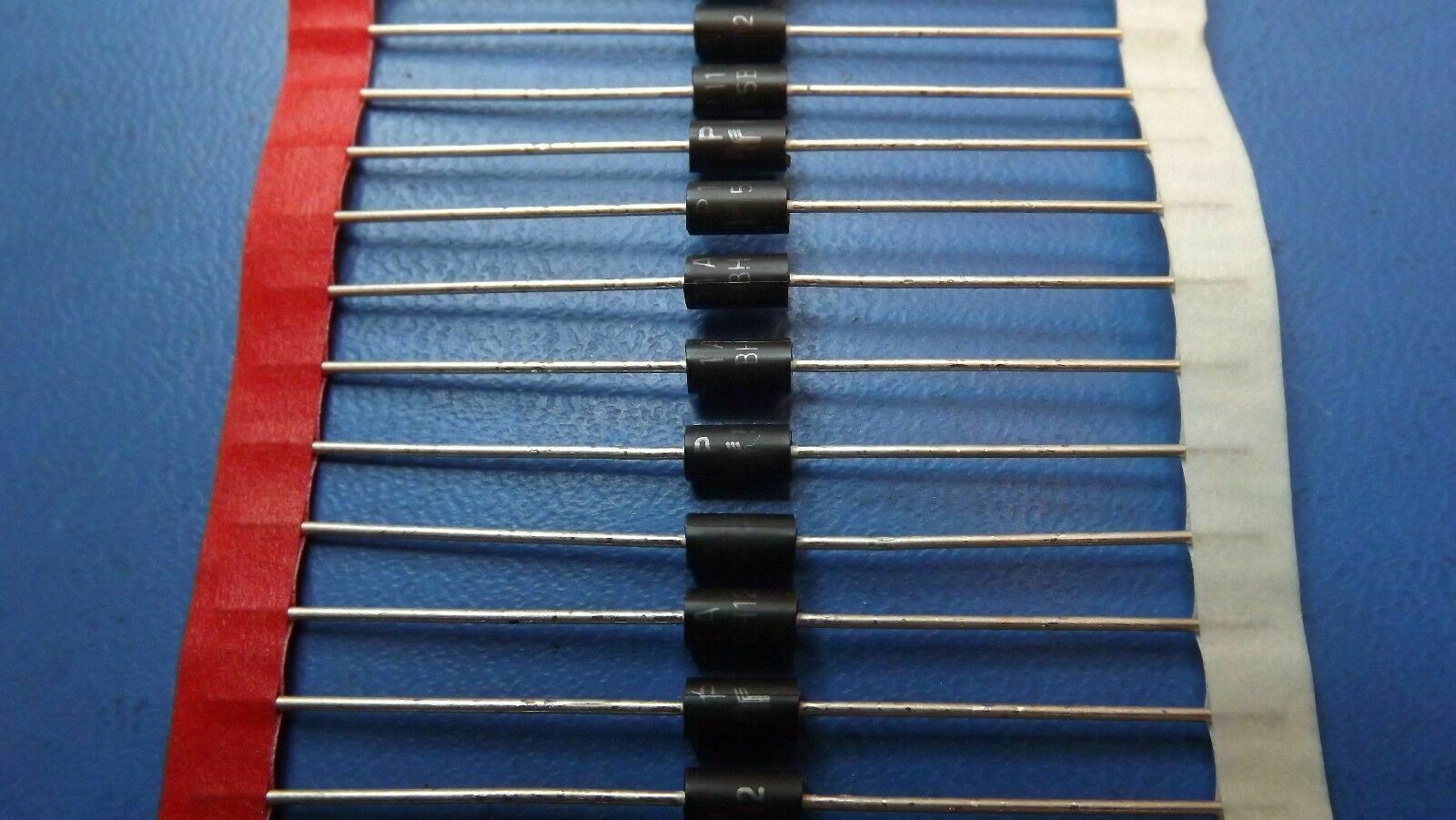

(6PCS) P1100GALRP LITTELFUSE Sidacs 90V 50A DO15 SIDACtor Bi

  • $5.94
    Unit price per
Tax included.

Only 13 left!

THIS LISTING IS FOR (6PCS) OF P1100GALRP BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description ROHS COMPLIANT, PLASTIC PACKAGE-2
EU RoHS Compliant Yes
Status Active
Trigger Device Type SIDAC
Breakover Voltage-Max 130.0  V
Case Connection ISOLATED
Configuration SINGLE
Holding Current-Nom 150.0  mA
Holding Current-Max 150.0  mA
JEDEC-95 Code DO-15
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Reverse Voltage 90.0  V
Sub Category Silicon Surge Protectors
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 30
Additional Feature UL RECOGNIZED
