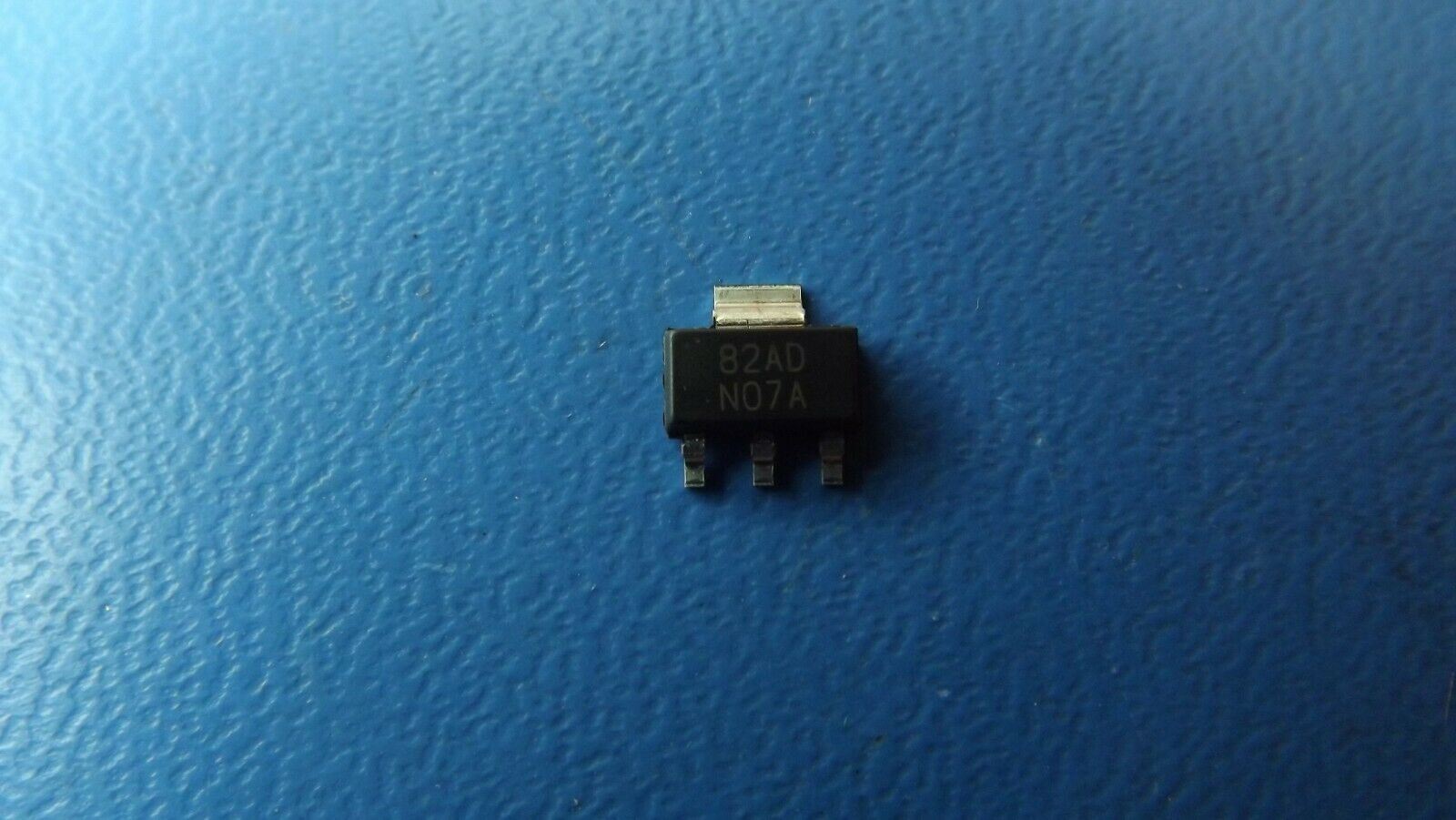

(6PCS) LM317AEMP/NOPB NSC IC REG LIN POS ADJ 1.5A SOT223-4
Tax included.
THIS LISTING IS FOR (6PCS) OF LM317AEMP/NOPB BY NSC/TI
SPECIFICATIONS
| Mfr Package Description | SOT-223, 4 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| Adjustability | ADJUSTABLE |
| Dropout Voltage1-Nom | 3.0 V |
| Input-Output Voltage Differential-Min | 3.0 V |
| Input-Output Voltage Differential-Max | 40.0 V |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e3 |
| Line Regulation-Max (%/V) | 0.02 |
| Load Regulation-Max(%) | 1.0 % |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature, TJ-Min | -40.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 1.0 A |
| Output Voltage1-Min | 1.2 V |
| Output Voltage1-Max | 37.0 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOT-223 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |

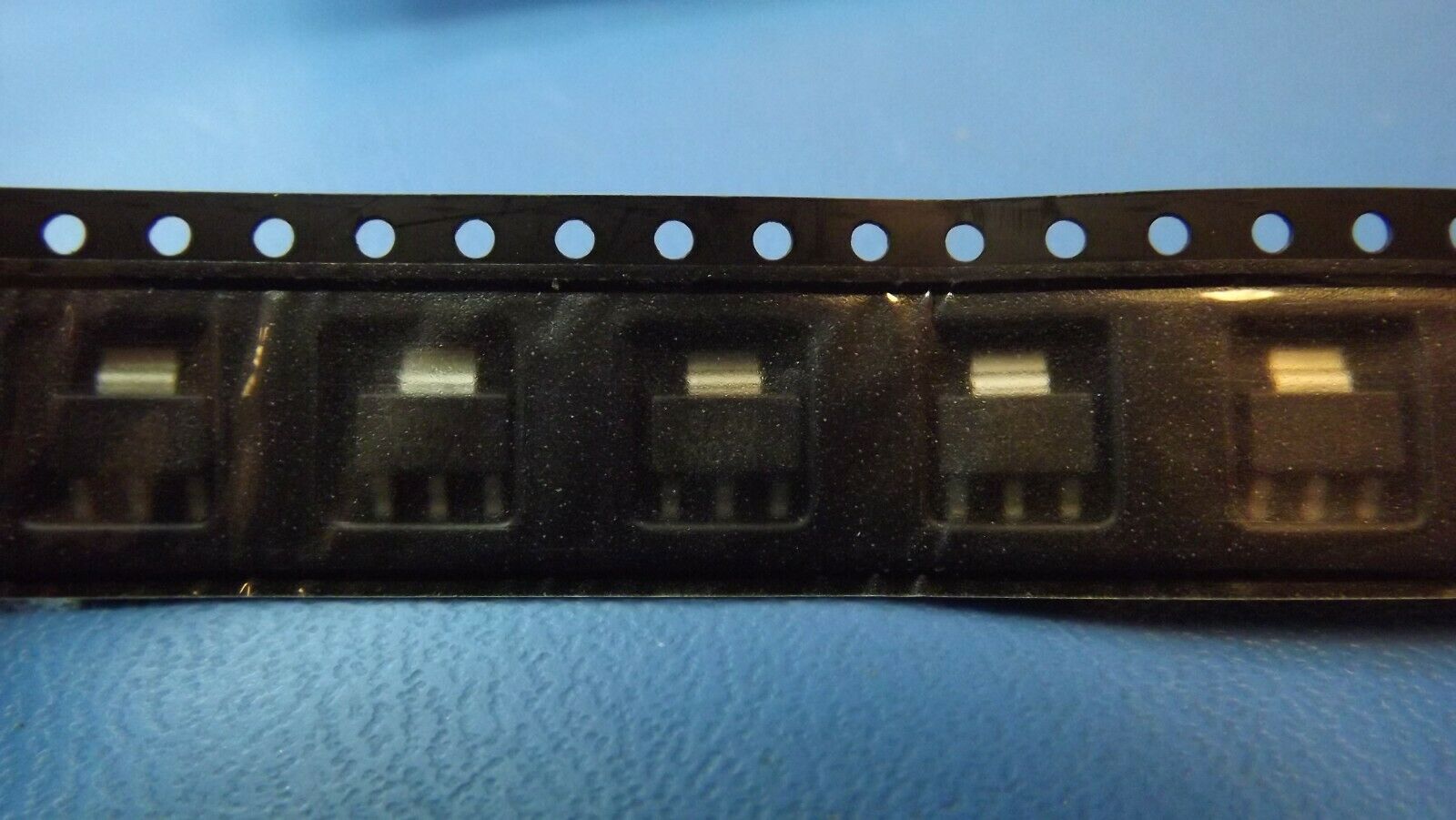

| Packing Method | TAPE AND REEL |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.8 mm |
| Sub Category | Other Regulators |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 2.3 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 6.5 mm |
| Width | 3.56 mm |
