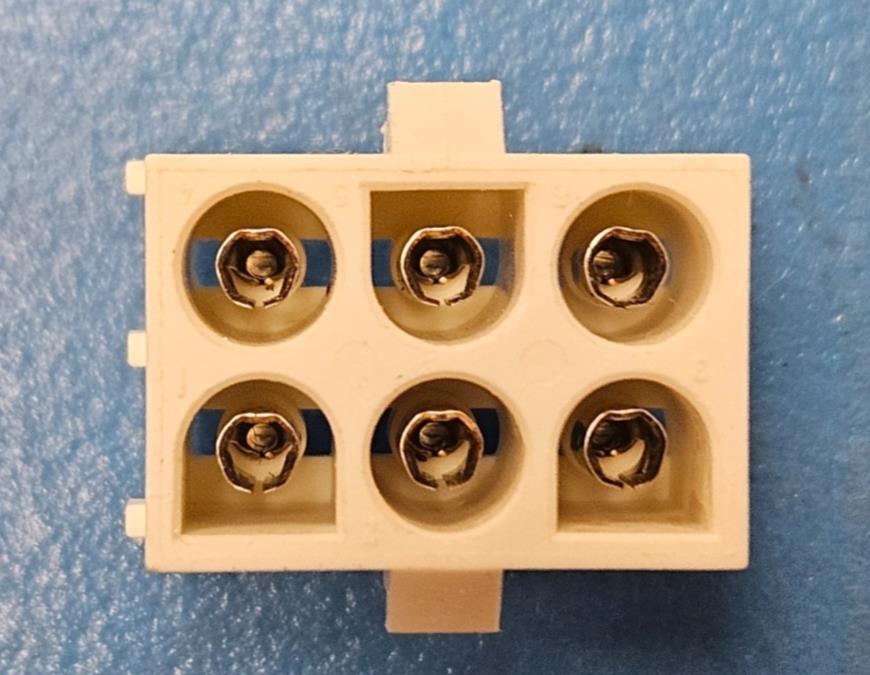

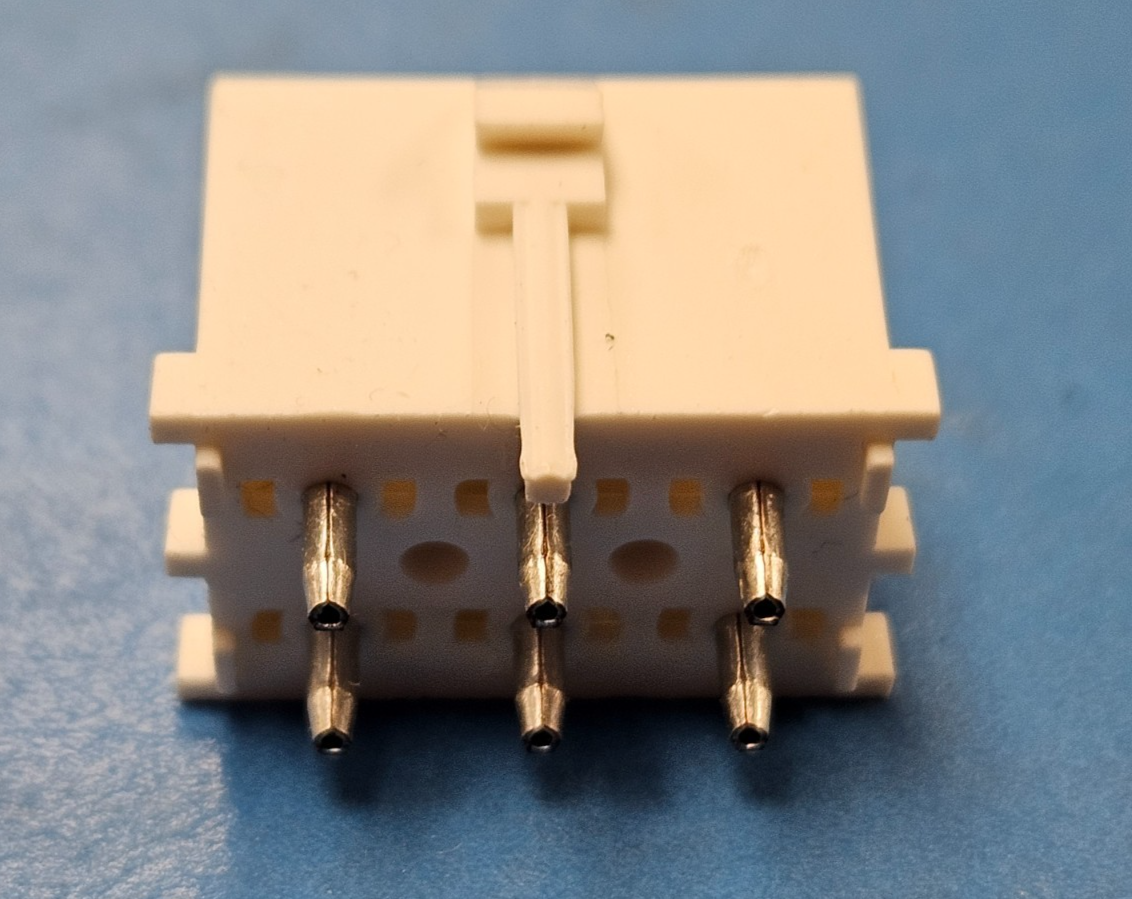

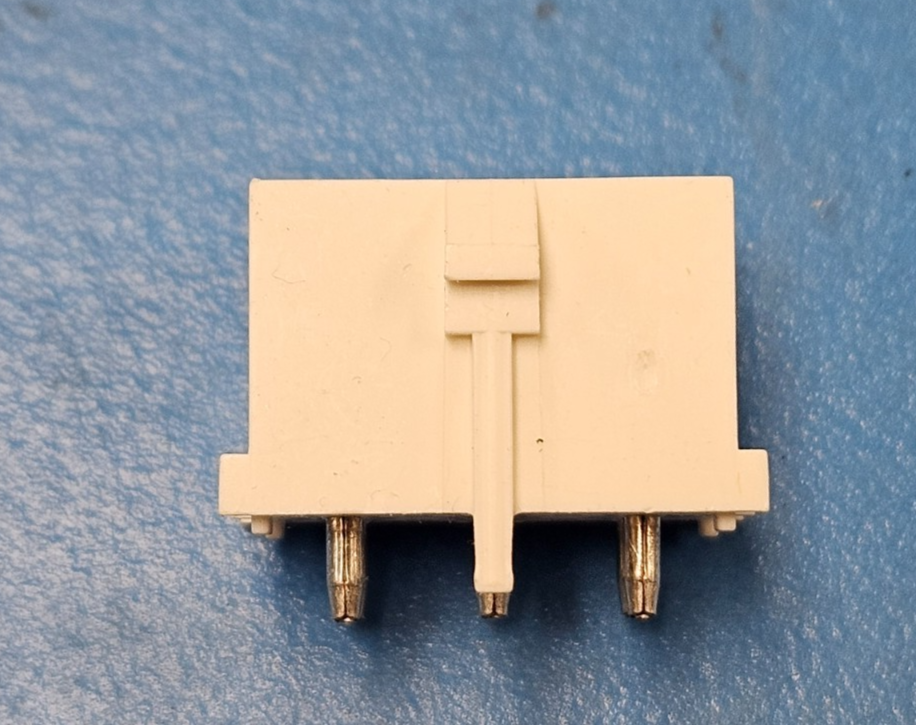

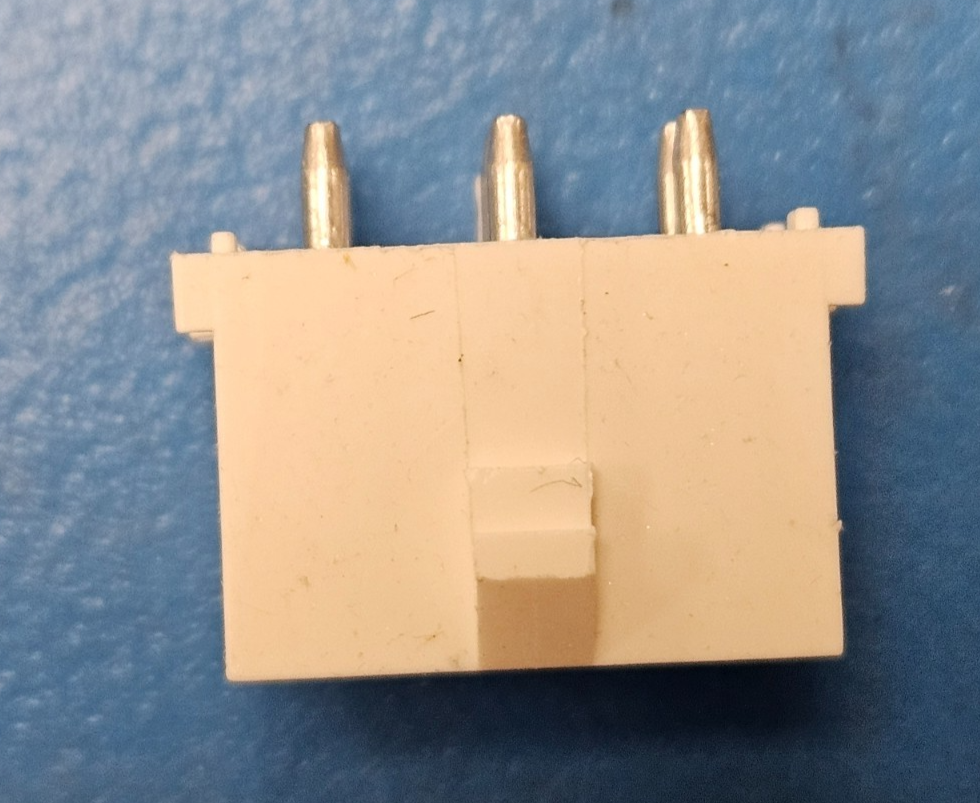

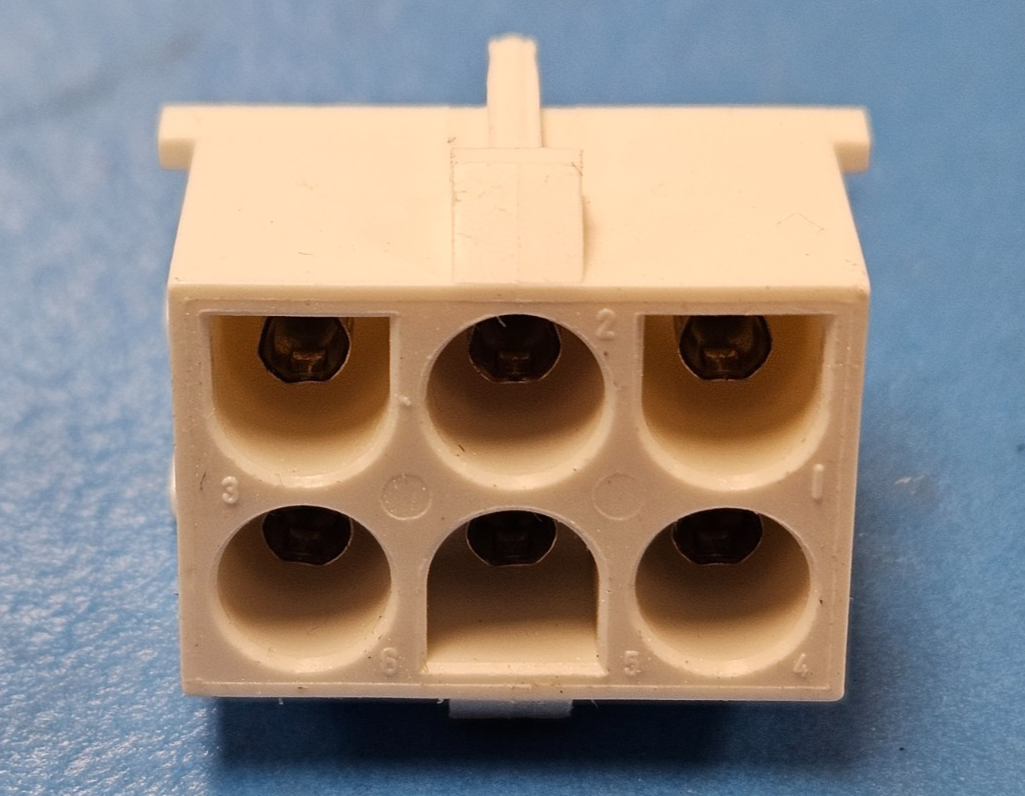

(6PCS) 641970-1 AMP Rectangular Power Connector, 6 Contact, Male
Tax included.
This listing is for (6PCS) of 641970-1 AMP
Status Active
Additional Feature MATE-N-LOK
Body Breadth (inch) 0.550000
Body Depth (inch) 0.580000
Body Length (inch) 0.800000
Body/Shell Style RECEPTACLE
Connector Type RECTANGULAR POWER CONNECTOR
Contact Finish - Mating NOT APPLICABLE
Contact Finish - Termination Tin (Sn)
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 2.000000000000000
Contact Style RND PIN-SKT
DIN Conformance NO
Durability (Cycles) 50
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 100000000.000000000000000
Insulator Color WHITE
Insulator Material POLYAMIDE
J-STD-609 Code e3
MIL Conformance NO
Mains Connector Rating 12A
Mating Contact Pitch (inch) 0.25
Mating Contact Row Spacing (inch) 0.25
Mating Information 350715-1
Mixed Contacts NO
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -40
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 6.35
Panel Mount NO
Plating Thickness (inch) 200u
Polarization Key POLARIZED
Rated Current (Signal) (A) 12.0000000000000000
Screening Level / Reference Standard CSA, UL
Terminal Length (inch) 0.146000
Terminal Pitch (mm) 6.35
Termination Type SOLDER
Number of Contacts 6
UL Flammability Code 94V-0
Withdrawl Force-Min (N) 2.224
