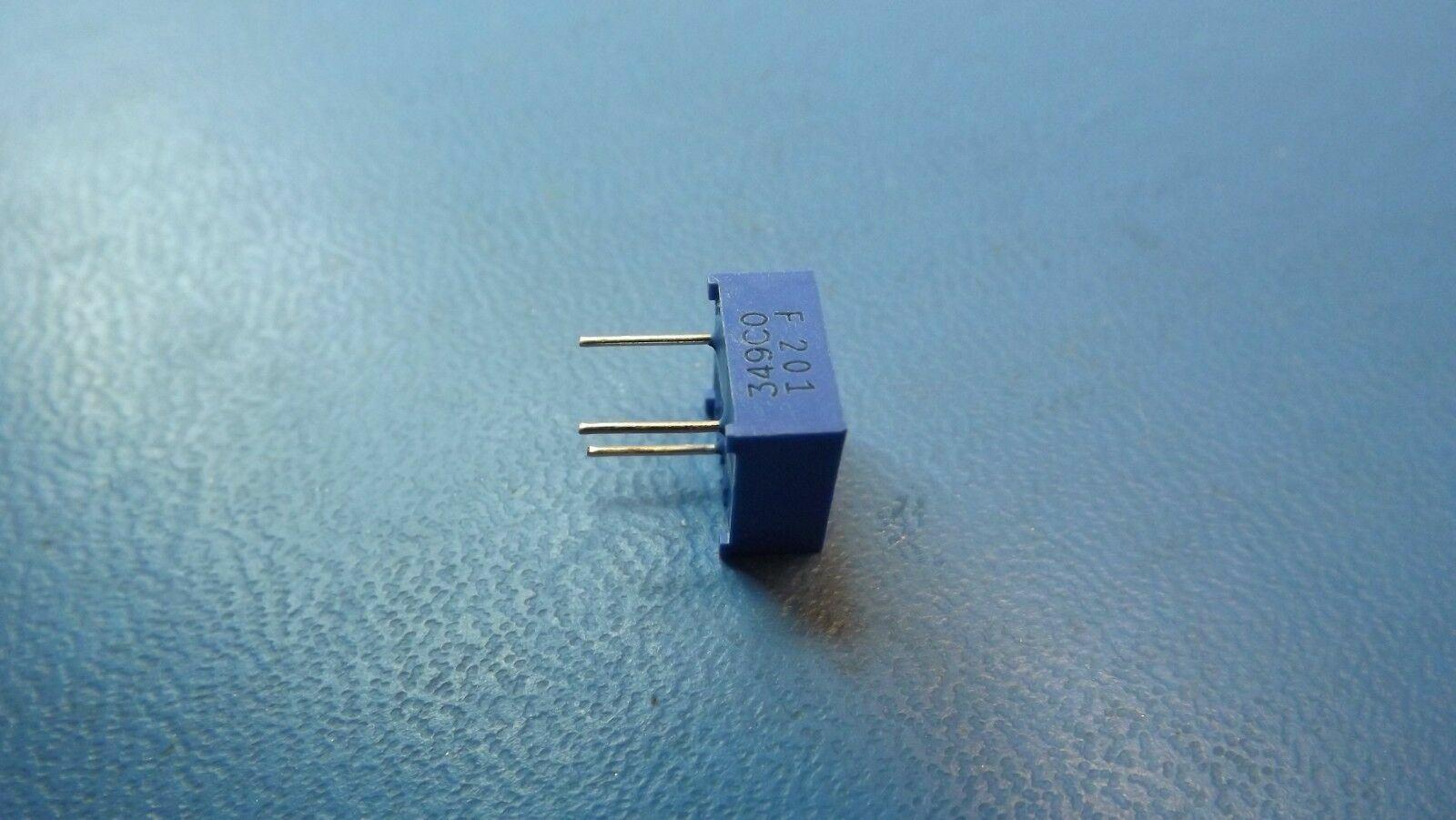

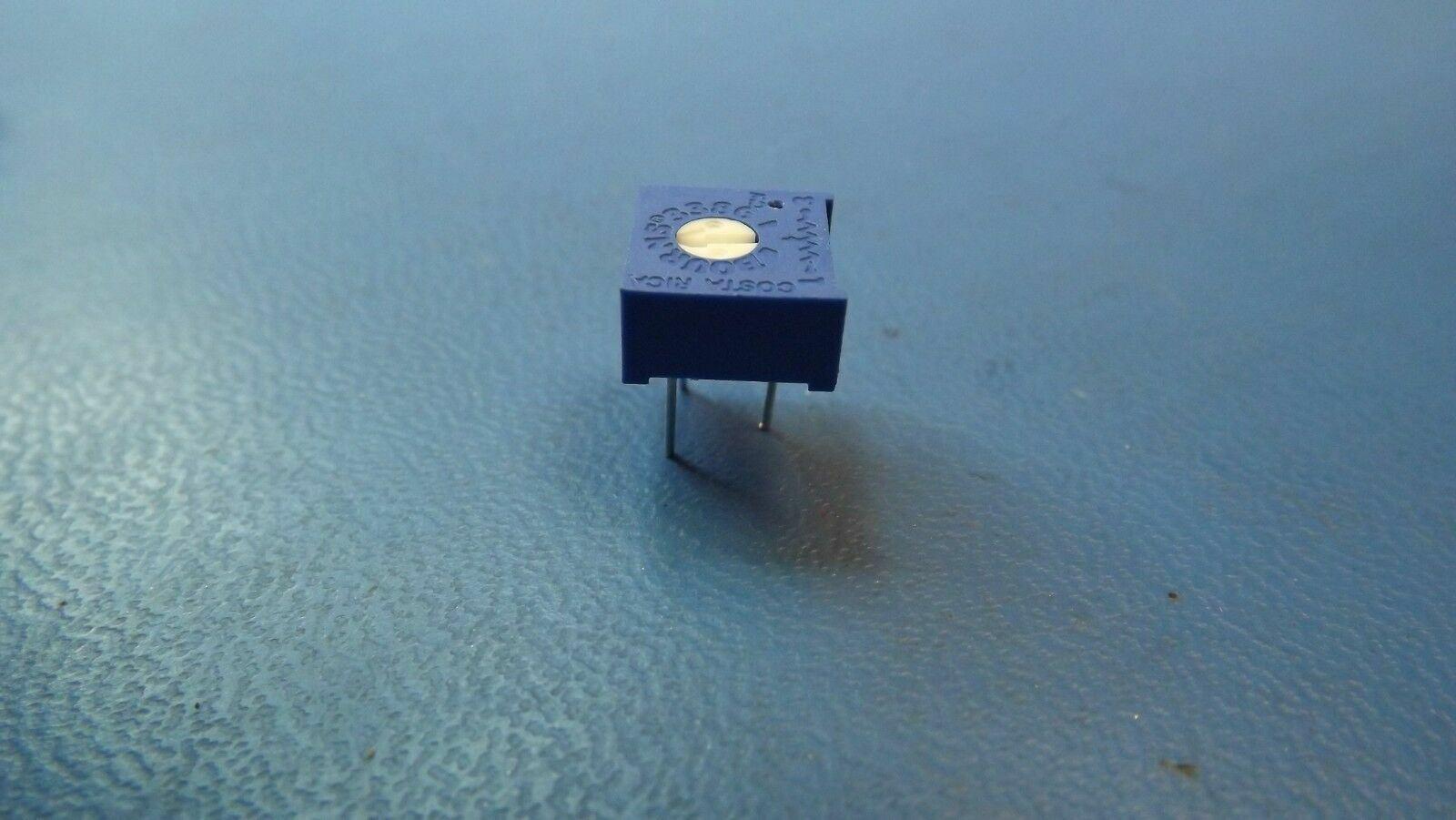

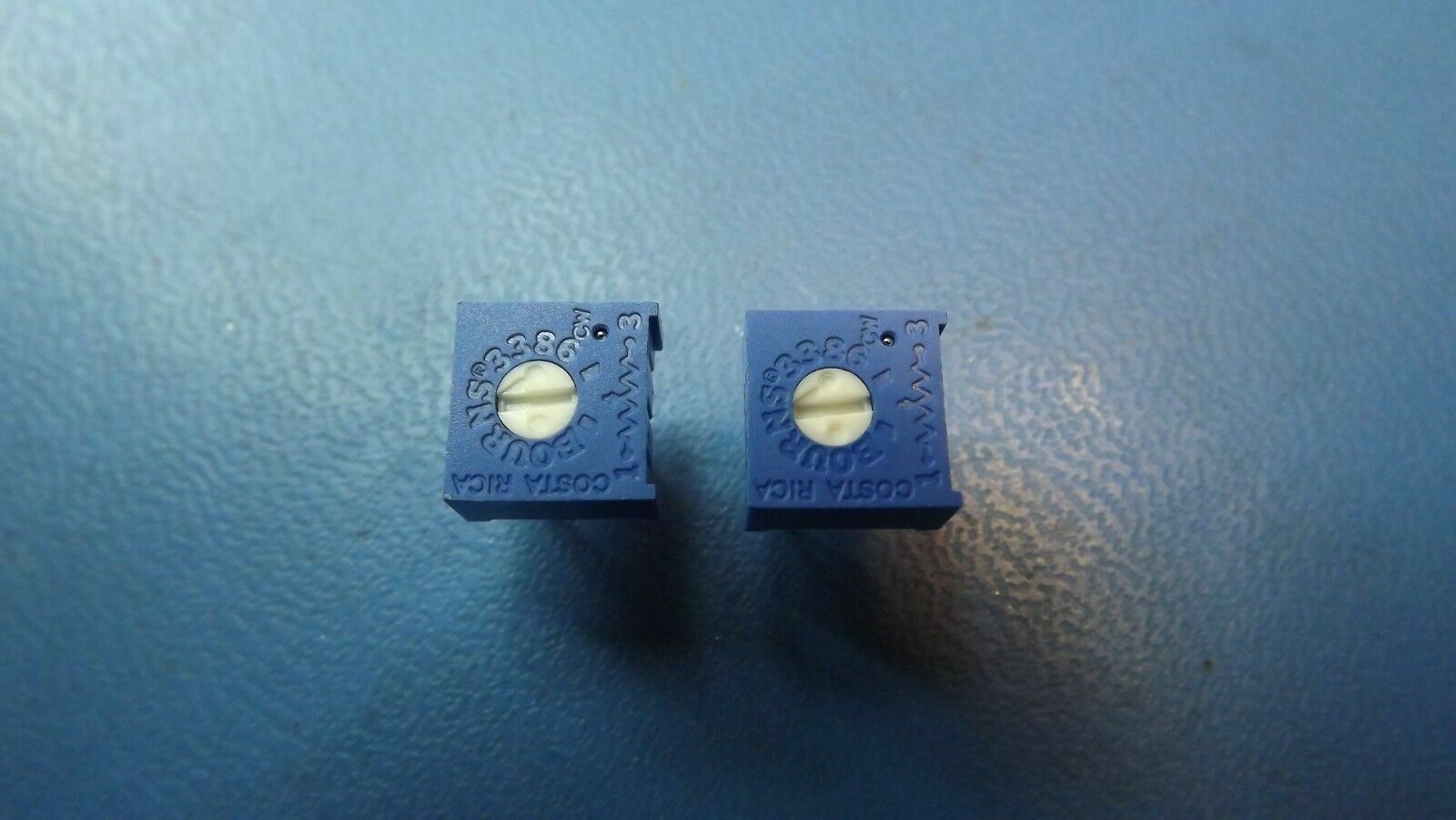

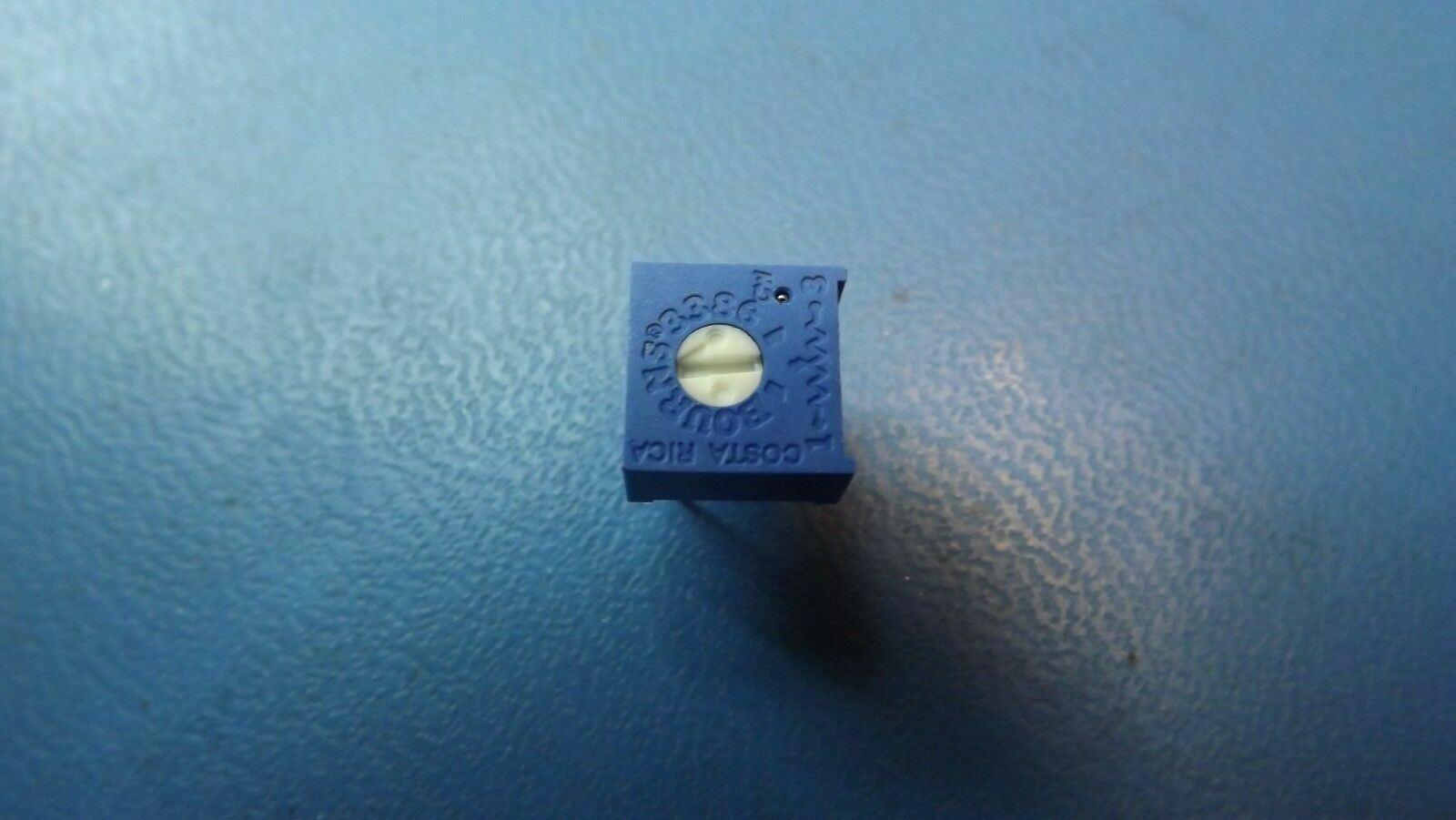

(6PCS) 3386F-1-201LF BOURNS TRIMMER 200 OHM 0.5W PC PIN ROHS
(6PCS) 3386F-1-201LF BOURNS TRIMMER 200 OHM 0.5W PC PIN ROHS
(6PCS) 3386F-1-201LF BOURNS TRIMMER 200 OHM 0.5W PC PIN ROHS
(6PCS) 3386F-1-201LF BOURNS TRIMMER 200 OHM 0.5W PC PIN ROHS
(6PCS) 3386F-1-201LF BOURNS TRIMMER 200 OHM 0.5W PC PIN ROHS

(6PCS) 3386F-1-201LF BOURNS TRIMMER 200 OHM 0.5W PC PIN ROHS

Tax included.
Only 0 left!
Will be in stock after
THIS LISTING IS FOR (6 PCS) OF 3386F-1-201LF BY BOURNS

Product Technical Specifications

EU RoHS Compliant with Exemption
ECCN (US) EAR99
Type Trimmer
Resistance Value (Ohm) 200
Tolerance 10%
Maximum Voltage Rating (V) 300
Power Rating (W) 0.5 (1/2)
Technology Cermet
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 125
Temperature Coefficient (ppm/°C) ±100
Linear or Logarithmic Lin
Termination Style Pin
Positions of Adjustment Top
Shaft Diameter (mm) 3.15
Number of Turns (Turns) 1(Mech)|1(Elec)
Number of Elements 1
Electrical Rotation (°) 280
Number of Electrical Turns (Turns) 1
Mechanical Rotation (°) 310
Mechanical Rotational Life (Cycles) 200
Number of Mechanical Turns (Turns) 1
Packaging Tube
Product Length (mm) 9.53
Product Depth (mm) 9.53
Product Height (mm) 4.83
Product Weight (g) 0.85
Mounting Through Hole
