(6PC) MC34081AP MOT Operational Amplifier 1 Func 2500uV Offset-Max BIPolar PDIP8
Tax included.

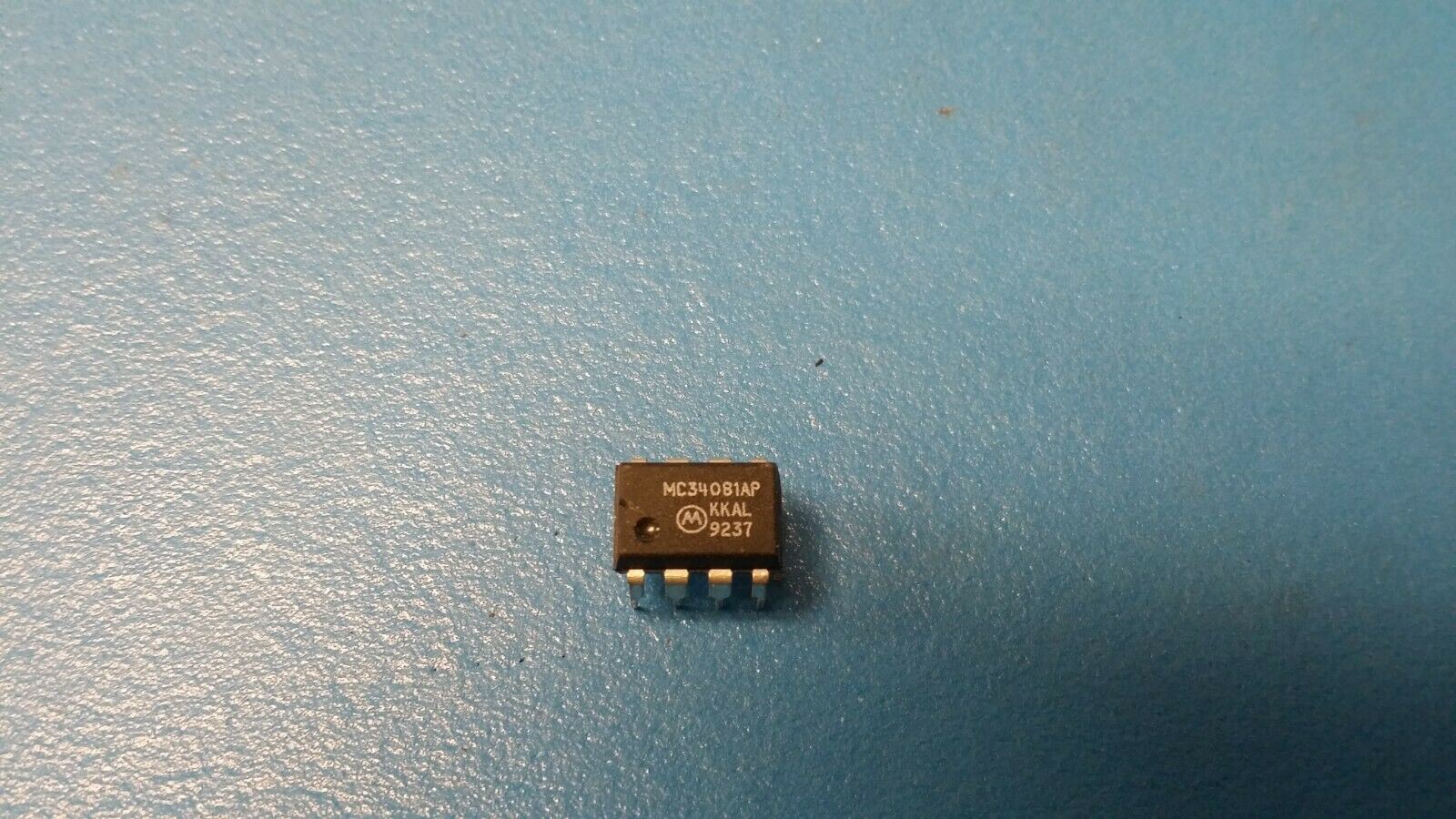

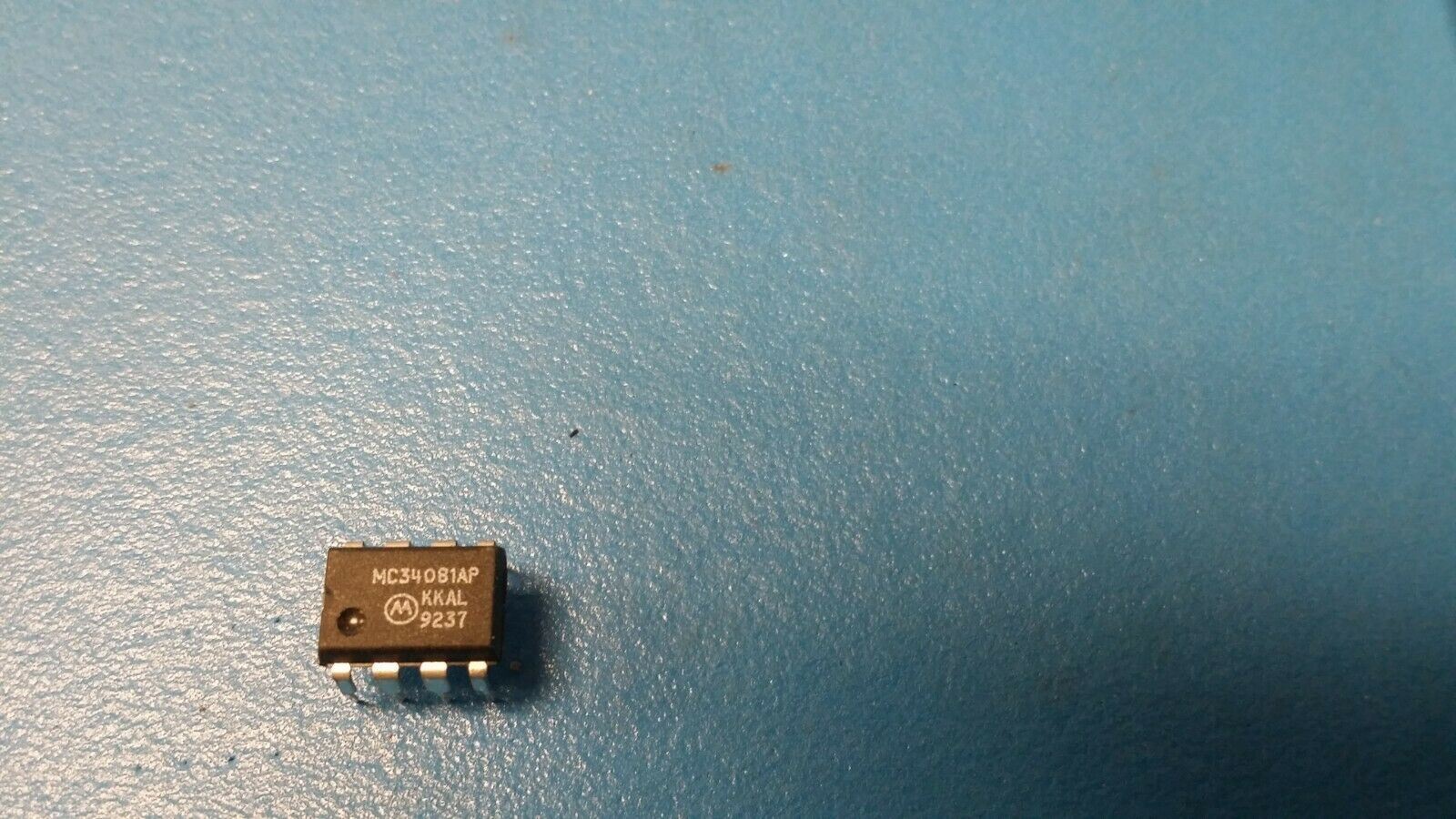

THIS LISTING IS FOR (6 PCS) OF MC34081AP BY MOT
Operational Amplifier 1 Func 2500uV Offset-Max BIPolar PDIP8
Part #: MC34081AP
Part Category: Amplifiers
Manufacturer: Motorola Solutions, Inc.
Description: Operational Amplifier, 1 Func, 2500uV Offset-Max, BIPolar, PDIP8
Mfr Package Description PLASTIC, DIP-8
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.004 µA
Bias Current-Max (IIB) @25C 1.0E-4 µA
Common-mode Reject Ratio-Nom 90.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 2500.0 µV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Low-Bias YES
Low-Offset NO
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 4.45 mm
Slew Rate-Nom 25.0 V/us
Slew Rate-Min 20.0 V/us
Sub Category Operational Amplifier
Supply Current-Max 4.2 mA
Supply Voltage Limit-Max 44.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 8000.0 kHz
Voltage Gain-Min 25000.0
Length 9.78 mm
Width 7.62 mm
