(66PCS) XC5202-5PQ100C FPGA 64 CLBs, 2000 Gates, 83MHz, 64-Cell, CMOS, PQFP100
(66PCS) XC5202-5PQ100C FPGA 64 CLBs, 2000 Gates, 83MHz, 64-Cell, CMOS, PQFP100
(66PCS) XC5202-5PQ100C FPGA 64 CLBs, 2000 Gates, 83MHz, 64-Cell, CMOS, PQFP100
(66PCS) XC5202-5PQ100C FPGA 64 CLBs, 2000 Gates, 83MHz, 64-Cell, CMOS, PQFP100
(66PCS) XC5202-5PQ100C FPGA 64 CLBs, 2000 Gates, 83MHz, 64-Cell, CMOS, PQFP100
(66PCS) XC5202-5PQ100C FPGA 64 CLBs, 2000 Gates, 83MHz, 64-Cell, CMOS, PQFP100
(66PCS) XC5202-5PQ100C FPGA 64 CLBs, 2000 Gates, 83MHz, 64-Cell, CMOS, PQFP100

(66PCS) XC5202-5PQ100C FPGA 64 CLBs, 2000 Gates, 83MHz, 64-Cell, CMOS, PQFP100

Tax included.
Only 50 left!

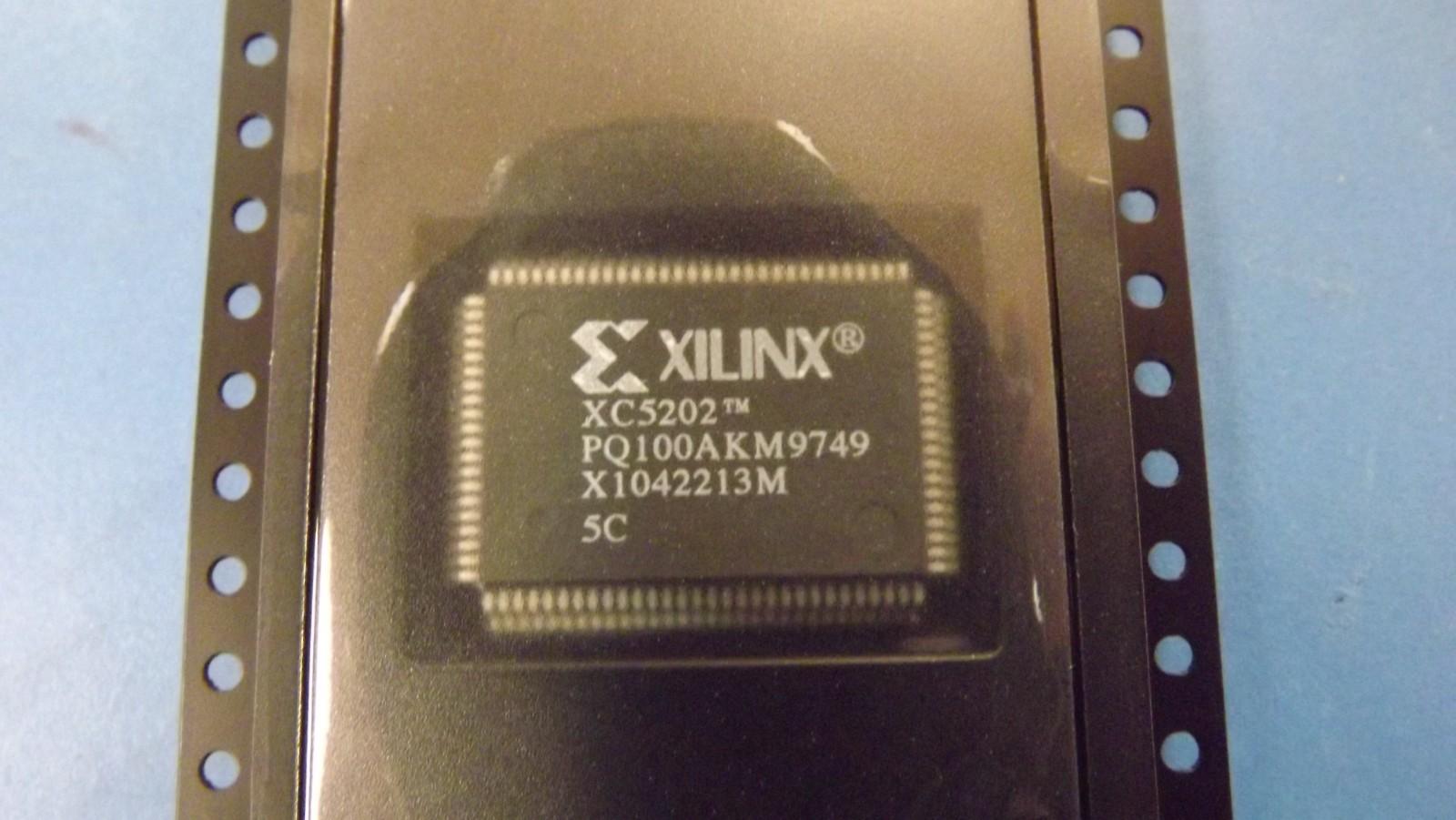

This listing is for (66PCS) of XC5202-5PQ100C by Xilinx

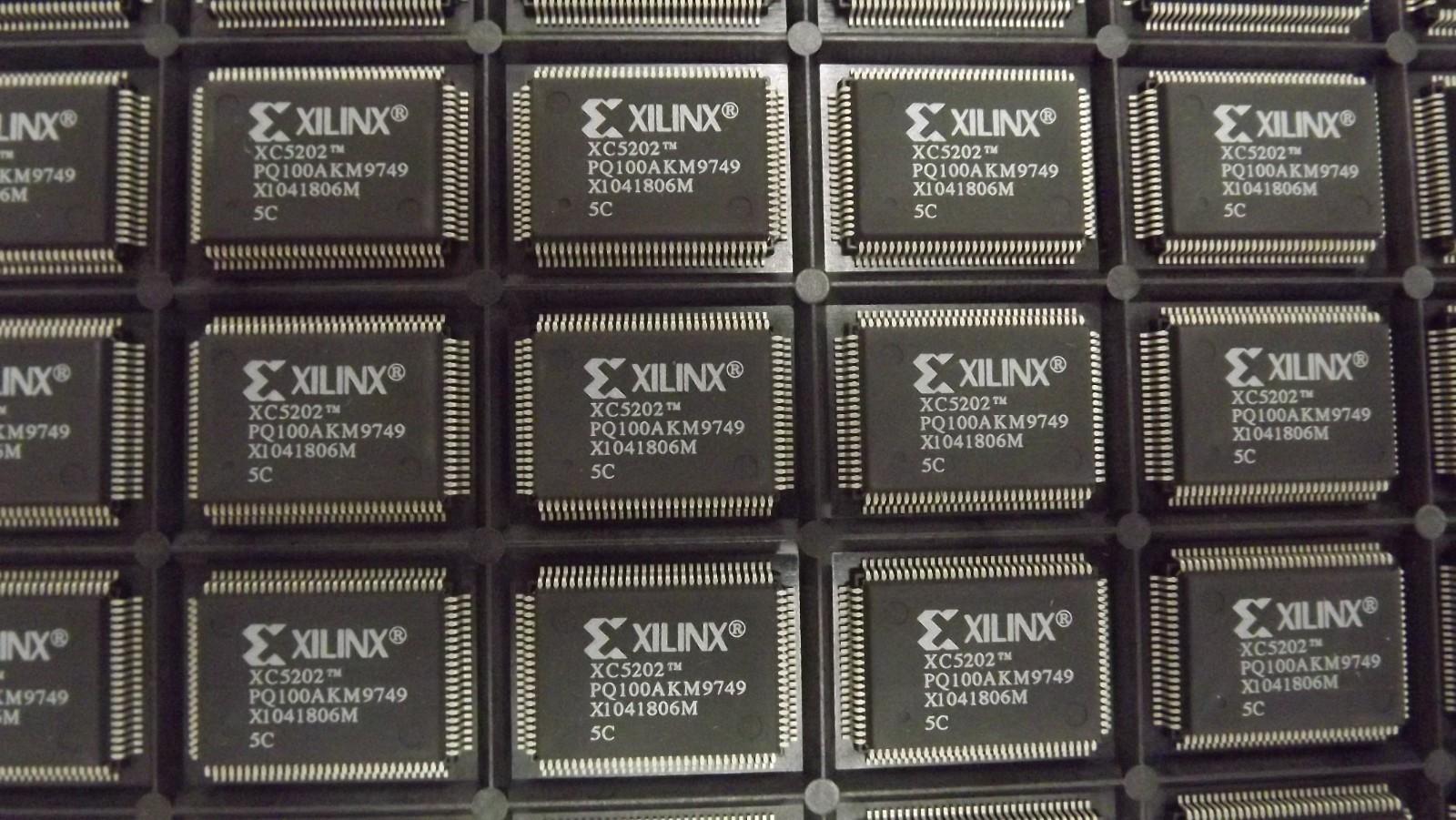

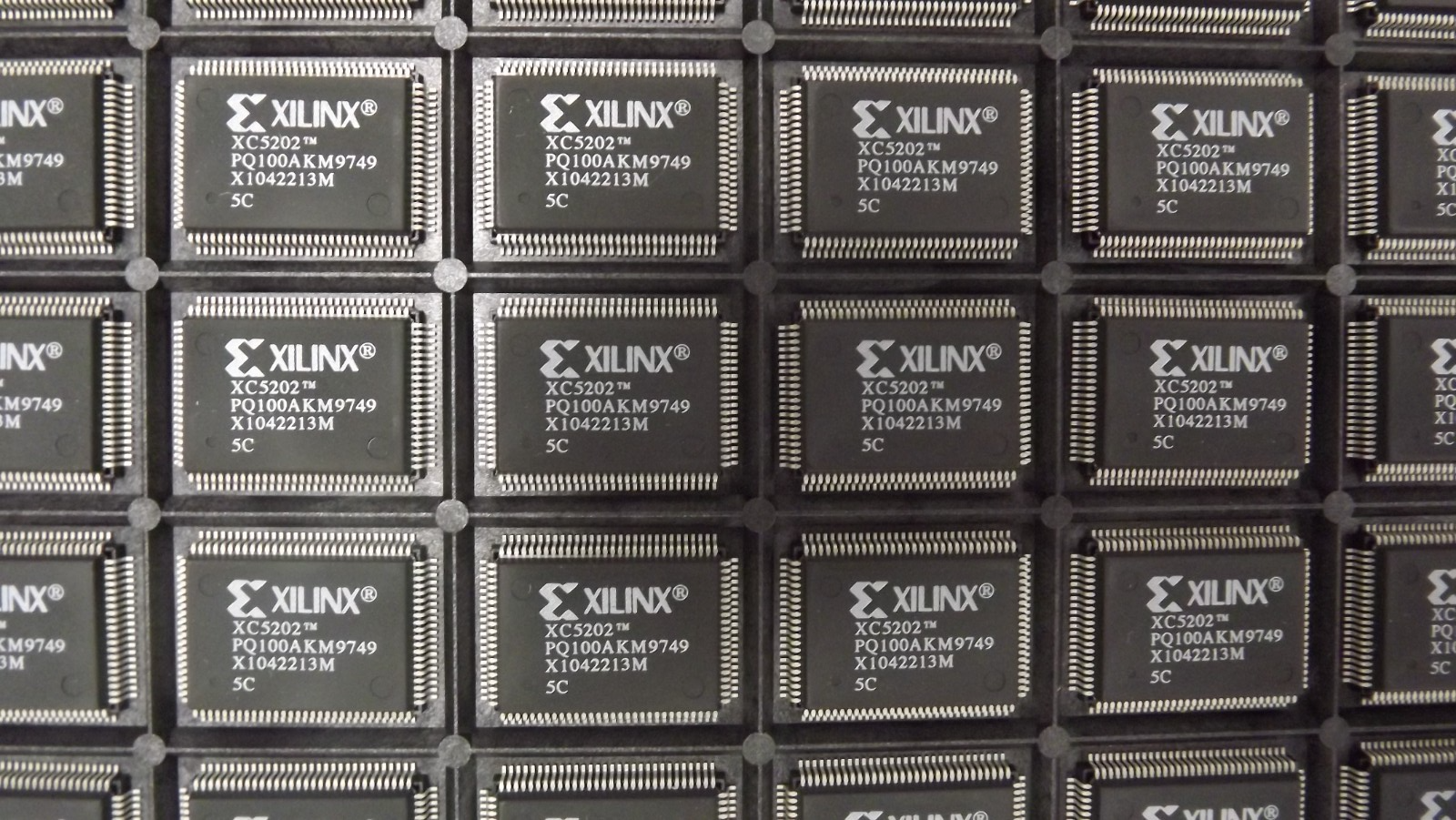

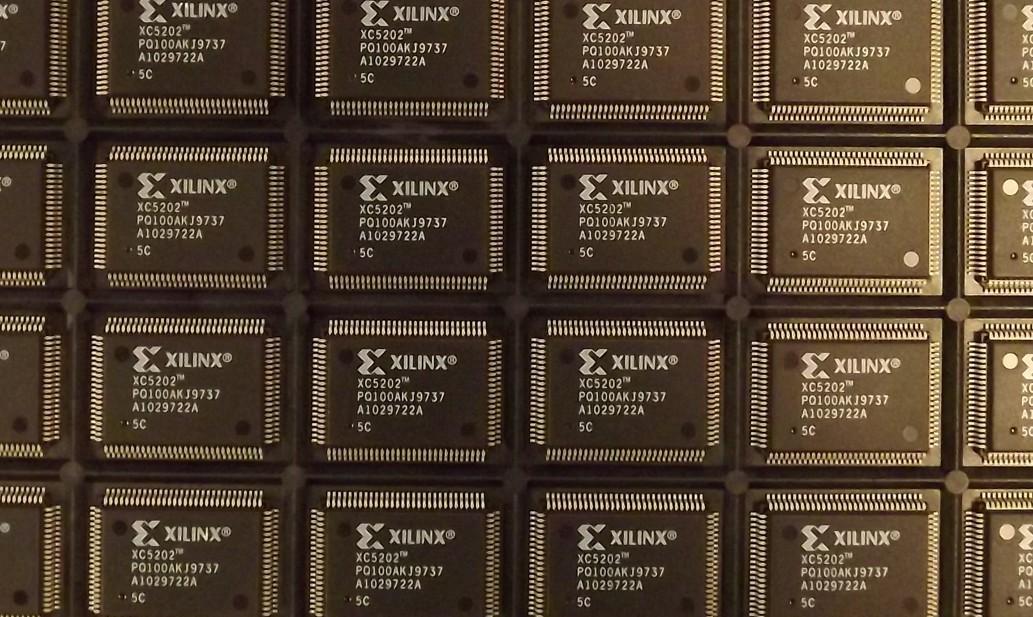

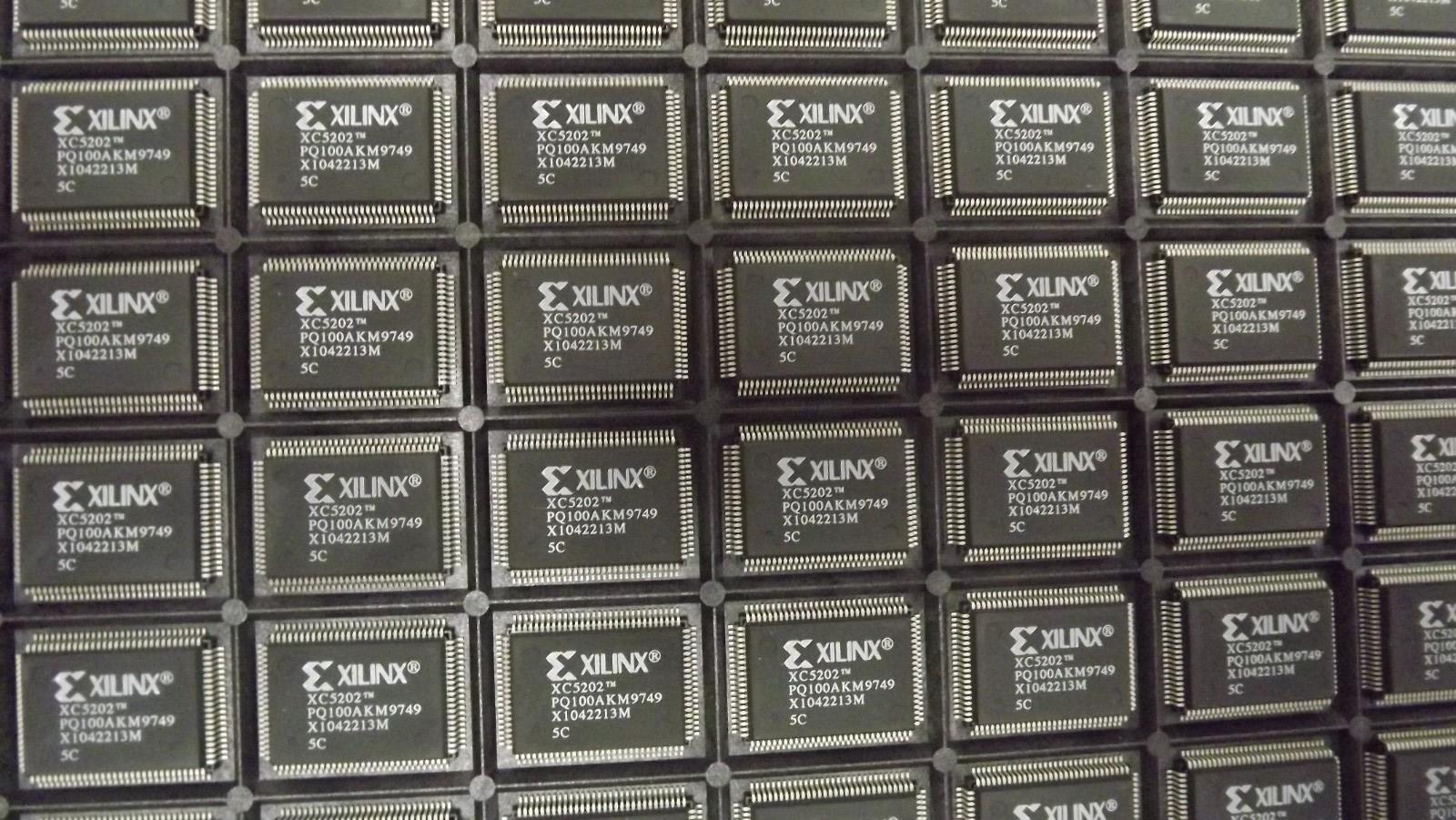

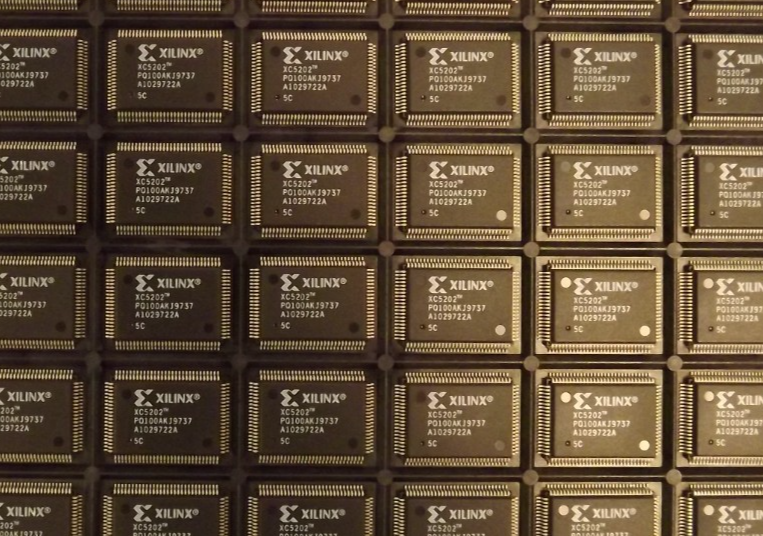

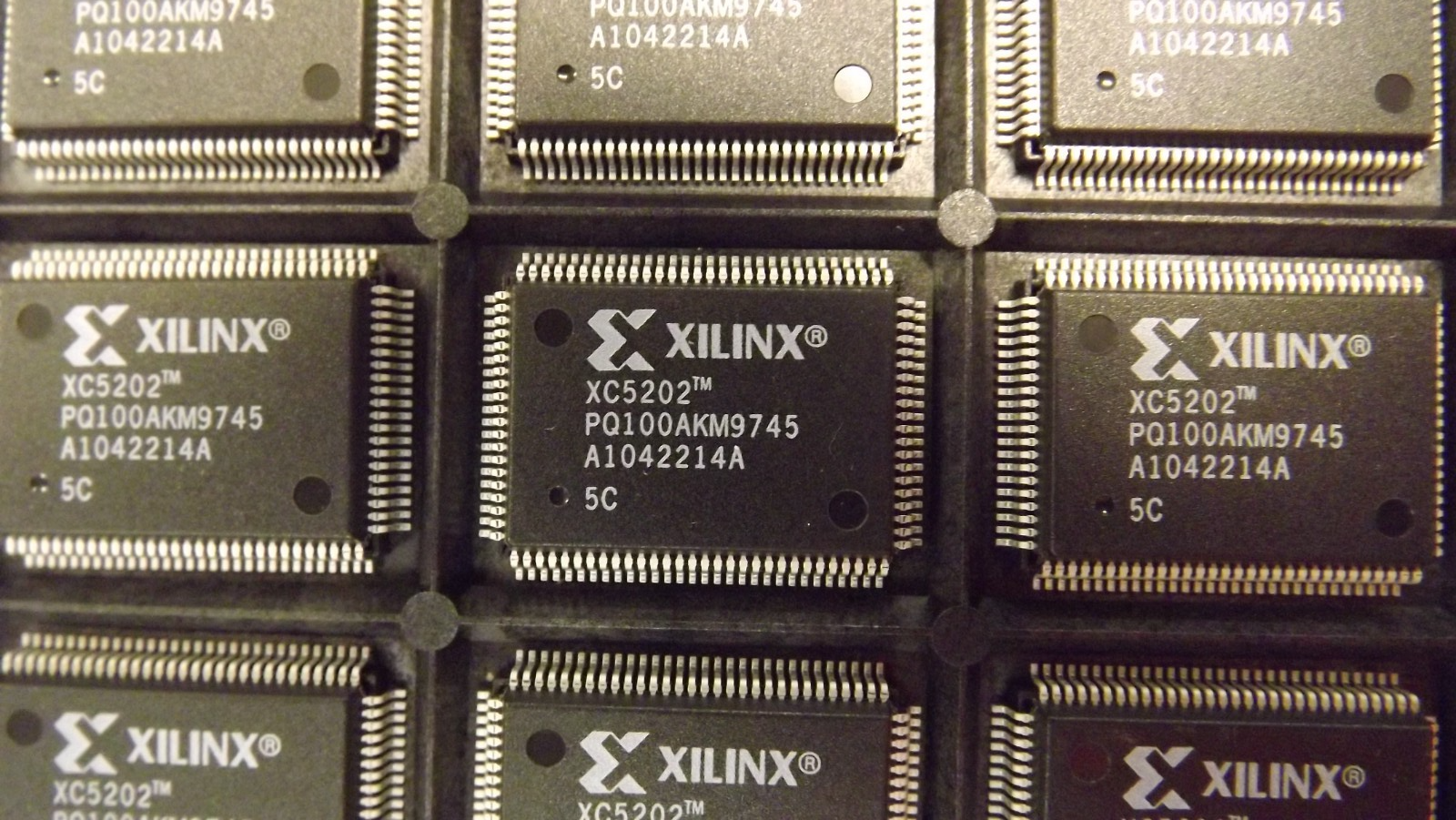

**1 full tray of 66 pieces total**

Status Discontinued
Additional Feature MAX AVAILABLE 3000 LOGIC GATES
Clock Frequency-Max (MHz) 83.00000
Combinatorial Delay of a CLB-Max (ns) 4.6000000000000000
JESD-30 Code R-PQFP-G100
J-STD-609 Code e0
Length (mm) 20.0000
Moisture Sensitivity Level 3
Number of CLBs 64
Number of Equivalent Gates 2000
Number of Inputs 84
Number of Logic Cells 64
Number of Outputs 84
Number of Terminals 100
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) 0.0
Organization 64 CLBS, 2000 GATES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP100,.7X.9
Package Shape RECTANGULAR
Package Style FLATPACK
Peak Reflow Temperature (Cel) 225
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.4000
Supply Voltage-Max (V) 5.25000
Supply Voltage-Min (V) 4.75000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 14.0000
