(5)PM3316-221M MILLER 1 ELEMENT 220uH FERRITE-CORE GENERAL PURPOSE INDUCTOR SMD

  • $5.95
    Unit price per
Tax included.

Only 50 left!

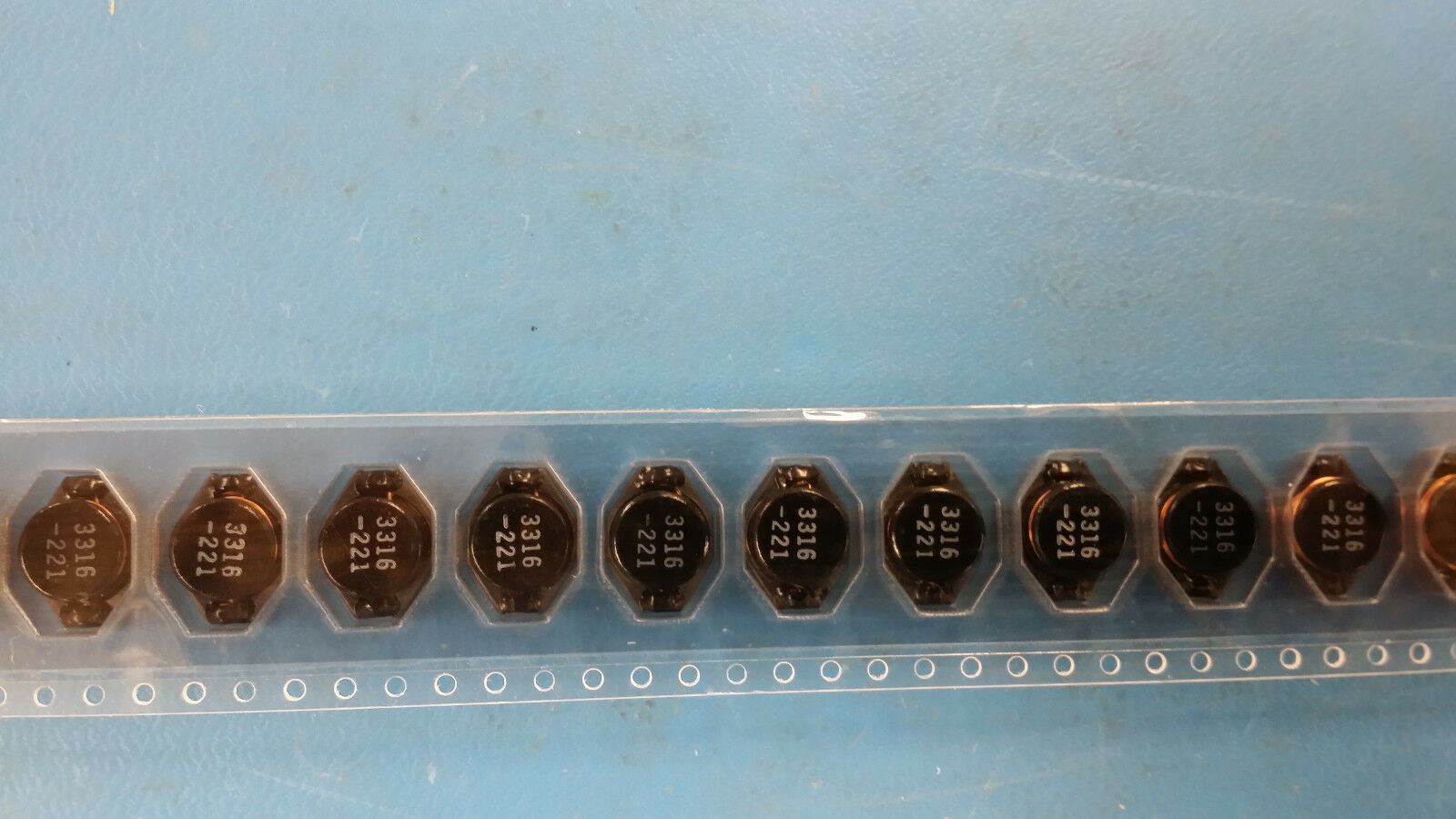

THIS LISTING IS FOR (5 PCS) OF PM3316-221M BY JW MILLER
1 ELEMENT 220uH FERRITE-CORE GENERAL PURPOSE INDUCTOR SMD

Part #: PM3316-221M

Status Discontinued
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 5137
Construction Bobbin Core
Core Material FERRITE
DC Resistance 0.6100 ohm
Inductance-Nom (L) 220 µH
Inductor Application POWER INDUCTOR
Manufacturer Series PM3316
Number of Functions 1
Number of Terminals 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max 105 Cel
Package Height 5.2 mm
Package Length 13 mm
Package Style (Meter) SMT
Package Width 9.5 mm
Packing Method TR
Rated Current-Max 0.8000 A
Series PM3316 SERIES
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Surface Mount YES
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 0.1000 MHz
Tolerance 20 %
