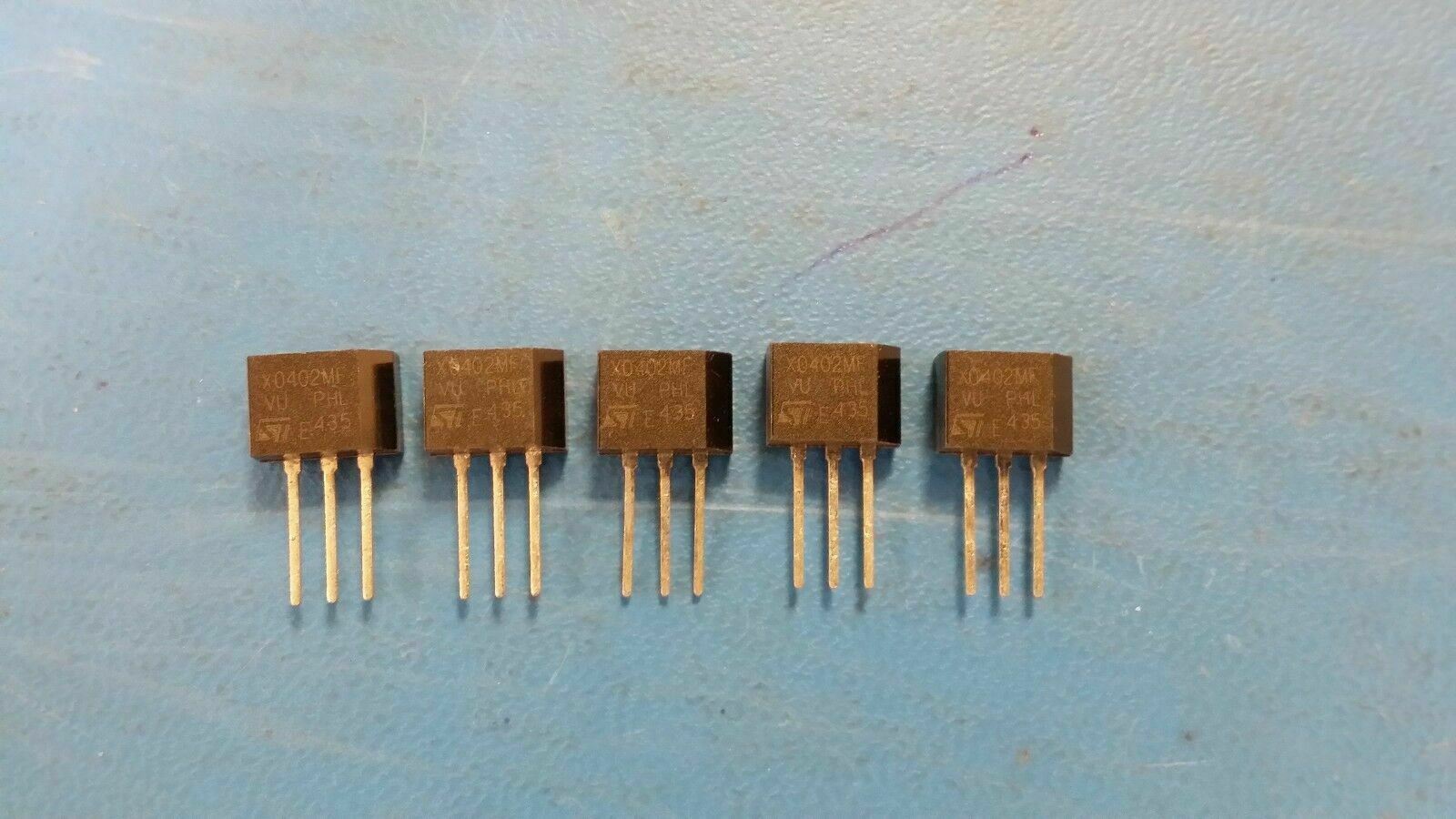

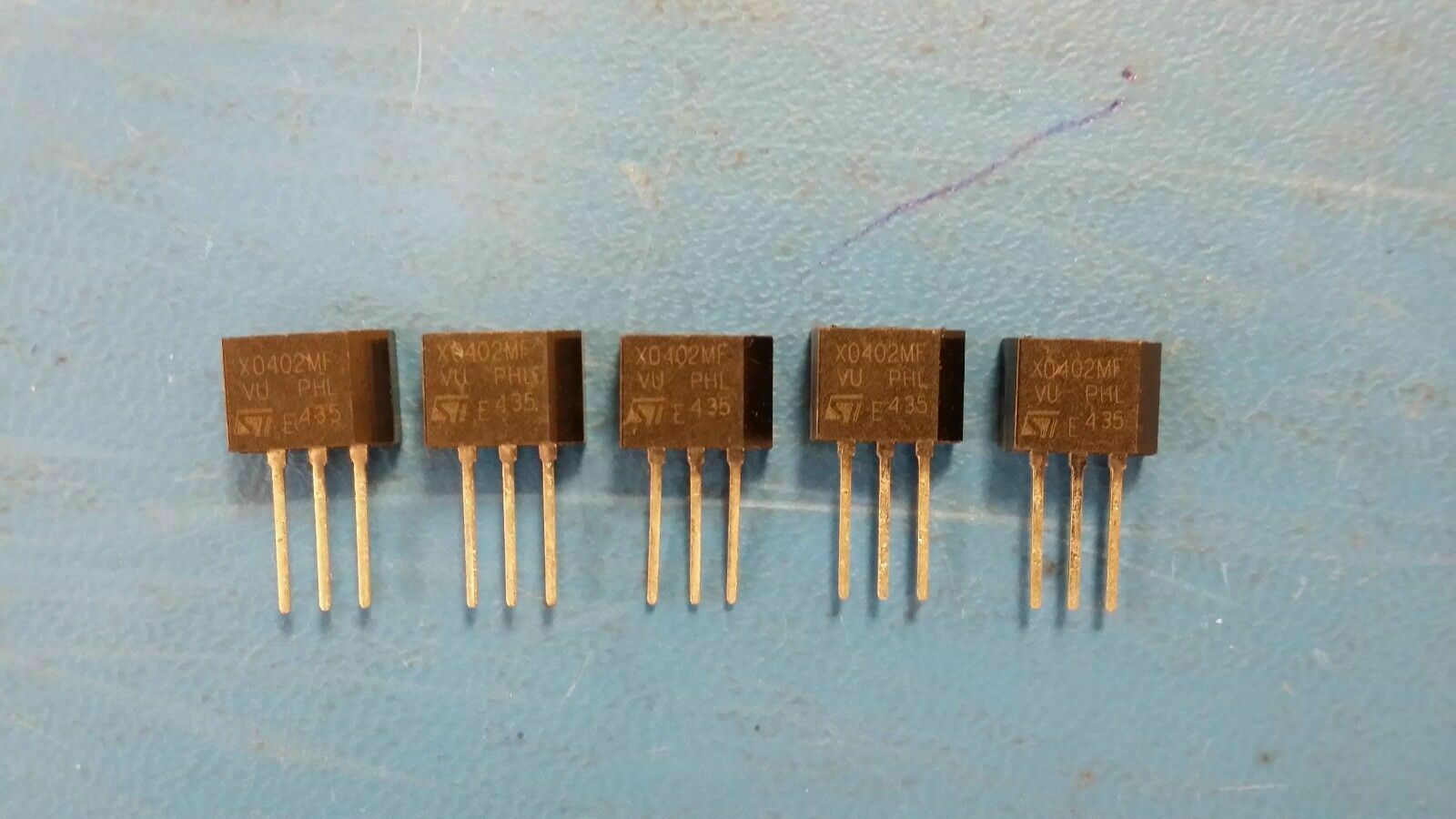

(5PCS) X0402MF0AA2 Thyristor SCR 600V 33A 3-Pin TO-202
Tax included.
THIS LISTING IS FOR (5PCS) OF X0402MF0AA2 BY ST MICRO
SPECIFICATIONS
| Mfr Package Description | PLASTIC, TO-202, 3 PIN |
| REACH Compliant | N/A |
| EU RoHS Compliant | N/A |
| Status | Active |
| Trigger Device Type | SCR |
| Configuration | SINGLE |
| Critical Rate of Rise of Off-state Voltage-Min | 10 V/us |
| DC Gate Trigger Current-Max | 0.2000 mA |
| DC Gate Trigger Voltage-Max | 0.8000 V |
| Holding Current-Max | 5 mA |
| JESD-30 Code | R-PSIP-T3 |
| JESD-609 Code | e3 |
| Leakage Current-Max | 1 mA |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Non-Repetitive Pk On-state Cur | 33 A |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| On-State Current-Max | 900 mA |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Voltage | 600 V |
| Repetitive Peak Reverse Voltage | 600 V |
| RMS On-state Current-Max | 1.35 A |
| Sub Category | Silicon Controlled Rectifiers |
| Surface Mount | NO |
| Terminal Finish | TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
