(5PCS) VND5N07-E ST MICRO MOSFET N-CH 70V 5A TO252
(5PCS) VND5N07-E ST MICRO MOSFET N-CH 70V 5A TO252
(5PCS) VND5N07-E ST MICRO MOSFET N-CH 70V 5A TO252
(5PCS) VND5N07-E ST MICRO MOSFET N-CH 70V 5A TO252
(5PCS) VND5N07-E ST MICRO MOSFET N-CH 70V 5A TO252

(5PCS) VND5N07-E ST MICRO MOSFET N-CH 70V 5A TO252

Tax included.
Only 0 left!
Will be in stock after

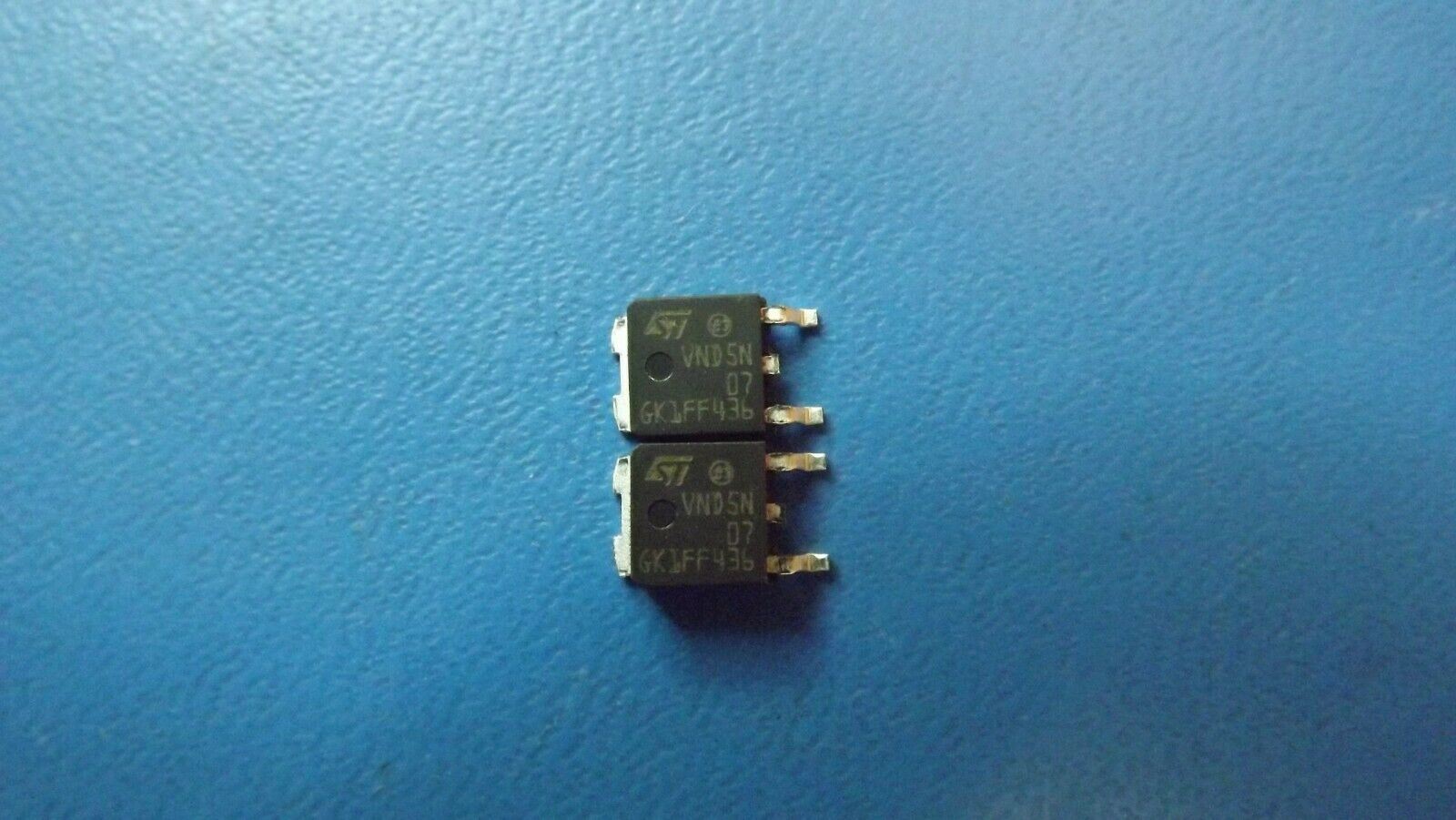

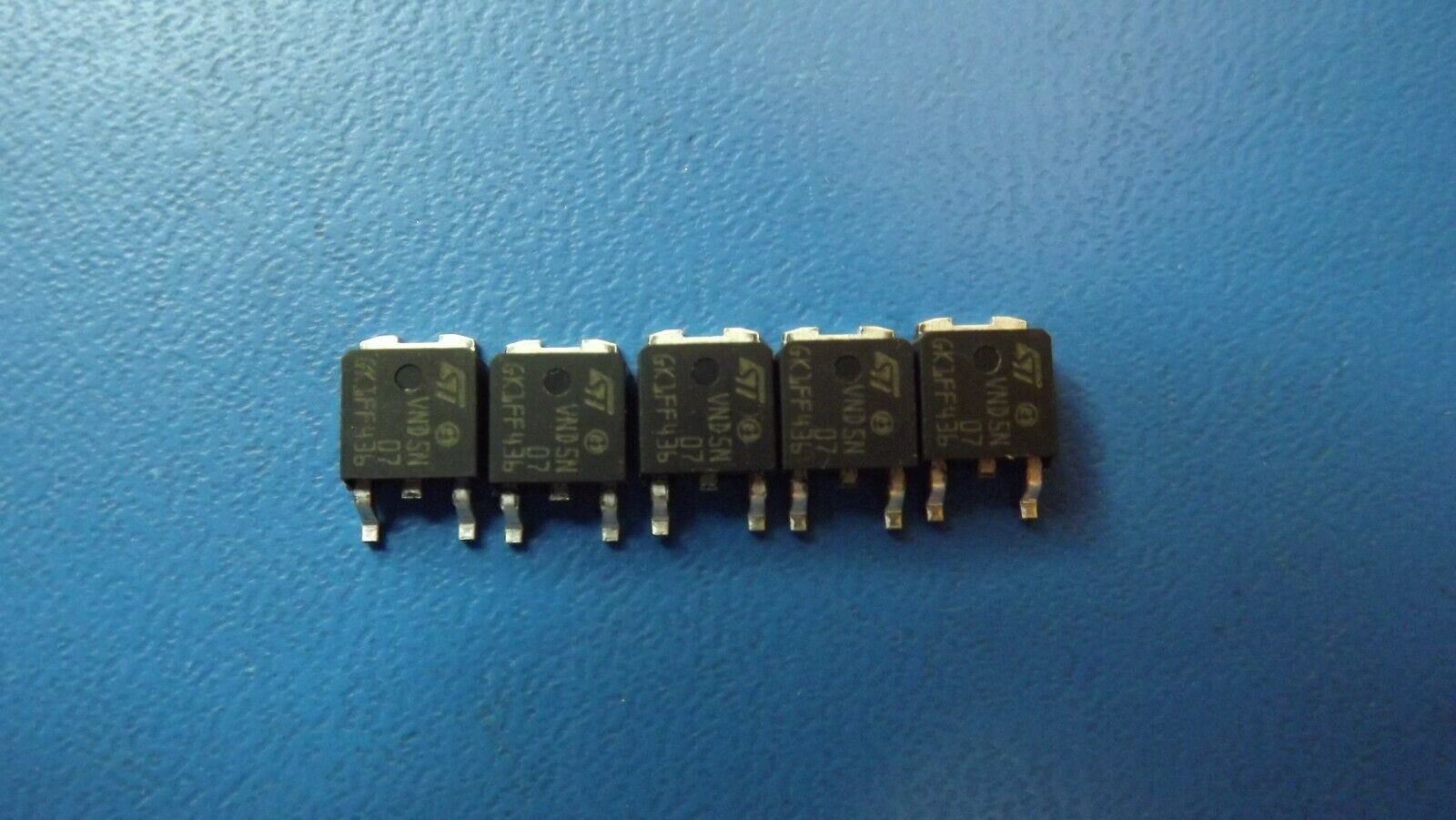

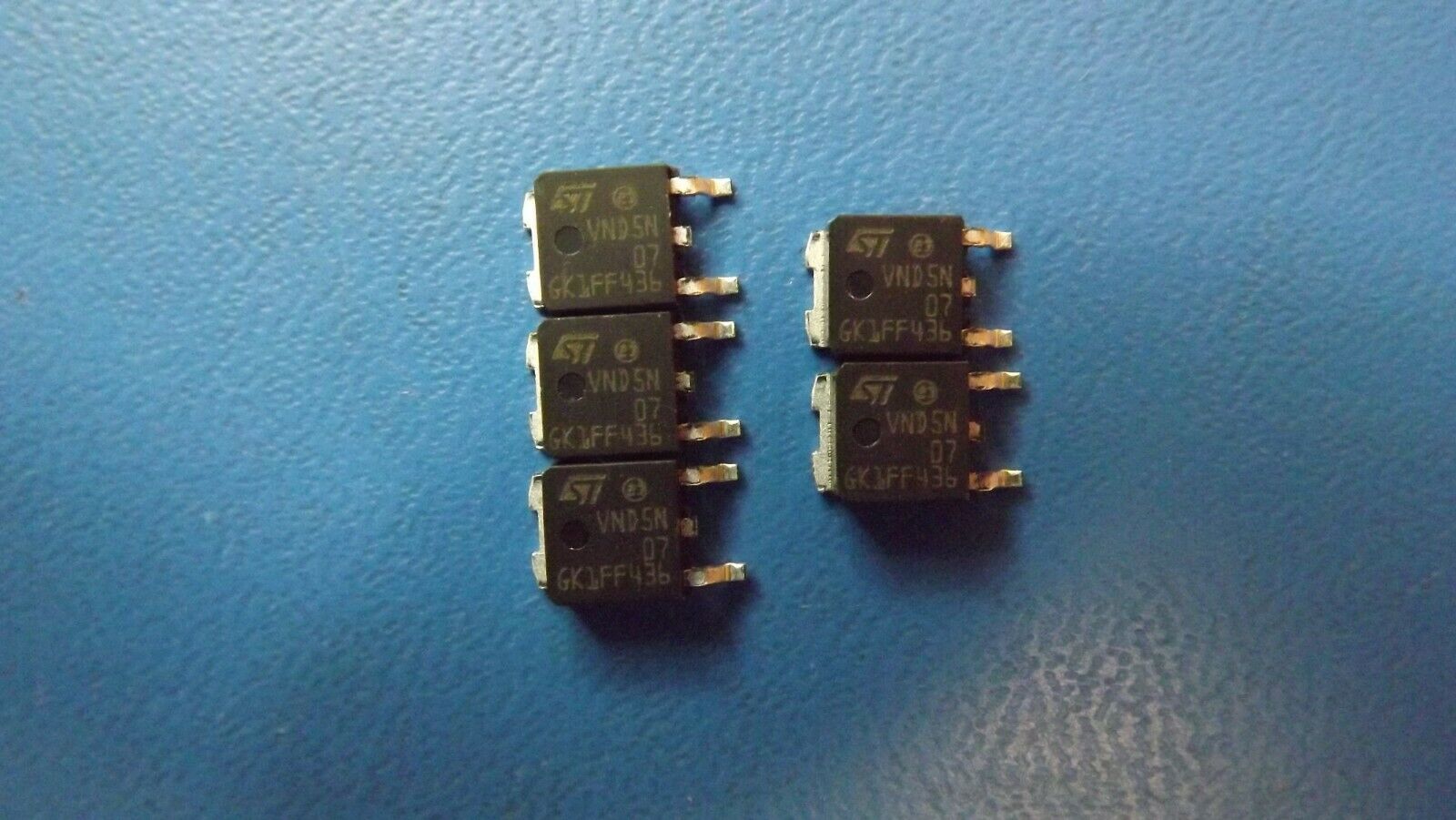

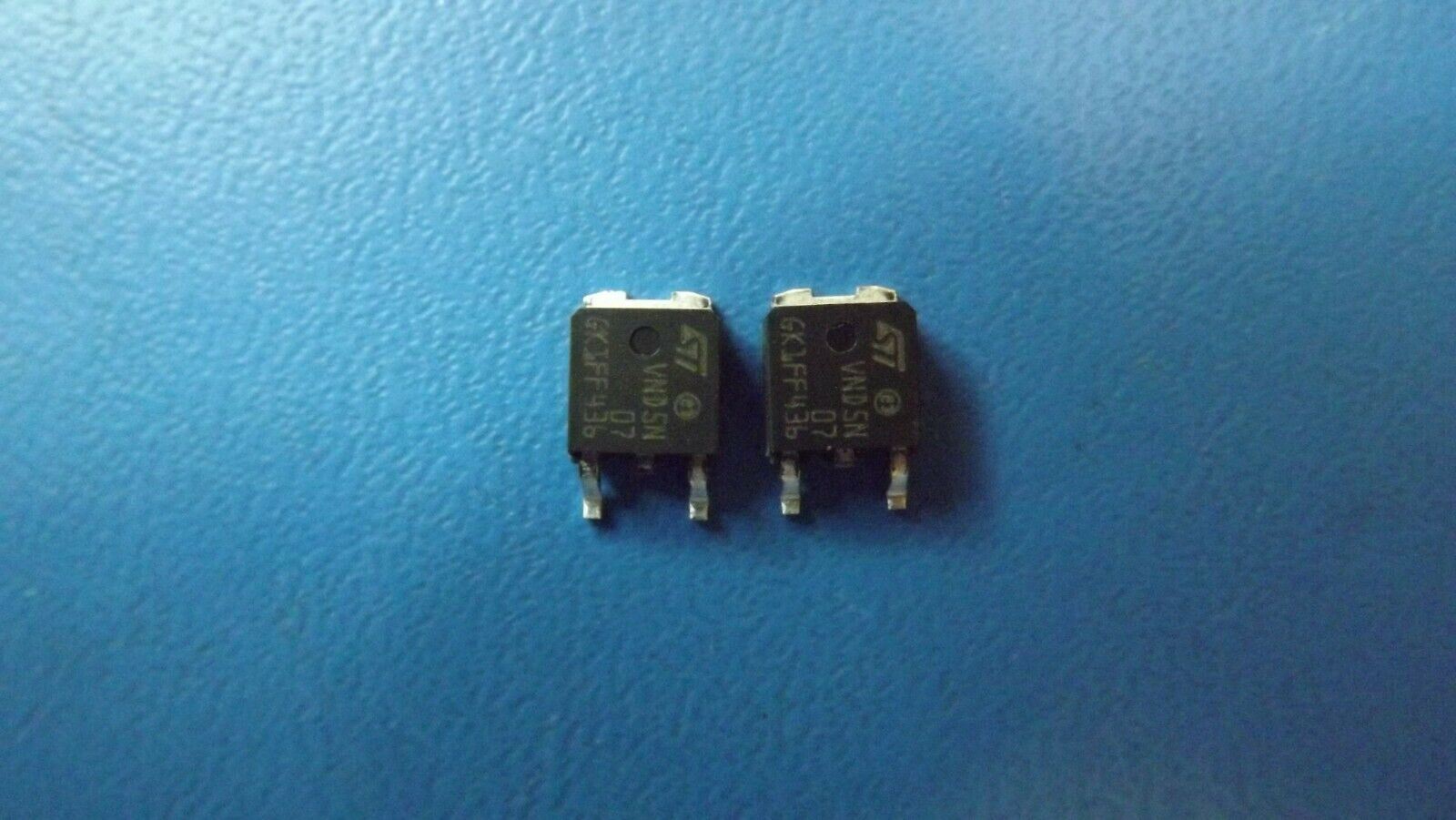

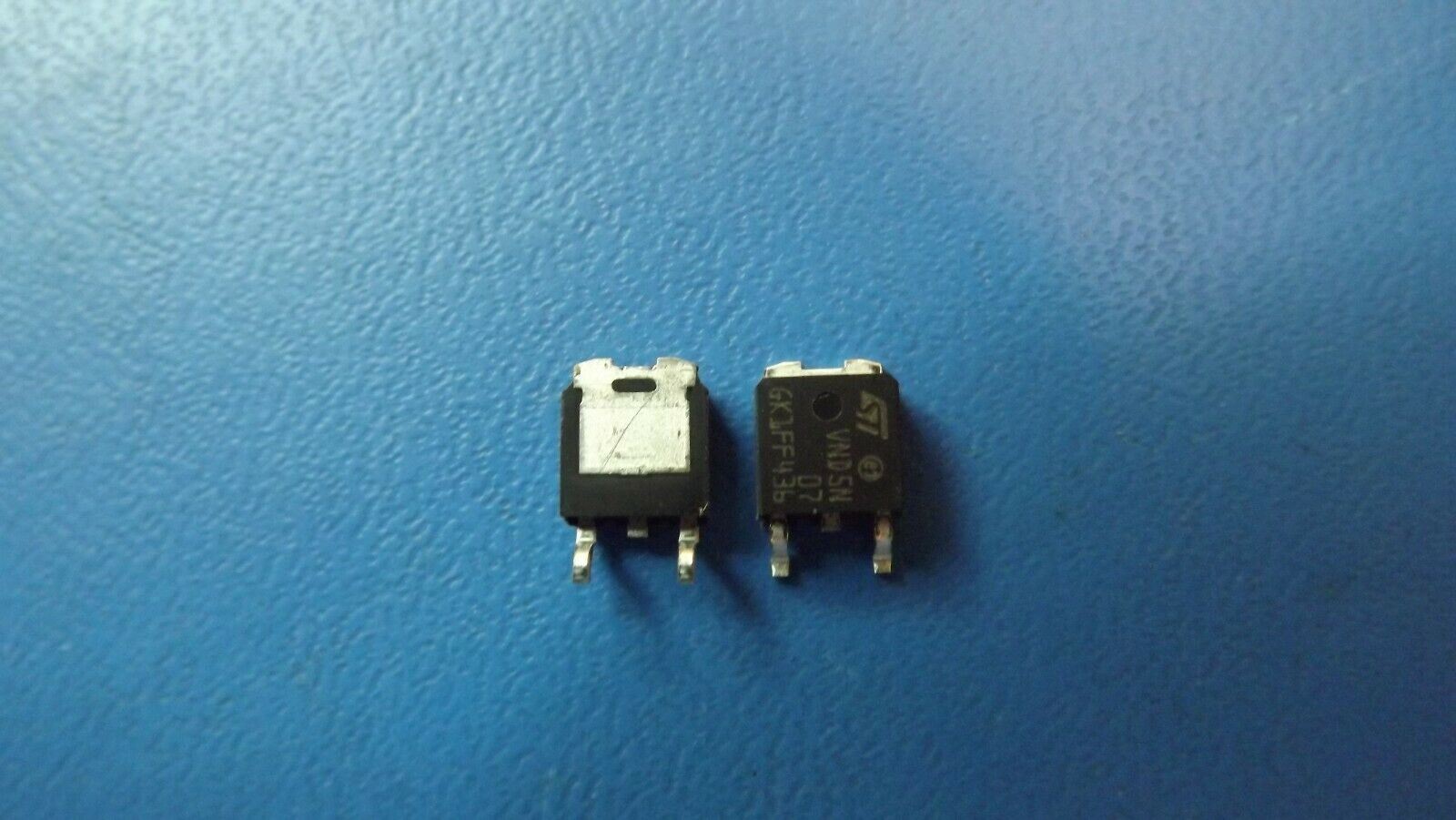

THIS LISTING IS FOR (5PCS) OF VND5N07-E BY ST MICRO

Manufacturer:STMicroelectronics
Product Category:MOSFET
RoHS: Details
Technology:Si
Mounting Style:SMD/SMT
Package / Case:TO-252-3
Number of Channels:1 Channel
Transistor Polarity:N-Channel
Vds - Drain-Source Breakdown Voltage:70 V
Id - Continuous Drain Current:5 A
Rds On - Drain-Source Resistance:200 mOhms
Vgs - Gate-Source Voltage:10 V
Vgs th - Gate-Source Threshold Voltage:800 mV
Qg - Gate Charge:18 nC
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 150 C
Pd - Power Dissipation:60 W
Configuration:Single
Qualification:AEC-Q101
Packaging:Tube
Series:VND5N07-E
Transistor Type:1 N-Channel
Type:Power MOSFET
Brand:STMicroelectronics
Forward Transconductance - Min:3 S
Fall Time:1100 ns
Moisture Sensitive:Yes
Product Type:MOSFET
Rise Time:400 ns
Factory Pack Quantity:3000
Subcategory:MOSFETs
Typical Turn-Off Delay Time:3900 ns
Typical Turn-On Delay Time:150 ns
