(5PCS) ULN2803A ST MICRO TRANS 8 NPN DARL 50V 500MA 18DIP
Tax included.

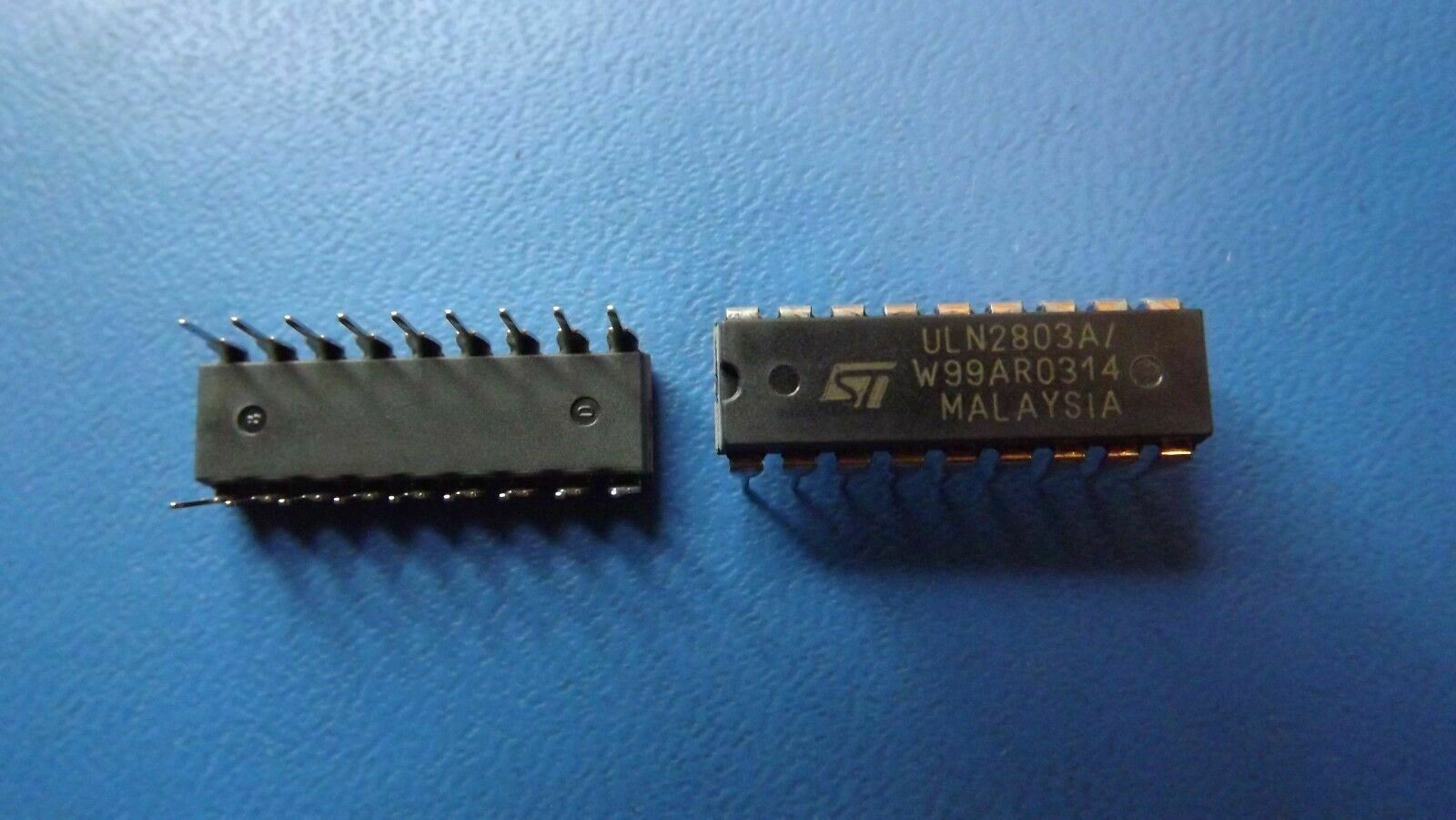

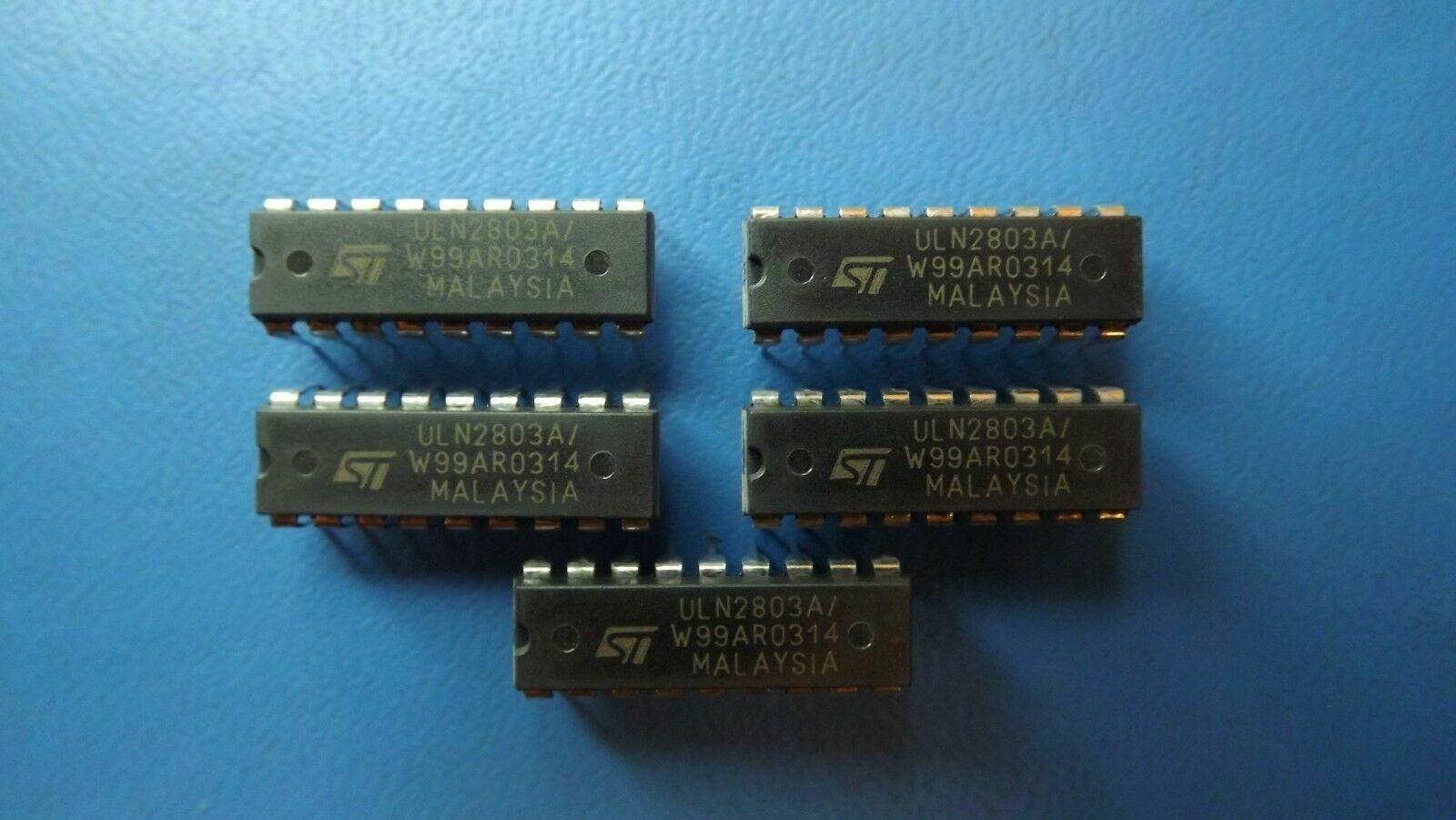

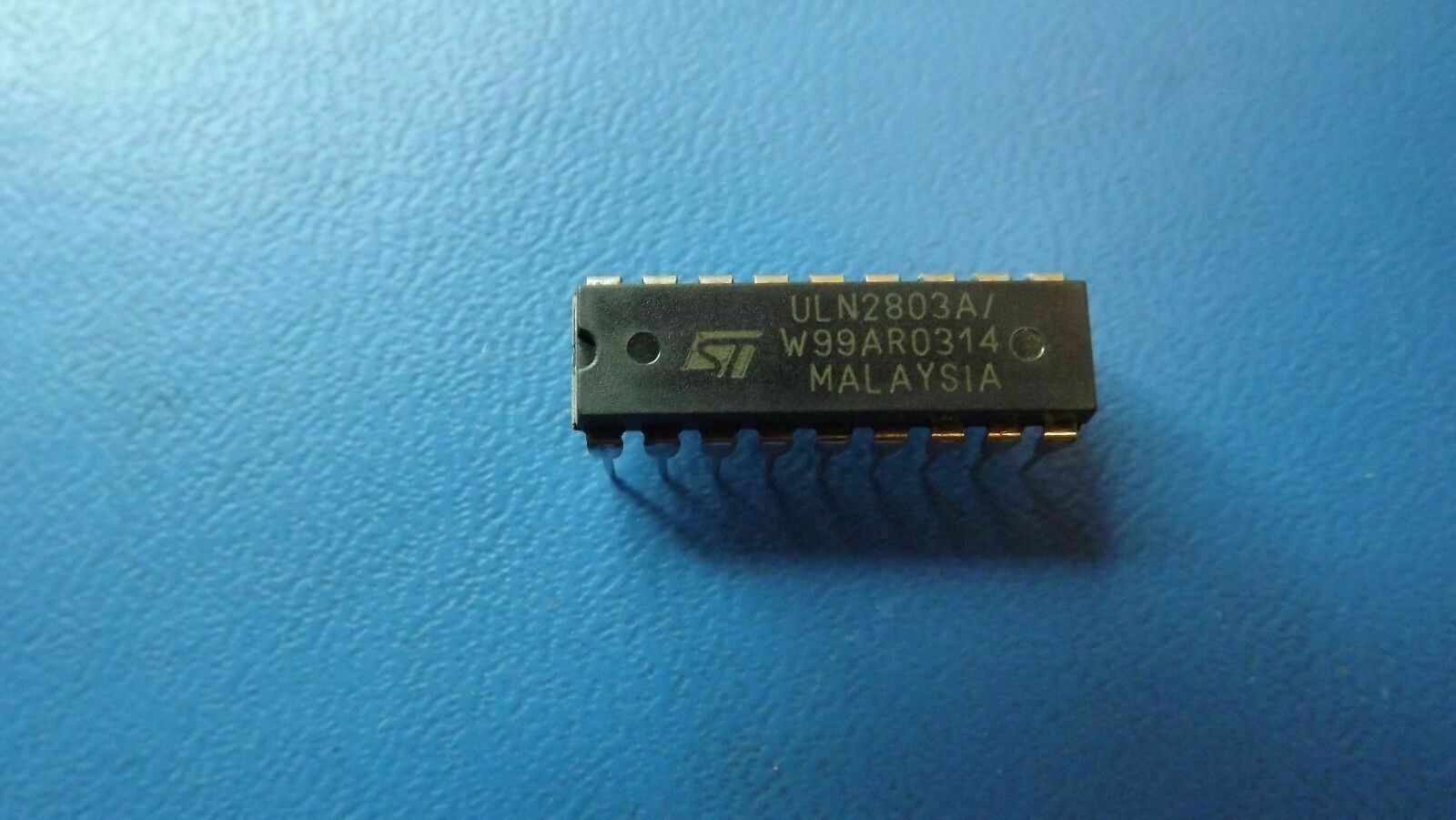

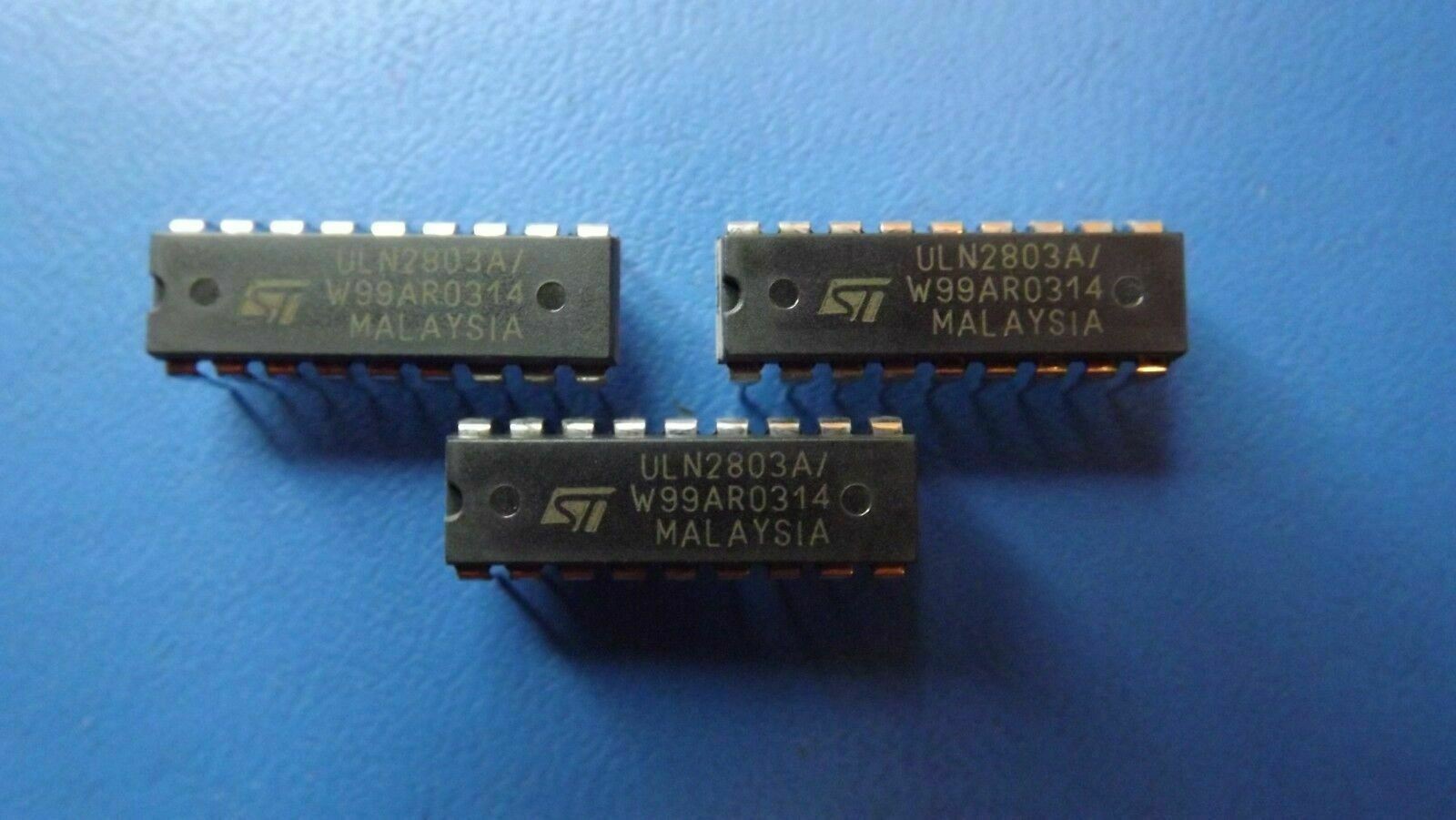

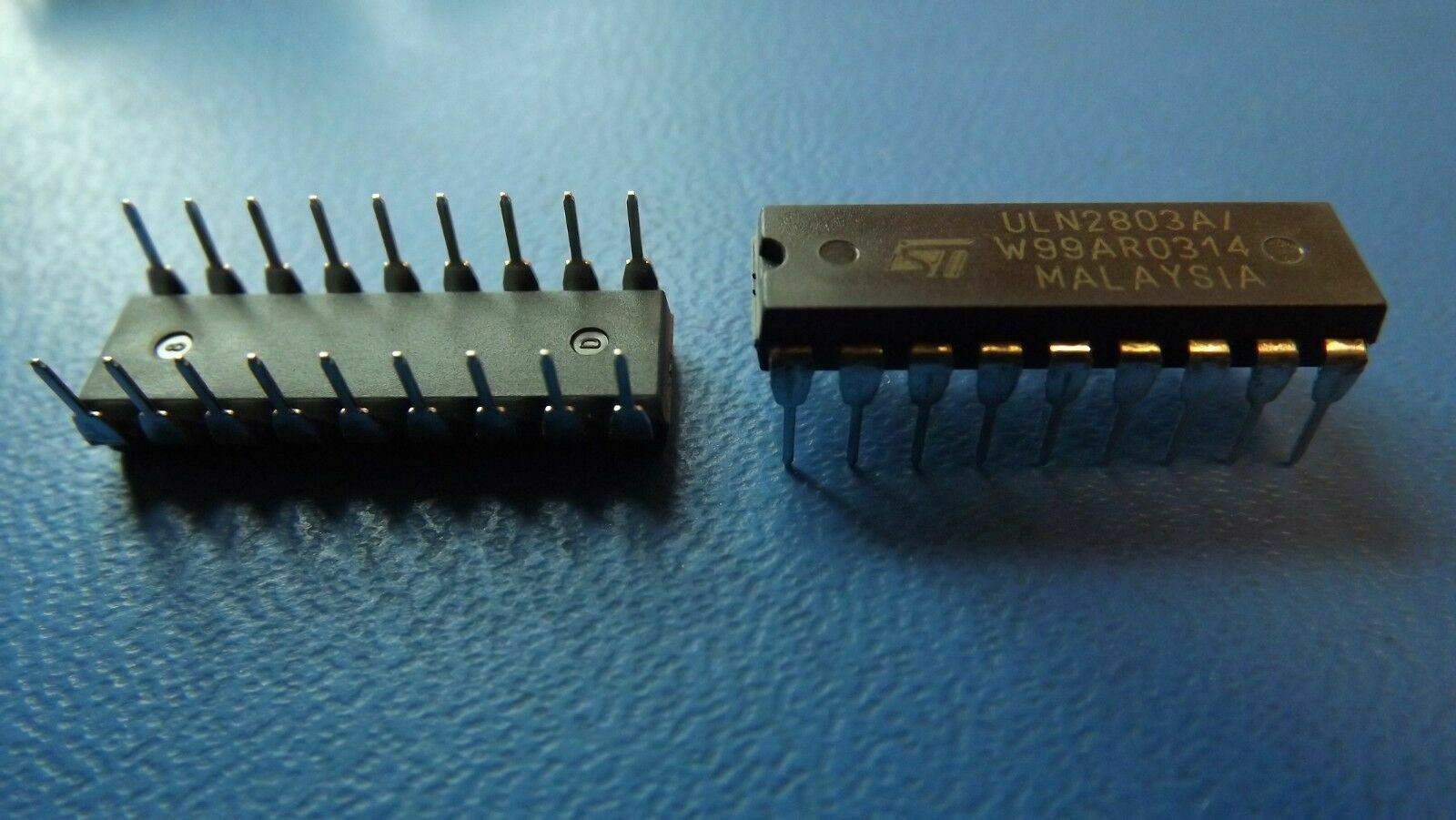

THIS LISTING IS FOR (5PCS) OF ULN2803A BY ST MICRO
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DIP-18 |
| Status | Active |
| Collector Current-Max (IC) | 0.5 A |
| Collector-emitter Voltage-Max | 50.0 V |
| Configuration | 8 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR |
| DC Current Gain-Min (hFE) | 1000.0 |
| JESD-30 Code | R-PDIP-T18 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Elements | 8.0 |
| Number of Terminals | 18 |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Polarity/Channel Type | NPN |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| VCEsat-Max | 1.6 V |
| Additional Feature | LOGIC LEVEL COMPATIBLE |
