(5pcs) UCC3805N Unitrode Switching Controller, Current-mode, 1A, 8PDIP
Tax included.

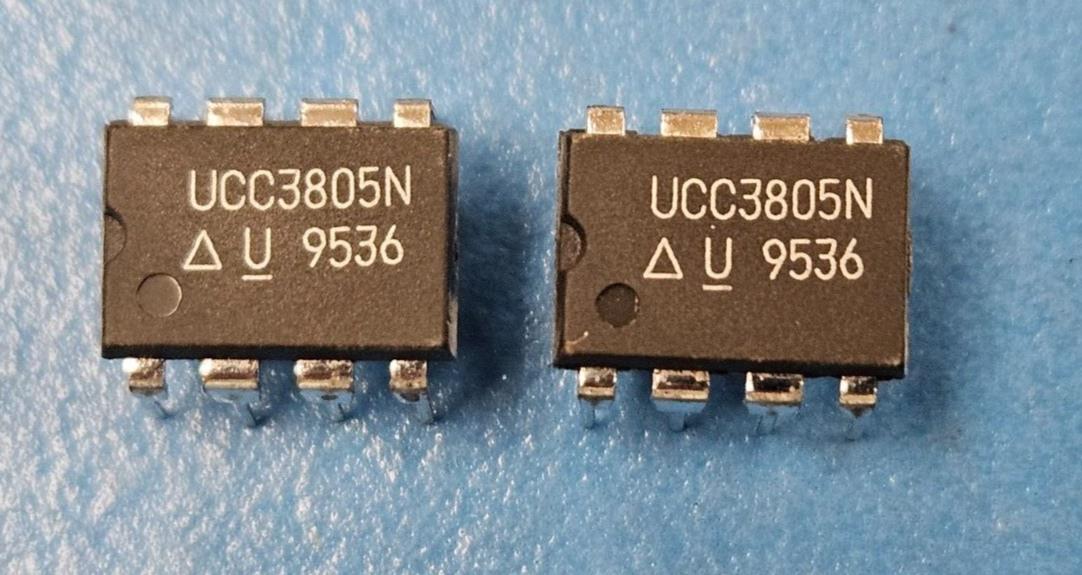

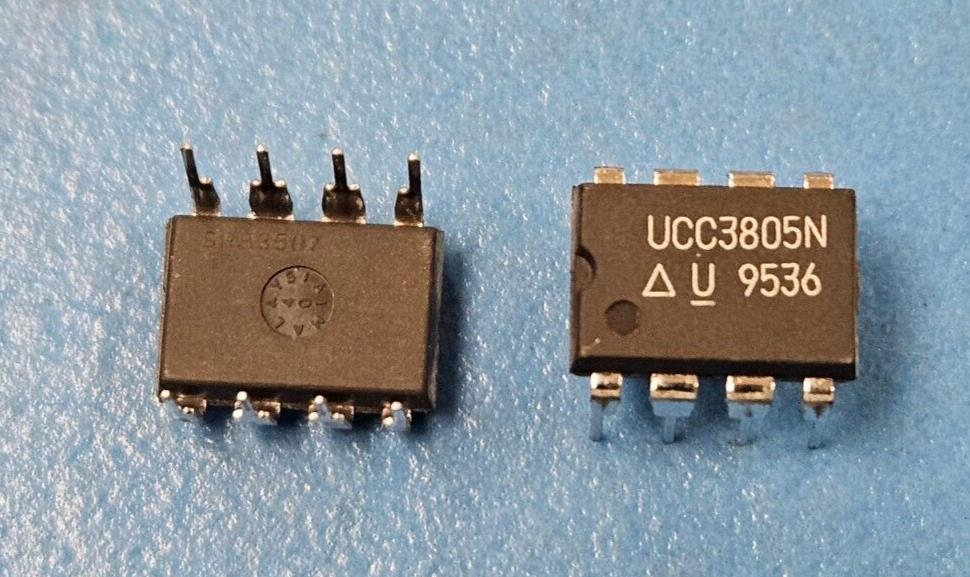

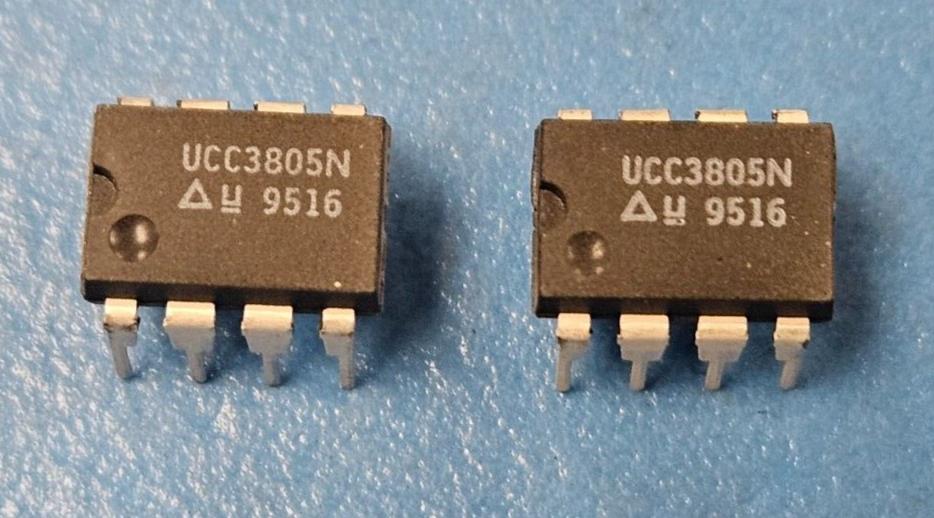

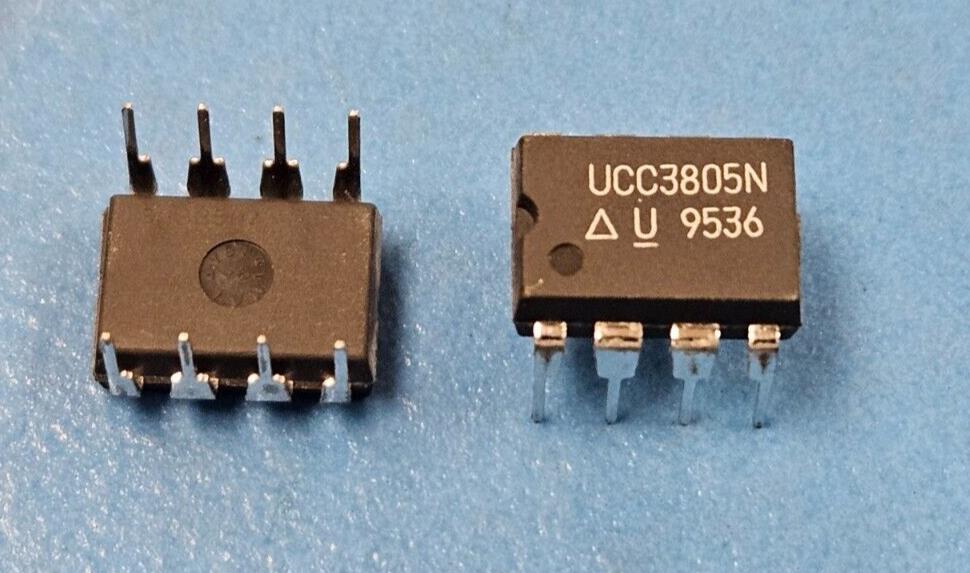

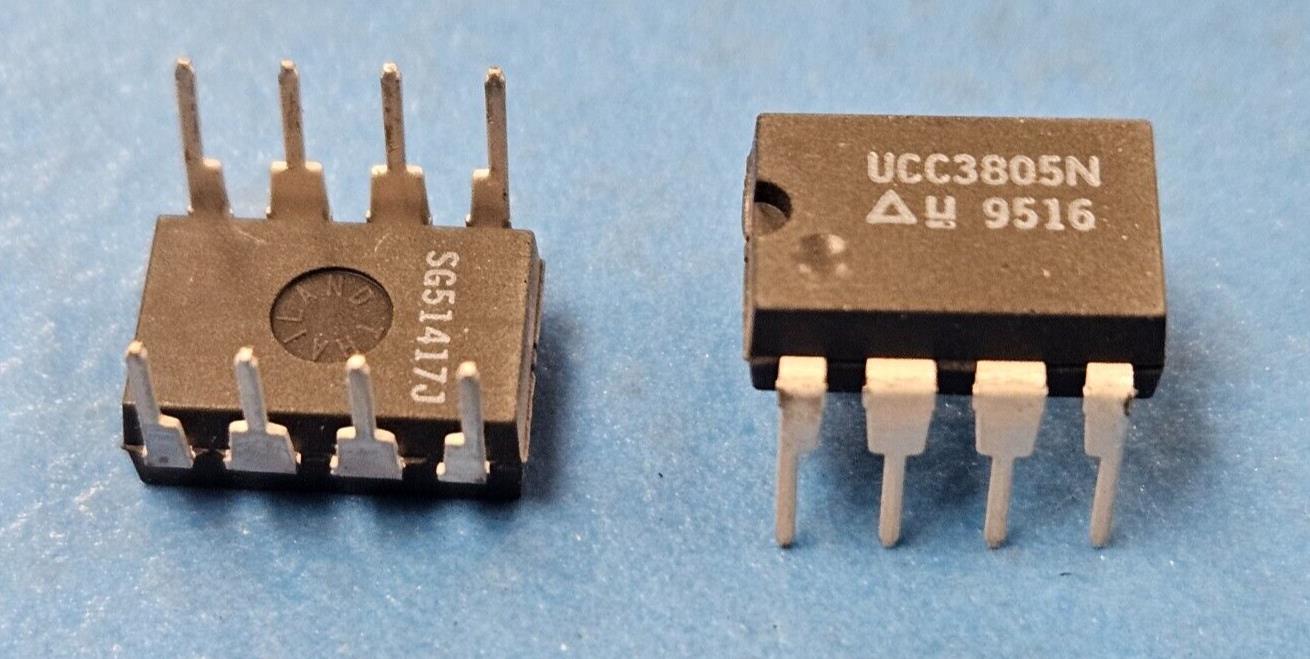

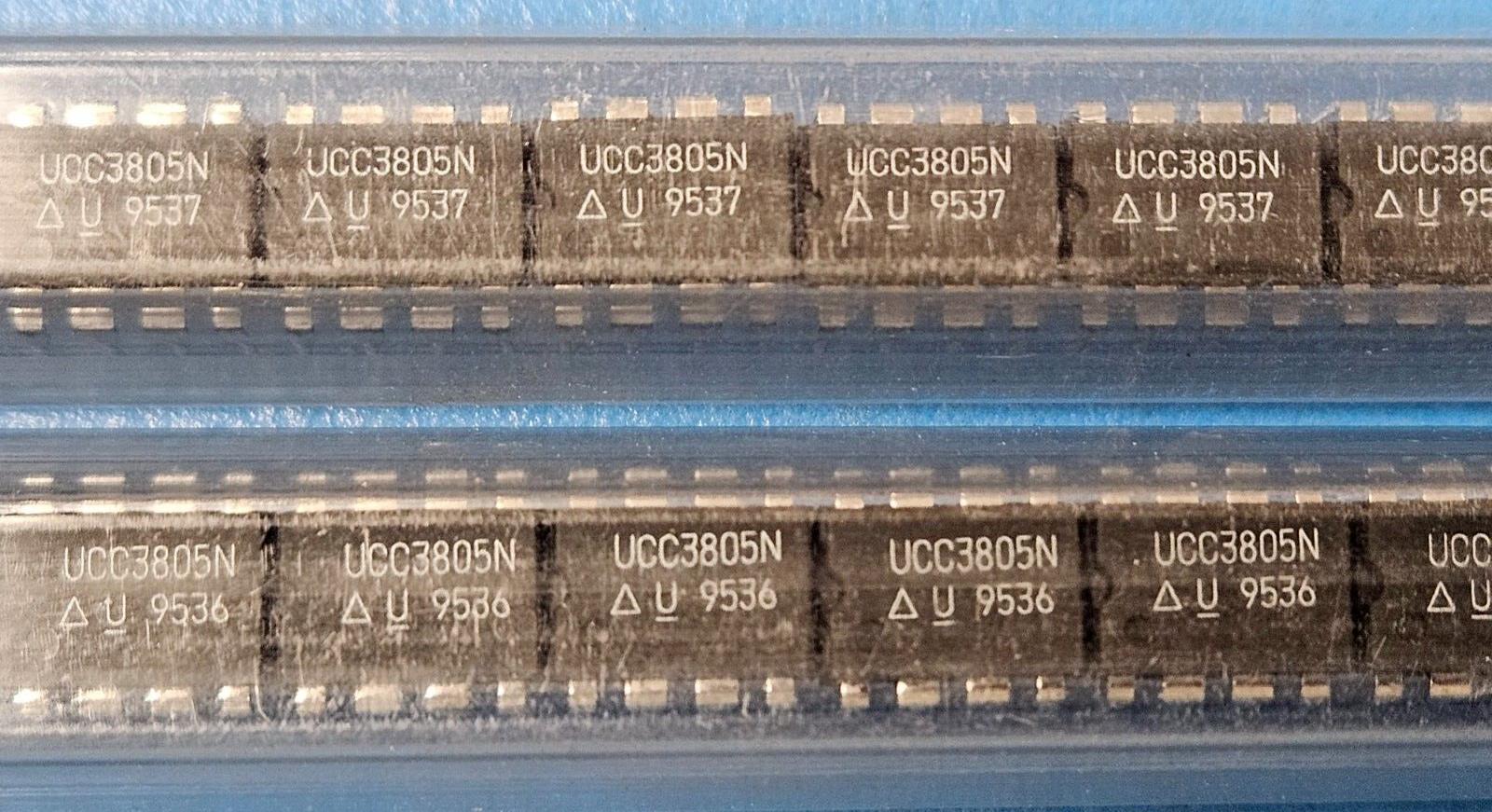

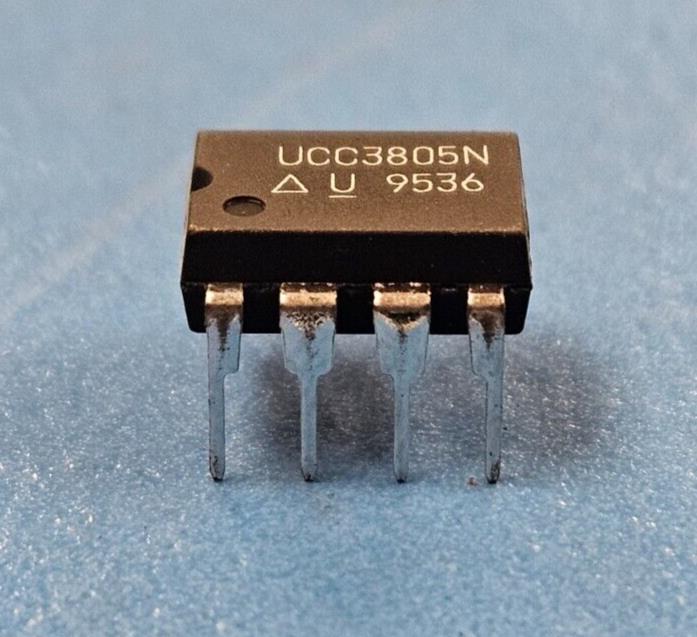

This listing is for (5PCS) of UCC3805N by Unitrode
Mfr Package Description DIP-8
Status Transferred
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Nom 10.0 V
Input Voltage-Min 4.0 V
Input Voltage-Max 12.0 V
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Current-Max 1.0 A
Output Voltage-Nom 2.0 V
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Sub Category Switching Regulator or Controllers
Supply Current-Max (Isup) 1.0 mA
Surface Mount NO
Switcher Configuration SINGLE
Switching Frequency-Max 1000.0 kHz
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Additional Feature HALF DUTY
