(5PCS) TPS70950DBVR TI IC REG LINEAR 5V 150MA SOT23-5
Tax included.

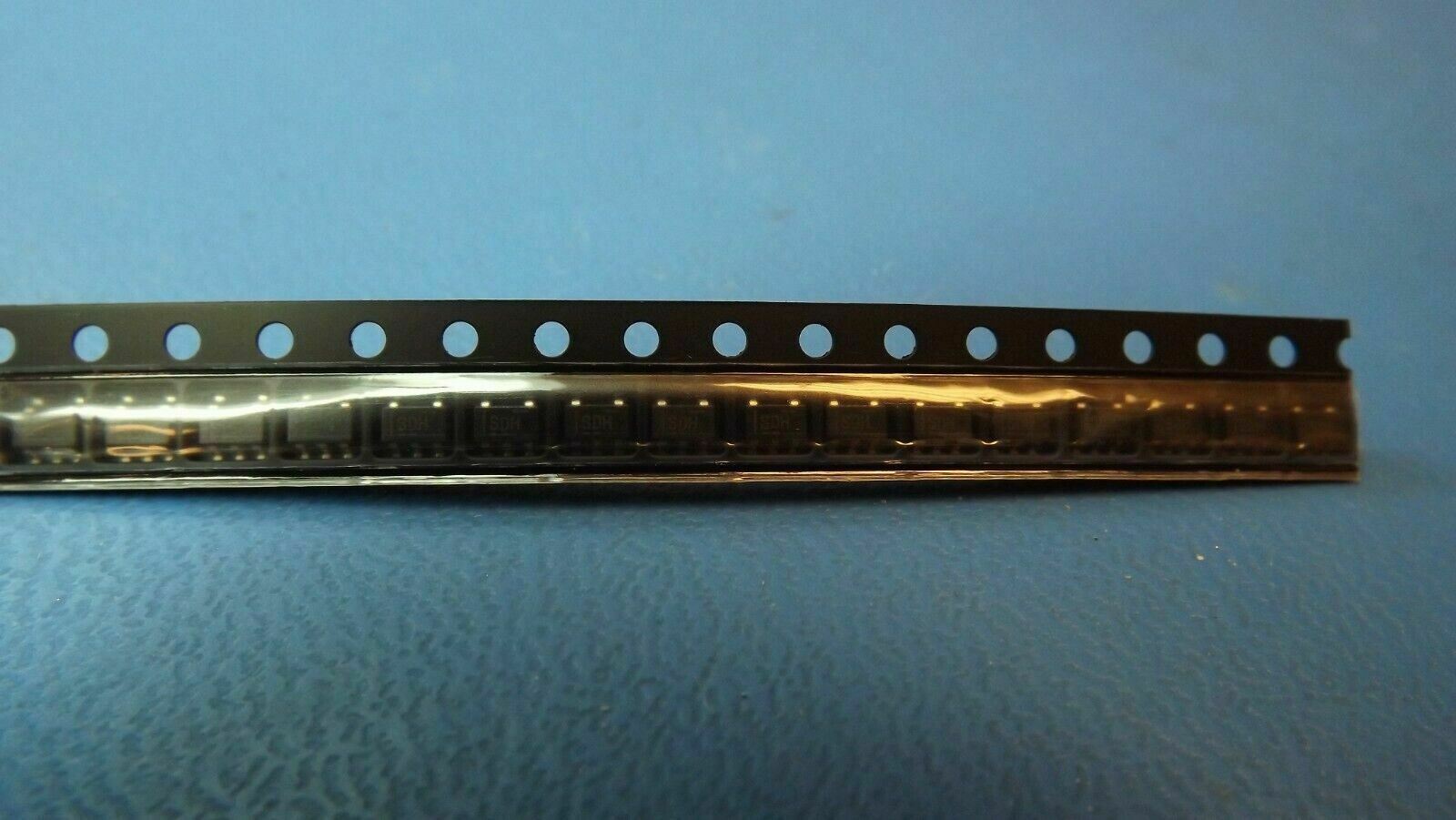

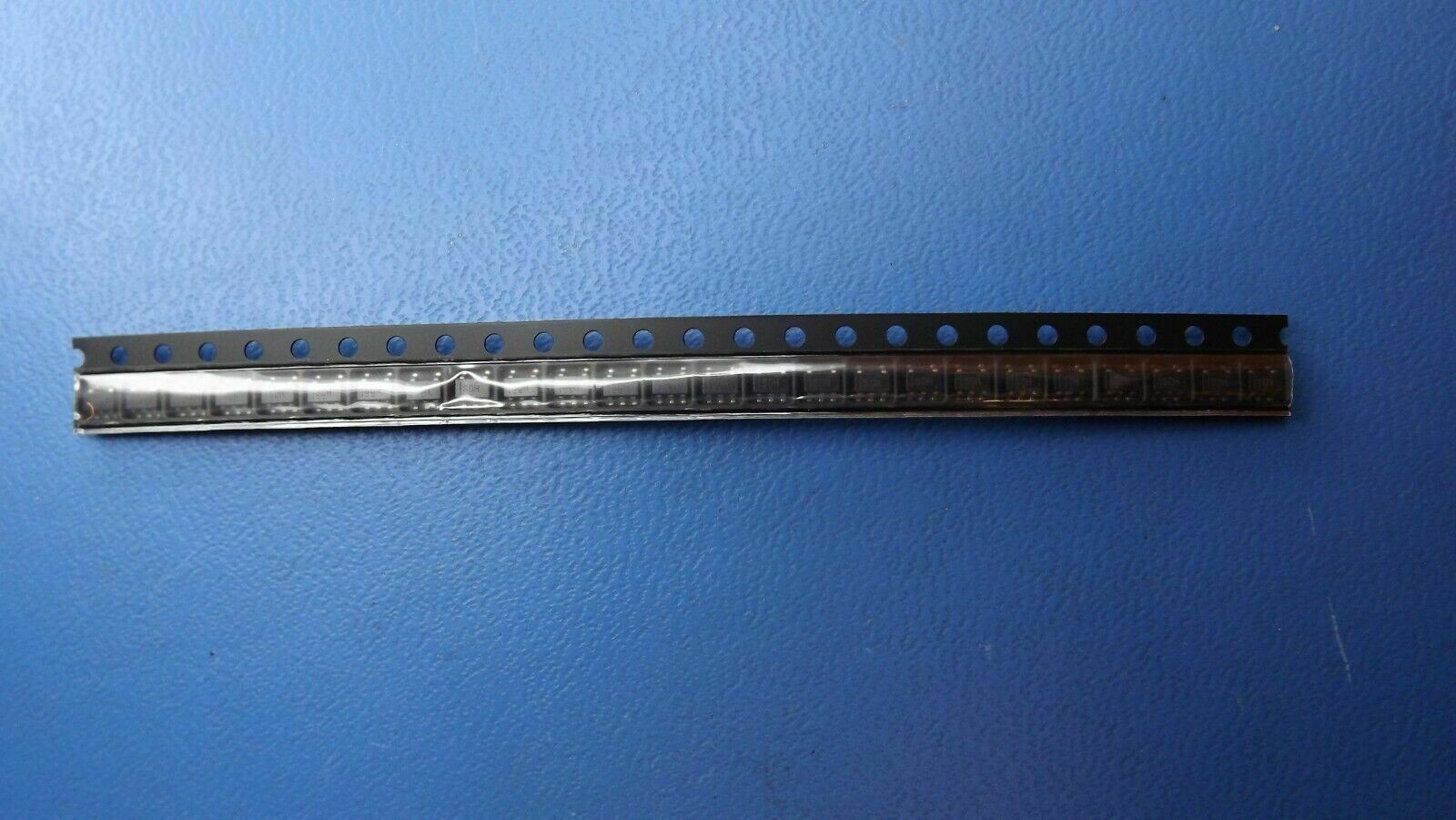

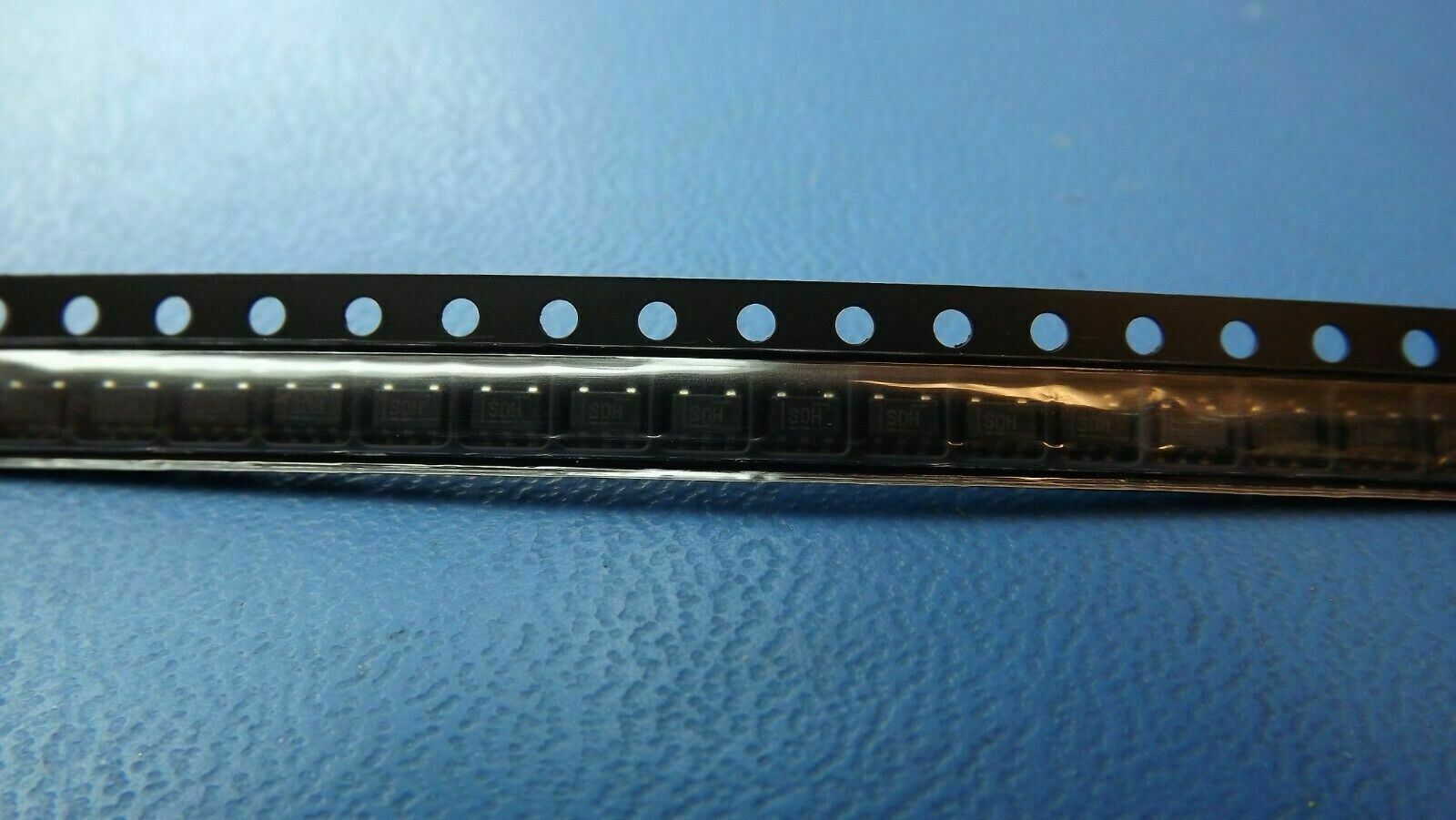

THIS LISTING IS FOR (5PC) OF TPS70950DBVR BY TEXAS INSTRUMENTS
SPECIFICATIONS
| Mfr Package Description | SOT-23, 5 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Adjustability | FIXED |
| Dropout Voltage1-Nom | 0.8 V |
| Dropout Voltage1-Max | 1.2 V |
| Input Voltage Absolute-Max | 30.0 V |
| Input Voltage-Min | 2.7 V |
| Input Voltage-Max | 30.0 V |
| JESD-30 Code | R-PDSO-G5 |
| JESD-609 Code | e4 |
| Line Regulation-Max | 0.015 V |
| Load Regulation-Max | 0.05 V |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 5 |
| Operating Temperature, TJ-Min | -40.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 0.15 A |
| Output Voltage1-Nom | 5.0 V |
| Output Voltage1-Min | 4.95 V |
| Output Voltage1-Max | 5.05 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LSSOP |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Packing Method | TAPE AND REEL |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.45 mm |
| Sub Category | Other Regulators |
| Surface Mount | YES |
| Technology | CMOS |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.95 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Voltage Tolerance-Max | 2.0 % |
| Length | 2.9 mm |
| Width | 1.6 mm |
