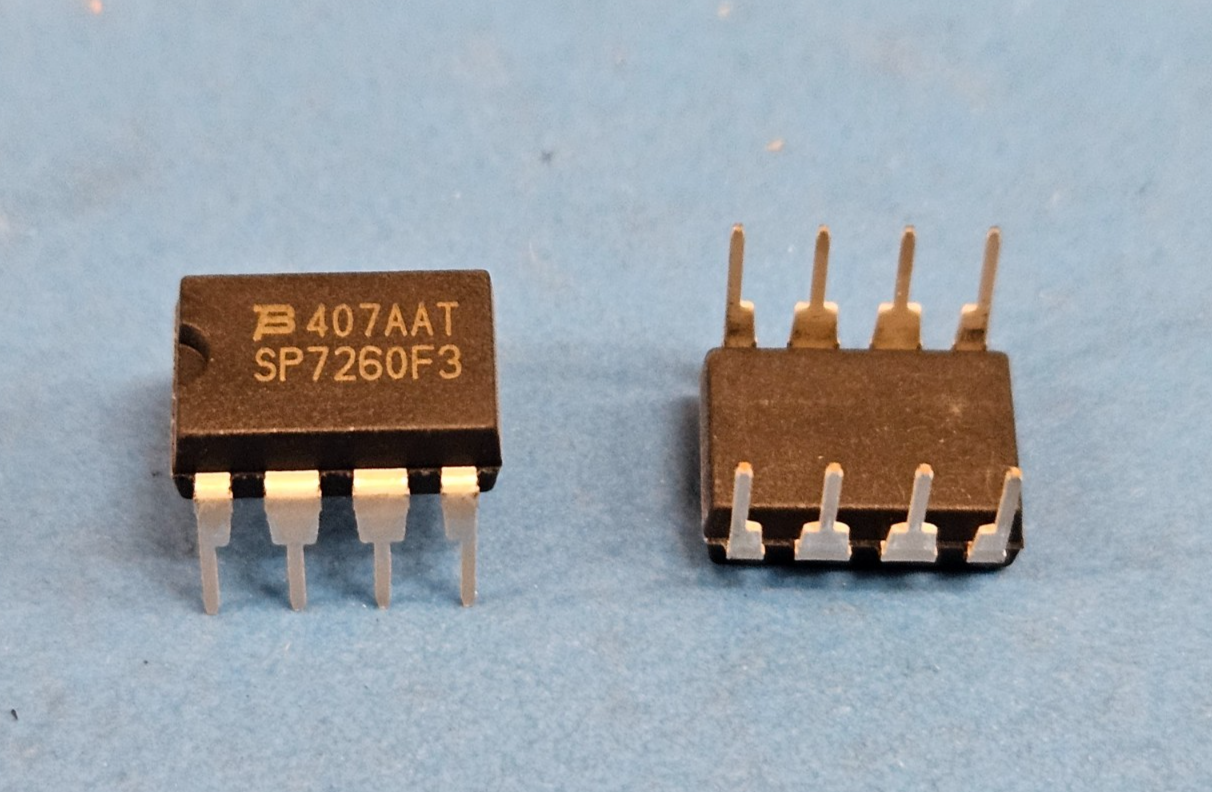

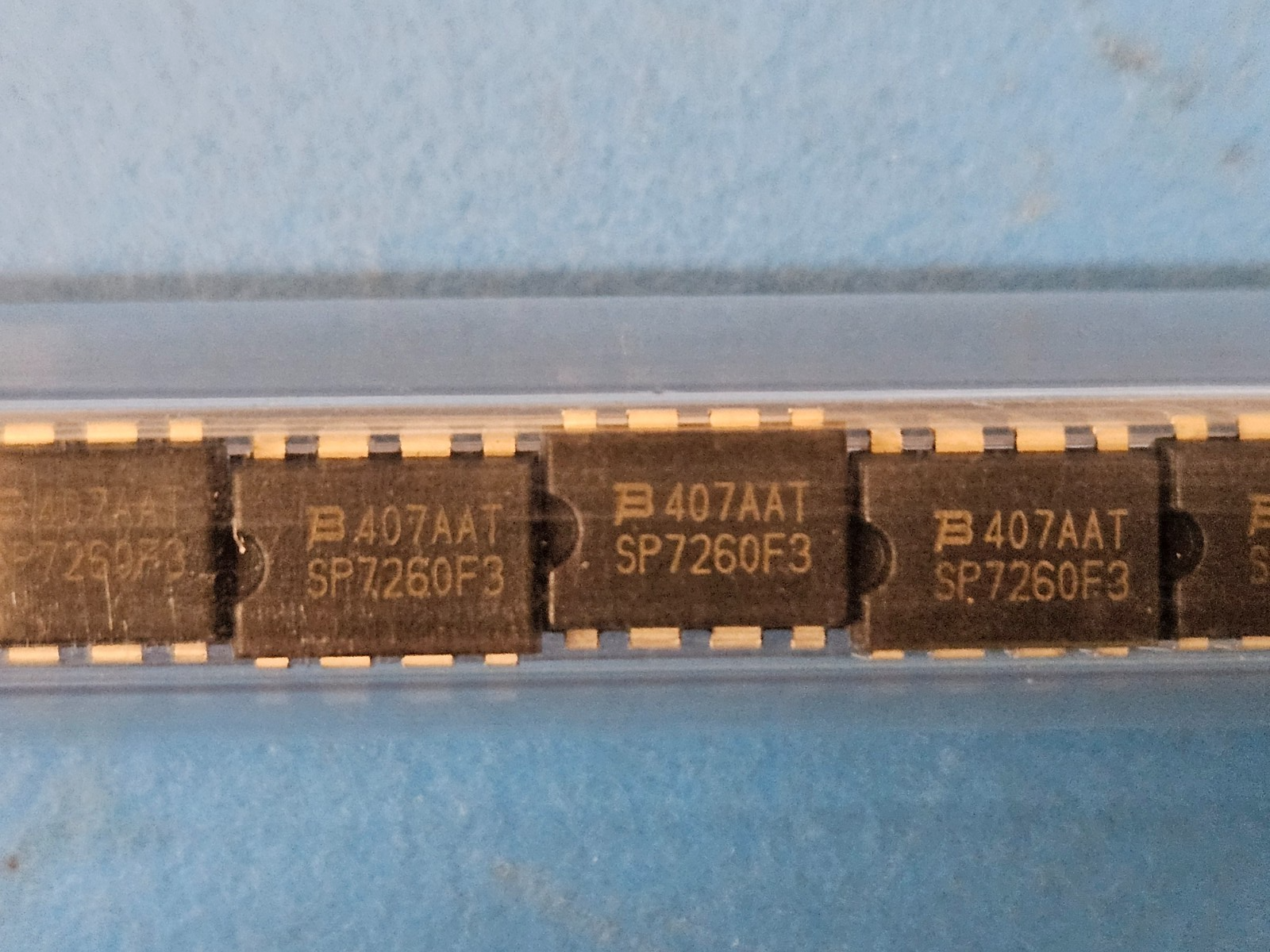

(5PCS) TISP7260F3P Thyristor Surge Protector, 260V, 5.7A SOIC8 SP7260F3
Tax included.
This listing is for (5pcs) of TISP7260F3P by Bourns
Status Discontinued
Breakover Voltage-Max (V) 260.0000000000000000
Configuration DELTA CONNECTED, 3 ELEMENTS
DC Off-state Voltage-Max (V) 200.0000000000000000
JEDEC-95 Code MS-001BA
JESD-30 Code R-PDIP-T8
J-STD-609 Code e0
Non-Repetitive Pk On-state Cur (A) 5.7000000000000000
Number of Elements 3
Number of Terminals 8
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
DLA Qualification Not Qualified
Screening Level / Reference Standard UL RECOGNIZED
Surface Mount NO
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Trigger Device Type THYRISTOR SURGE PROTECTOR
