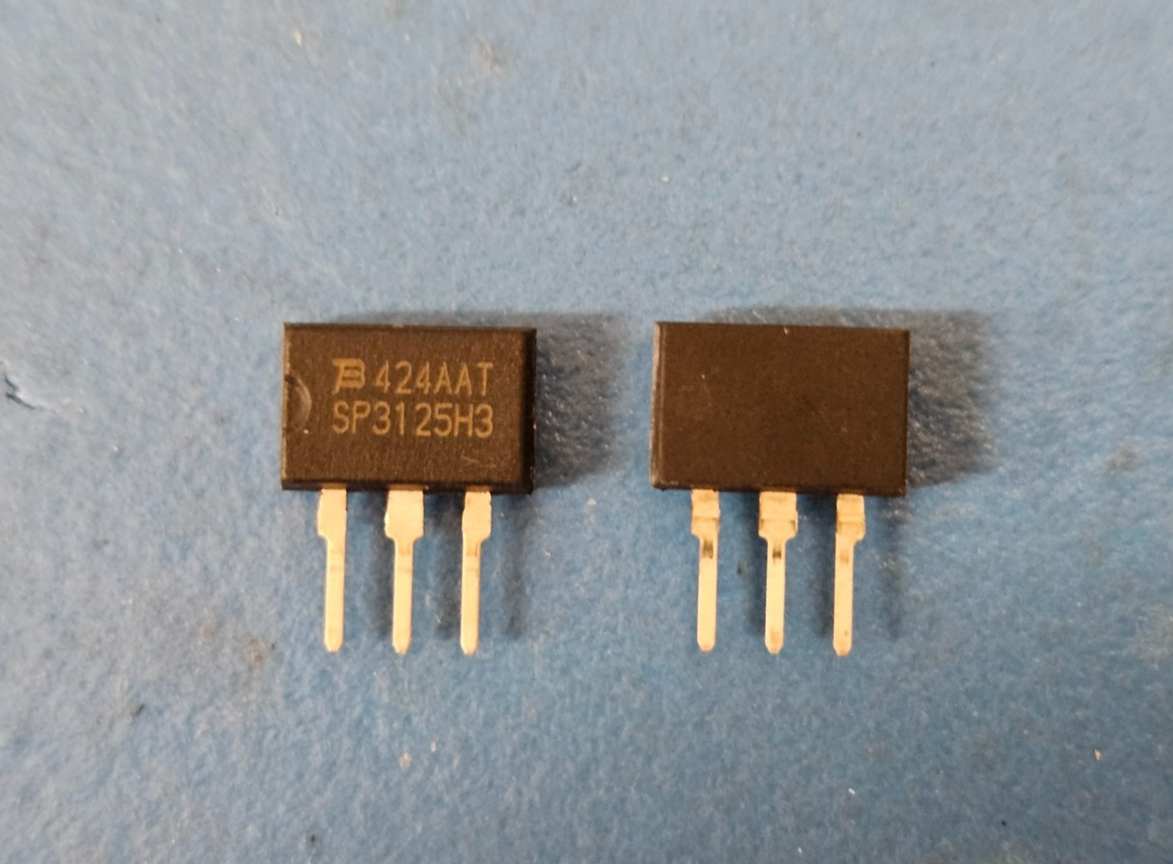

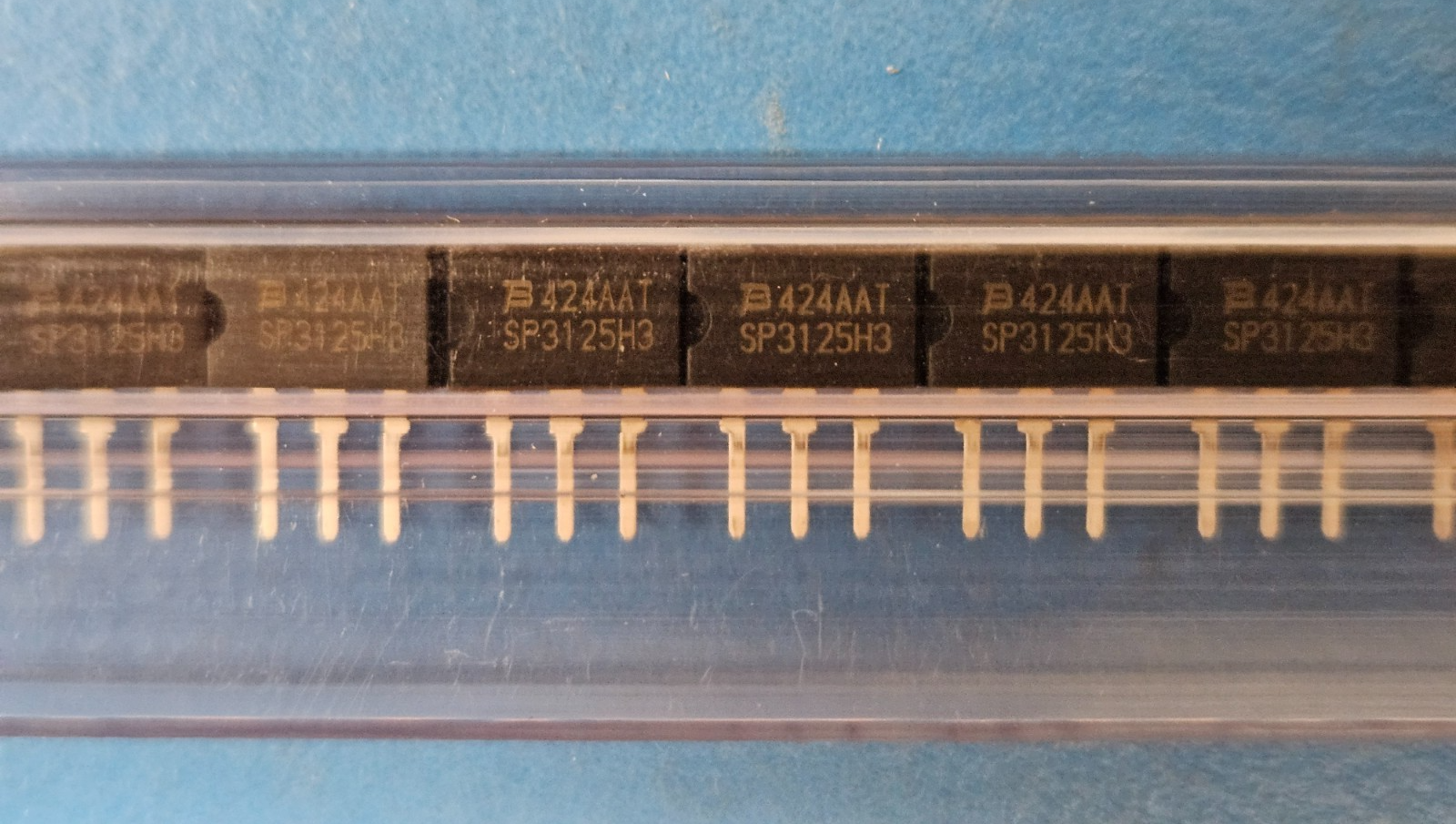

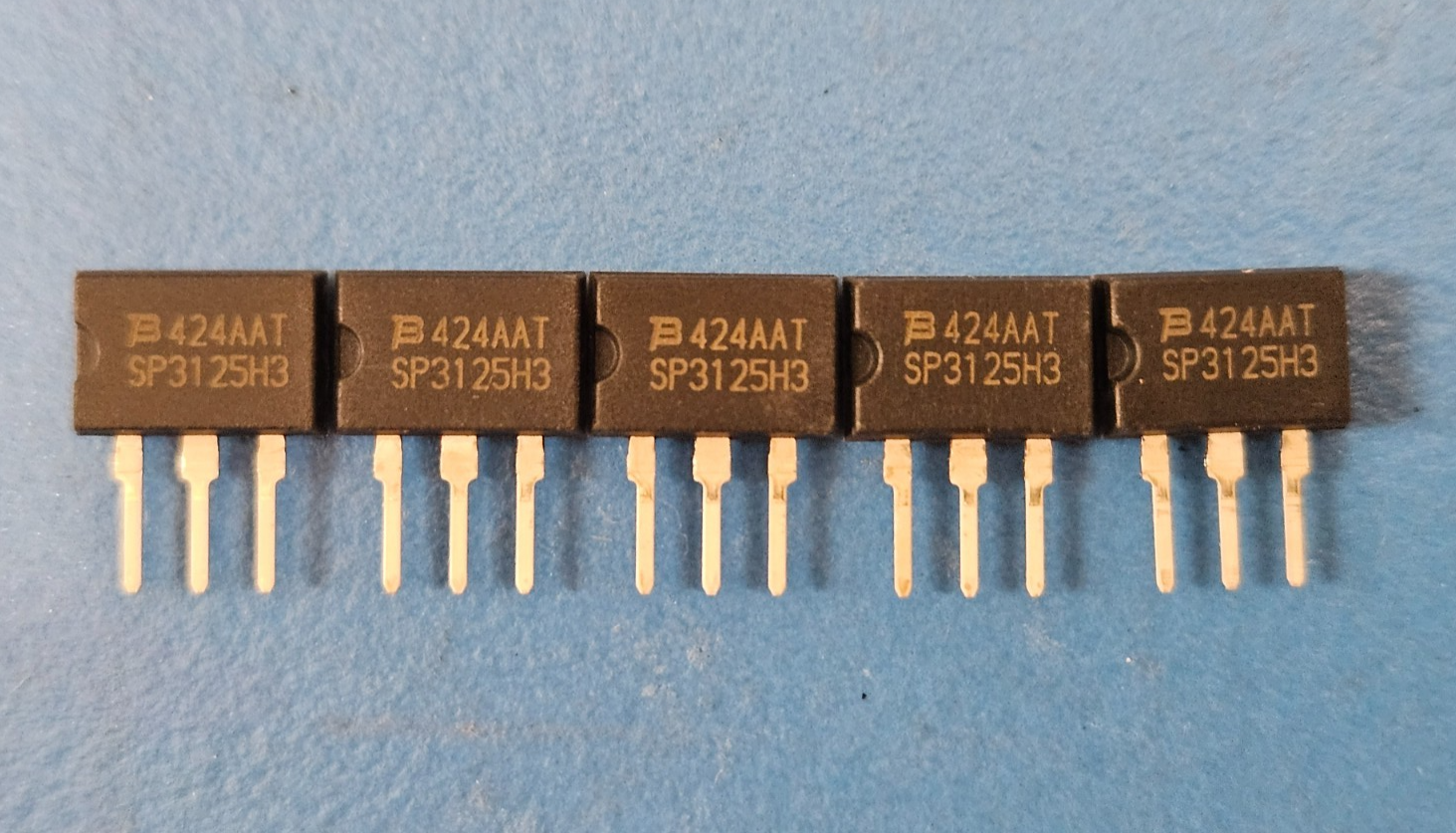

(5PCS) TISP3125H3SL Bourns Thyristor Surge Protector, 125V, 60A SIP-3 SP3125H3
Tax included.
This listing is for (5PCS) of TISP3125H3SL by Bourns
Status Discontinued
Breakover Voltage-Max (V) 125.0000000000000000
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
DC Off-state Voltage-Max (V) 100.0000000000000000
Holding Current-Max (mA) 600.0000000000000000
JESD-30 Code R-PSIP-T3
J-STD-609 Code e0
Non-Repetitive Pk On-state Cur (A) 60.0000000000000000
Number of Elements 2
Number of Terminals 3
Operating Temperature-Max (Cel) 150
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
DLA Qualification Not Qualified
Screening Level / Reference Standard UL RECOGNIZED
Repetitive Peak Reverse Voltage (V) 100
Surface Mount NO
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Trigger Device Type THYRISTOR SURGE PROTECTOR
