(5pcs) TIC236N Bourns 4 Quadrant Logic Level TRIAC, 800V, 12A, TO-220AB
(5pcs) TIC236N Bourns 4 Quadrant Logic Level TRIAC, 800V, 12A, TO-220AB
(5pcs) TIC236N Bourns 4 Quadrant Logic Level TRIAC, 800V, 12A, TO-220AB
(5pcs) TIC236N Bourns 4 Quadrant Logic Level TRIAC, 800V, 12A, TO-220AB
(5pcs) TIC236N Bourns 4 Quadrant Logic Level TRIAC, 800V, 12A, TO-220AB
(5pcs) TIC236N Bourns 4 Quadrant Logic Level TRIAC, 800V, 12A, TO-220AB

(5pcs) TIC236N Bourns 4 Quadrant Logic Level TRIAC, 800V, 12A, TO-220AB

Tax included.
Only 36 left!

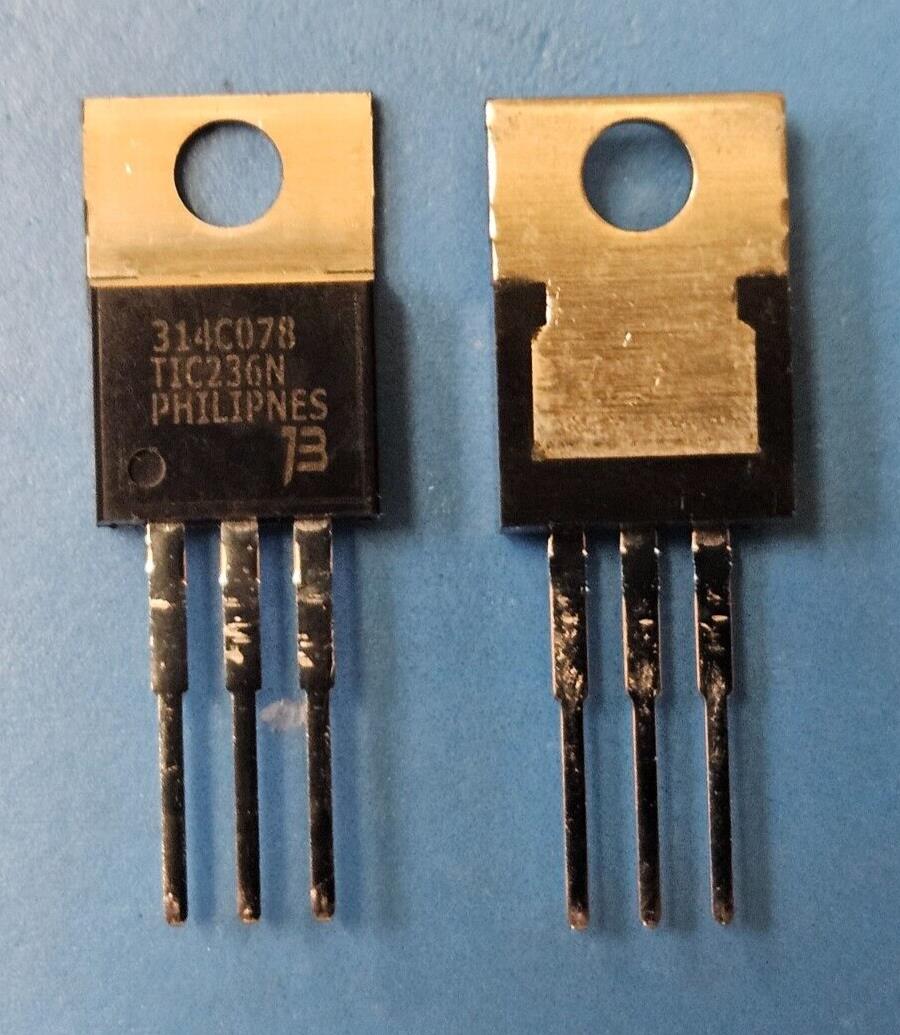

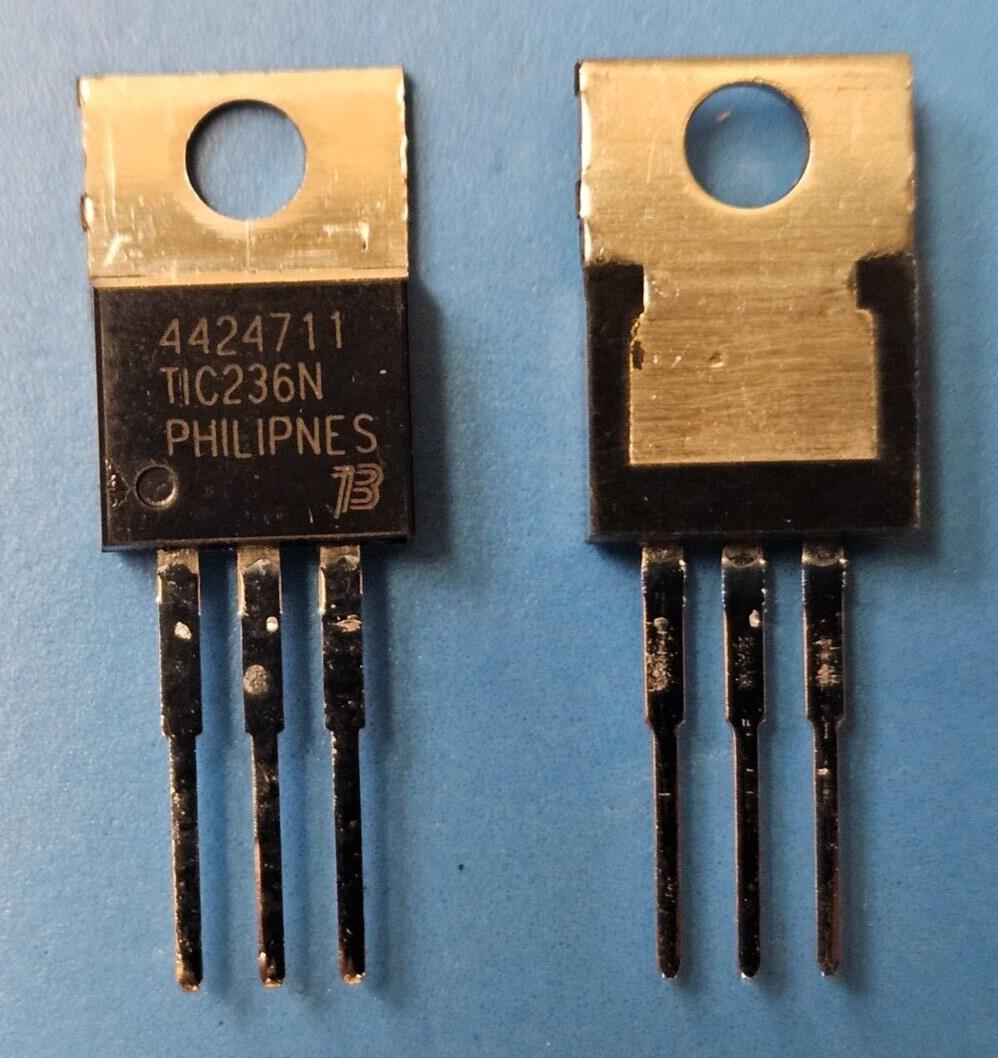

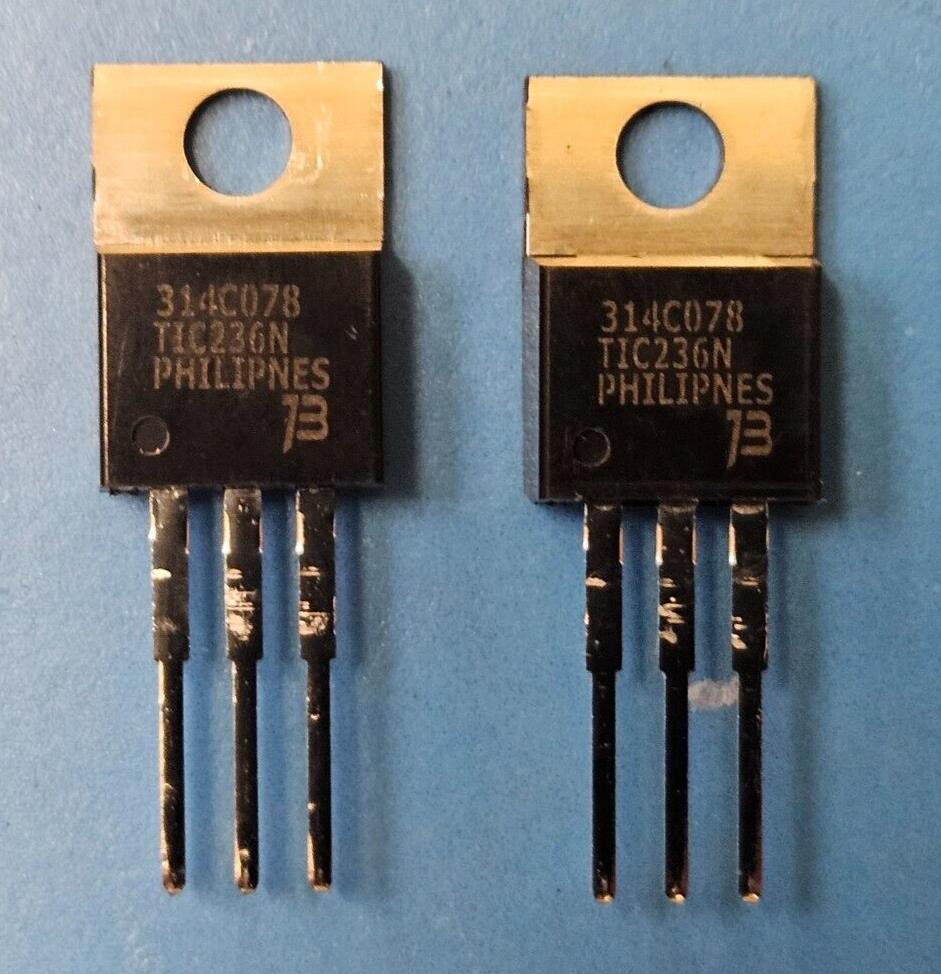

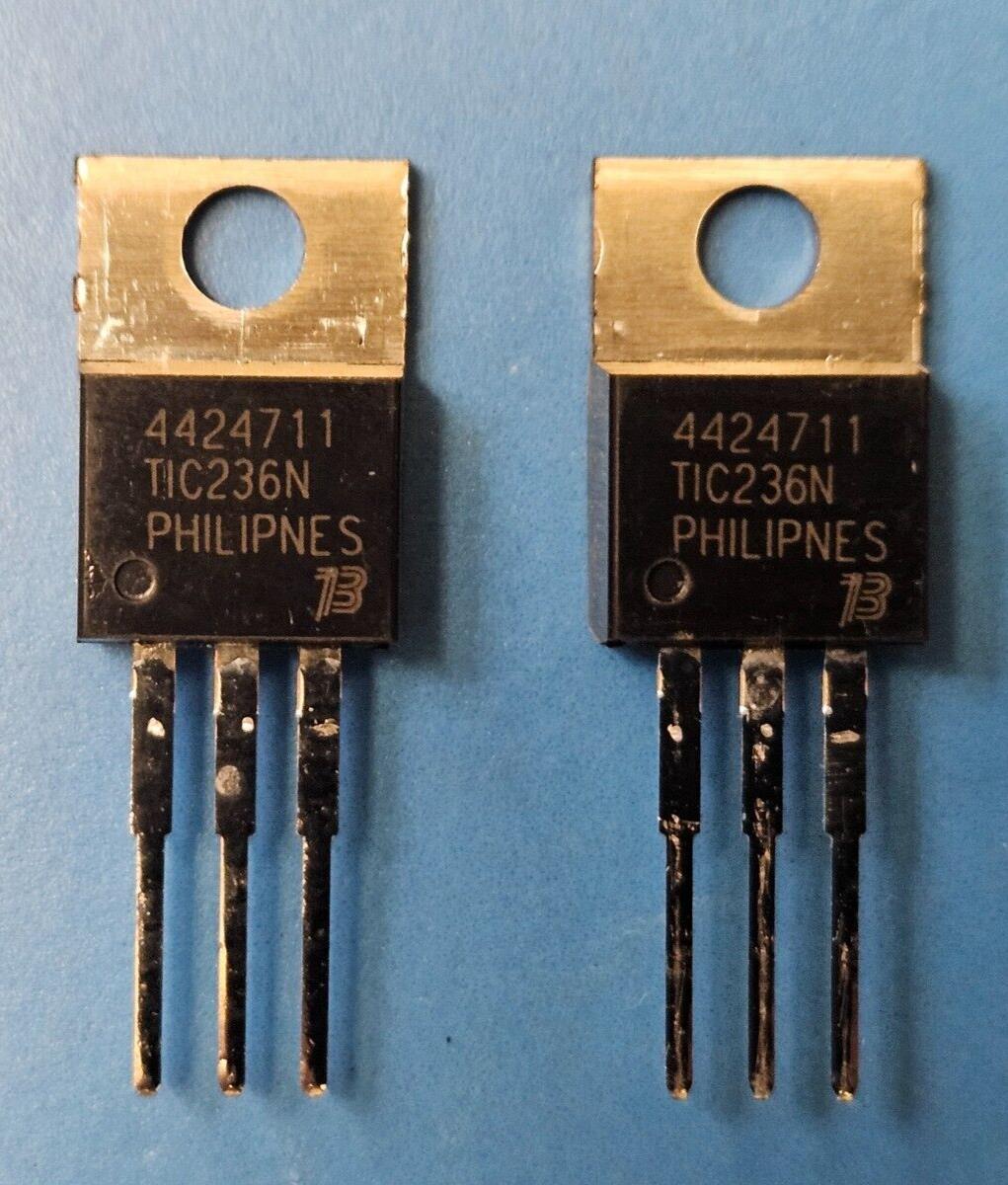

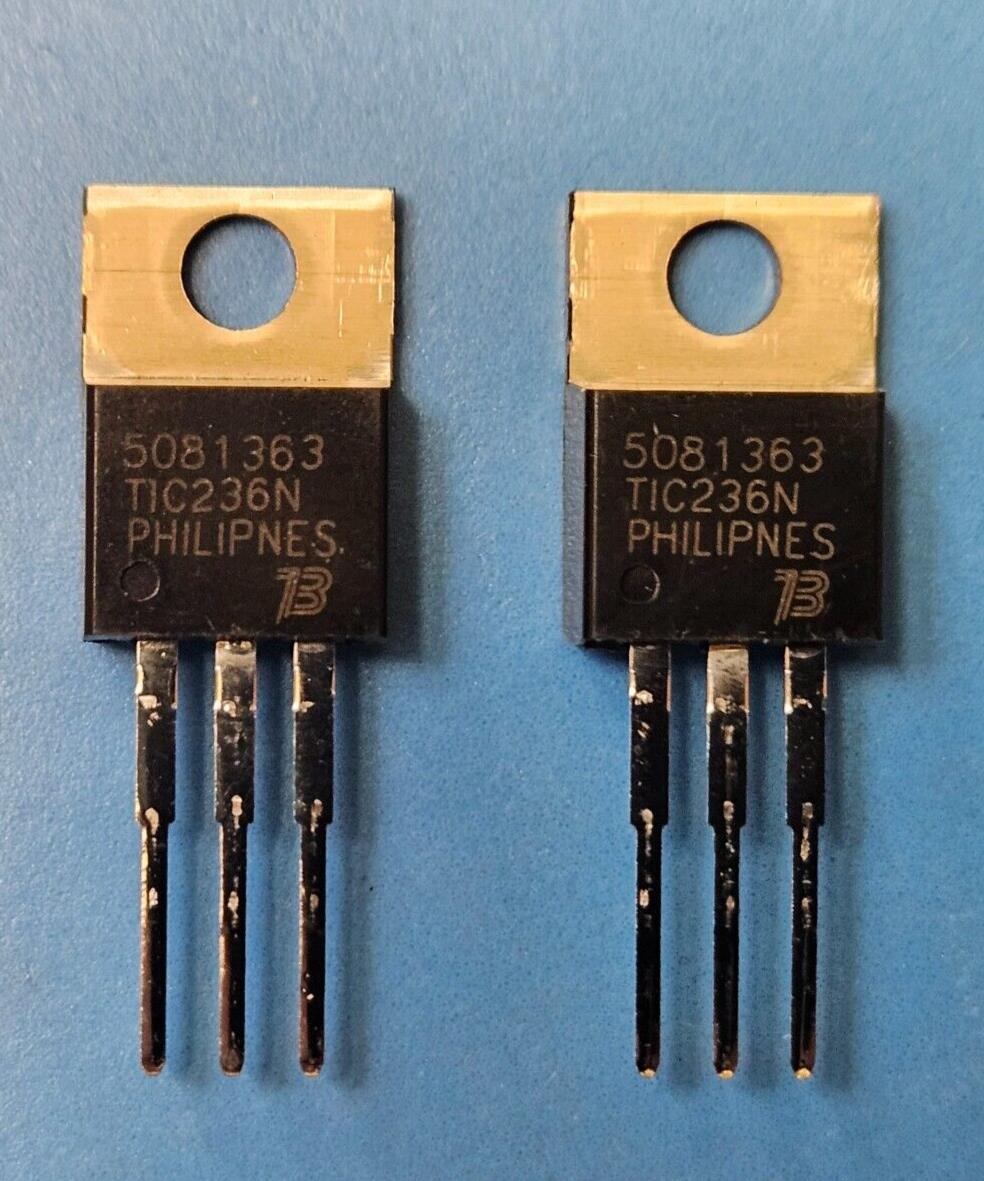

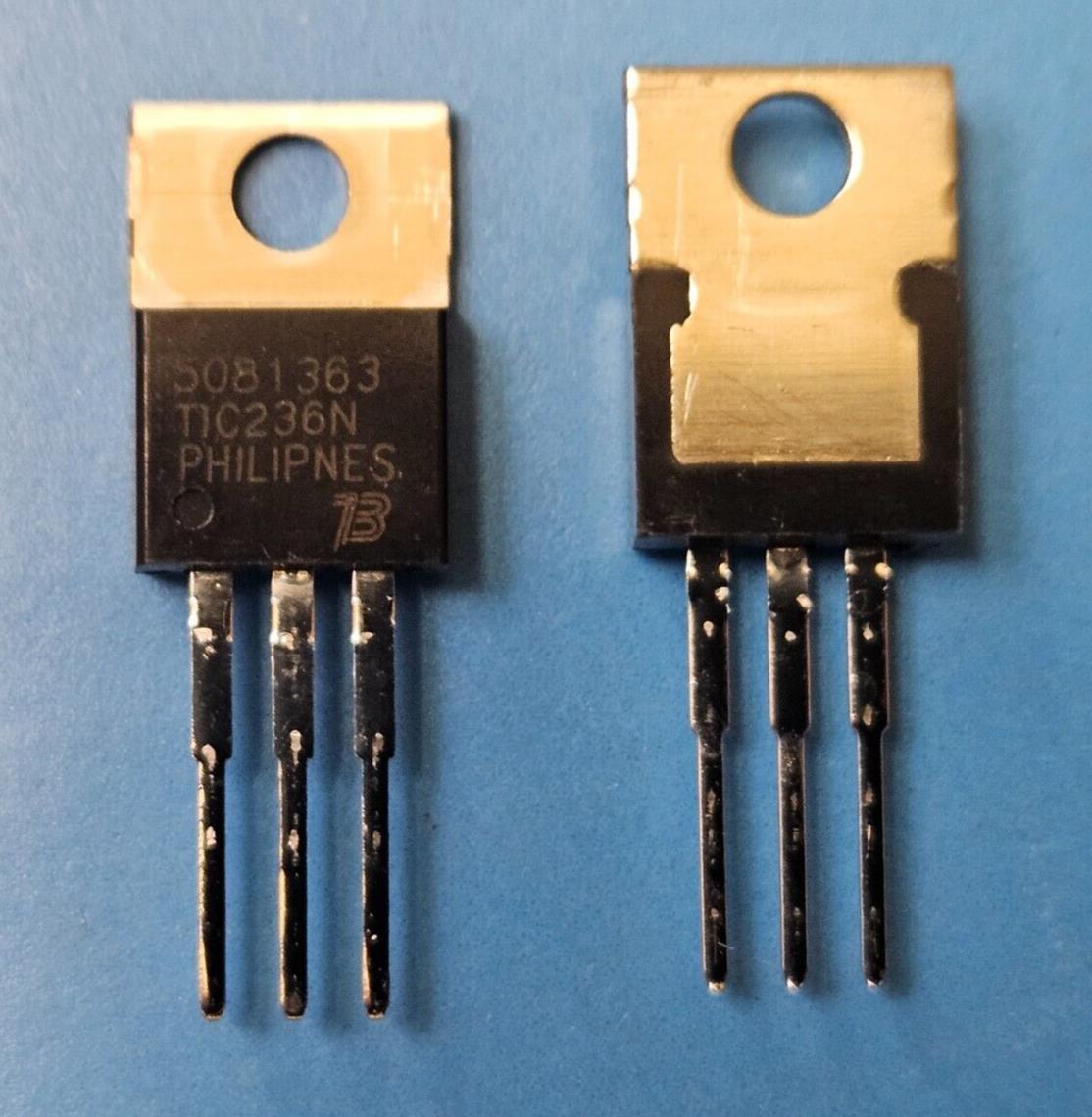

This listing is for (5pcs) of TIC236N by Bourns


Mfr Package Description TO-220, 3 PIN
Status Transferred
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
Case Connection MAIN TERMINAL 2
Configuration SINGLE
Critical Rate of Rise of Commutation Voltage-Min 1.2  V/us
DC Gate Trigger Current-Max 50.0  mA
DC Gate Trigger Voltage-Max 2.0  V
Holding Current-Max 40.0  mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1.0
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Qualification Status Not Qualified
Repetitive Peak Off-state Leakage Current-Max 2000.0  µA
Repetitive Peak Off-state Voltage 800.0  V
RMS On-state Current-Max 12.0  A
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
