(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM
(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM
(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM
(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM
(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM
(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM
(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM
(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM

(5PCS) TFM-110-01-S-D-RA SAMTEC CONNECTOR HEADER R/A 20POS 1.27MM

Tax included.
Only 5 left!

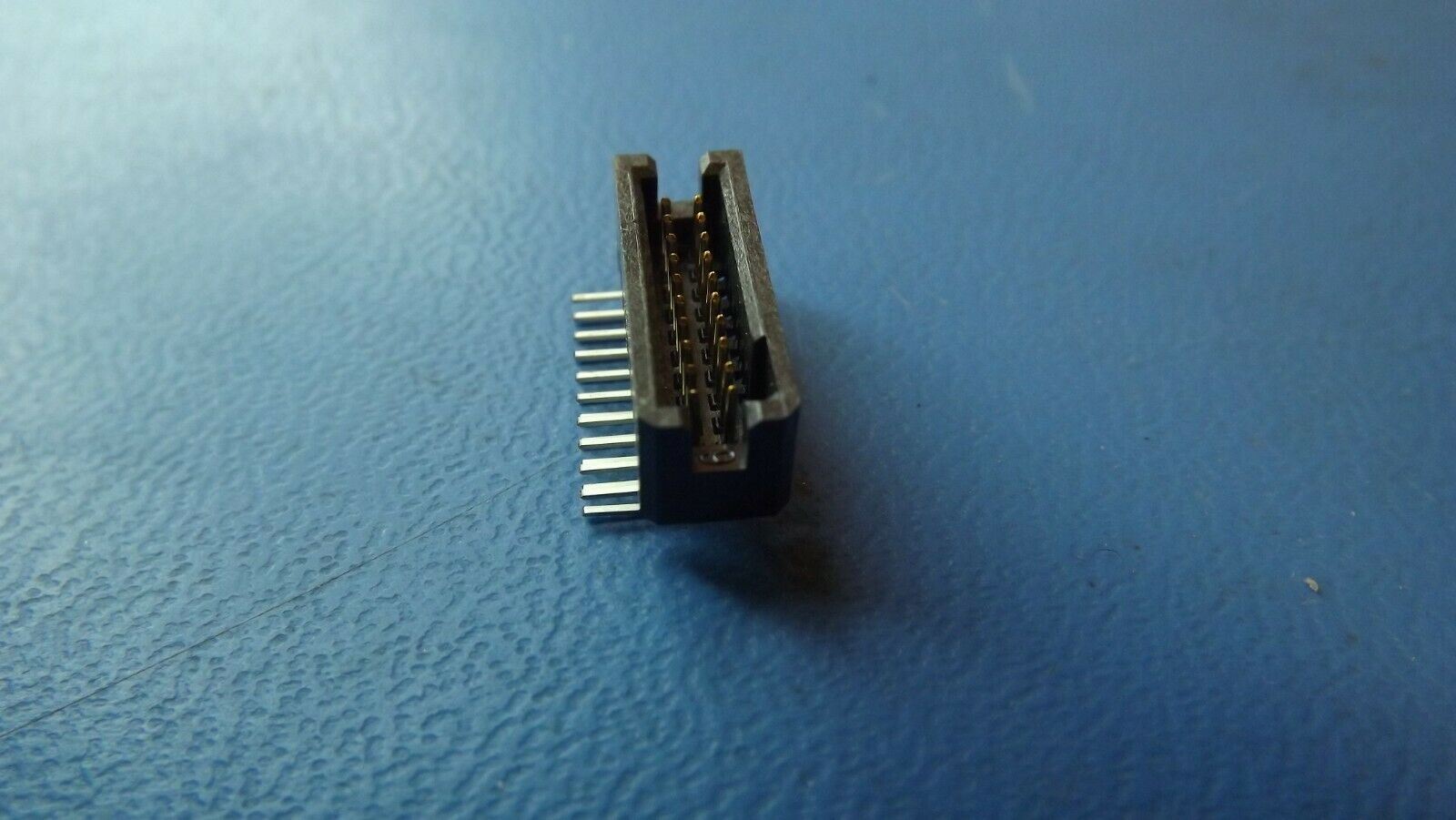

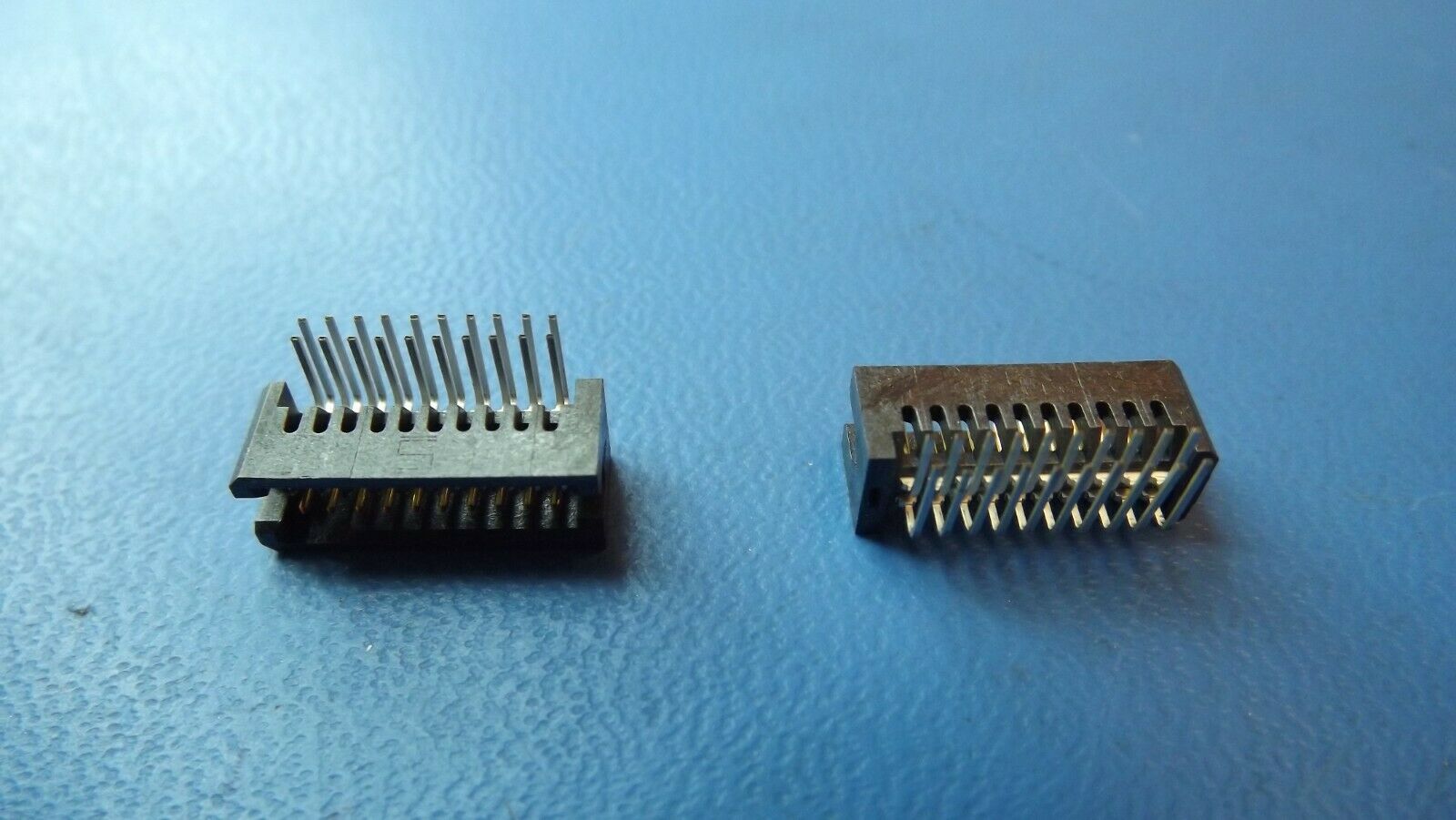

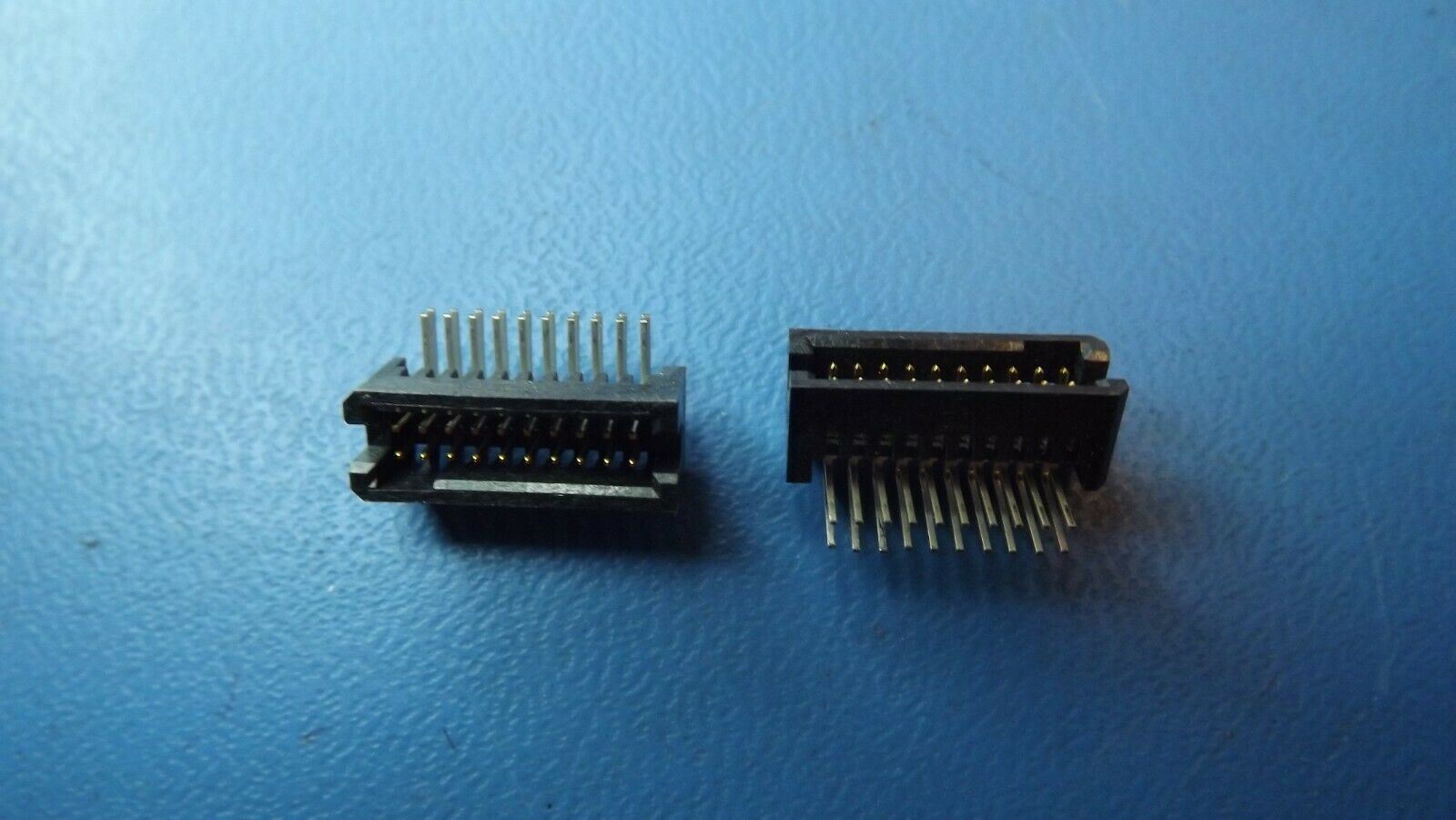

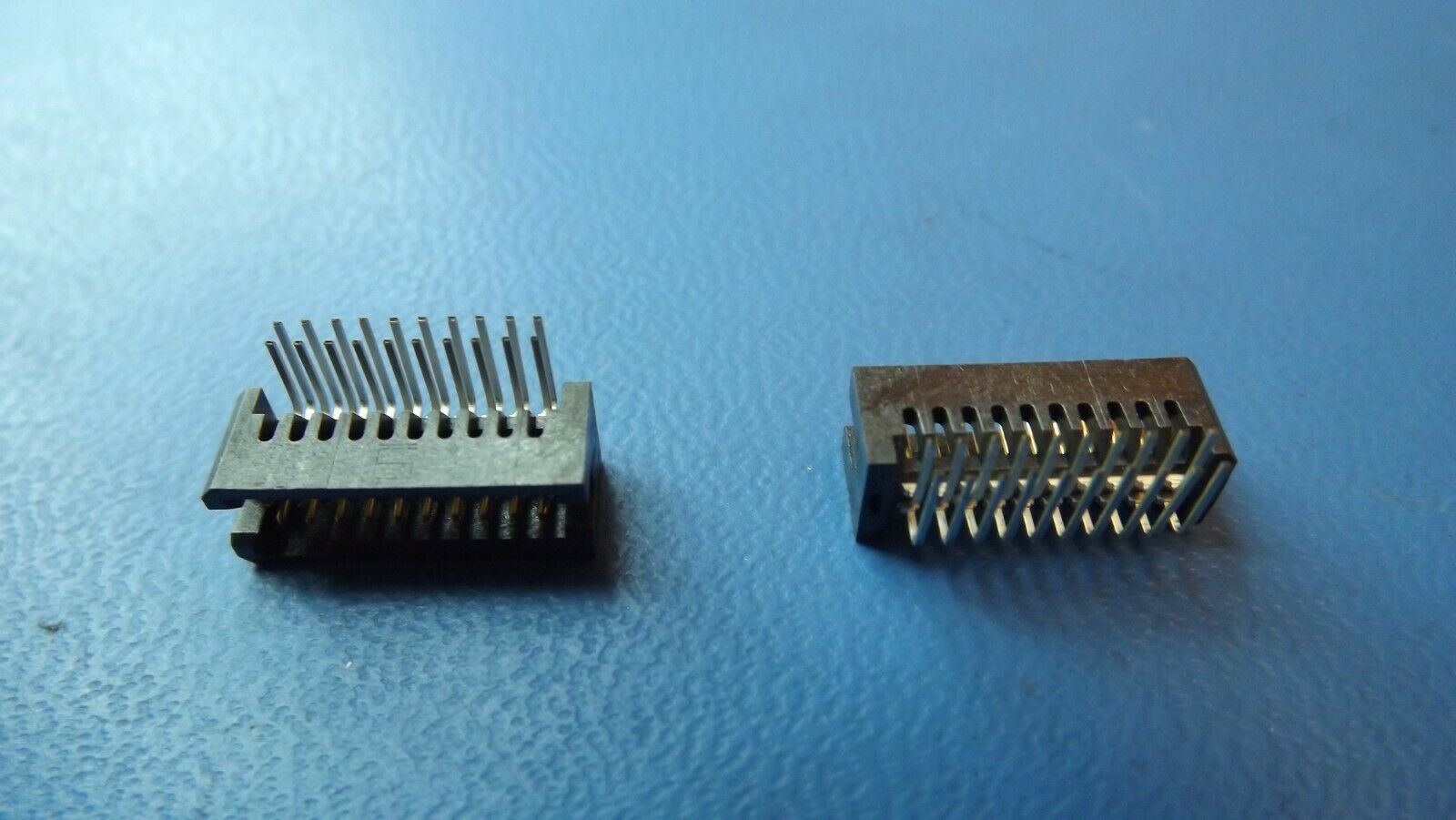

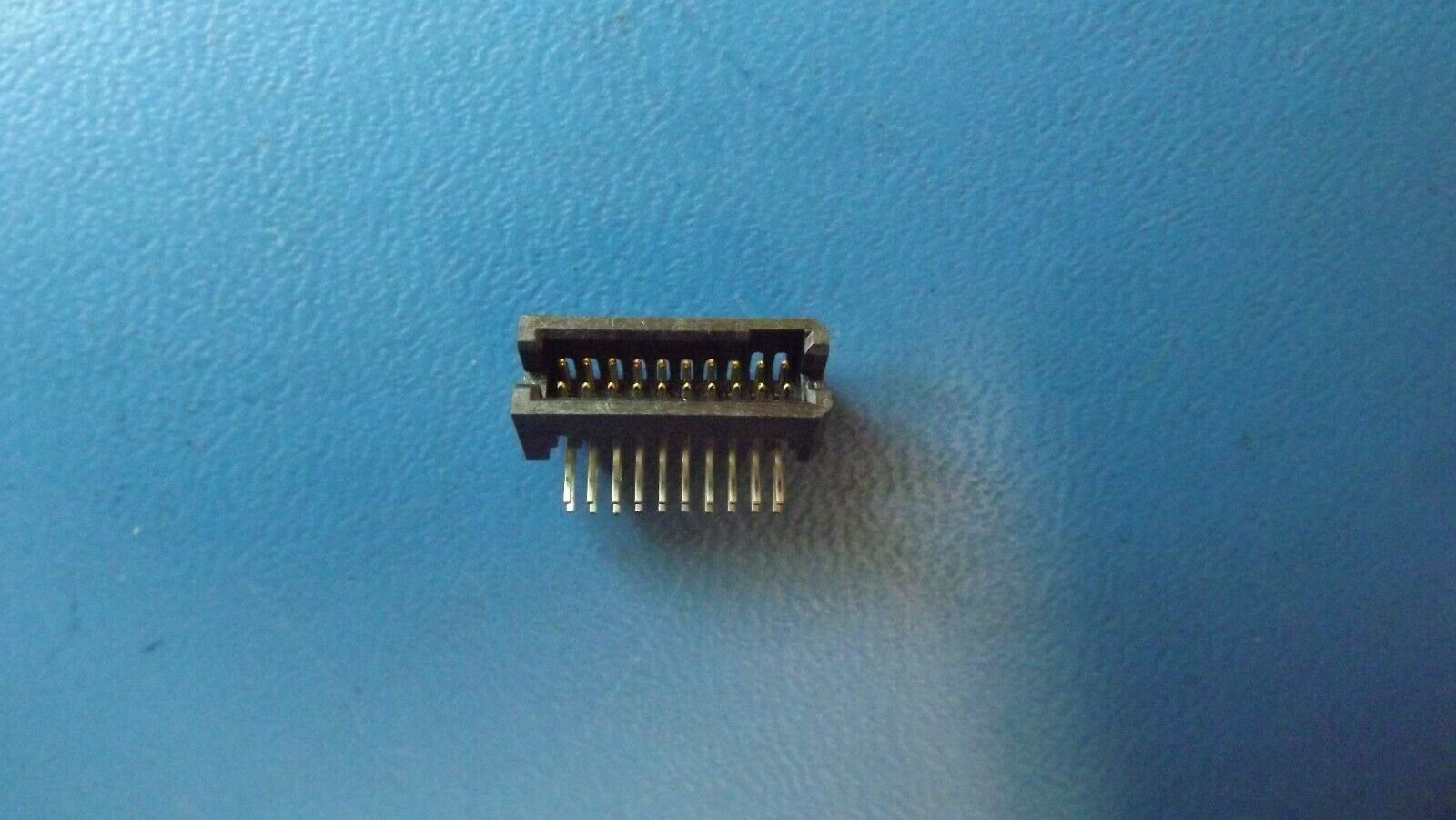

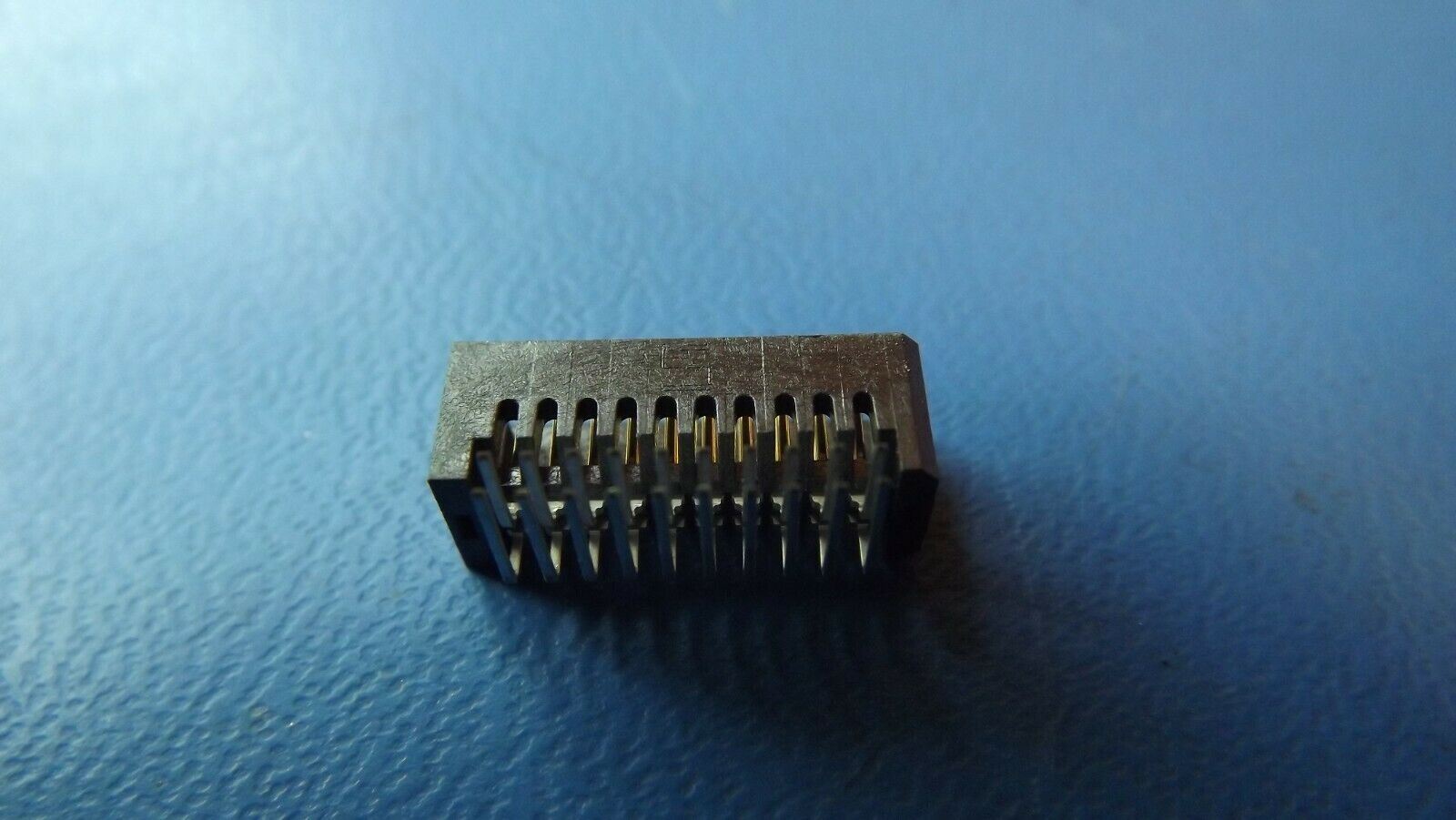

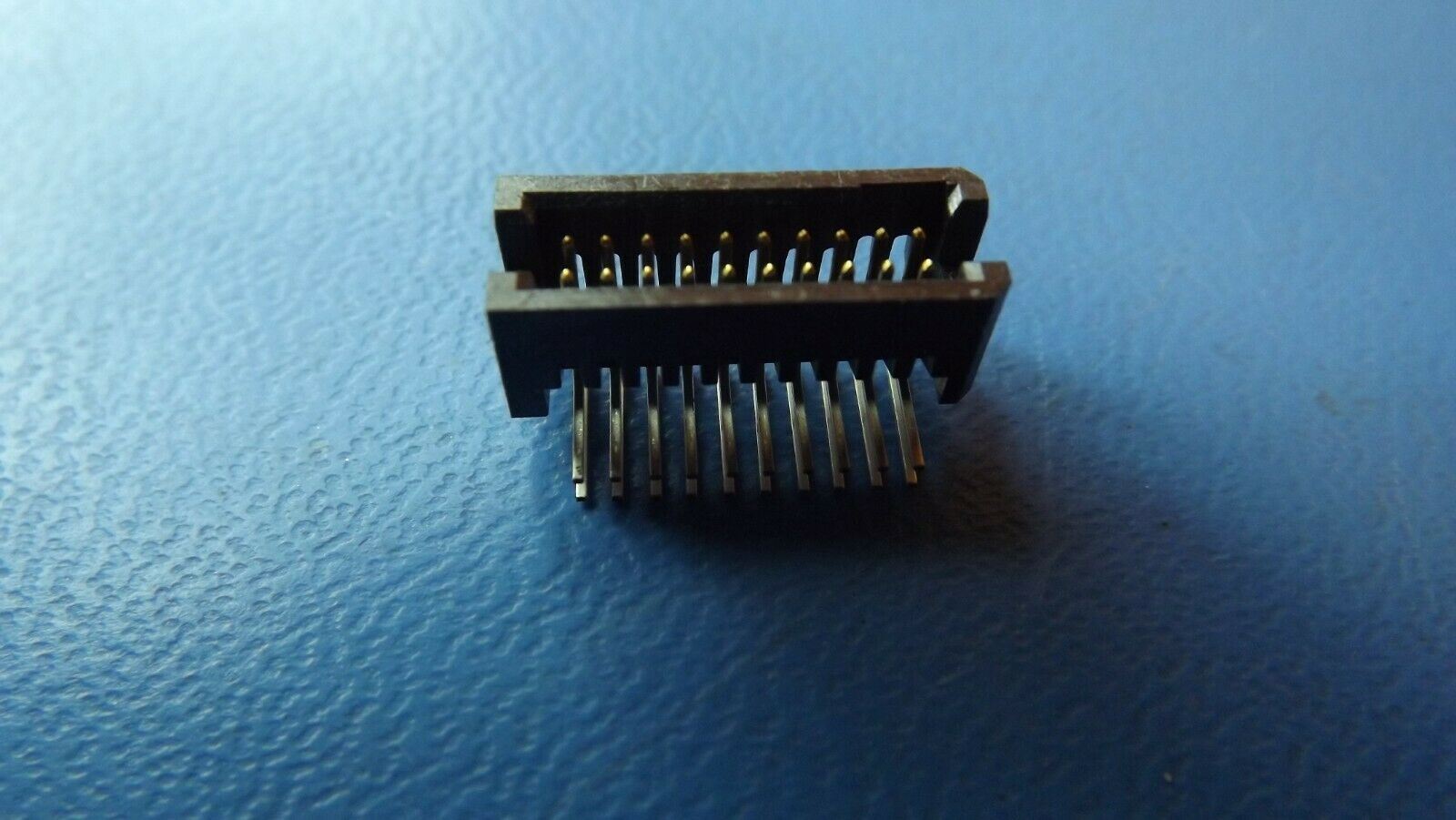

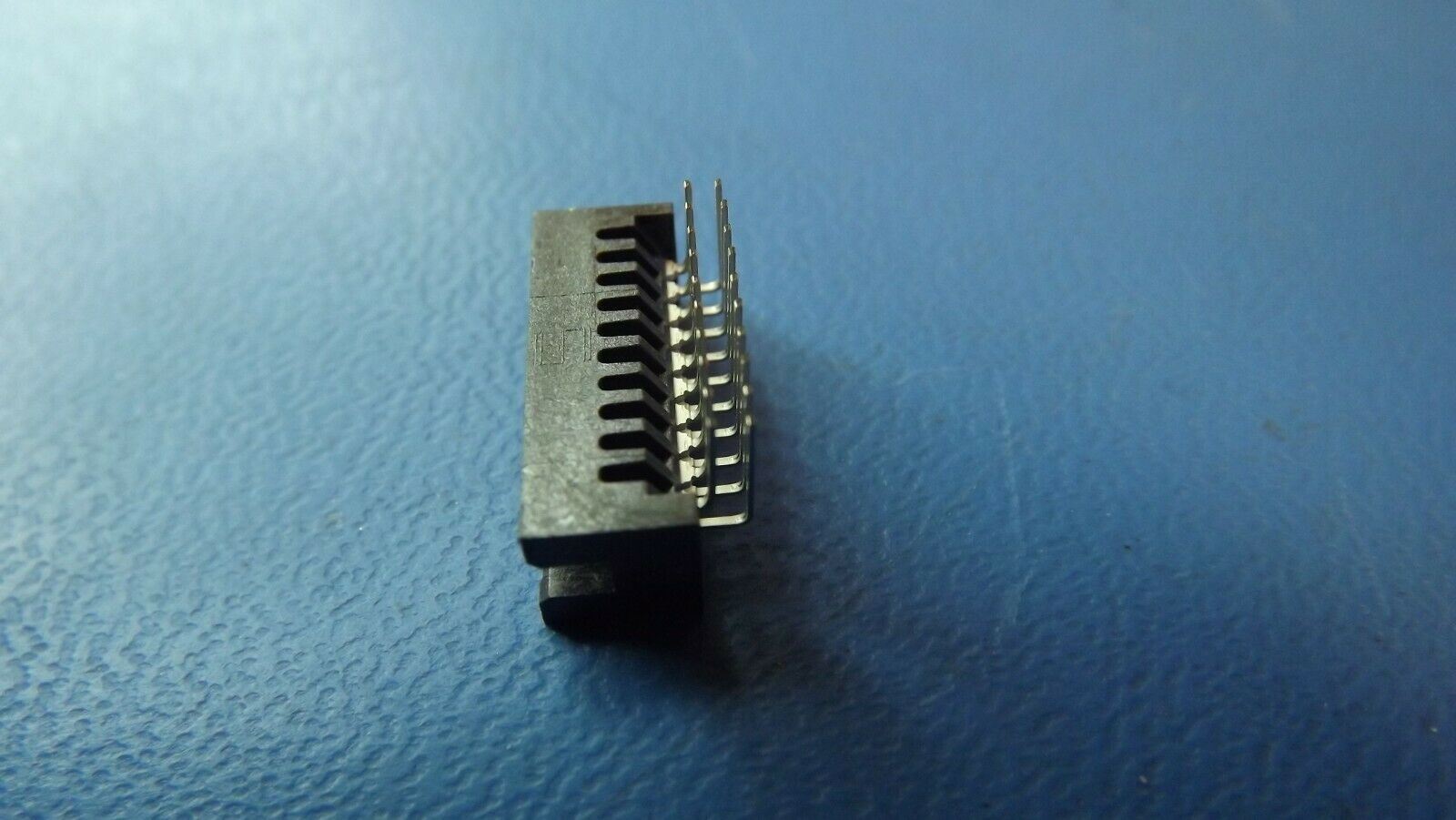

THIS LISTING IS FOR (5PCS) OF TFM-110-01-S-D-R BY SAMTEC

 Product AttributeAttribute ValueSearch Similar
Manufacturer:Samtec
Product Category:Headers & Wire Housings
RoHS: Details
Product:Headers
Type:Shrouded
Number of Positions:20 Position
Pitch:1.27 mm
Number of Rows:2 Row
Mounting Style:Straight Pin
Termination Style:Through Hole
Mounting Angle:Right Angle
Contact Gender:Pin (Male)
Contact Plating:Gold
Series:TFM
Tradename:Tiger Eye
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Packaging:Tube
Contact Type:-
Current Rating:3.2 A
Housing Material:Liquid Crystal Polymer (LCP)
Voltage Rating:250 V
Brand:Samtec
Contact Material:Phosphor Bronze
Flammability Rating:UL 94 V-0
Row Spacing:1.27 mm
Housing Gender:-
Latching Type:Unlatched
Product Type:Headers & Wire Housings
