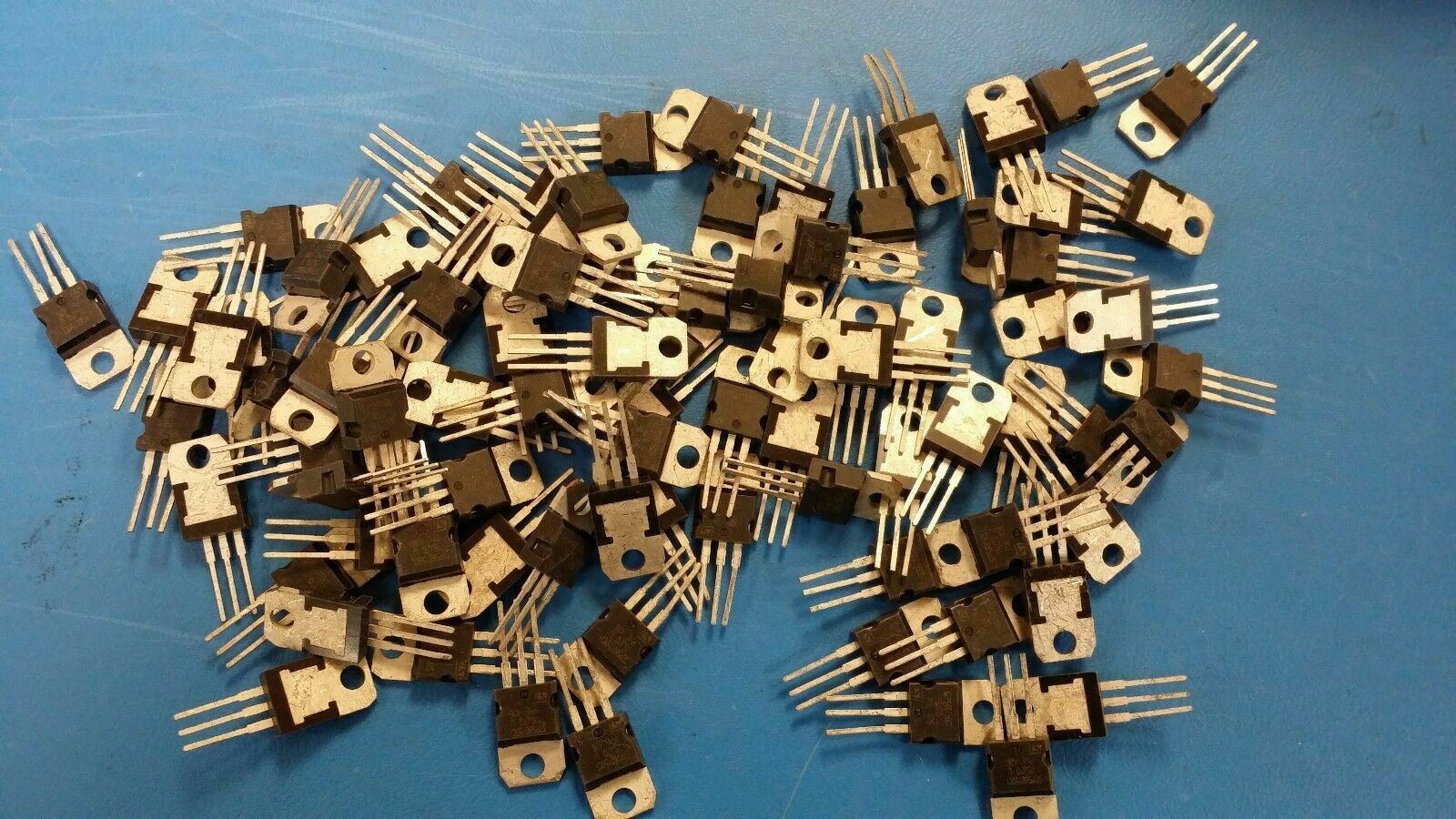

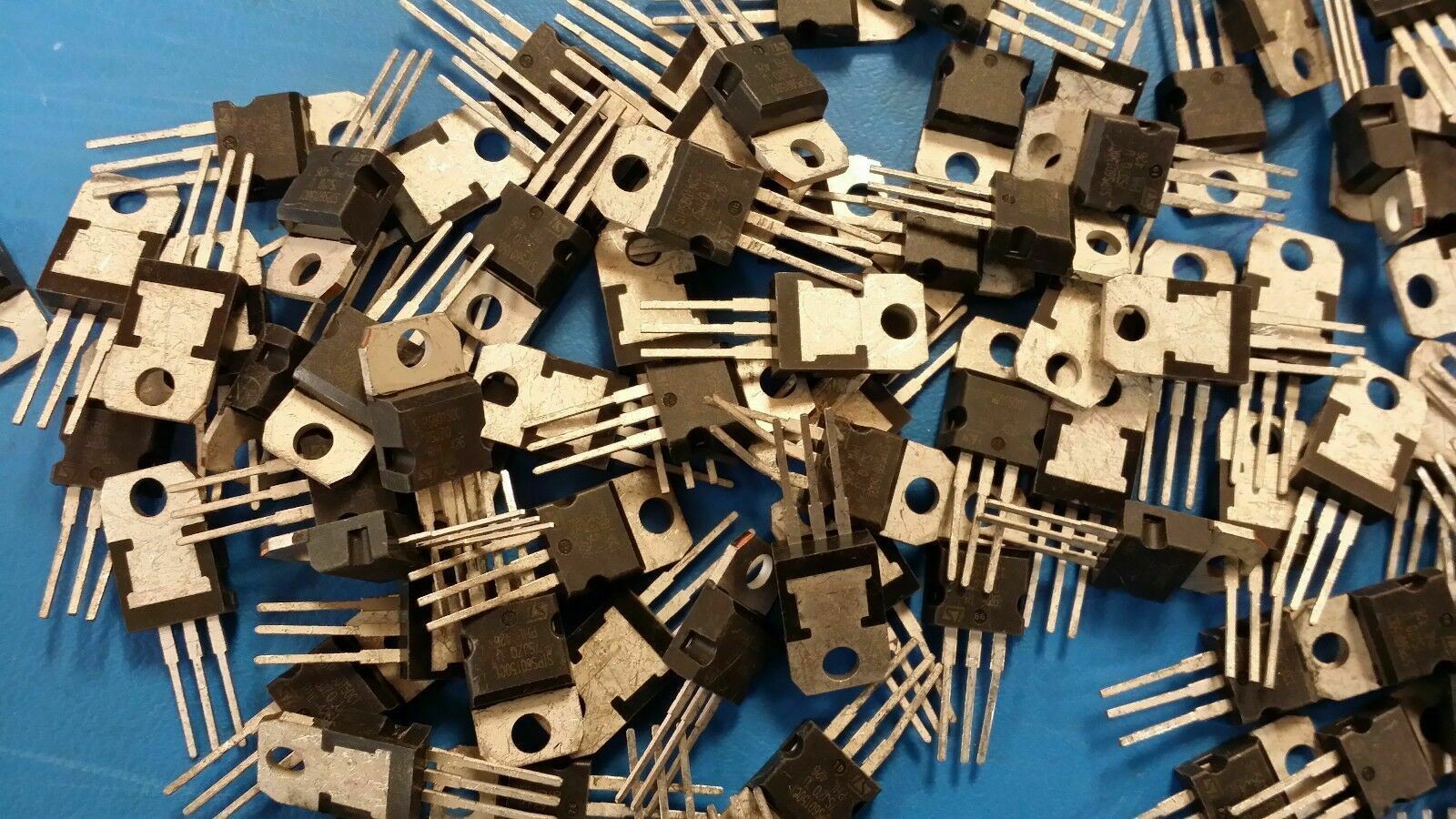

(5PCS) STPS60150CT Diode Schottky 150V 30A 3-Pin (3+Tab) TO-220AB
Tax included.
THIS LISTING IS FOR (5PCS) OF STPS60150CT BY ST MICRO
SPECIFICATIONS
| Mfr Package Description | PLASTIC PACKAGE-3 |
| REACH Compliant | N/A |
| EU RoHS Compliant | N/A |
| Status | Active |
| Diode Type | RECTIFIER DIODE |
| Application | POWER |
| Case Connection | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode Element Material | SILICON |
| Forward Voltage-Max (VF) | 0.7600 V |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | NOT SPECIFIED |
| Non-rep Pk Forward Current-Max | 270 A |
| Number of Elements | 2 |
| Number of Phases | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 175 Cel |
| Output Current-Max | 30 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 150 V |
| Sub Category | Rectifier Diodes |
| Surface Mount | NO |
| Technology | SCHOTTKY |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | UPPER |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
