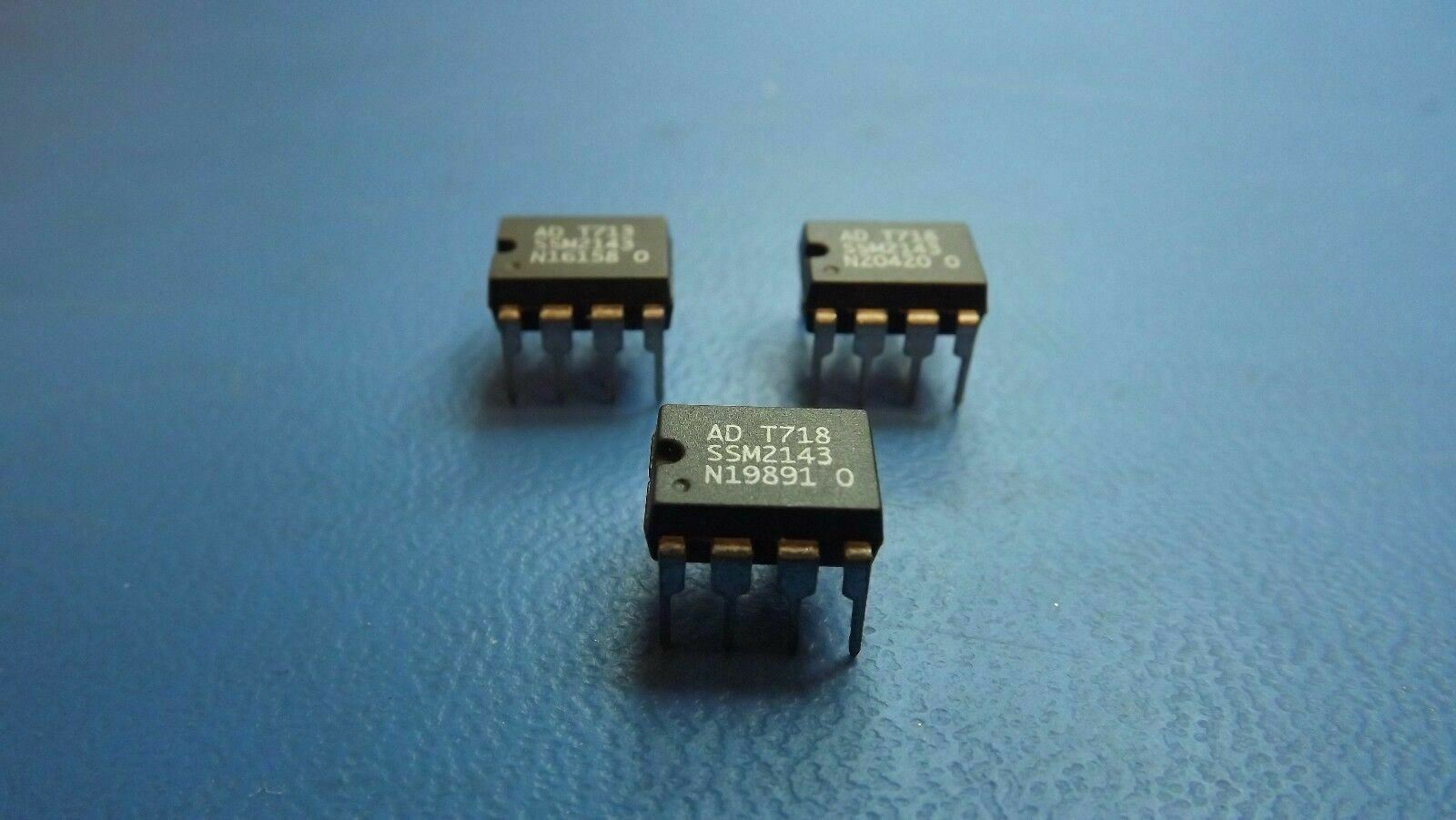

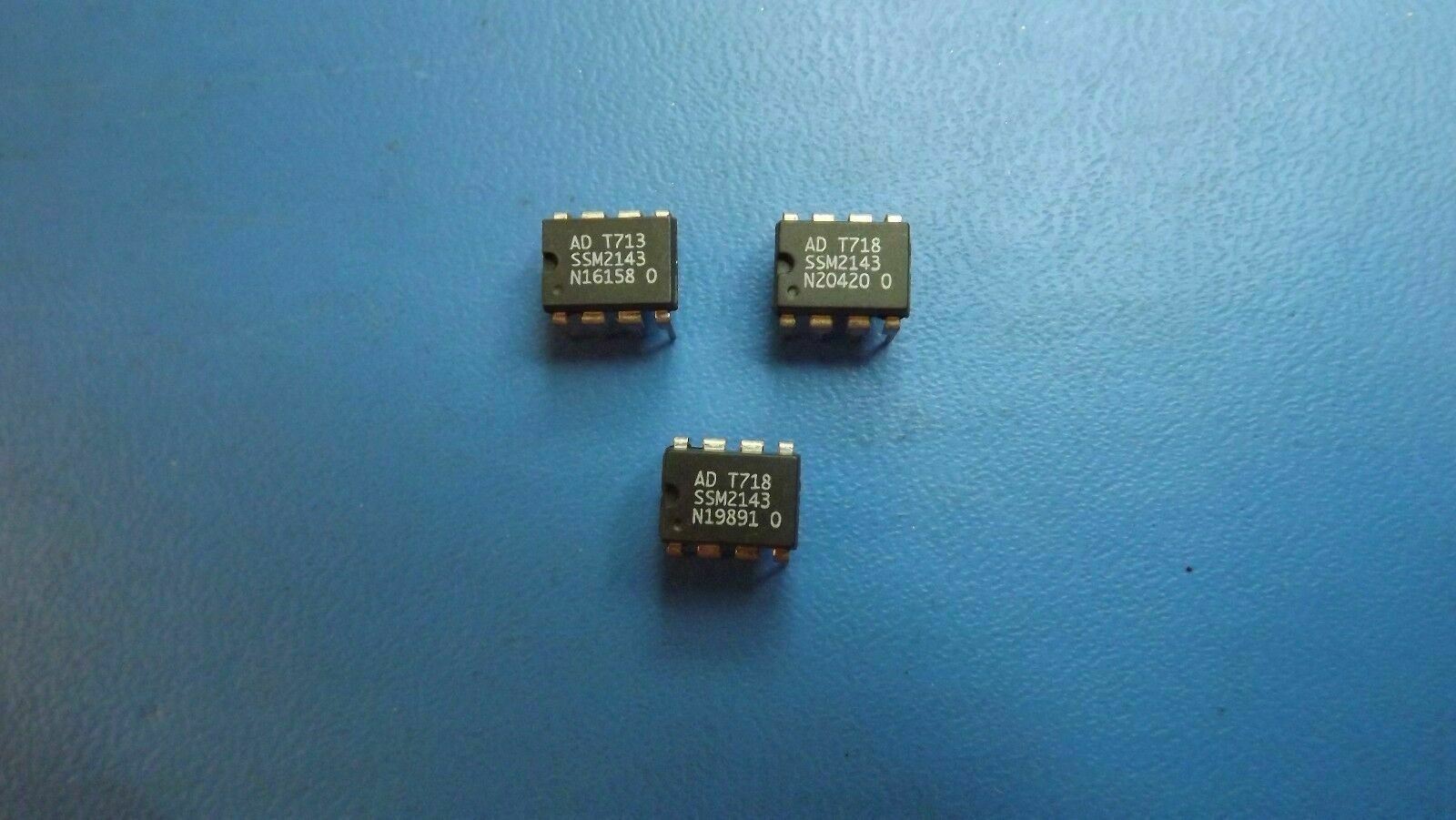

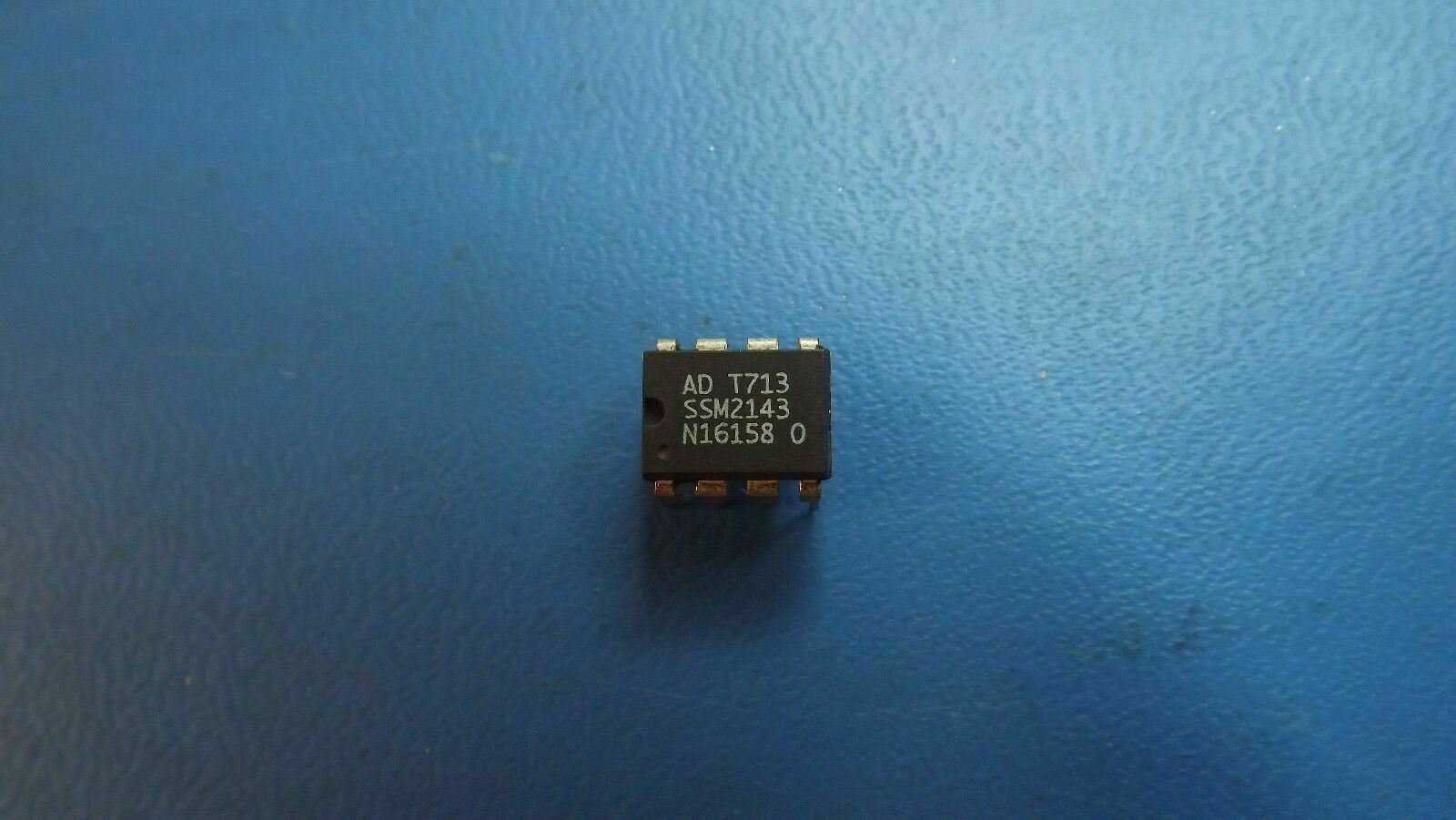

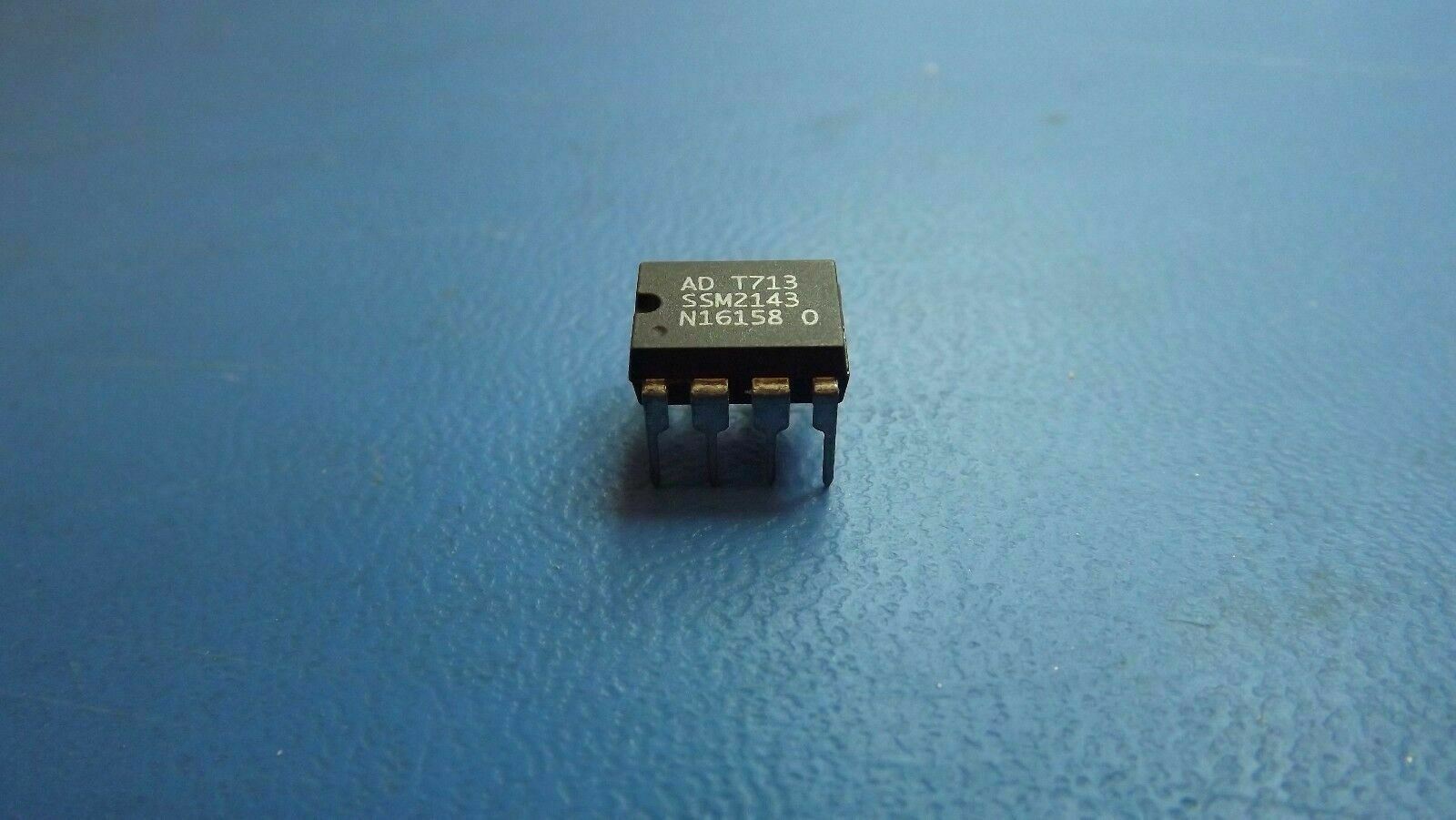

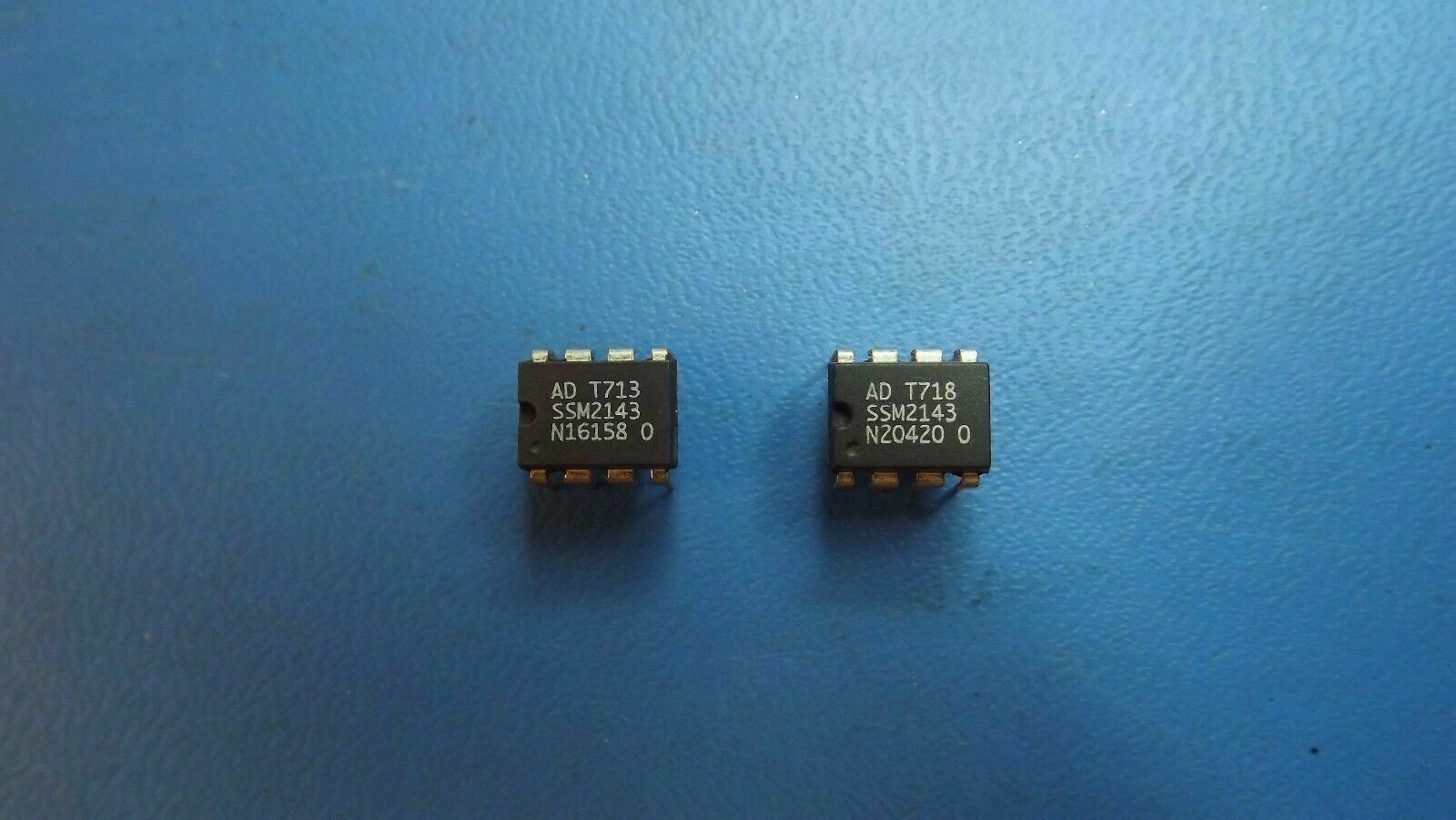

(5PCS) SSM2143P SP Amp DIFF Line Receiver Amp Single ±18V 8-Pin PDIP
Tax included.
THIS LISTING IS FOR (5PCS) OF SSM2143P BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DIP-8 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Analog IC - Other Type | ANALOG CIRCUIT |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Neg Supply Voltage-Min (Vsup) | -6.0 V |
| Neg Supply Voltage-Max (Vsup) | -18.0 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.33 mm |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Supply Voltage-Min (Vsup) | 6.0 V |
| Supply Voltage-Max (Vsup) | 18.0 V |
| Surface Mount | NO |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Length | 9.88 mm |
| Width | 7.62 mm |
