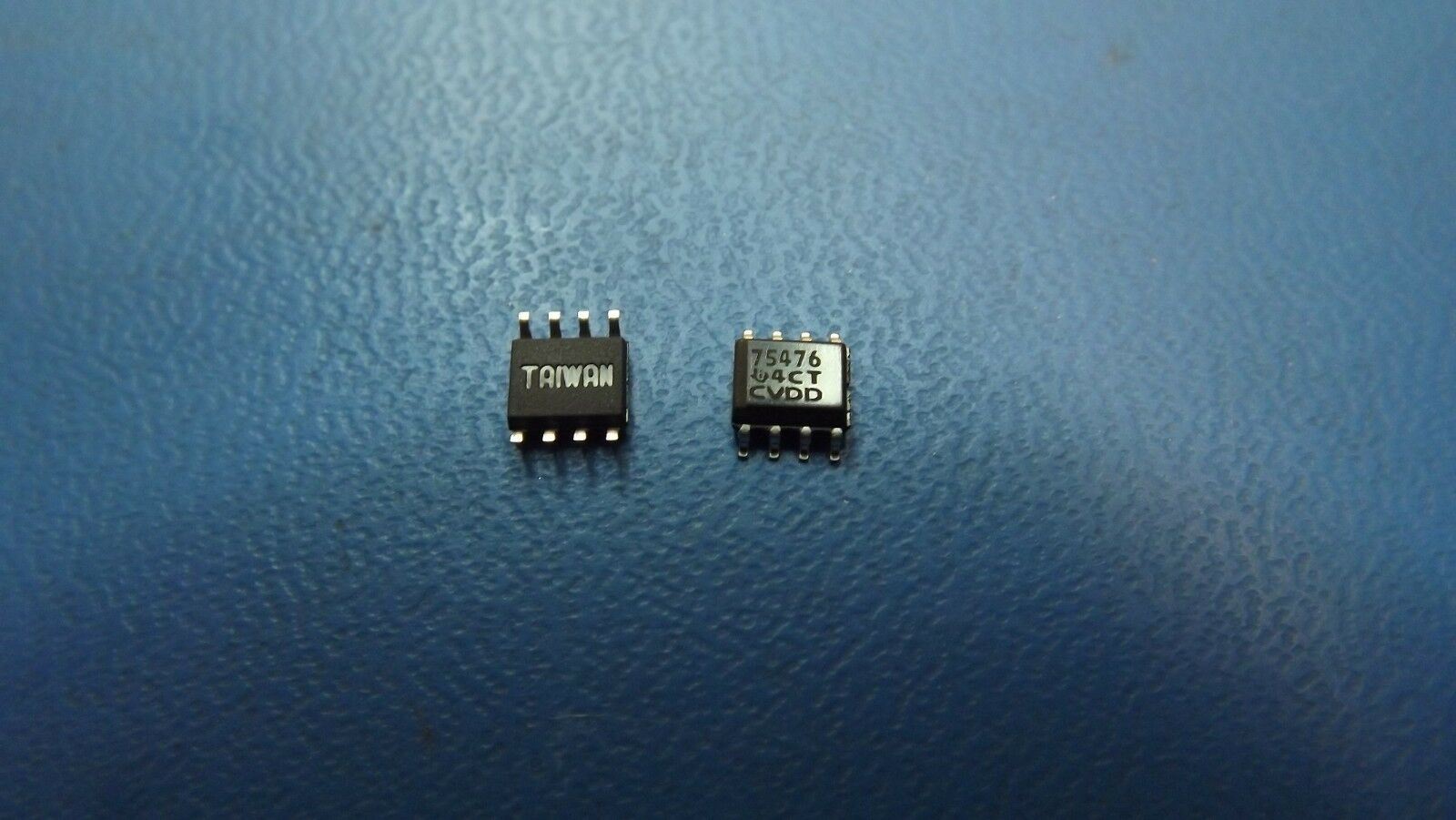

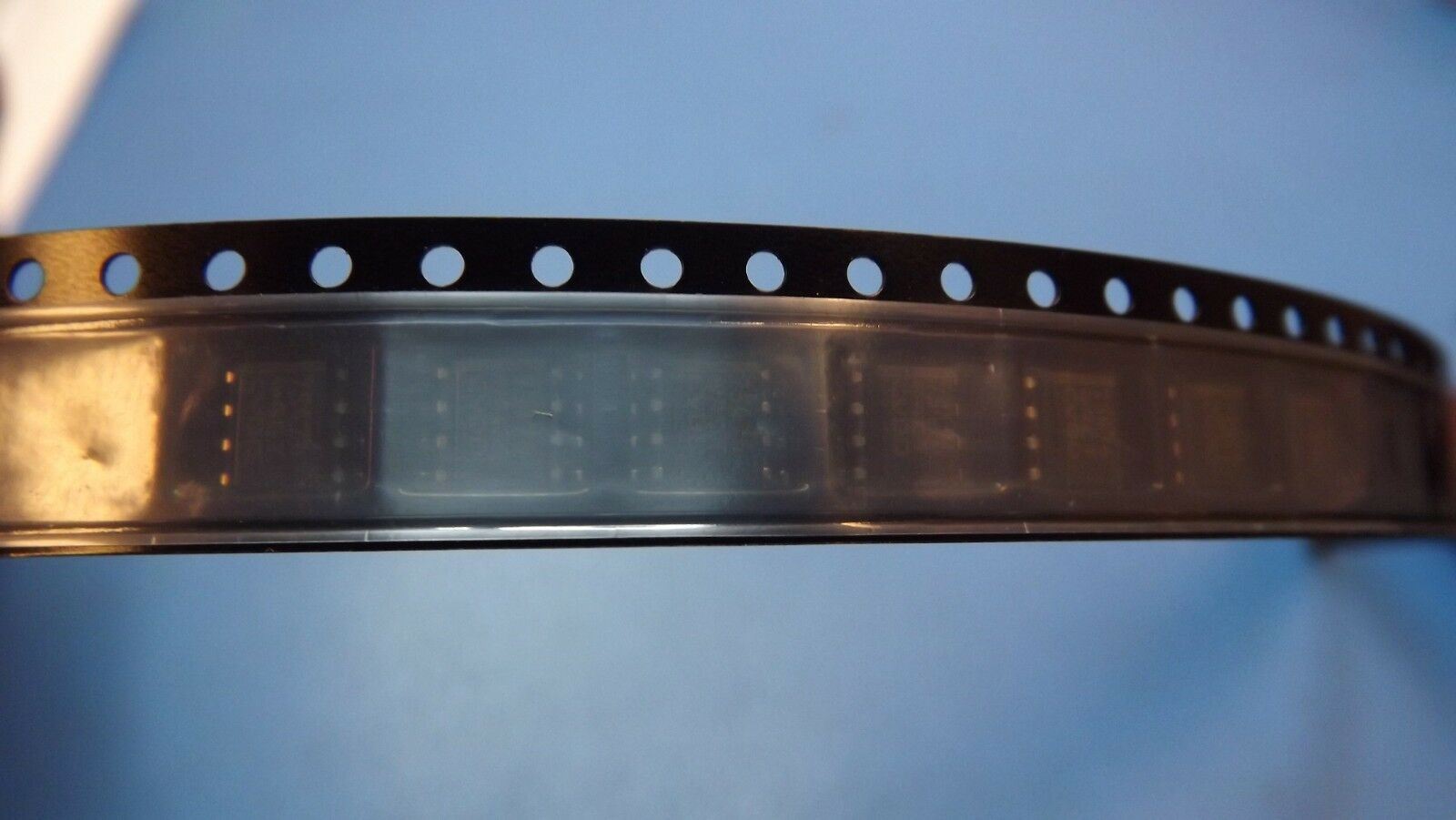

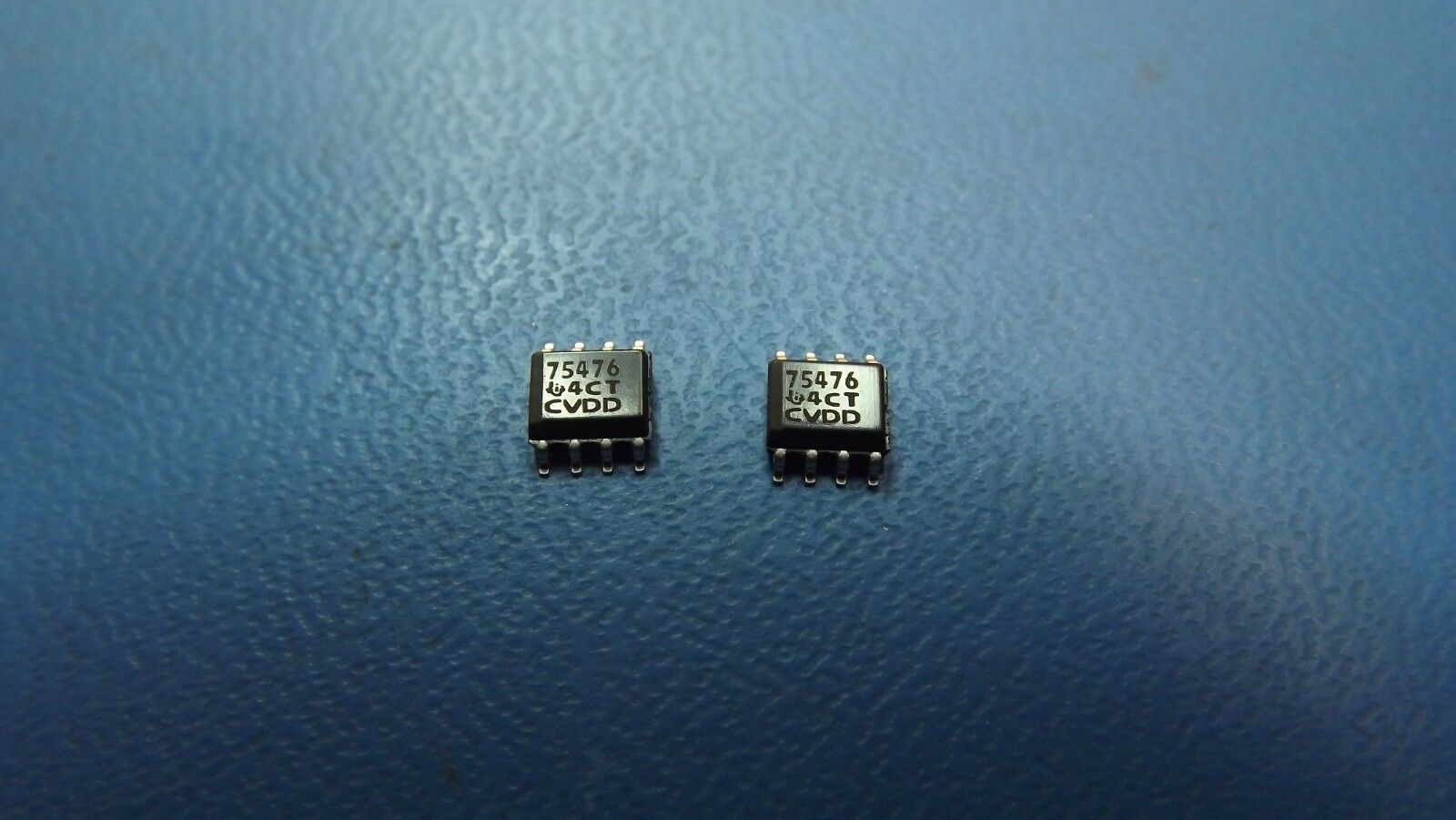

(5PCS) SN75476DR TI Gate Based Peripheral Driver, 2 Driver, 3A, BIPolar, 8-SOIC

  • $4.95
    Unit price per
Tax included.

Only 51 left!

THIS LISTING IS FOR (5PCS) OF SN75476DR BY TEXAS INSTRUMENTS

SPECIFICATIONS

Mfr Package Description PLASTIC, SOIC-8
Status Discontinued
Interface IC Type AND GATE BASED PERIPHERAL DRIVER
Built-in Protections TRANSIENT
Driver Number of Bits 2.0
Input Characteristics STANDARD
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Output Characteristics OPEN-COLLECTOR
Output Current Flow Direction SINK
Output Current-Max 0.4  Amp
Output Peak Current Limit-Nom 3.0  A
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies (V) 5
Qualification Status Not Qualified
Seated Height-Max 1.75  mm
Sub Category Peripheral Drivers
Supply Current-Max 75.0  mA
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.5  V
Supply Voltage-Max 5.5  V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Turn-off Time 0.35  µs
Turn-on Time 0.35  µs
Length 4.9  mm
Width 3.9  mm
