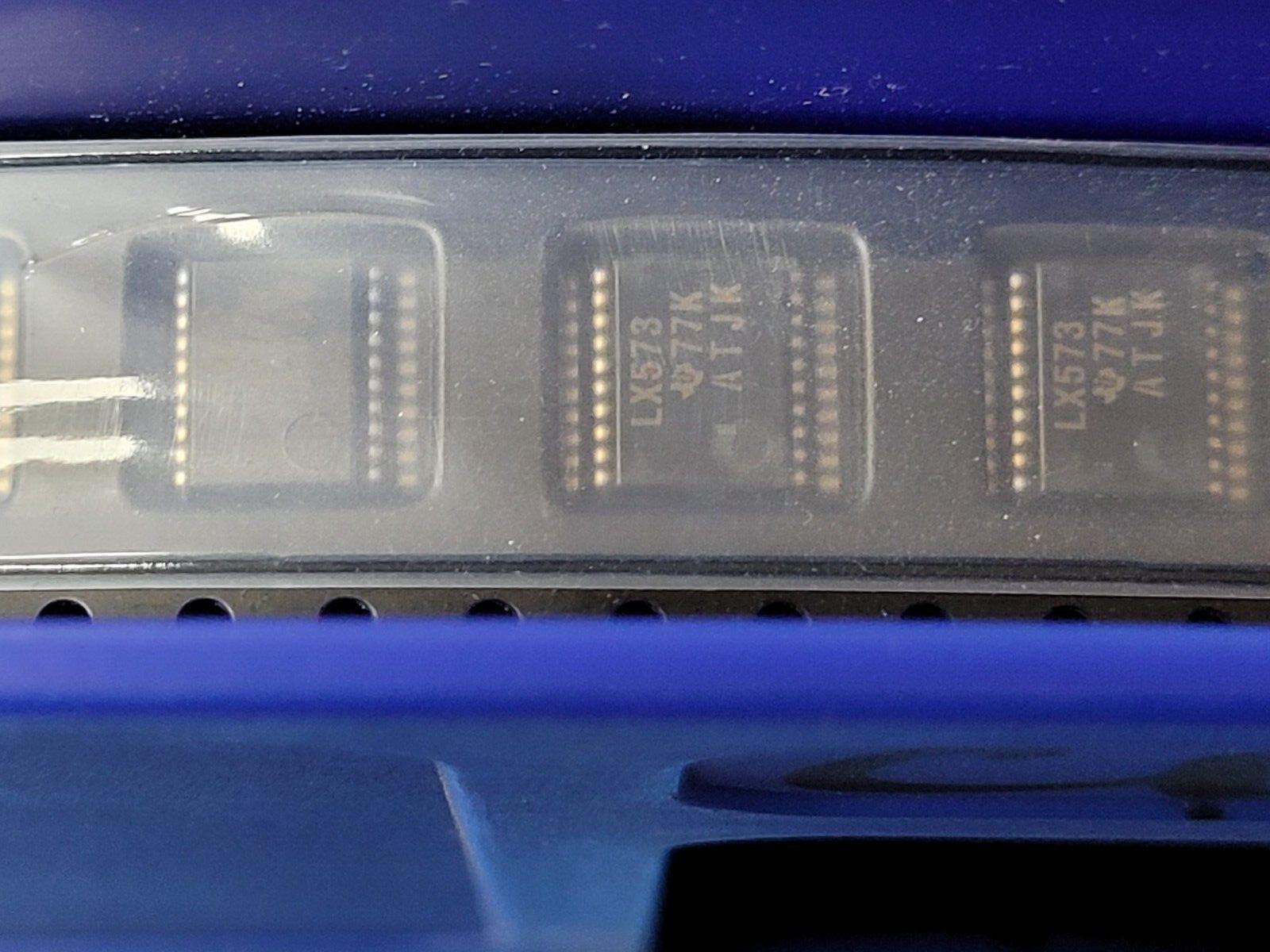

(5PCS) SN74LVT573DBLE TI Bus Driver, 1-Func, 8-Bit, True Output, BICMOS, SSOP-20
Tax included.

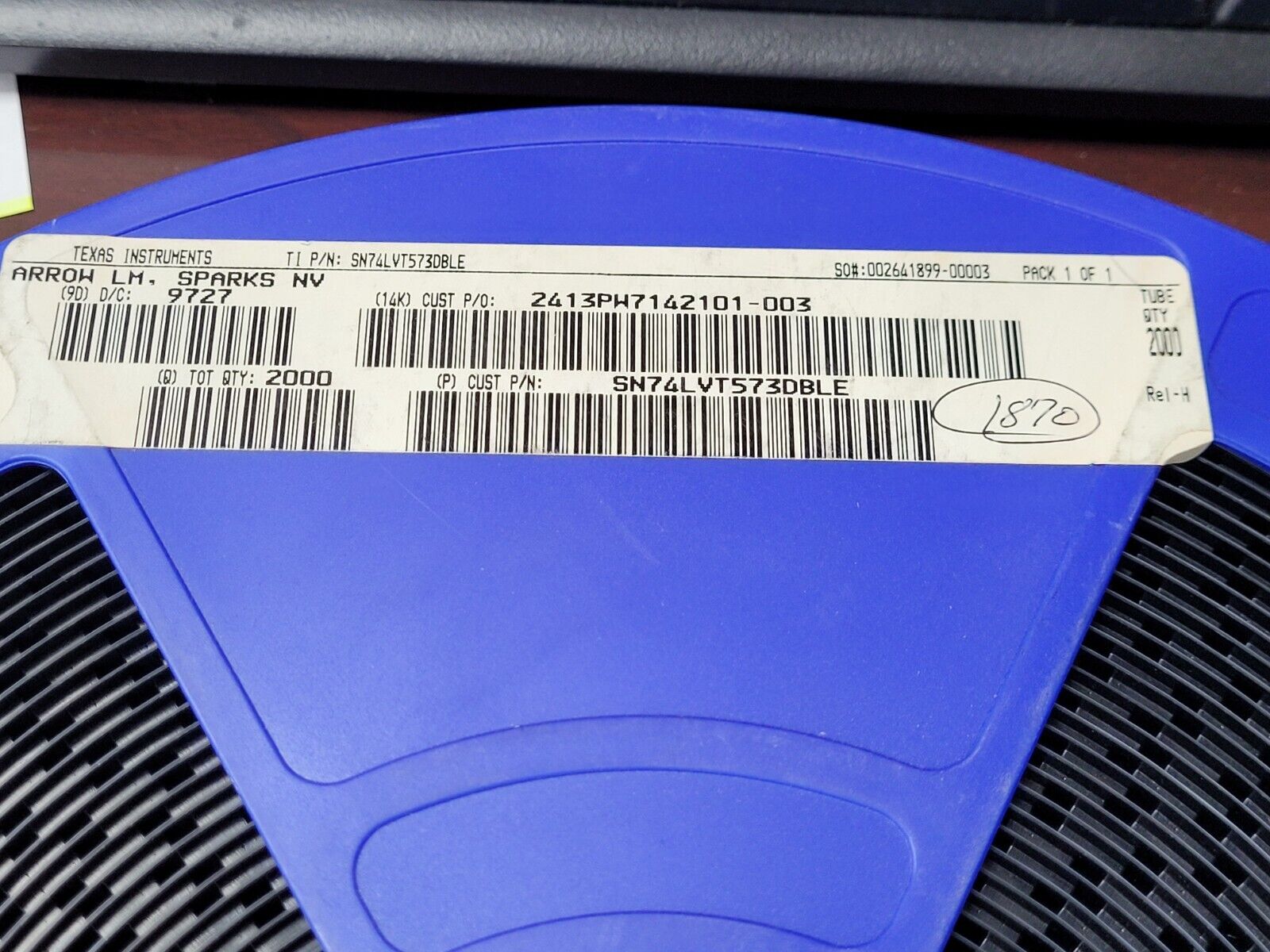

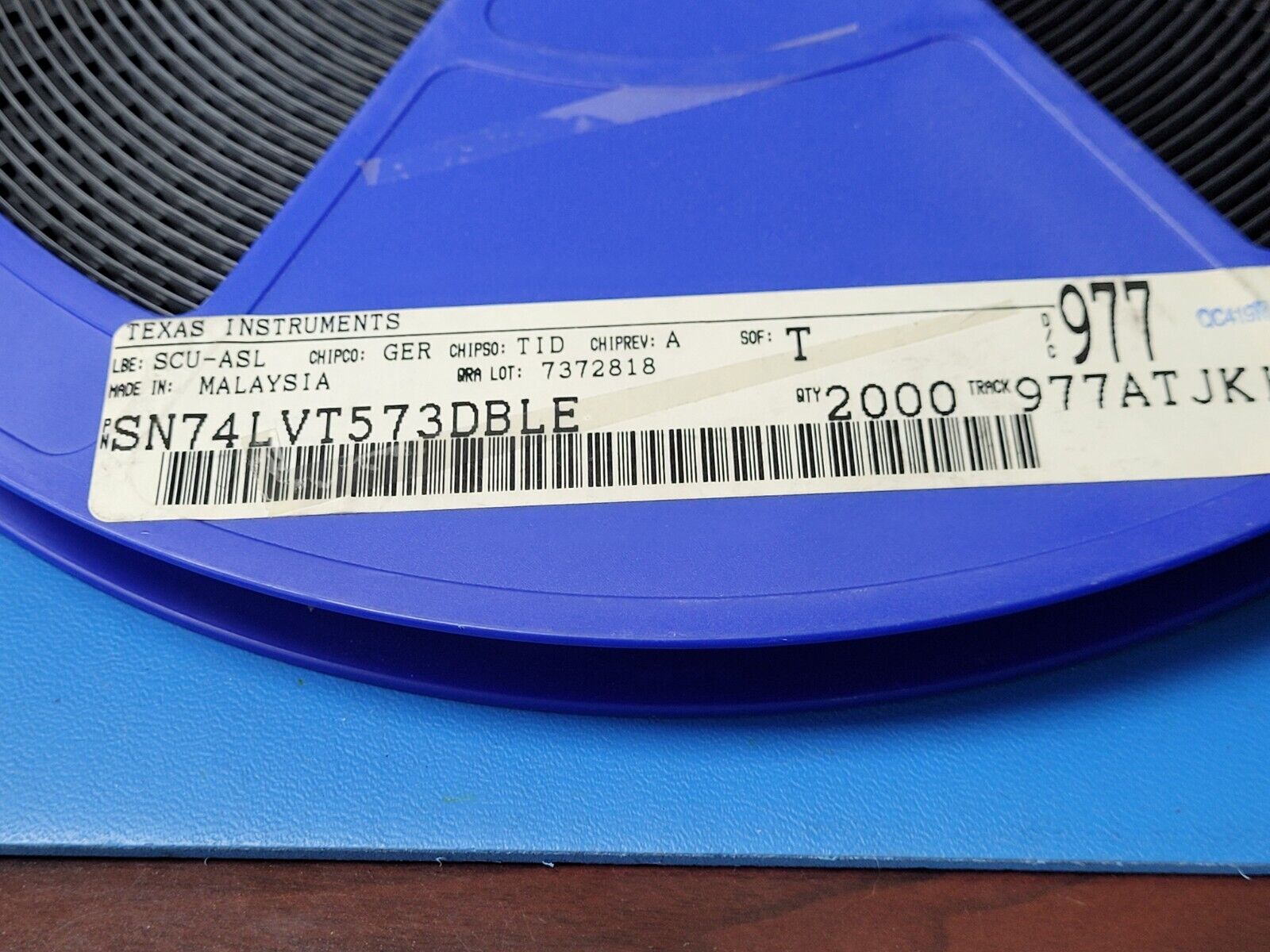

THIS IS FOR (5 PCS) OF SN74LVT573DBLE BY TI
Bus Driver, 1-Func, 8-Bit, True Output, BICMOS, SSOP-20
Part #: SN74LVT573DBLE
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Bus Driver, LVT Series, 1-Func, 8-Bit, True Output, BICMOS, PDSO20
Mfr Package Description PLASTIC, SSOP-20
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category FF/Latches
Family LVT
JESD-30 Code R-PDSO-G20
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.064 Amp
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 12.0 mA
Prop. Delay@Nom-Sup 4.3 ns
Propagation Delay (tpd) 7.2 ns
Qualification Status Not Qualified
Seated Height-Max 2.0 mm
Supply Voltage-Nom (Vsup) 3.3
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 7.2 mm
Width 5.3 mm
Additional Feature BROADSIDE VERSION OF 373
