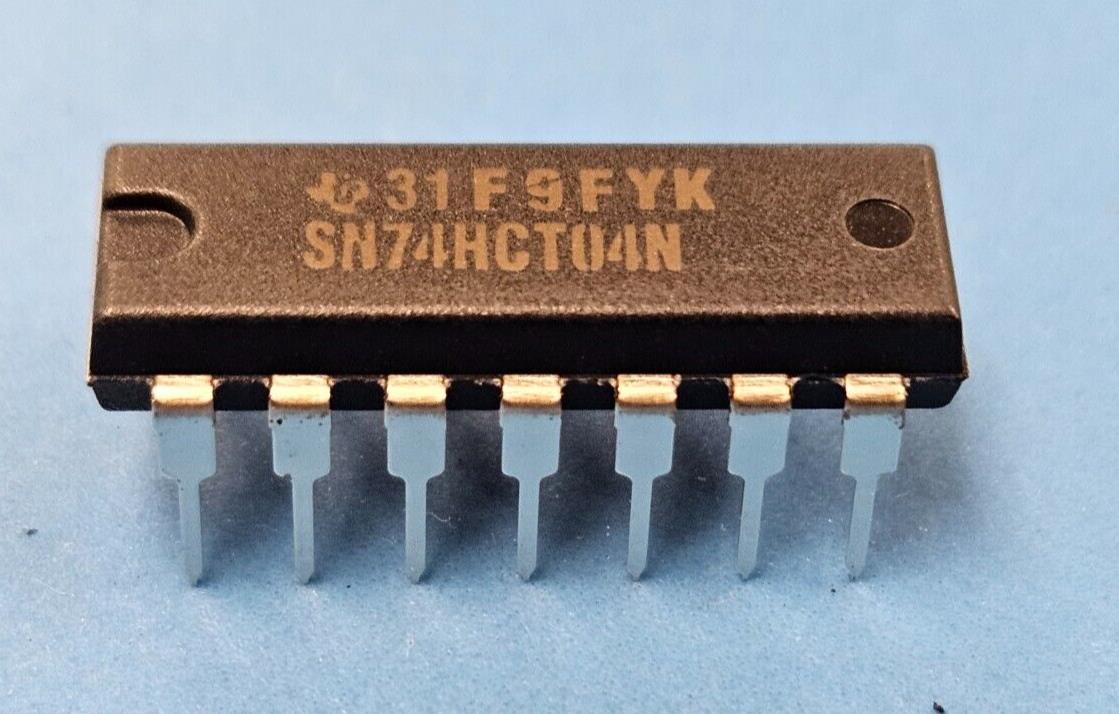

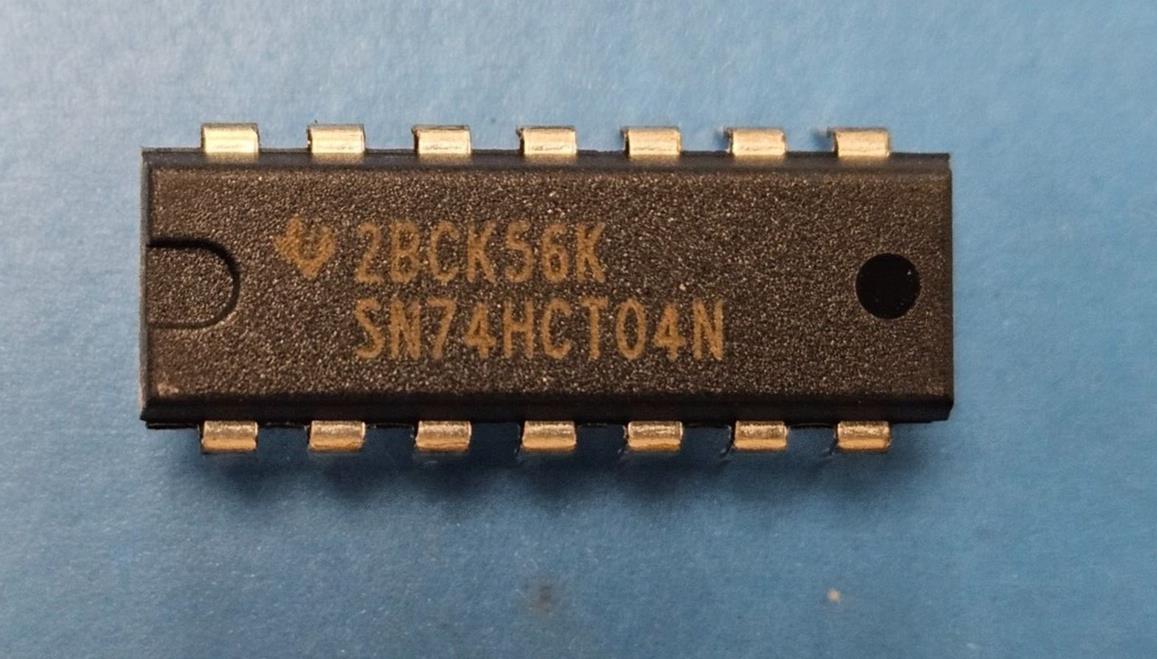

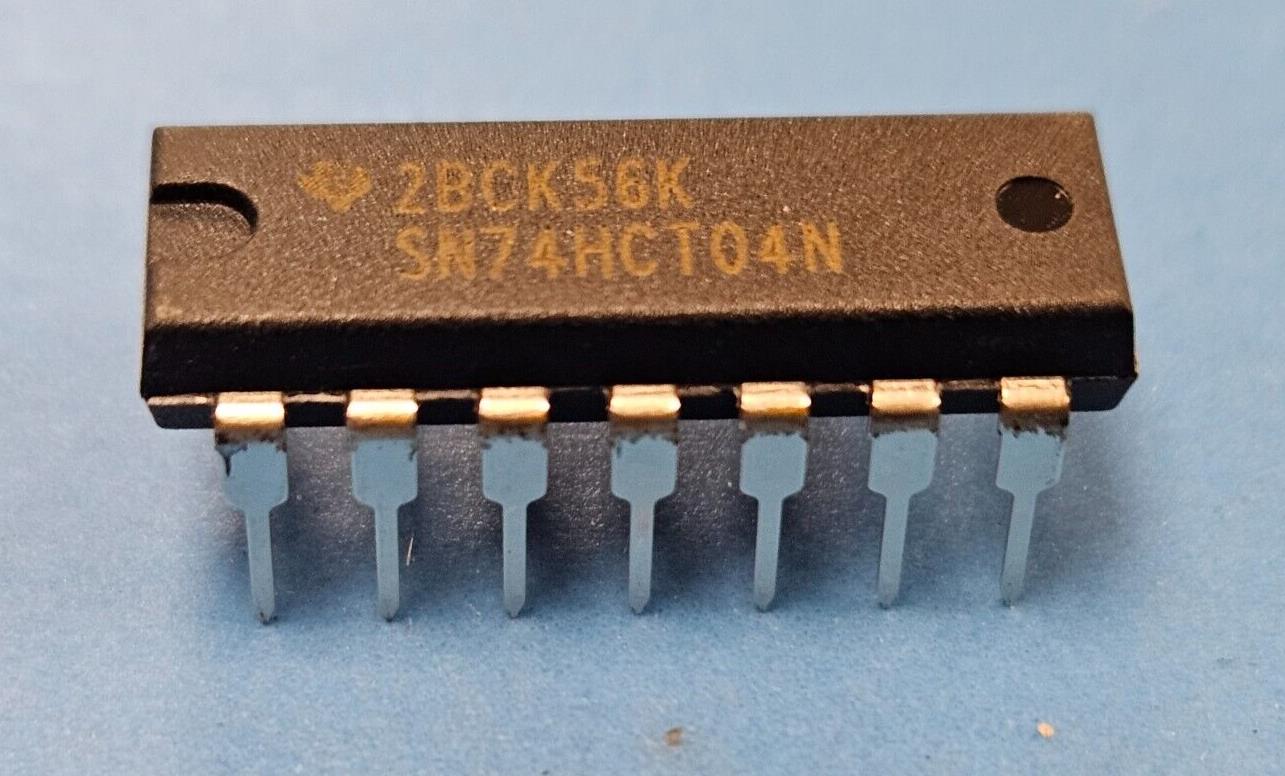

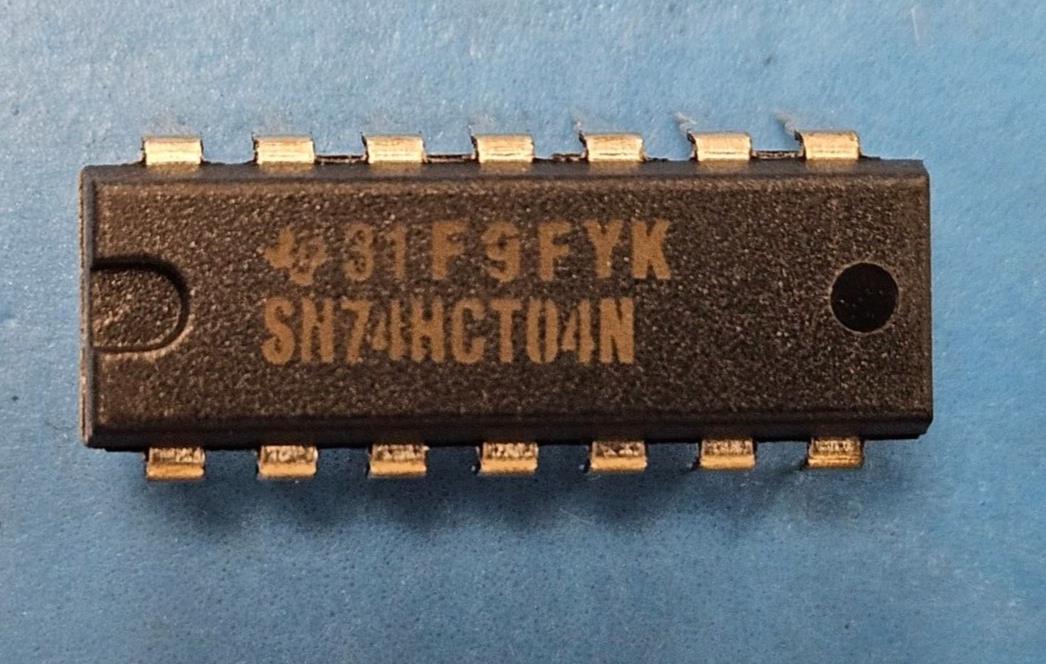

(5pcs) SN74HCT04N TI Inverter, HCT Series, 6-Func, 1-Input, CMOS, PDIP14
Tax included.
THIS LISTING IS FOR (5PCS) OF SN74HCT04N BY TEXAS INSTRUMENTS
Mfr Package Description DIP-14
Status Active
Logic IC Type INVERTER
Sub Category Gates
Family HCT
JESD-30 Code R-PDIP-T14
JESD-609 Code e4
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.004 Amp
Number of Functions 6
Number of Inputs 1.0
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE

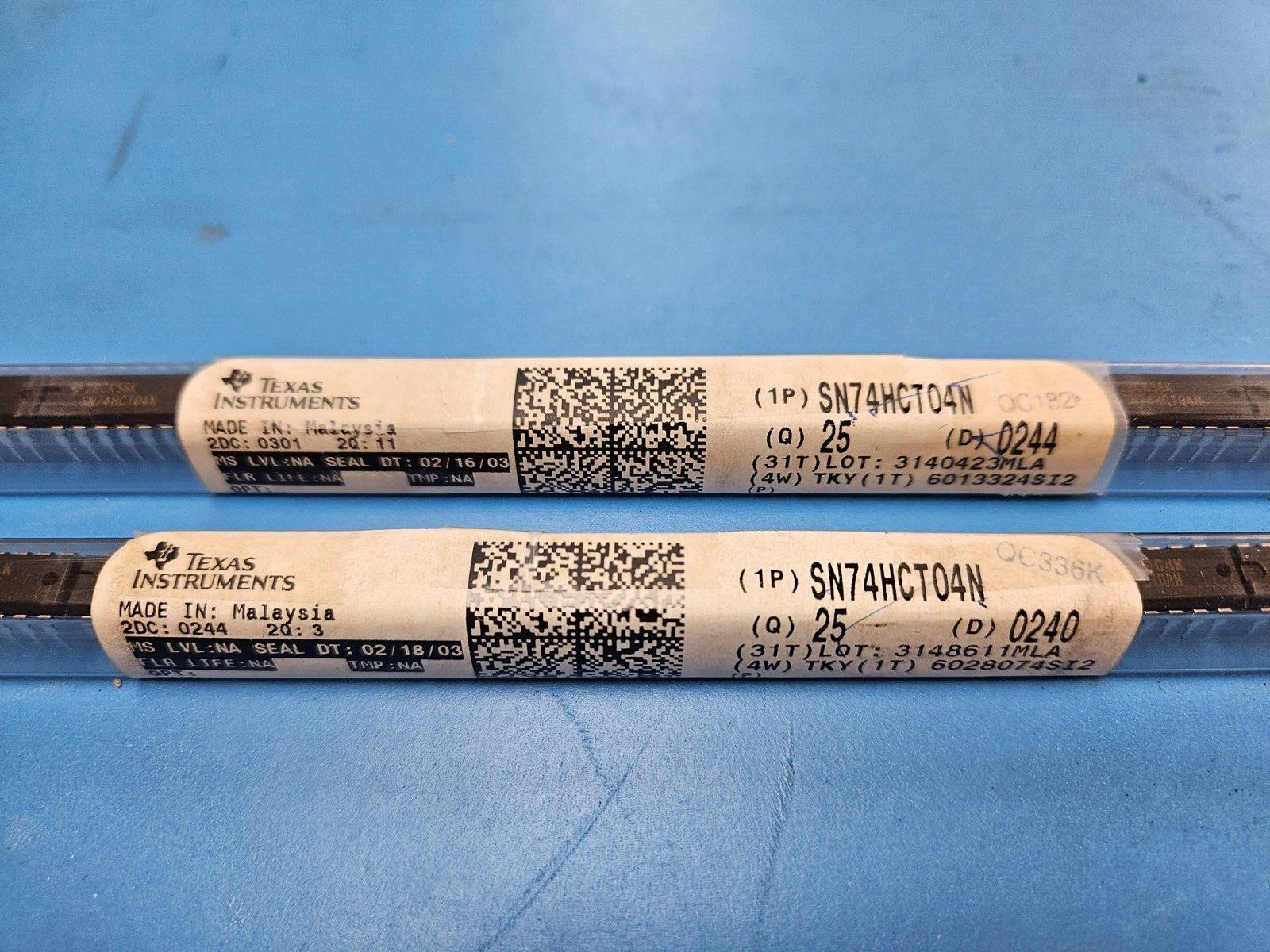

Packing Method TUBE
Power Supply Current-Max (ICC) 0.02 mA
Prop. Delay@Nom-Sup 25.0 ns
Propagation Delay (tpd) 25.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 19.305 mm
Width 7.62 mm
