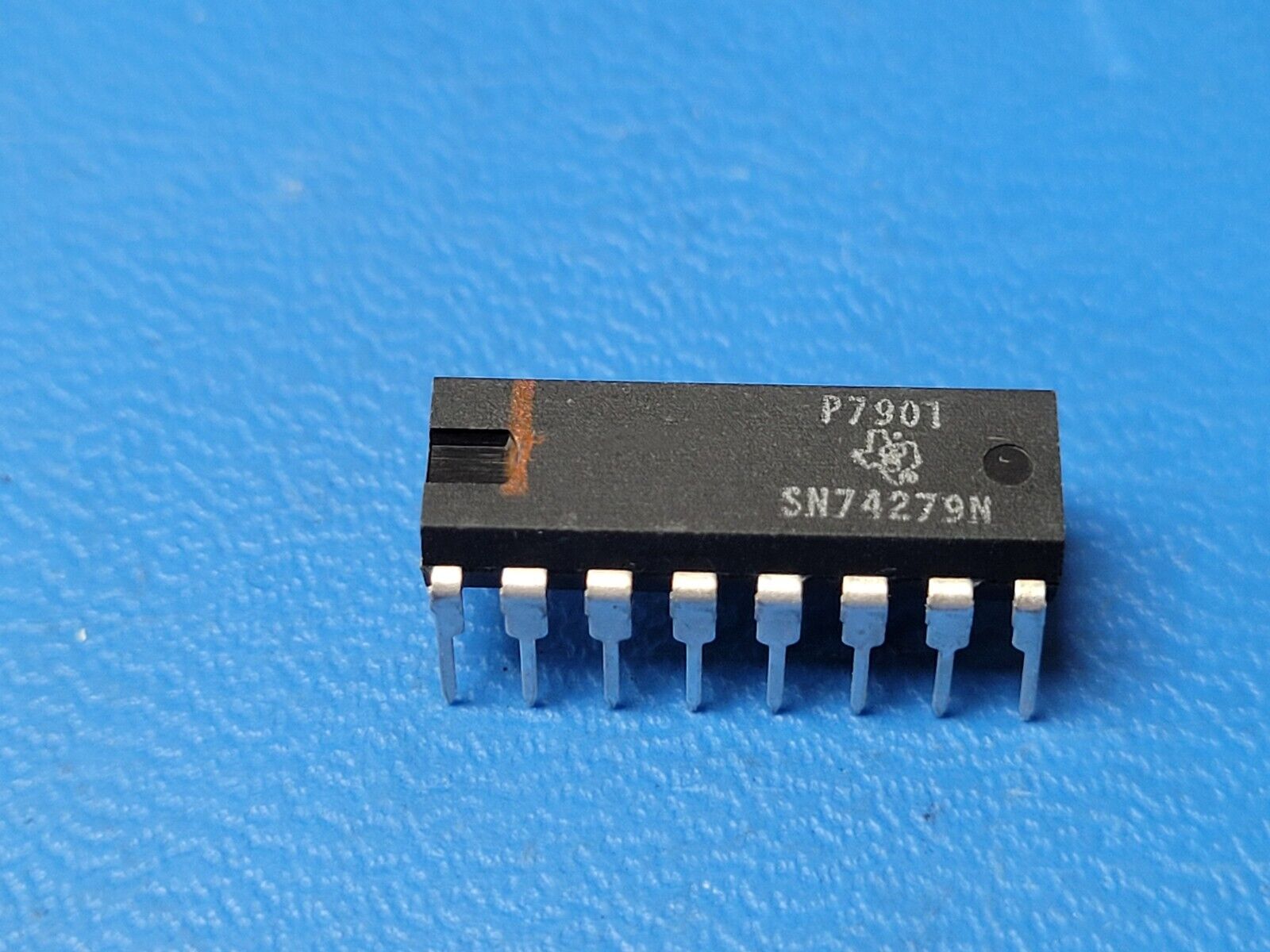

(5pcs) SN74279N LATCH, QUAD, 1 Bit, PDIP-16 VINTAGE 1979D/C SILVER PLATED LEADS
Tax included.
Each order is for 5 pcs
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Logic IC Type R-S LATCH
Sub Category FF/Latches
Family TTL/H/L
JESD-30 Code R-PDIP-T16
Load Capacitance (CL) 15.0 pF
Number of Bits 2
Number of Functions 4
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 30.0 mA
Propagation Delay (tpd) 27.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type LOW LEVEL
Length 19.305 mm
Width 7.62 mm
Additional Feature WITH DUAL S INPUT FOR TWO FUNCTIONS
