(5PCS) SMP18FS ANALOG DEVICES Sample and Hold 8-CH 3.5us 16-Pin SOIC
Tax included.

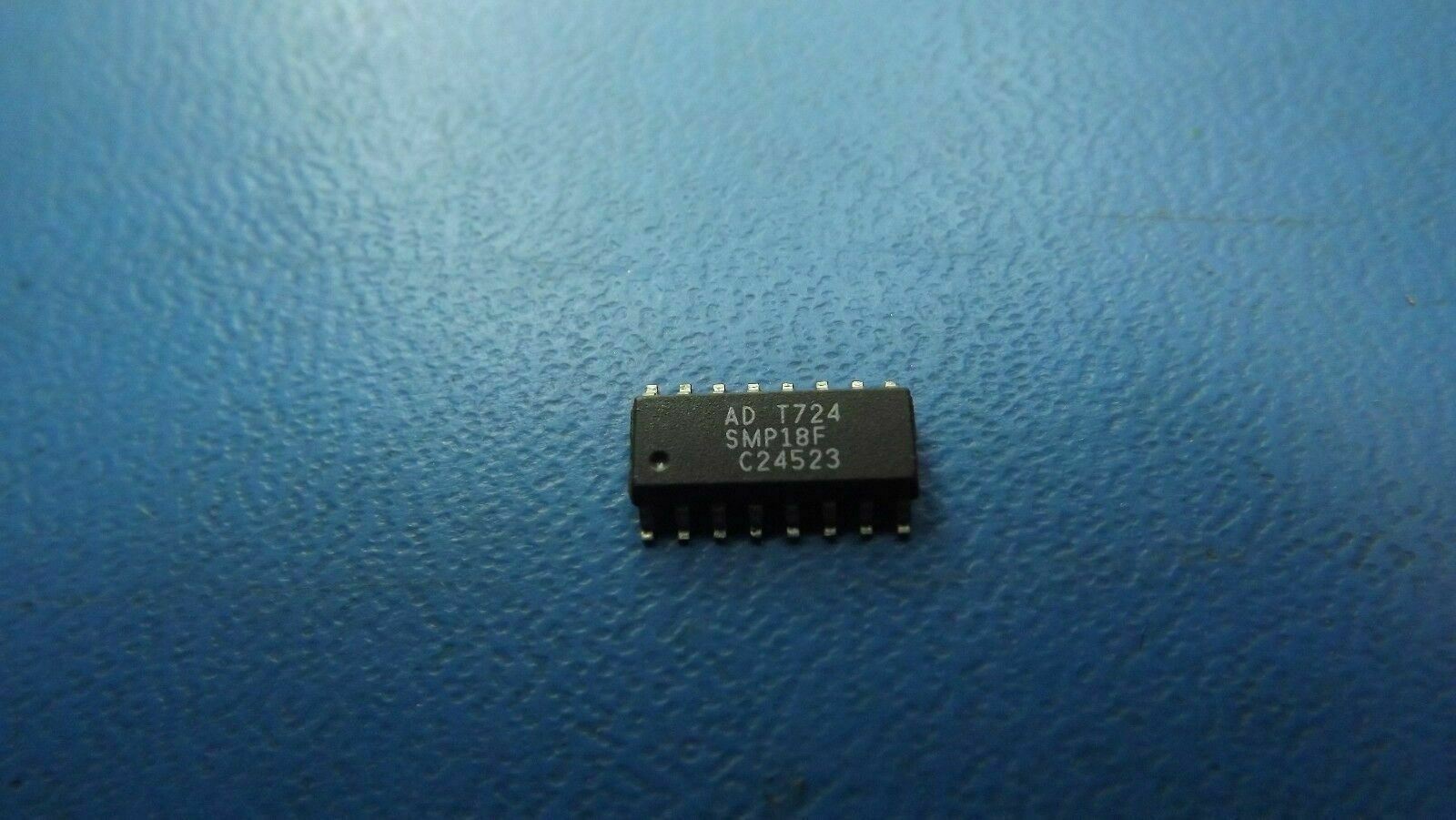

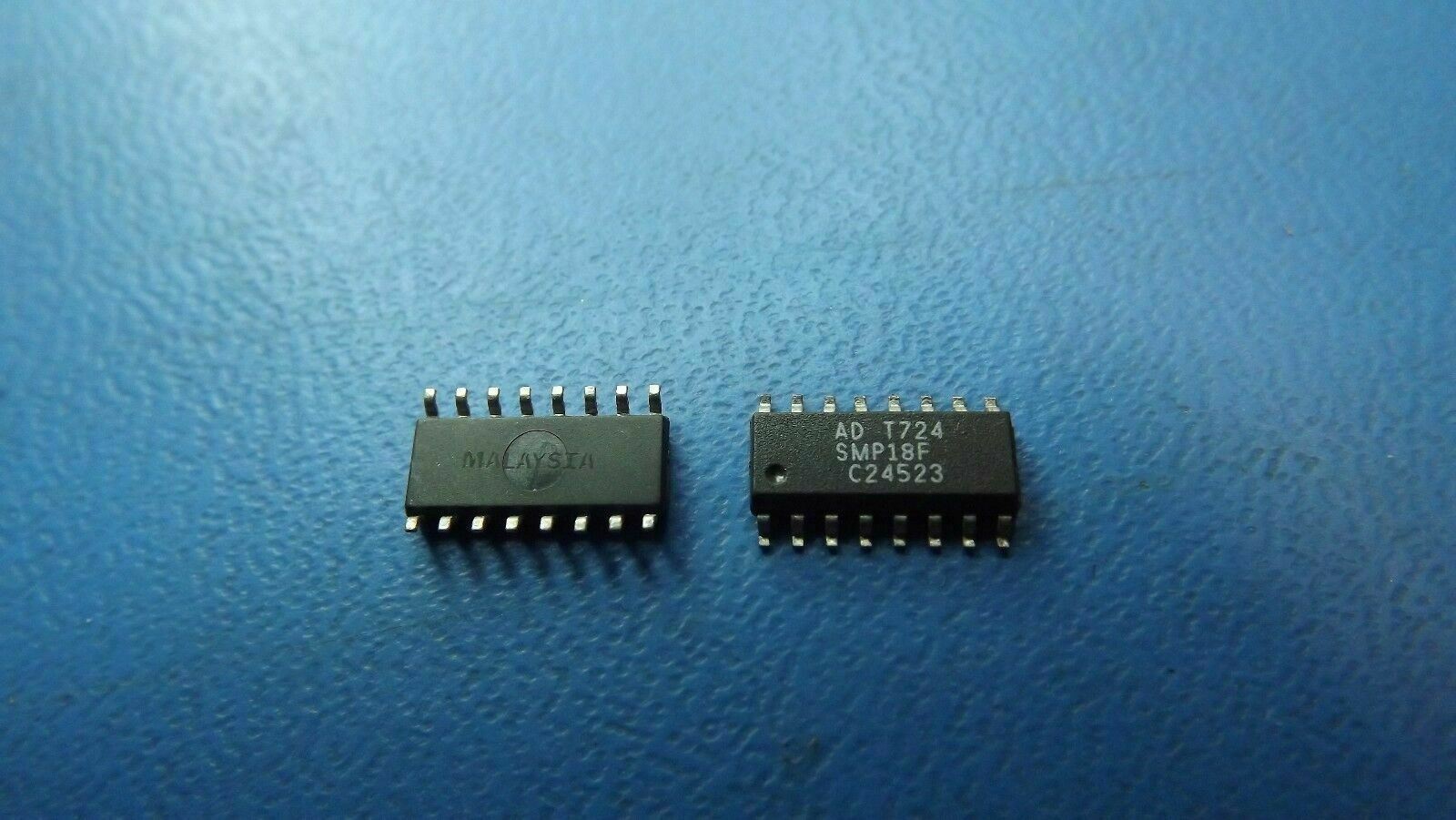

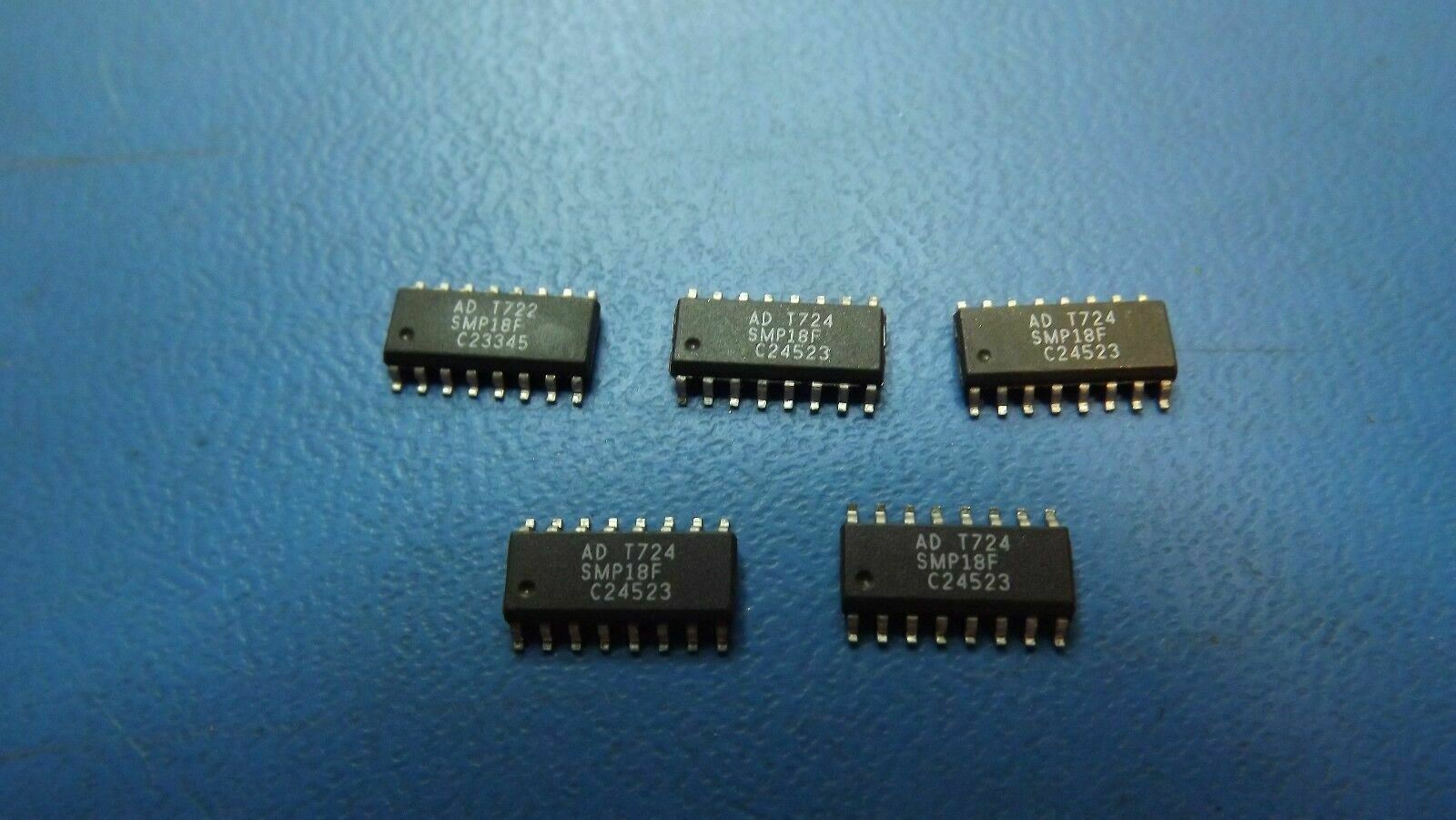

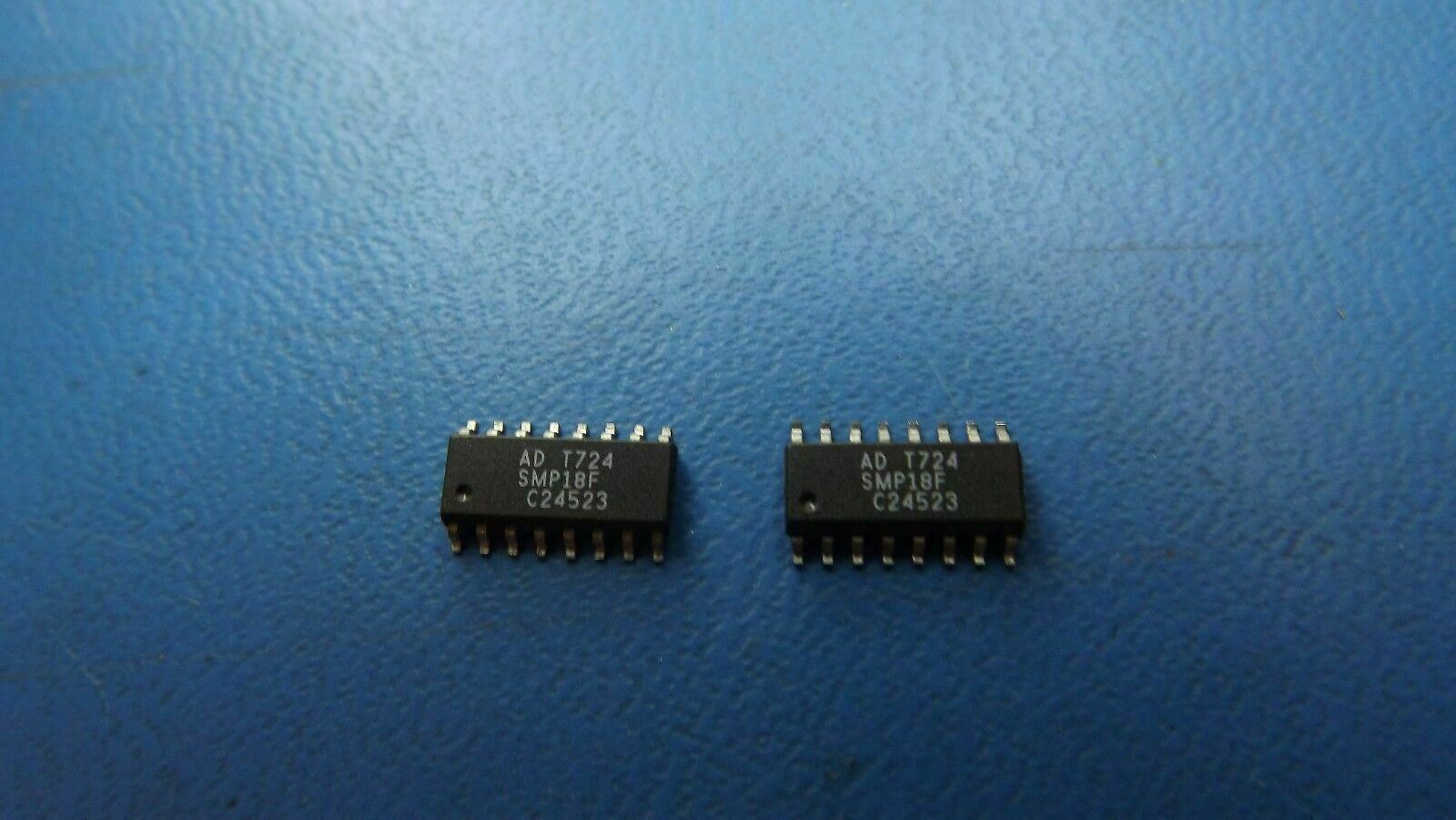

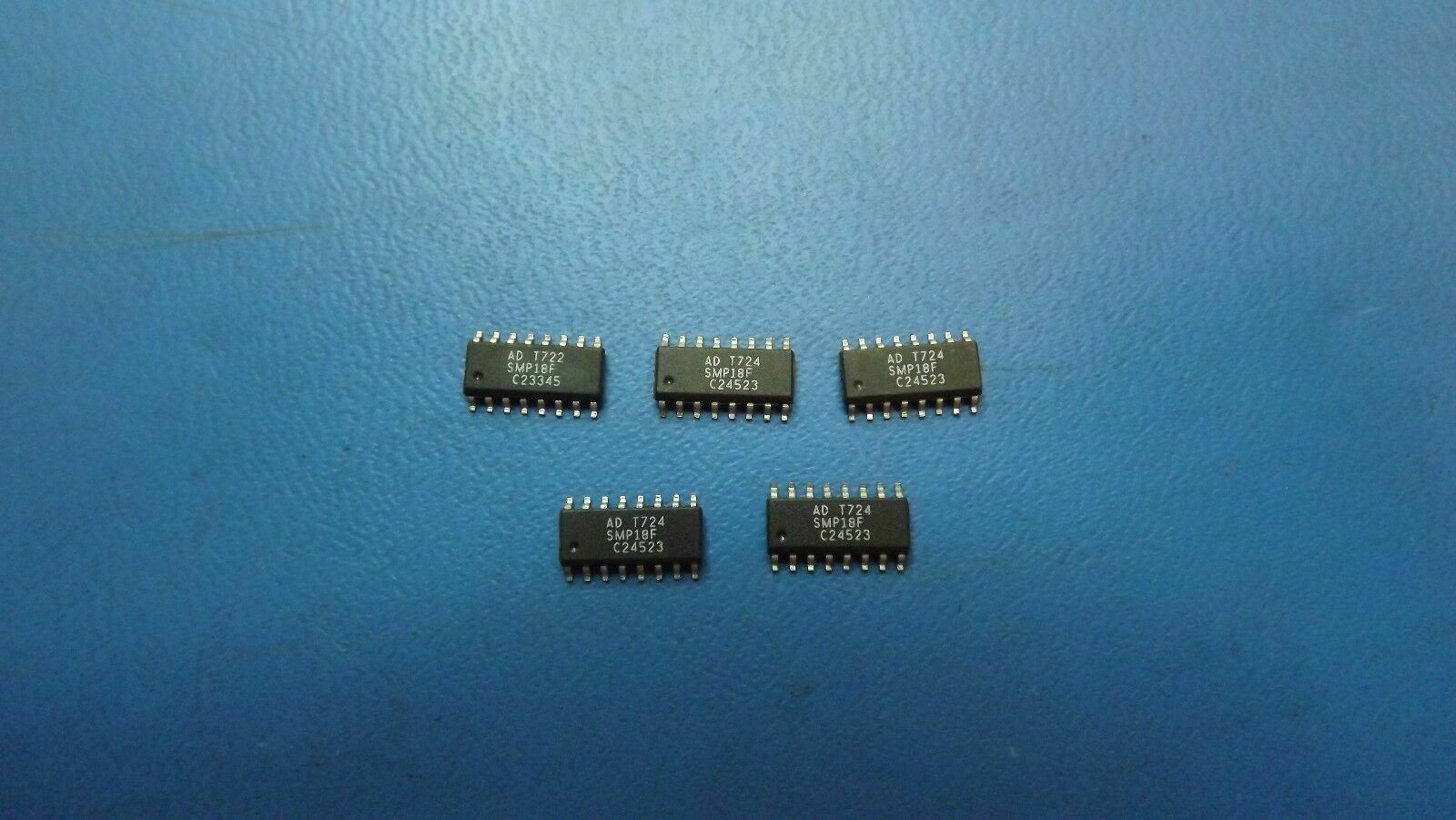

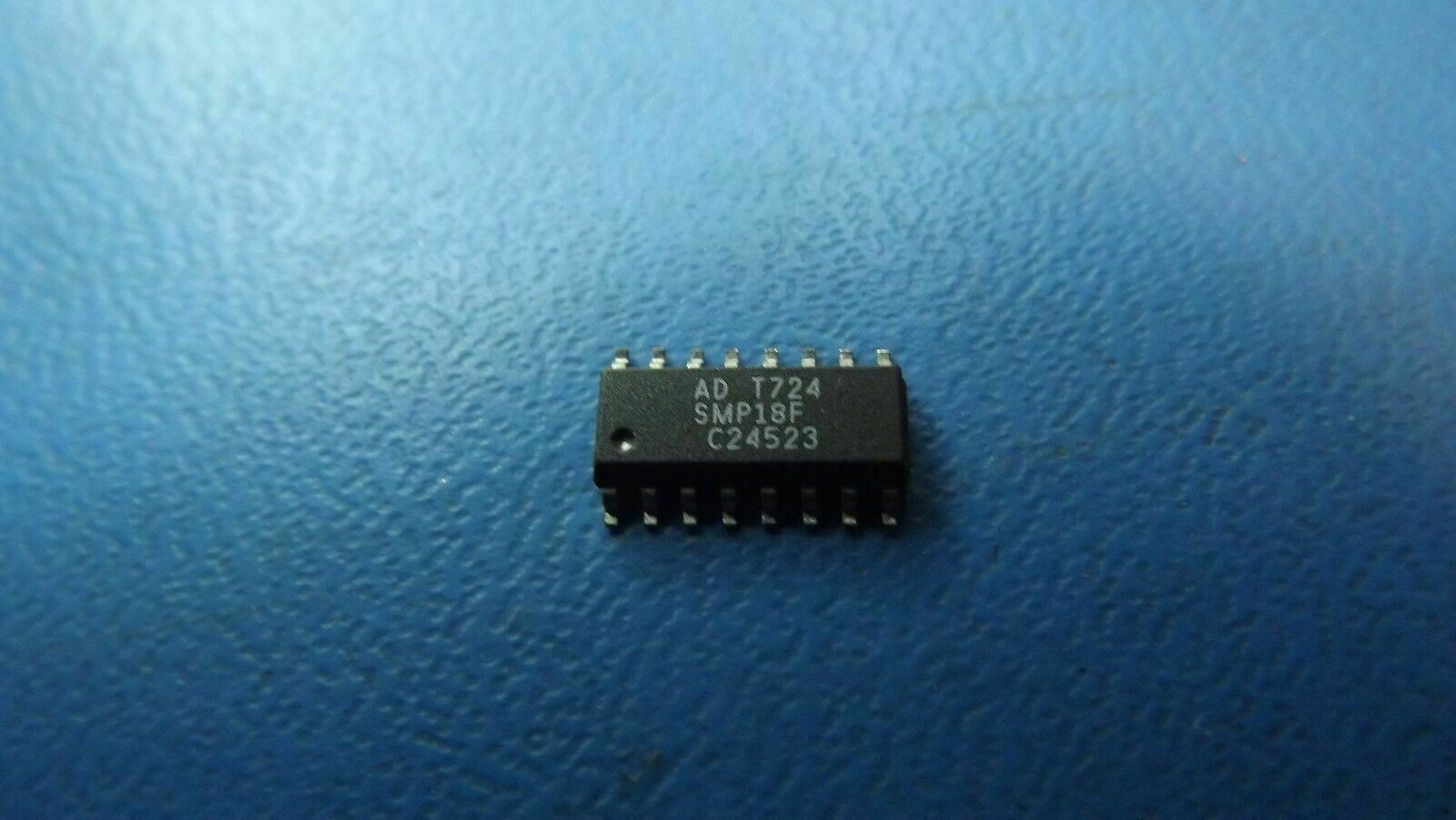

THIS LISTING IS FOR (5PCS) OF SMP18FS BY ANALOG DEVICES
**THESE PARTS HAVE NEVER BEEN USED. LEADS STRAIGHTENED. POSSIBLE TOOL MARKS ON LEADS.
SPECIFICATIONS
| Mfr Package Description | SOIC-16 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Amplifier Type | SAMPLE AND HOLD CIRCUIT |
| Acquisition Time-Nom | 3.5 µs |
| Analog Input Voltage-Min | -3.0 V |
| Analog Input Voltage-Max | 3.0 V |
| Droop Rate-Max | 0.04 V/s |
| JESD-30 Code | R-PDSO-G16 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage Limit-Max | -8.5 V |
| Neg Supply Voltage-Nom (Vsup) | -5.0 V |
| Number of Functions | 8 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 240 |
| Power Supplies (V) | +-5,12 |
| Qualification Status | Not Qualified |
| Sample-and-Hold/Track-and-Hold | SAMPLE |
| Seated Height-Max | 1.75 mm |
| Sub Category | Sample and Hold Circuits |
| Supply Current-Max | 9.5 mA |
| Supply Voltage Limit-Max | 8.5 V |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 9.9 mm |
| Width | 3.9 mm |
