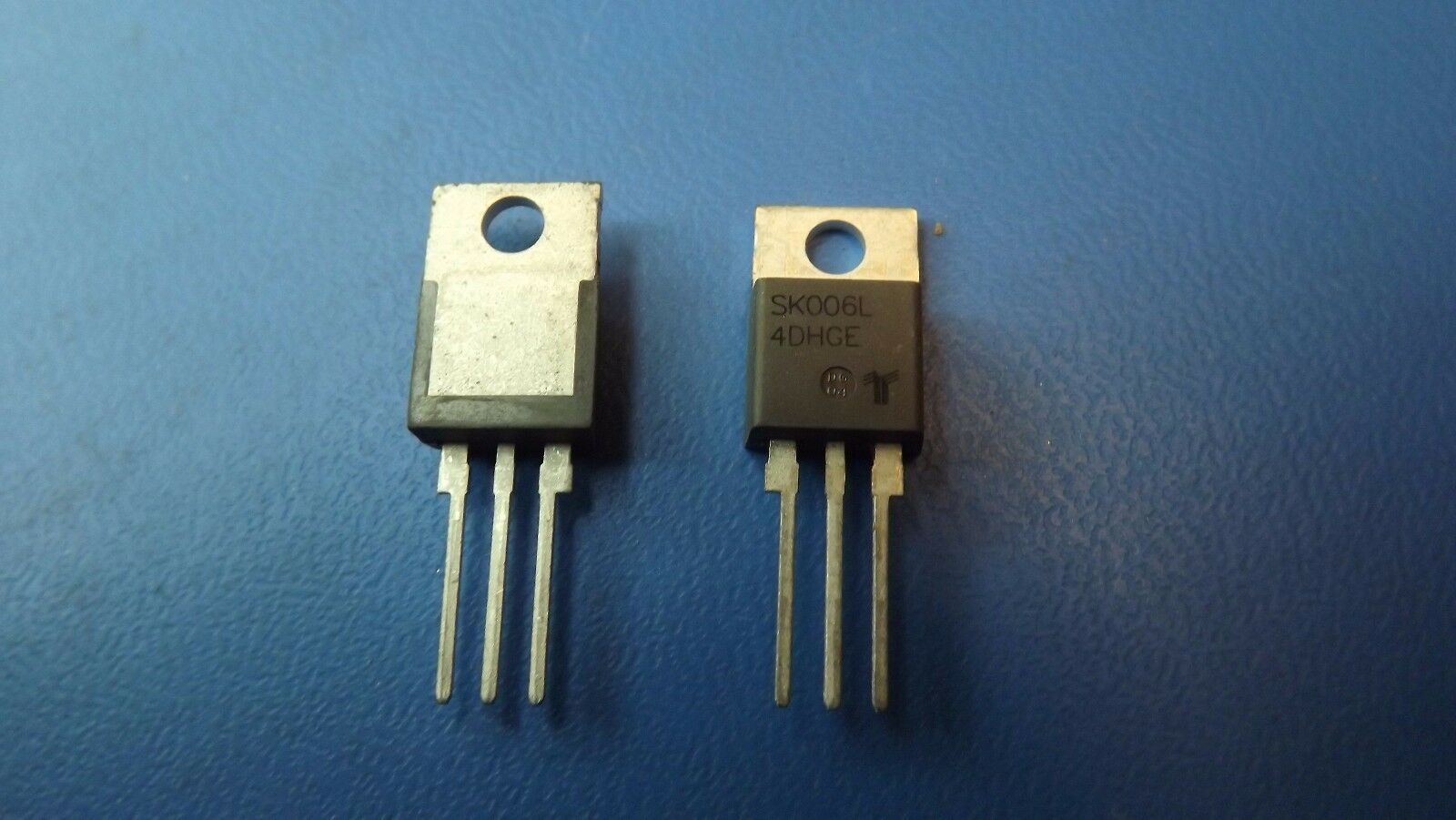

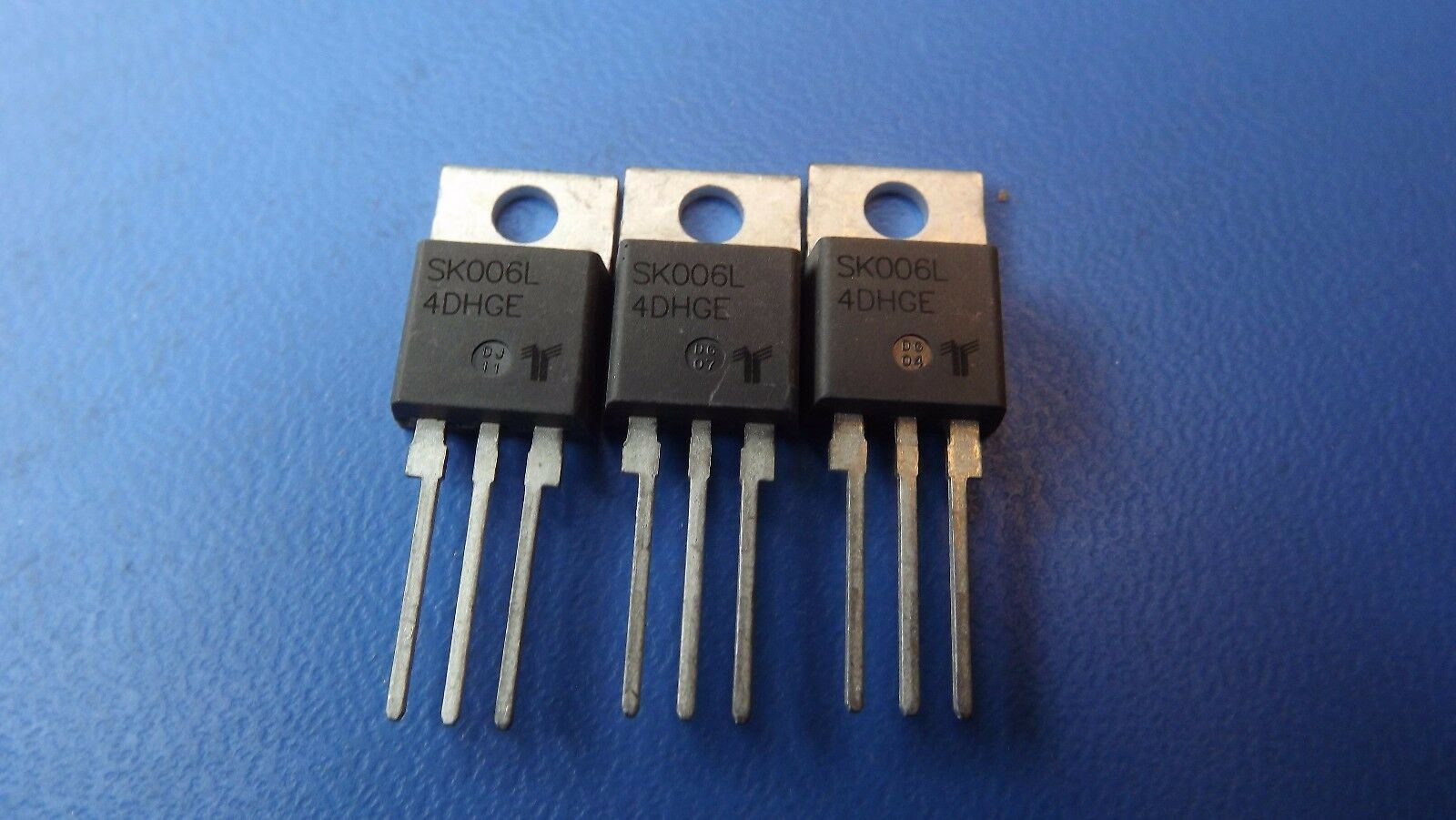

(5PCS) SK006L LITTELFUSE/TECCOR SCR ISOLATED 1000V 6A TO-220AB

  • $7.50
    Unit price per
Tax included.

Only 250 left!

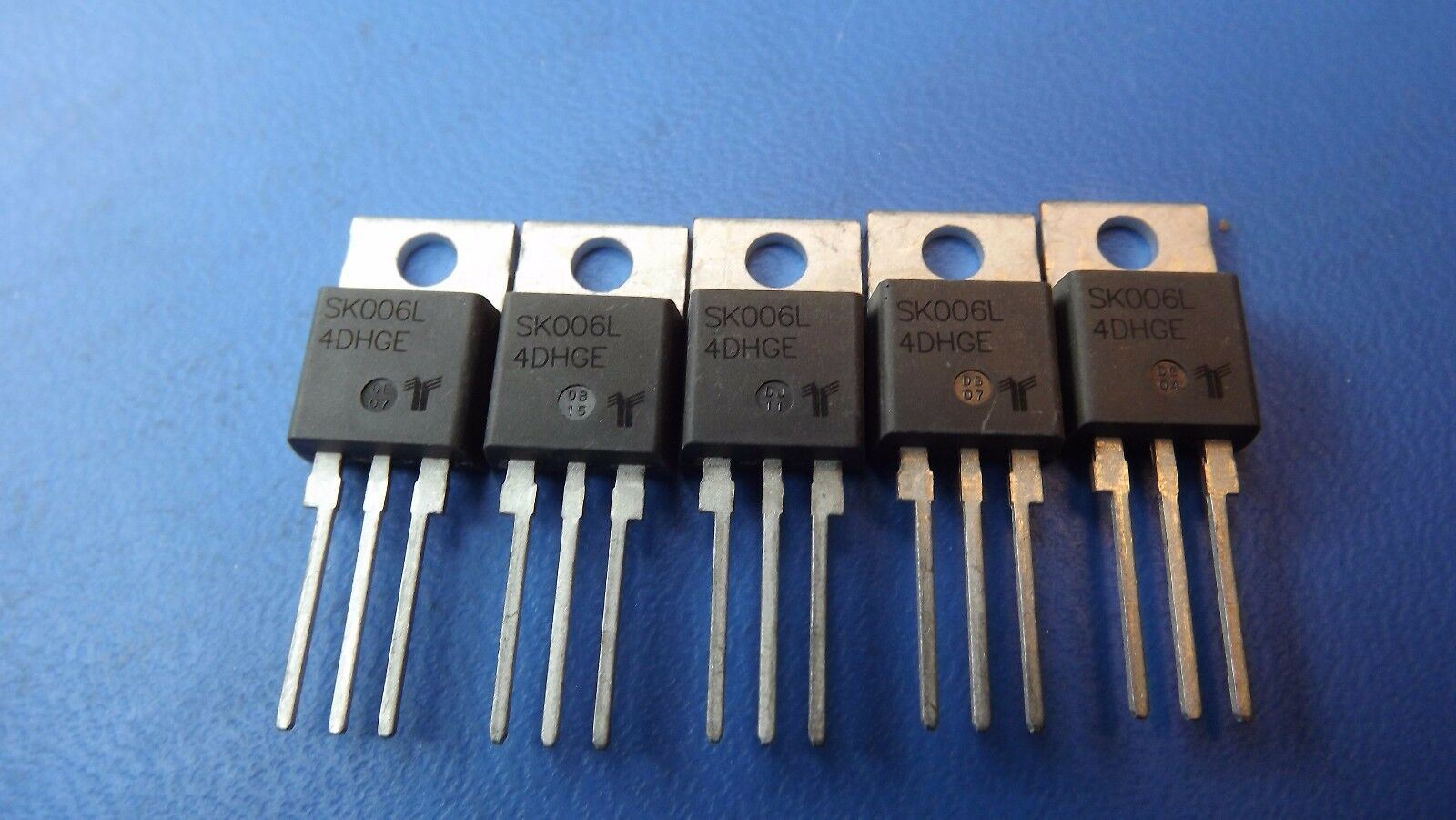

THIS LISTING IS FOR (5PCS) OF SK006L BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description ISOLATED TO-220, 3 PIN
Status Transferred
Trigger Device Type SCR
Case Connection ISOLATED
Configuration SINGLE
DC Gate Trigger Current-Max 15.0 mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1.0
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 1000.0 V
Repetitive Peak Reverse Voltage 1000.0 V
RMS On-state Current-Max 6.0 A
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Additional Feature HIGH RELIABILITY
