(5PCS) S8025N S8025NRP Thyristor SCR 800V 350A 3-Pin(2+Tab) D2PAK
Tax included.

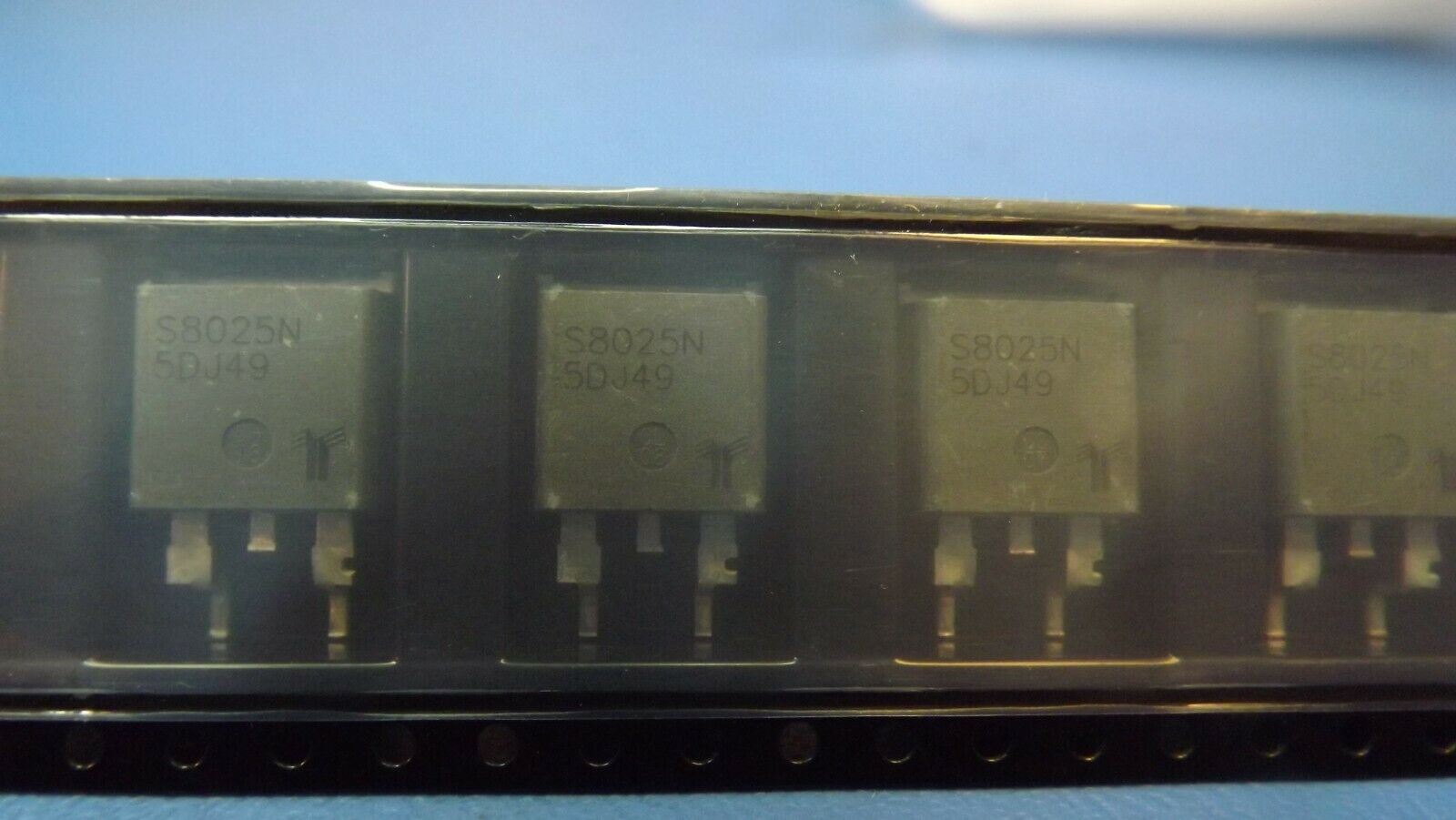

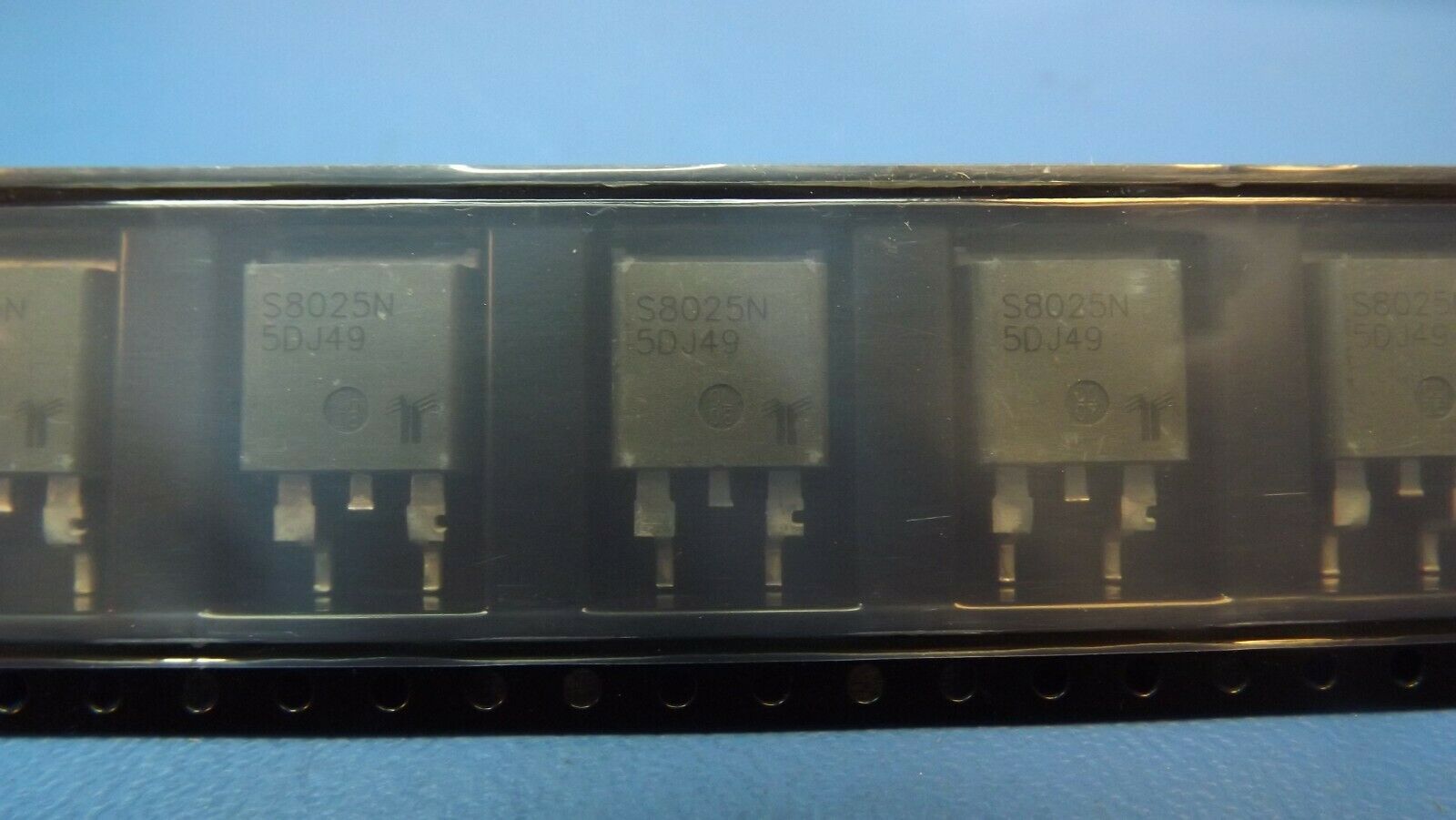

THIS LISTING IS FOR (5PCS) OF S8025N BY LITTELFUSE/TECCOR
Product Attribute Attribute Value Search Similar
Manufacturer: Littelfuse
Product Category: SCRs
RoHS: Details
Series: Sxx25x
Breakover Current IBO Max: 350 A
Rated Repetitive Off-State Voltage VDRM: 800 V
Off-State Leakage Current @ VDRM IDRM: 20 uA
On-State RMS Current - It RMS: 25 A
Vf - Forward Voltage: 1.6 V
Gate Trigger Voltage - Vgt: 1.5 V
Gate Trigger Current - Igt: 35 mA
Holding Current Ih Max: 50 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: SMTO-263-2
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Current Rating: 25 A
Features: Glass passivated Chip junction
Height: 4.78 mm
Length: 10.67 mm
Type: Sensitive SCRs
Width: 9.4 mm
Brand: Littelfuse
Product Type: SCRs
