(5PCS) S8008D S8008DRP LITTELFUSE SCR NON-SENS 800V 8A TO-252AA
(5PCS) S8008D S8008DRP LITTELFUSE SCR NON-SENS 800V 8A TO-252AA
(5PCS) S8008D S8008DRP LITTELFUSE SCR NON-SENS 800V 8A TO-252AA

(5PCS) S8008D S8008DRP LITTELFUSE SCR NON-SENS 800V 8A TO-252AA

Tax included.
Only 14 left!

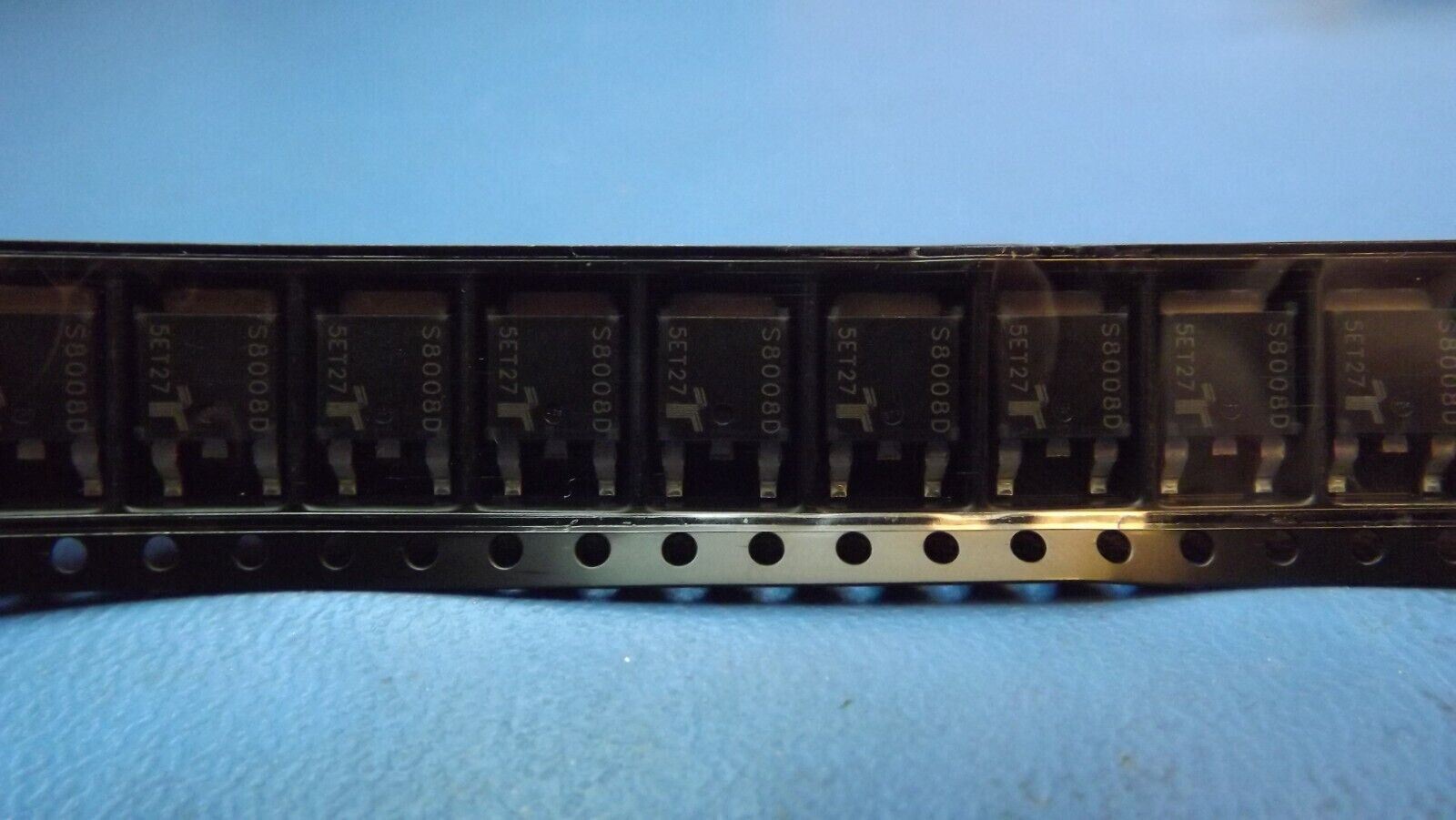

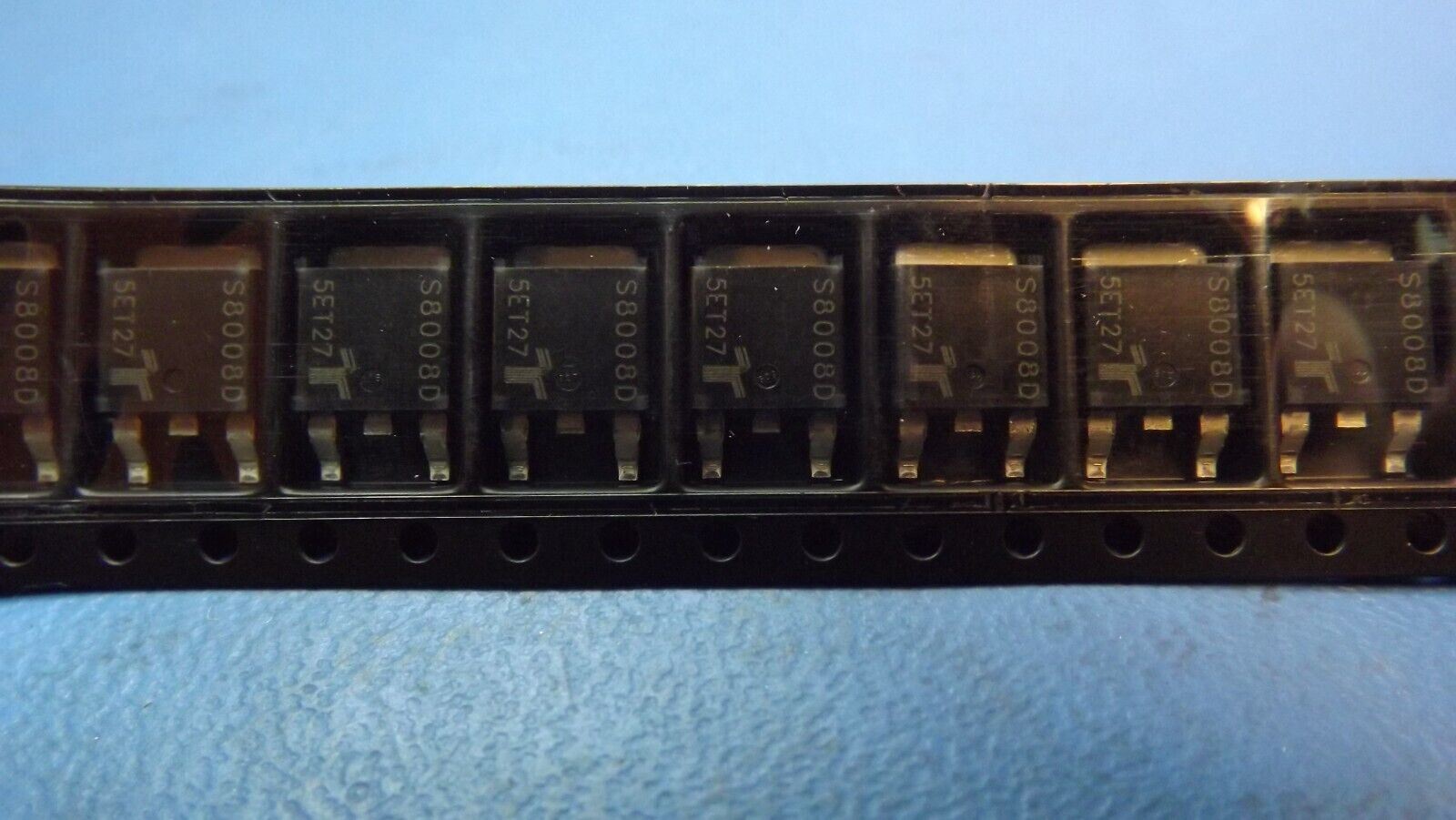

THIS LISTING IS FOR (5PCS) OF S8008 / S8008DR BY LITTELFUSE

Manufacturer: Littelfuse
Product Category: SCRs
RoHS: Details
Series: Sxx08x
Breakover Current IBO Max: 100 A
Rated Repetitive Off-State Voltage VDRM: 800 V
Off-State Leakage Current @ VDRM IDRM: 10 uA
On-State RMS Current - It RMS: 8 A
Vf - Forward Voltage: 1.6 V
Gate Trigger Voltage - Vgt: 1.5 V
Gate Trigger Current - Igt: 15 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: DPAK-2 (TO-252-2)
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Brand: Littelfuse
Current Rating: 8 A
Features: Glass passivated Chip junction
Height: 2.39 mm
Holding Current Ih Max: 30 mA
Length: 6.63 mm
Non Repetitive On-State Current: 100 A
Product Type: SCRs
