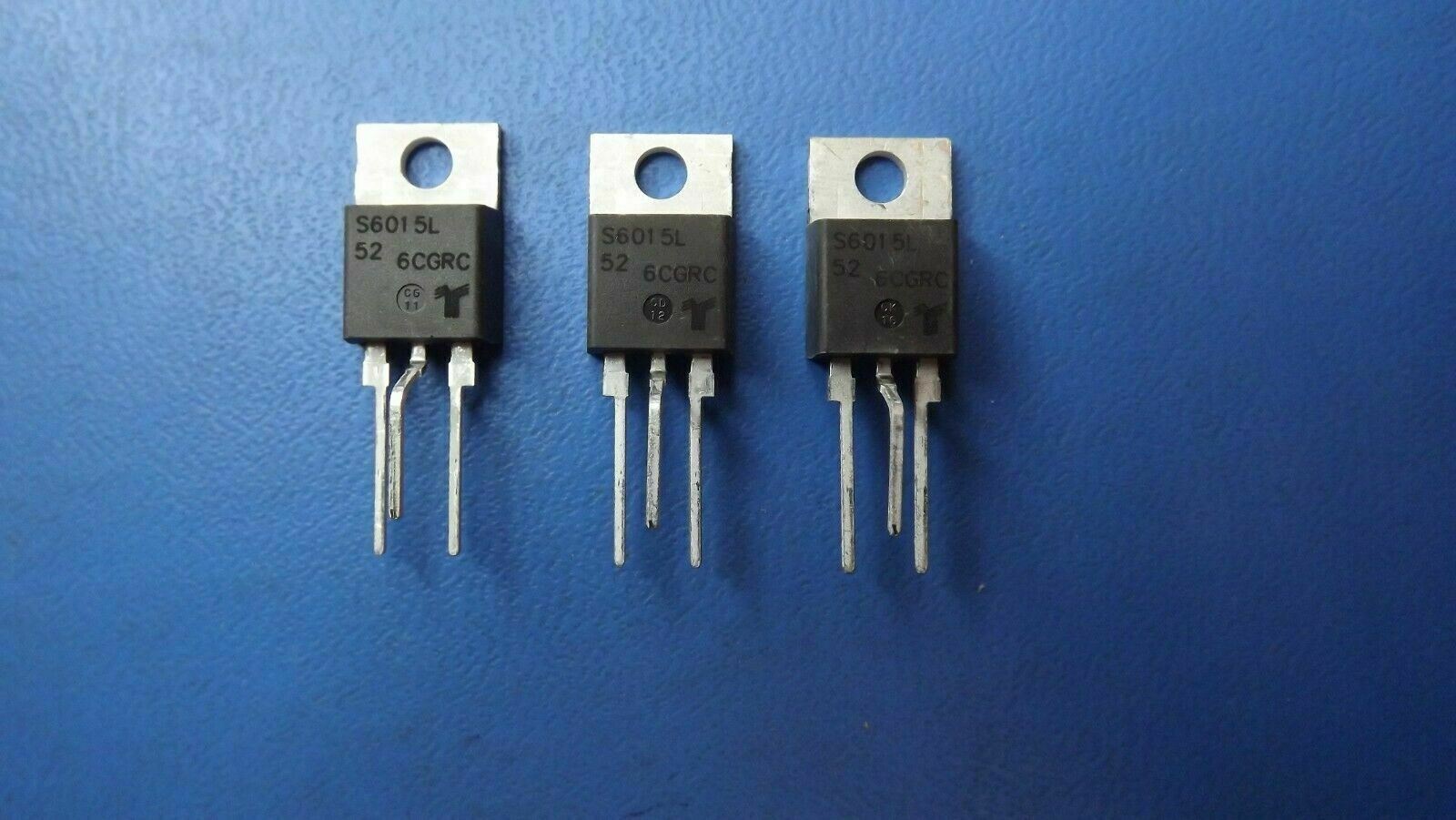

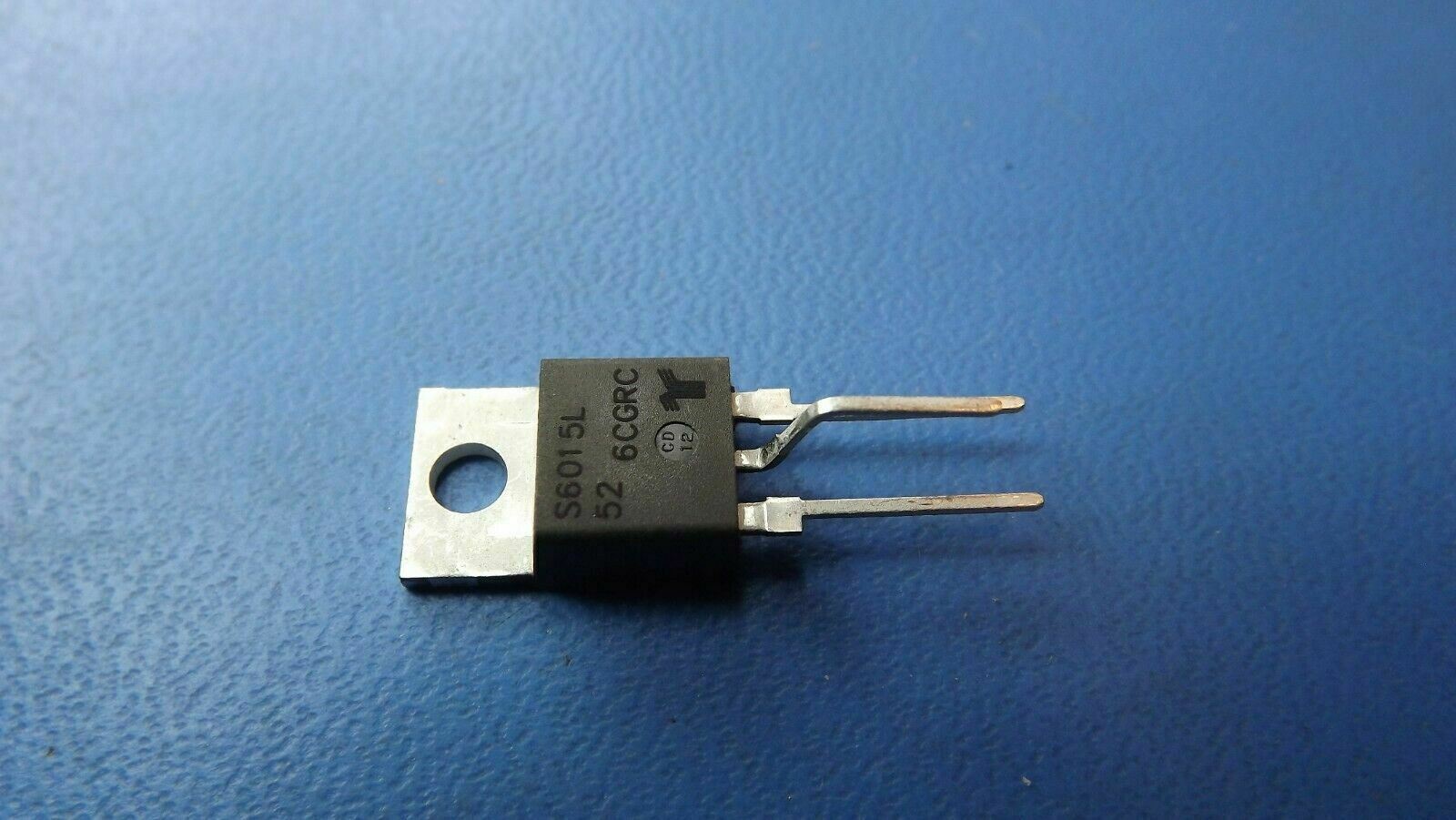

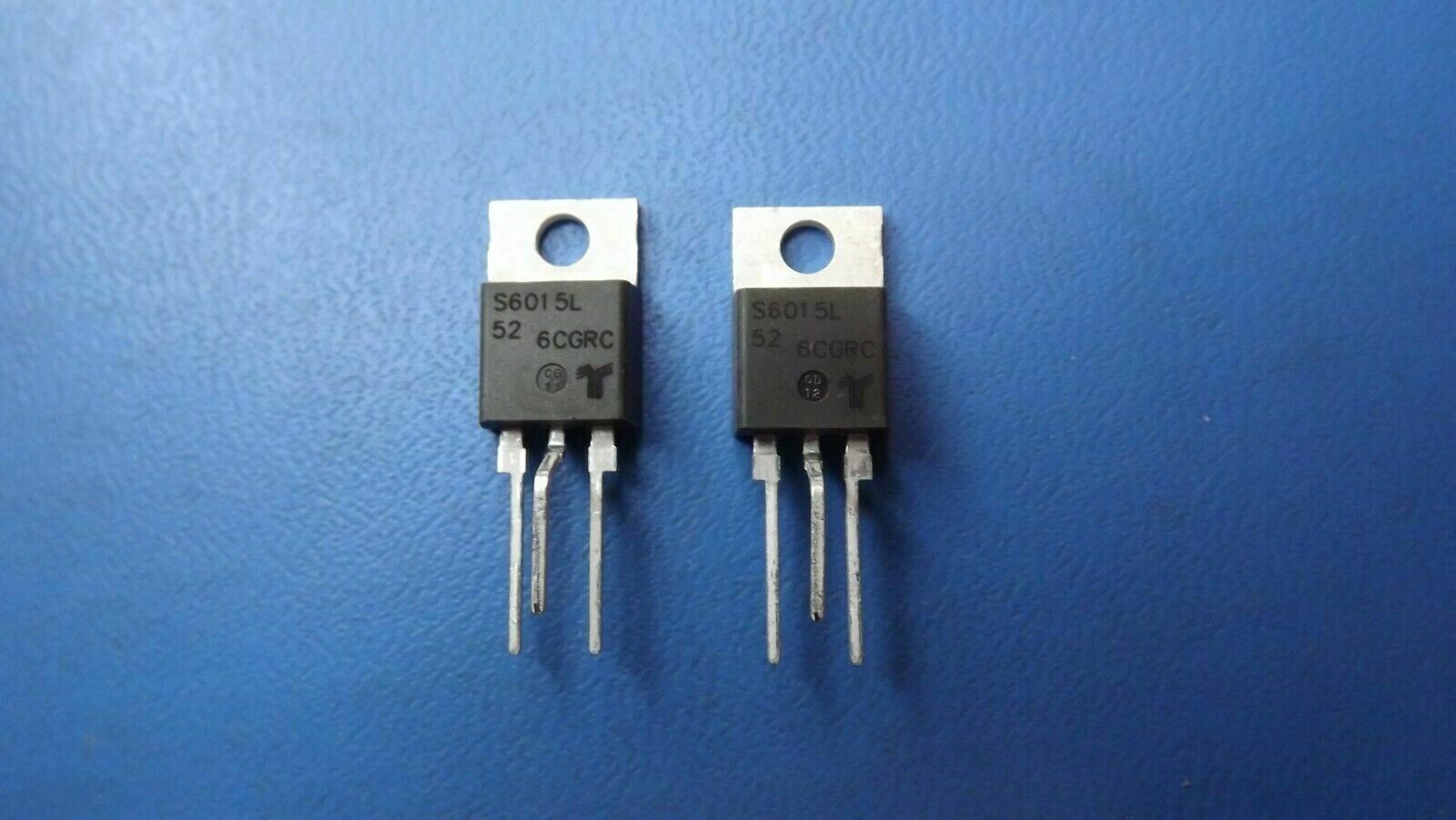

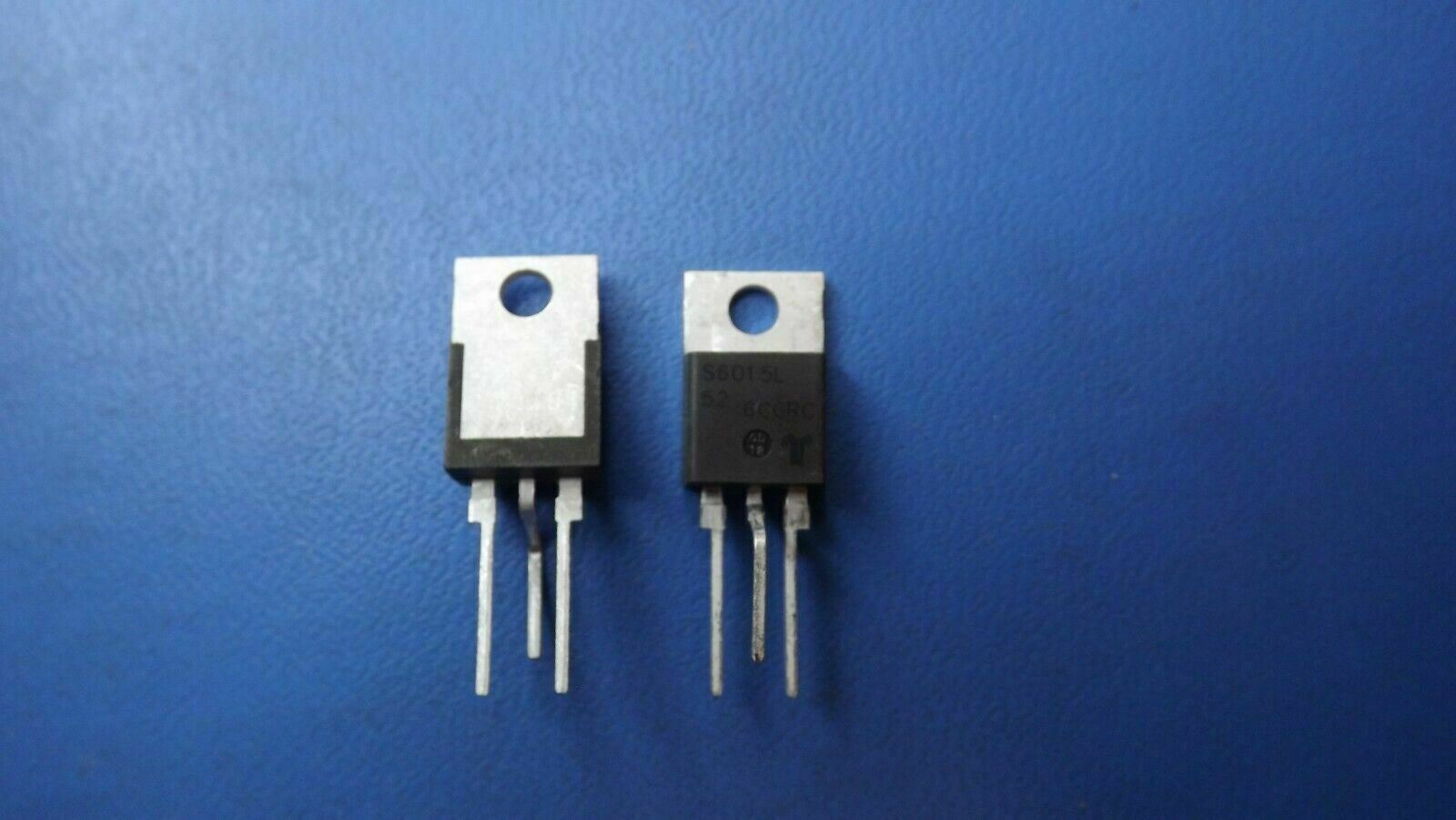

(5PCS) S6015L52 S6015L52TP LITTELFUSE SCR 600V 15A TO220 ISO
Tax included.

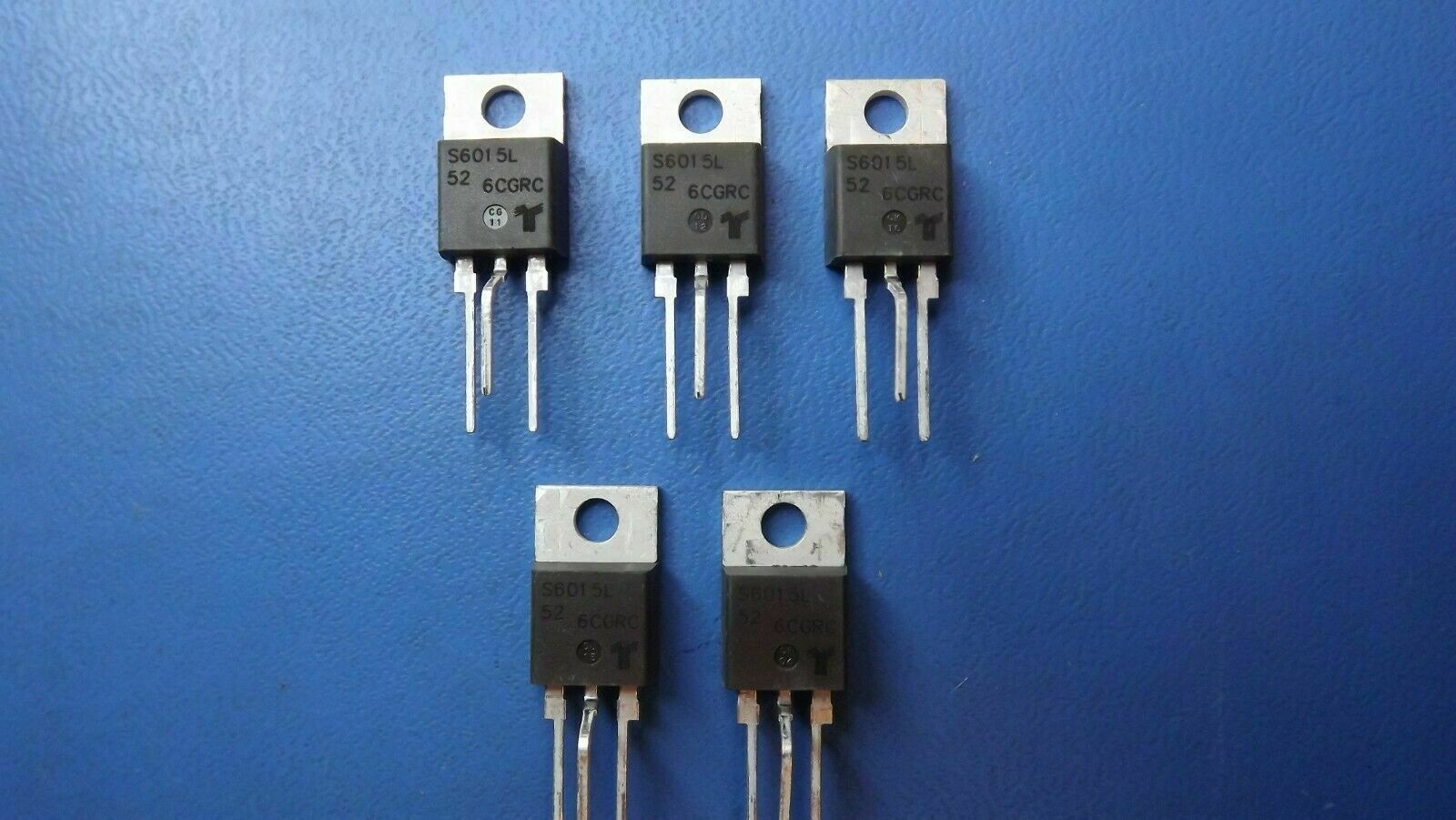

THIS LISTING IS FOR (5PCS) OF S6015L52TP BY LITTELFUSE
SPECIFICATIONS
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | SCR |
| Critical Rate of Rise of Off-state Voltage-Min | 325.0 V/us |
| DC Gate Trigger Current-Max | 30.0 mA |
| DC Gate Trigger Voltage-Max | 1.5 V |
| Holding Current-Max | 40.0 mA |
| JESD-609 Code | e3 |
| Non-Repetitive Pk On-state Cur | 225.0 A |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Peak Reflow Temperature (Cel) | 260 |
| Repetitive Peak Off-state Voltage | 600.0 V |
| Sub Category | Silicon Controlled Rectifiers |
| Surface Mount | NO |
| Terminal Finish | Matte Tin (Sn) |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
