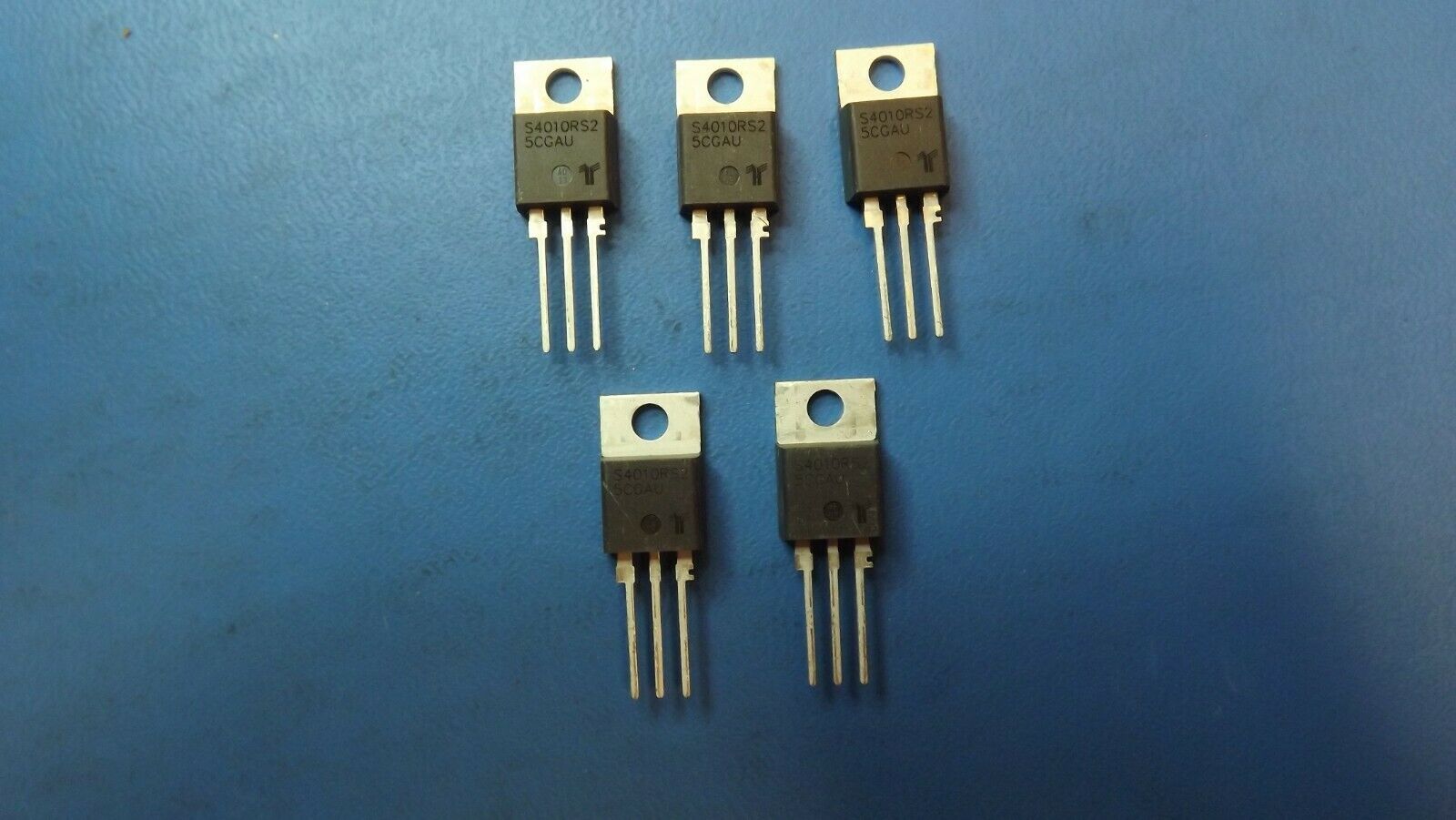

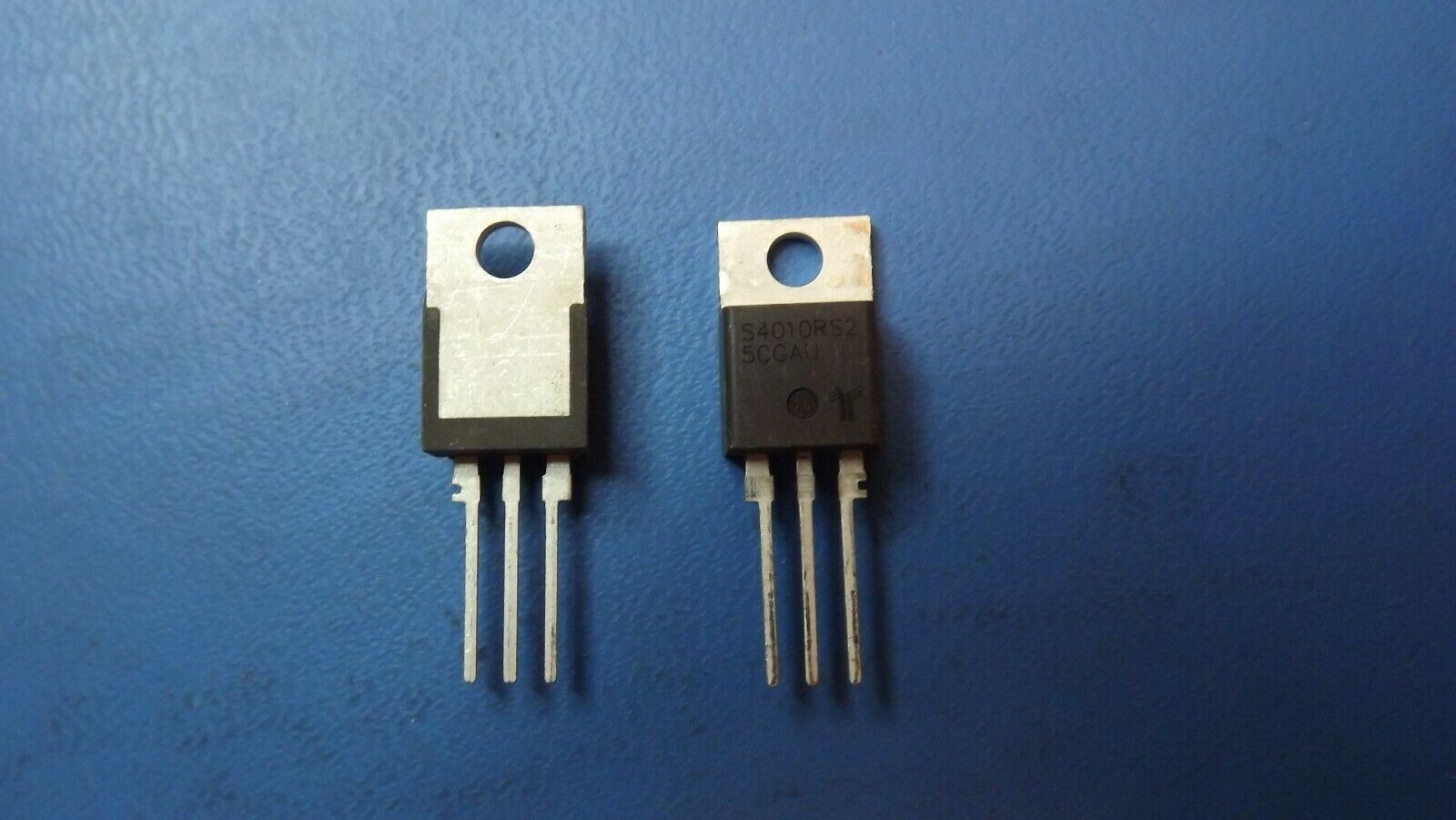

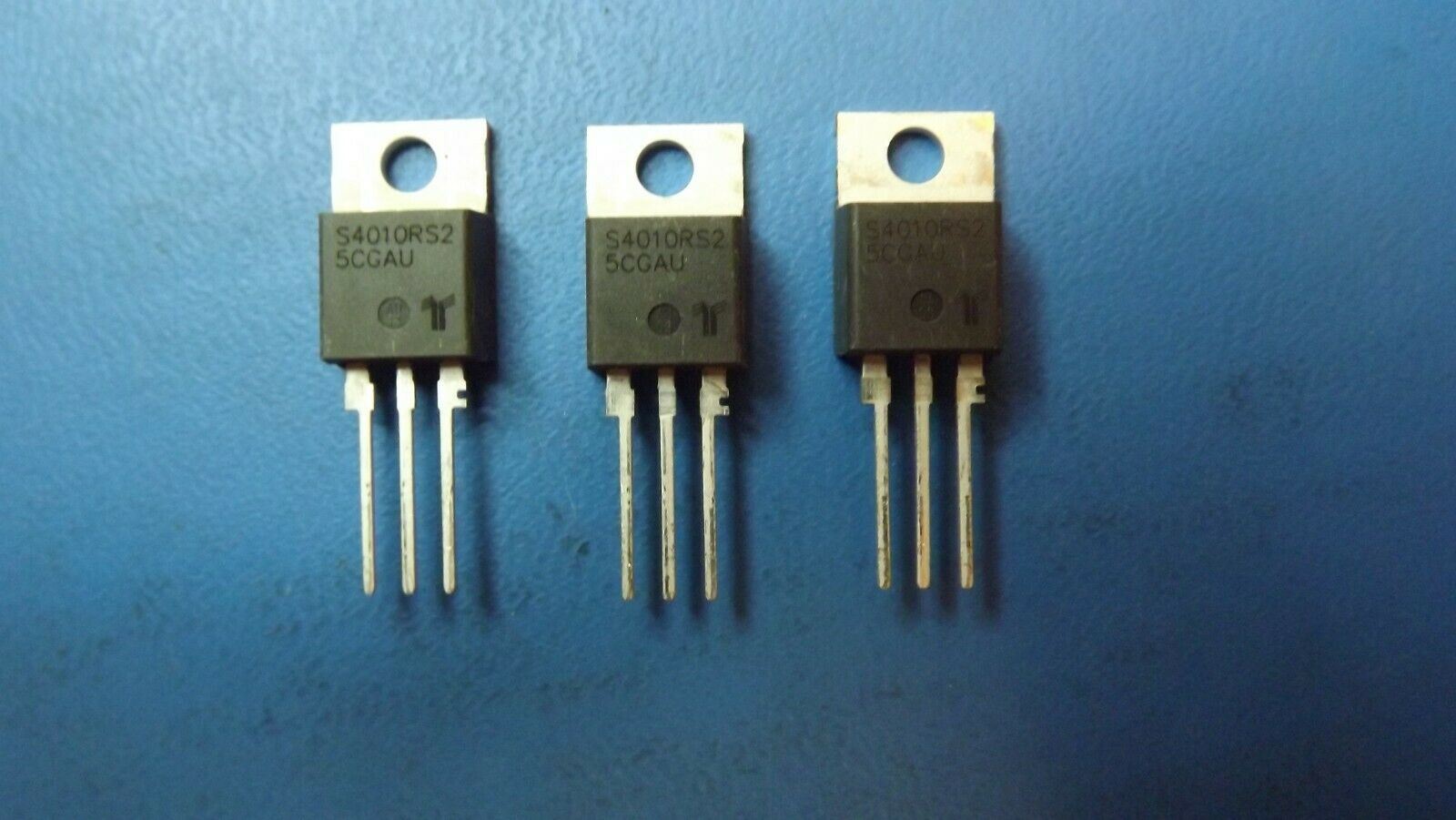

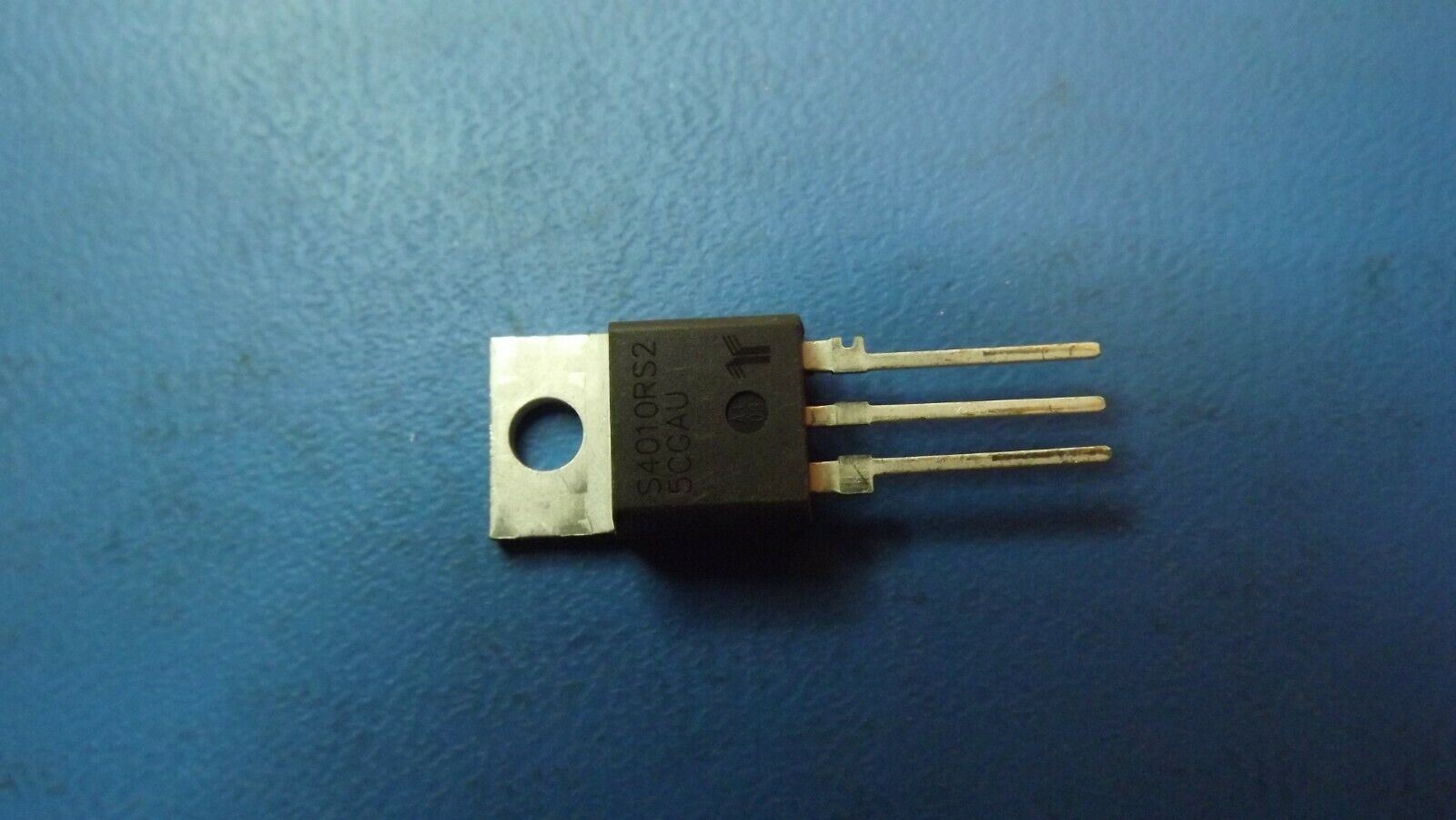

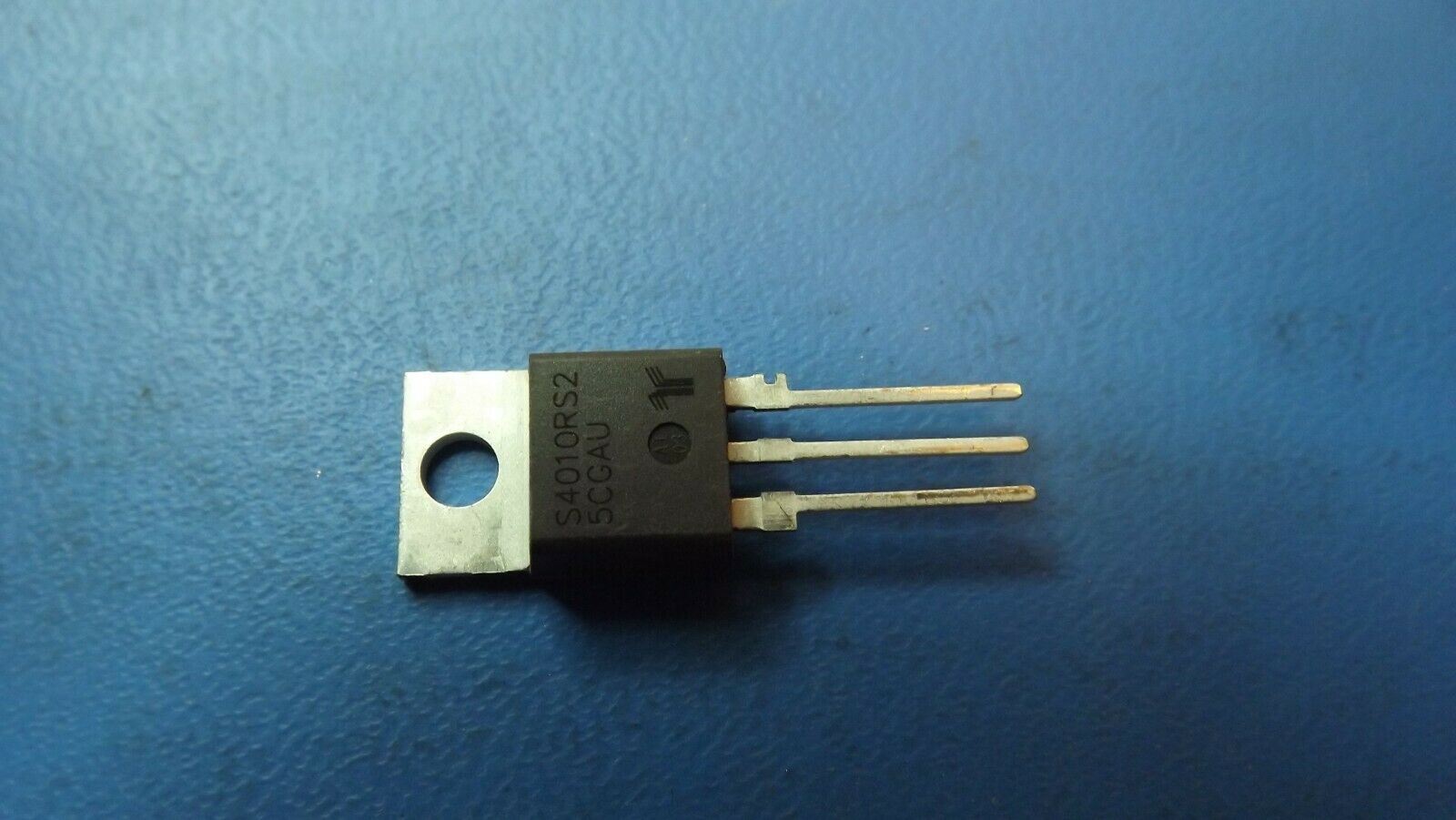

(5PCS) S4010RS2 S4010RS2TP SEN SCR 400V 10A 200A TO220
Tax included.
THIS LISTING IS FOR (5PCS) OF S4010RS2 BY LITTELFUSE/TECCOR
Categories Discrete Semiconductor Products
Thyristors - SCRs
Manufacturer Littelfuse Inc.
Series Teccor®
Packaging Tube
Part Status Active
Voltage - Off State 400mV
Voltage - Gate Trigger (Vgt) (Max) 800mV
Current - Gate Trigger (Igt) (Max) 200µA
Voltage - On State (Vtm) (Max) 1.6V
Current - On State (It (AV)) (Max) 6.4A
Current - On State (It (RMS)) (Max) 10A
Current - Hold (Ih) (Max) 6mA
Current - Off State (Max) 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 83A, 100A
SCR Type Sensitive Gate
Operating Temperature -40°C ~ 110°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
