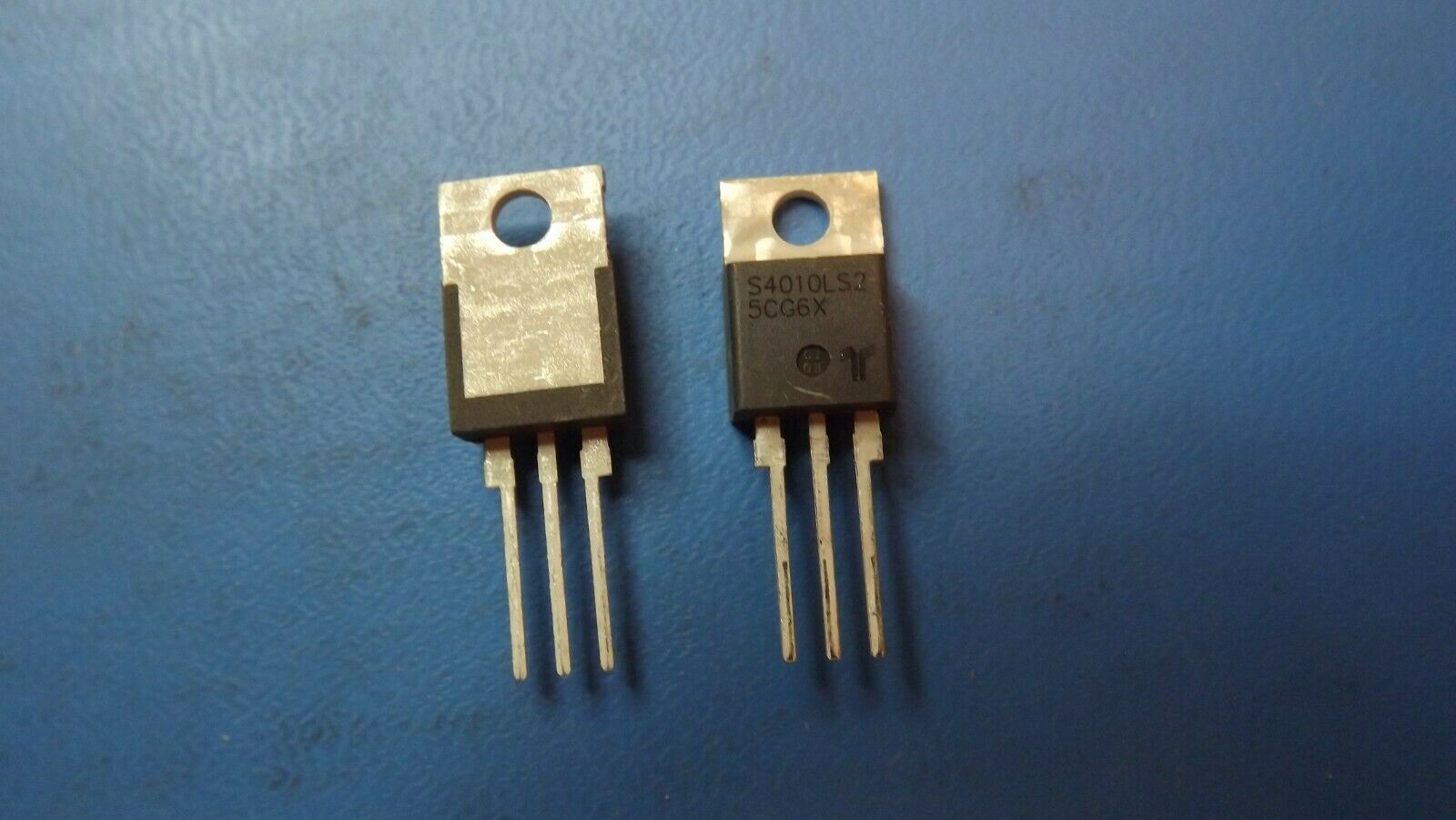

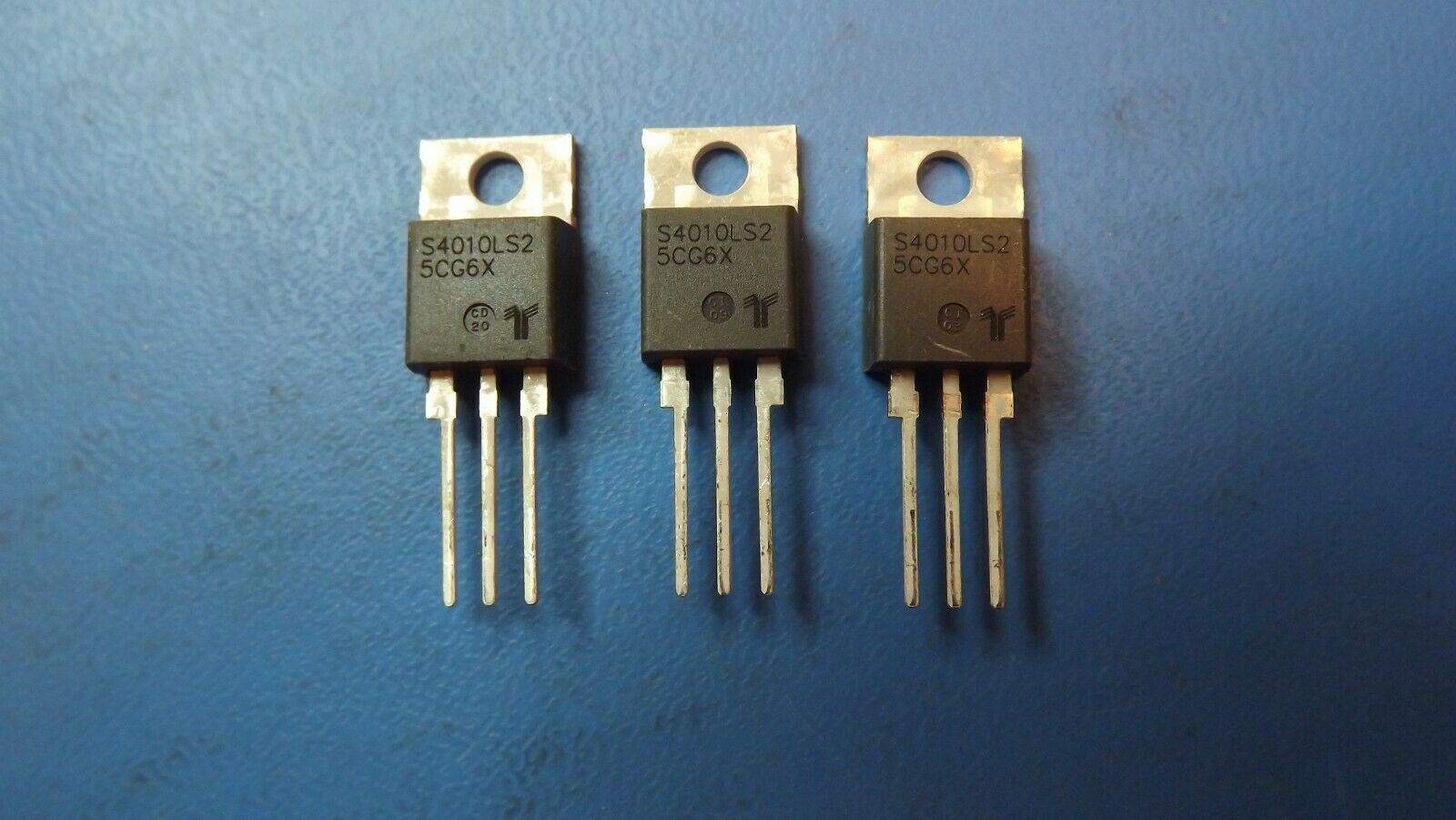

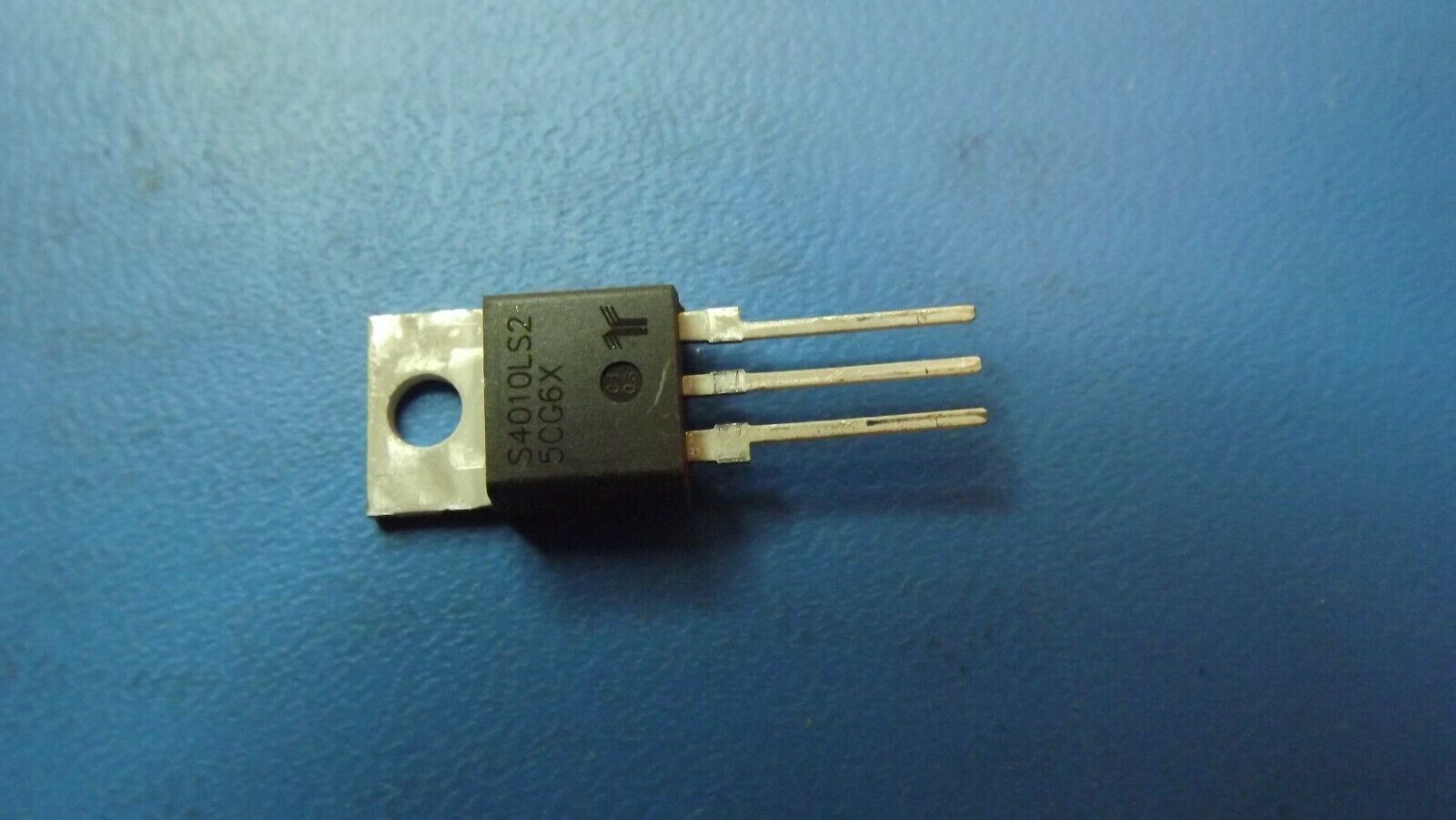

(5PCS) S4010LS2 S4010LS2TP SCR SENSITIVE GATE 10.0A 400V
Tax included.

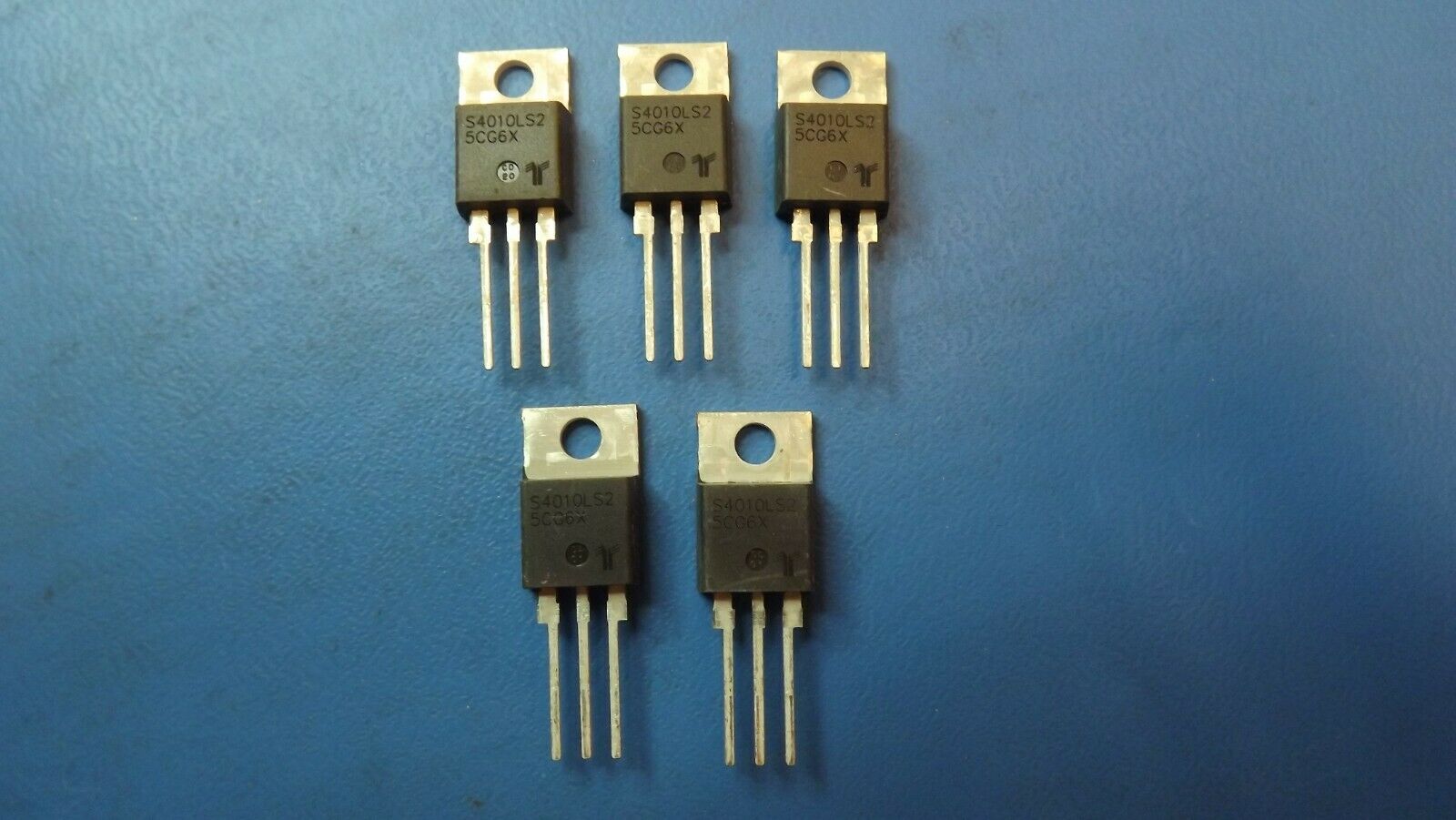

THIS LISTING IS FOR (5PCS) OF S4010LS2 BY LITTELFUSE/TECCOR
Product Attribute Attribute Value Search Similar
Manufacturer: Littelfuse
Product Category: SCRs
RoHS: Details
Series: Sxx10xSx
Rated Repetitive Off-State Voltage VDRM: 400 V
Off-State Leakage Current @ VDRM IDRM: 5 uA
On-State RMS Current - It RMS: 10 A
Vf - Forward Voltage: 1.6 V
Maximum Gate Peak Inverse Voltage: 1 V
Gate Trigger Voltage - Vgt: 800 mV
Gate Trigger Current - Igt: 200 uA
Holding Current Ih Max: 6 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 110 C
Mounting Style: Through Hole
Package / Case: TO-220-2
Packaging: Tube
Current Rating: 10 A
Type: SCRs
Brand: Littelfuse
