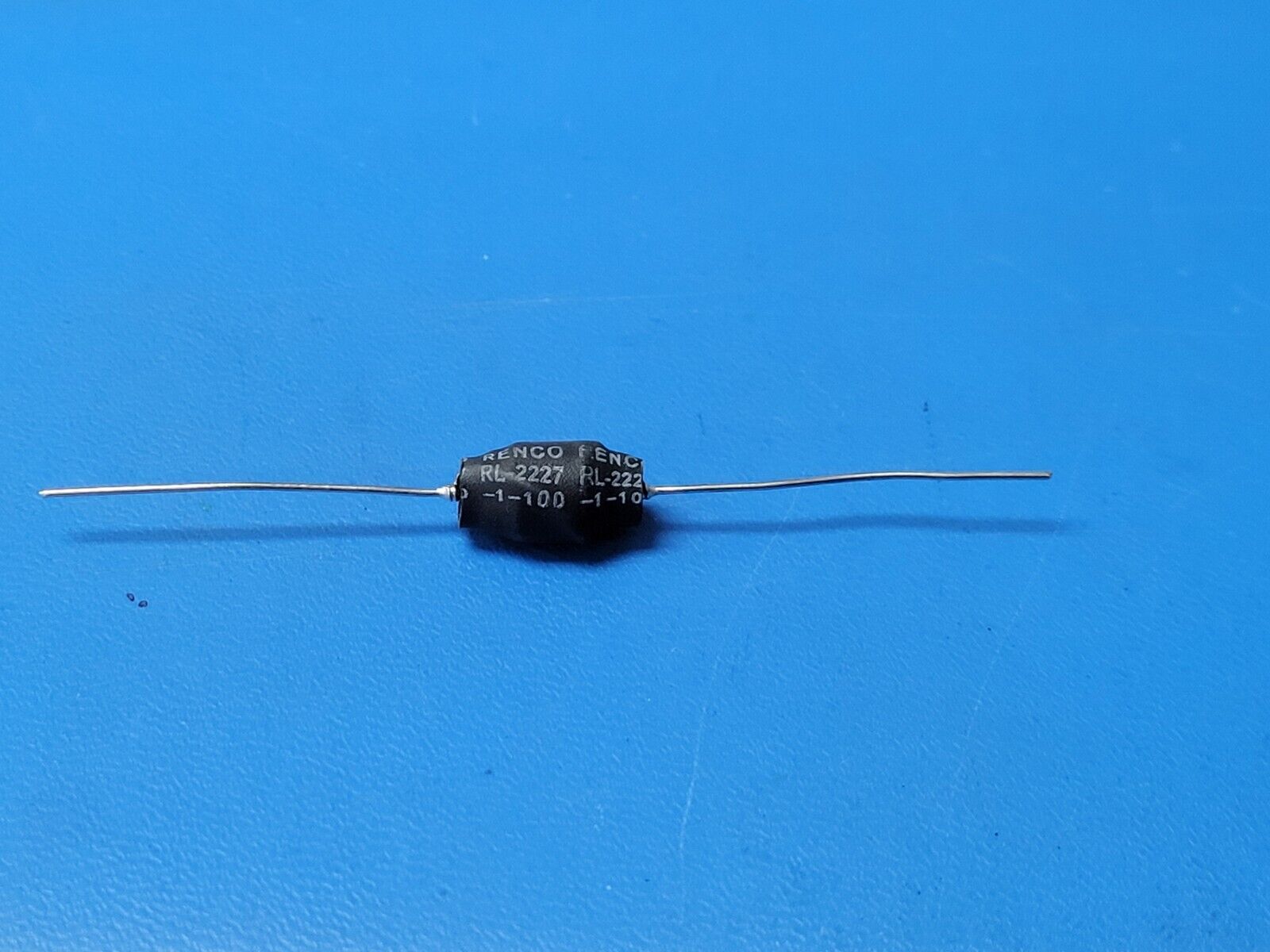

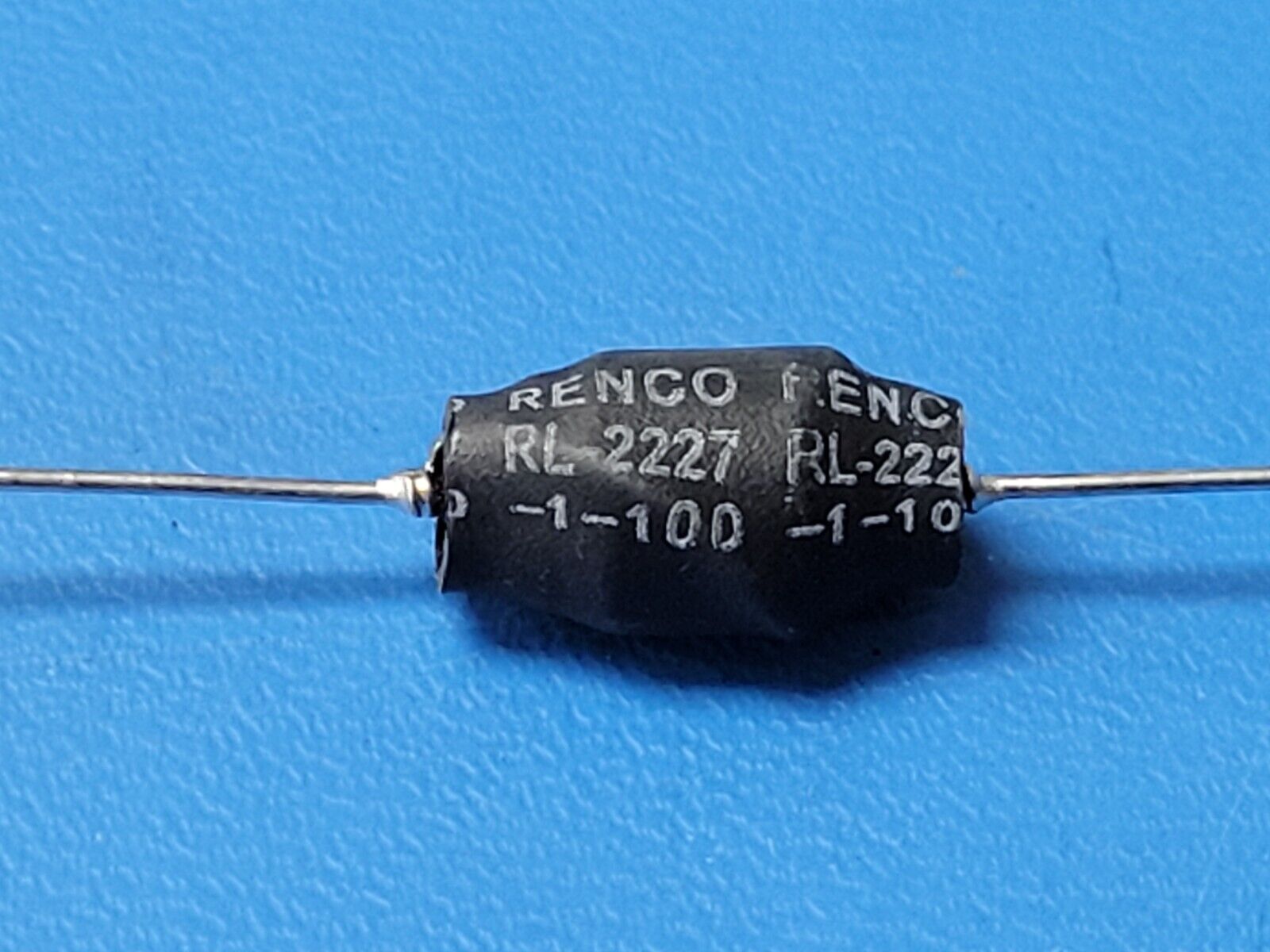

(5PCS) RL-2227-1-100 1 ELEMENT, 100uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
Tax included.
THIS LISTING IS FOR (5PCS) OF RL-2227-1-100 BY RENCO
SPECIFICATIONS
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Construction | Cylindrical |
| Core Material | FERRITE |
| DC Resistance | 0.18 ohm |
| Inductance-Nom (L) | 100.0 µH |
| Inductor Application | HIGH CURRENT INDUCTOR |
| Lead Diameter | 0.81 mm |
| Manufacturer Series | RL-2227 |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 130.0 Cel |
| Package Diameter | 12.06 mm |
| Package Length | 20.32 mm |
| Package Style (Meter) | Axial |
| Packing Method | Tray |
| Rated Current-Max | 1.0 A |
| Self Resonance Frequency | 2.0 MHz |
| Series | RL-2227 |
| Shape/Size Description | TUBULAR PACKAGE |
| Shielded | NO |
| Surface Mount | NO |
| Terminal Placement | RADIAL |
| Terminal Shape | WIRE |
| Test Frequency | 0.001 MHz |
| Tolerance | 10.0 % |
