(5PCS) QS74FCT2244TQX Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS
Tax included.

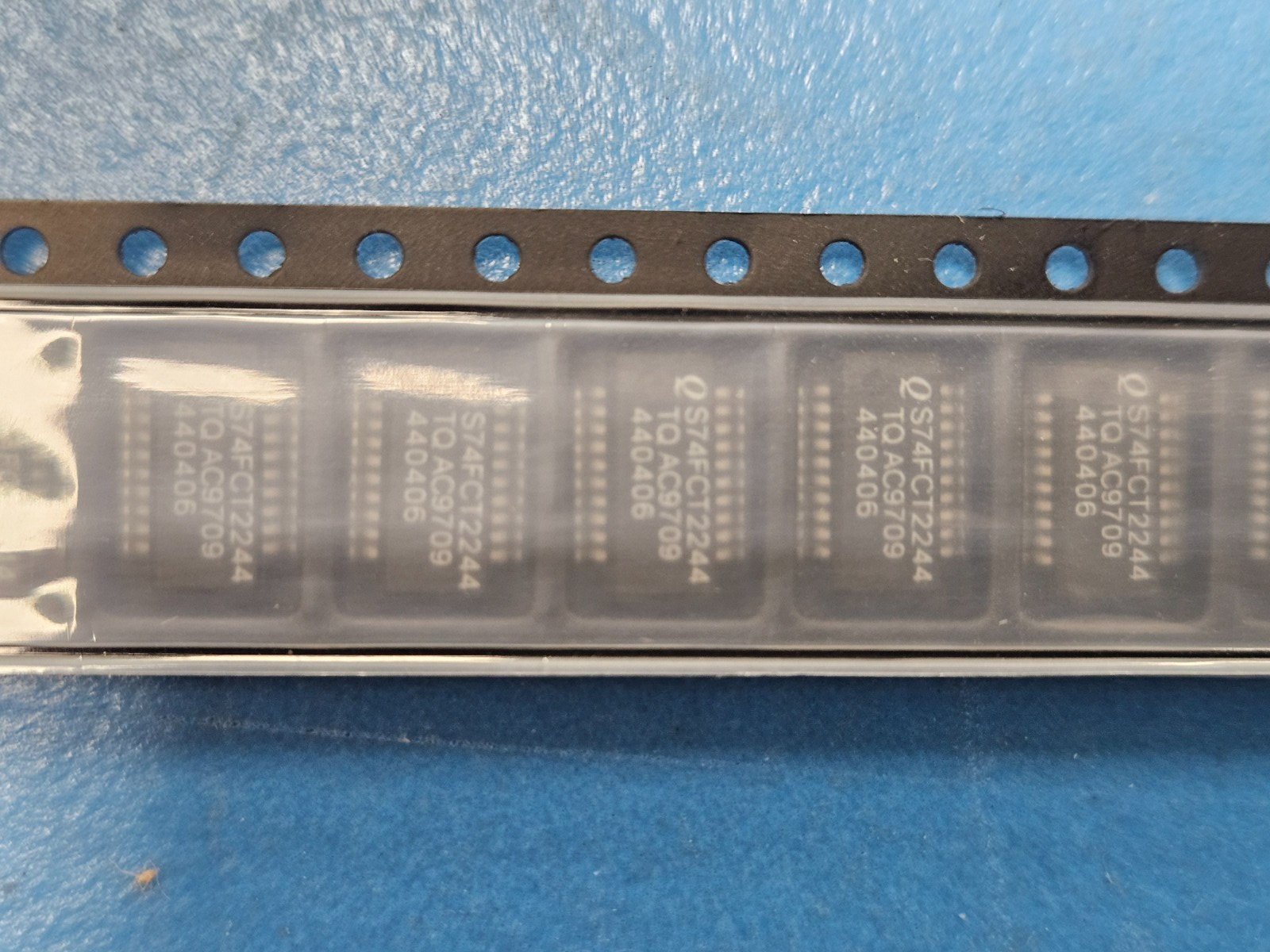

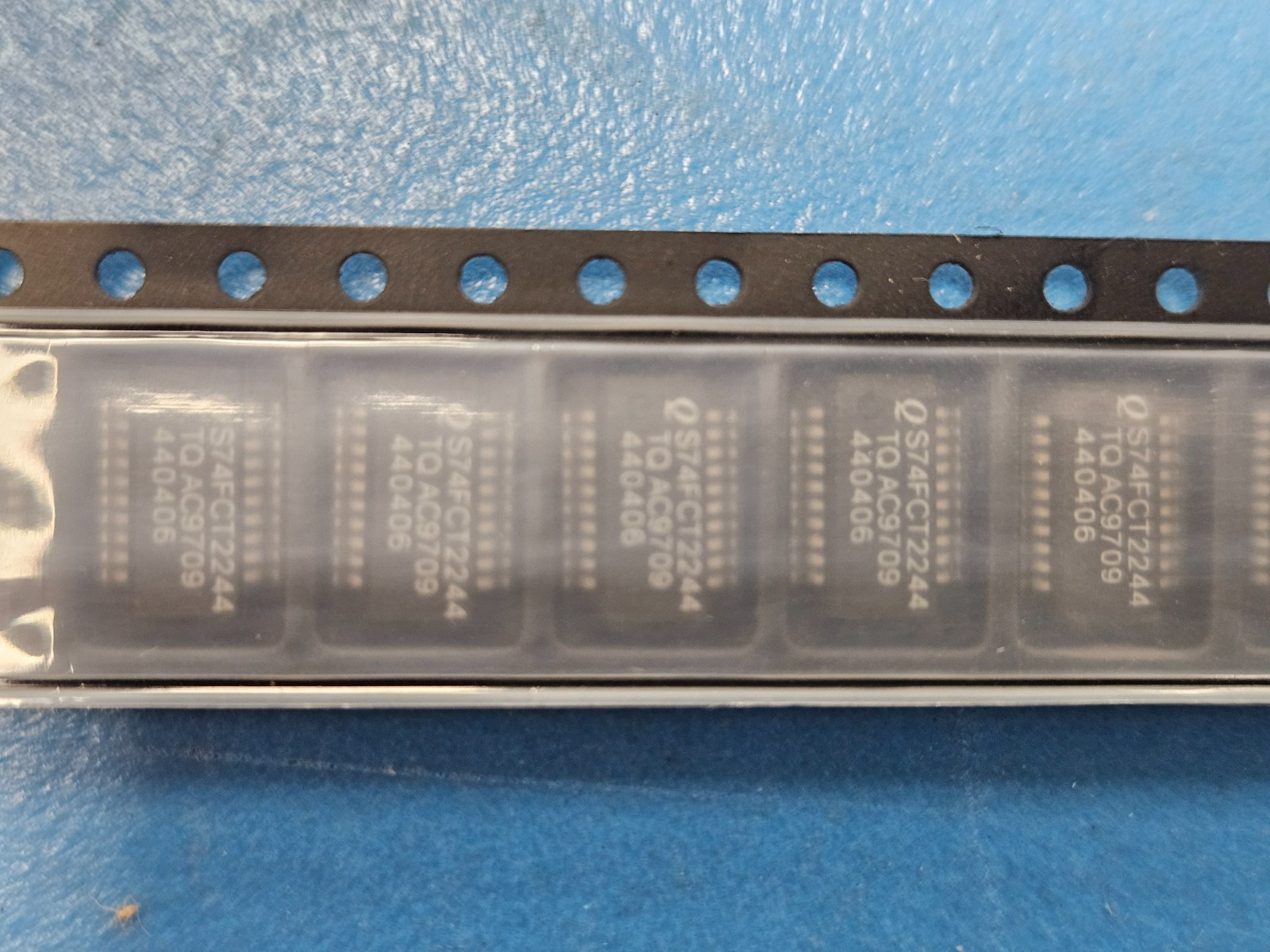

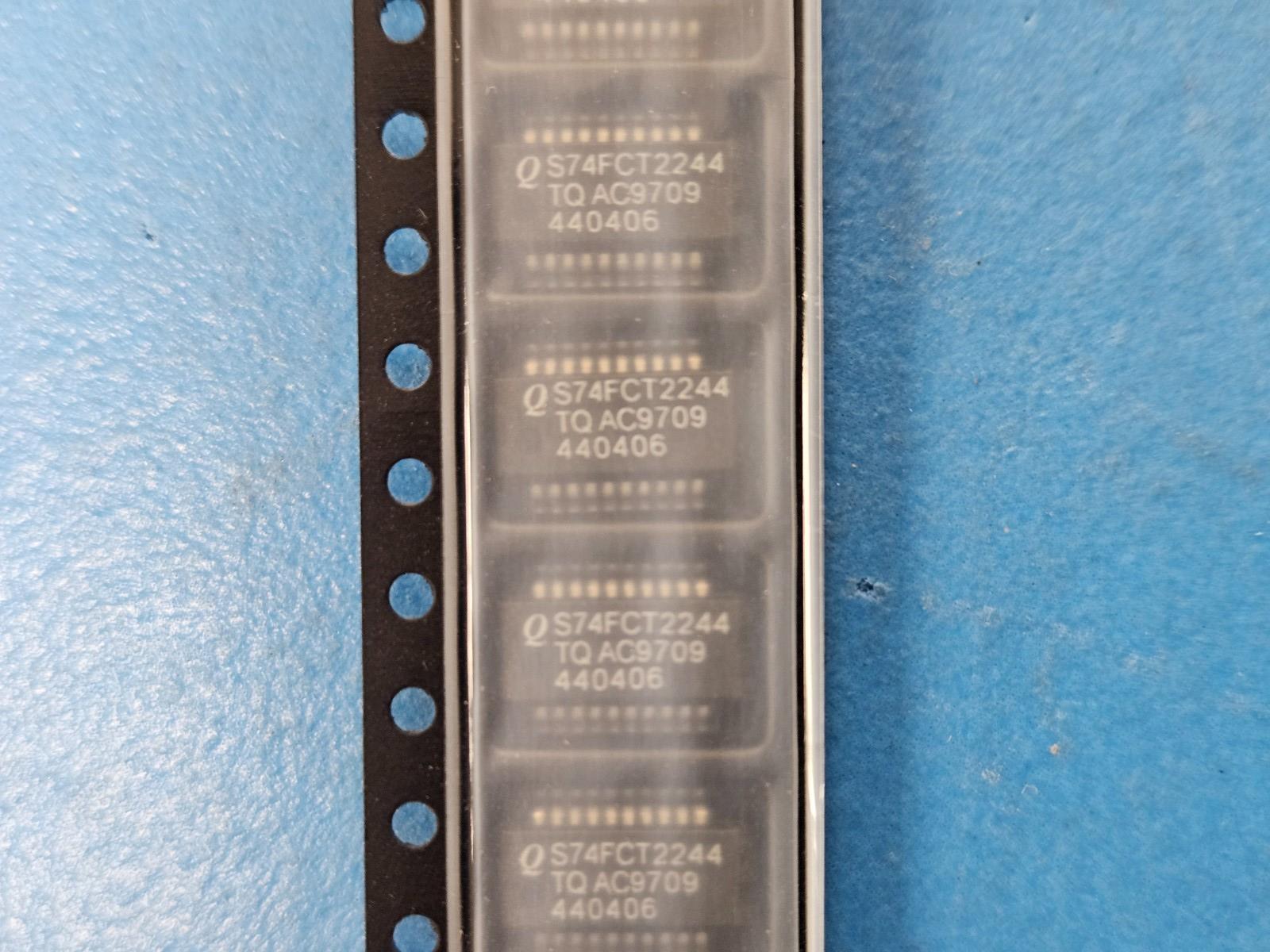

This listing is for (5PCS) of QS74FCT2244TQX by Quality Semiconductor
Mfr Package Description QSOP-20
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE LOW
Family FCT
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.012 Amp
Moisture Sensitivity Level 1
Number of Bits 4
Number of Functions 2
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE WITH SERIES RESISTOR
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
Prop. Delay@Nom-Sup 6.5 ns
Propagation Delay (tpd) 6.5 ns
Qualification Status Not Qualified
Seated Height-Max 1.7272 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
