(5PCS) QK040K7TP QK040K7 1000V, 40A, ALTERNISTOR TRIAC, TO-218AC
Tax included.

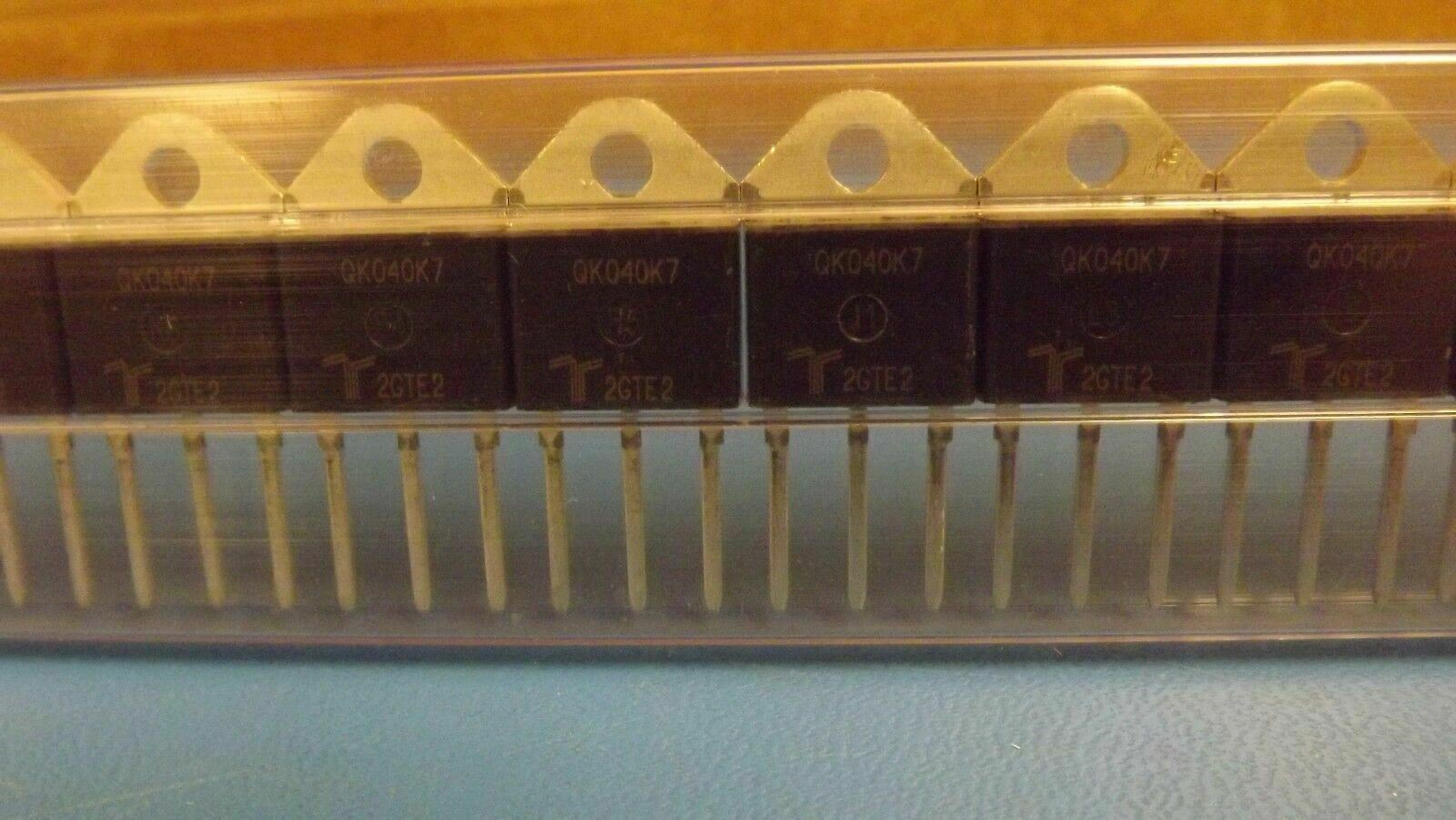

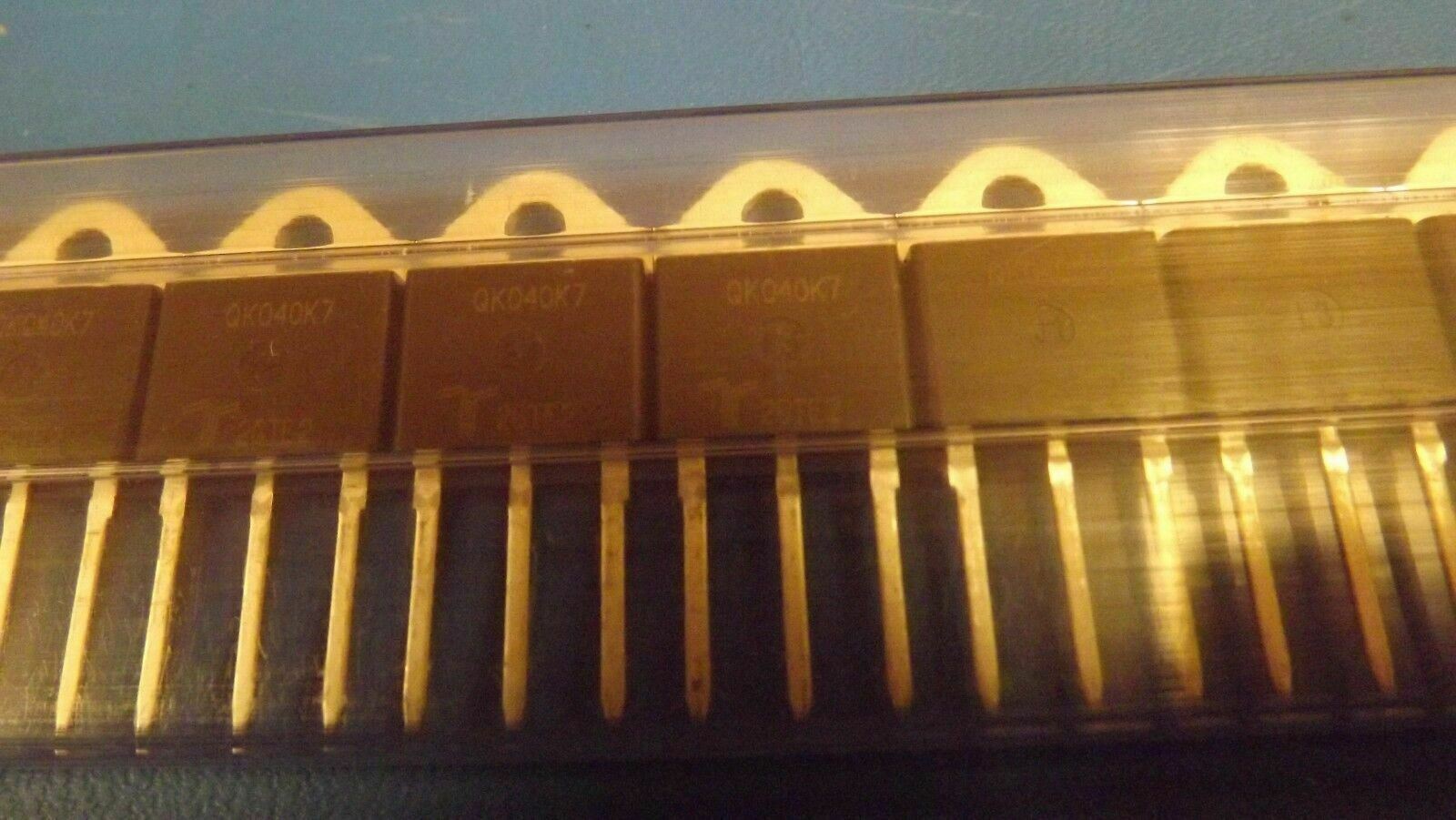

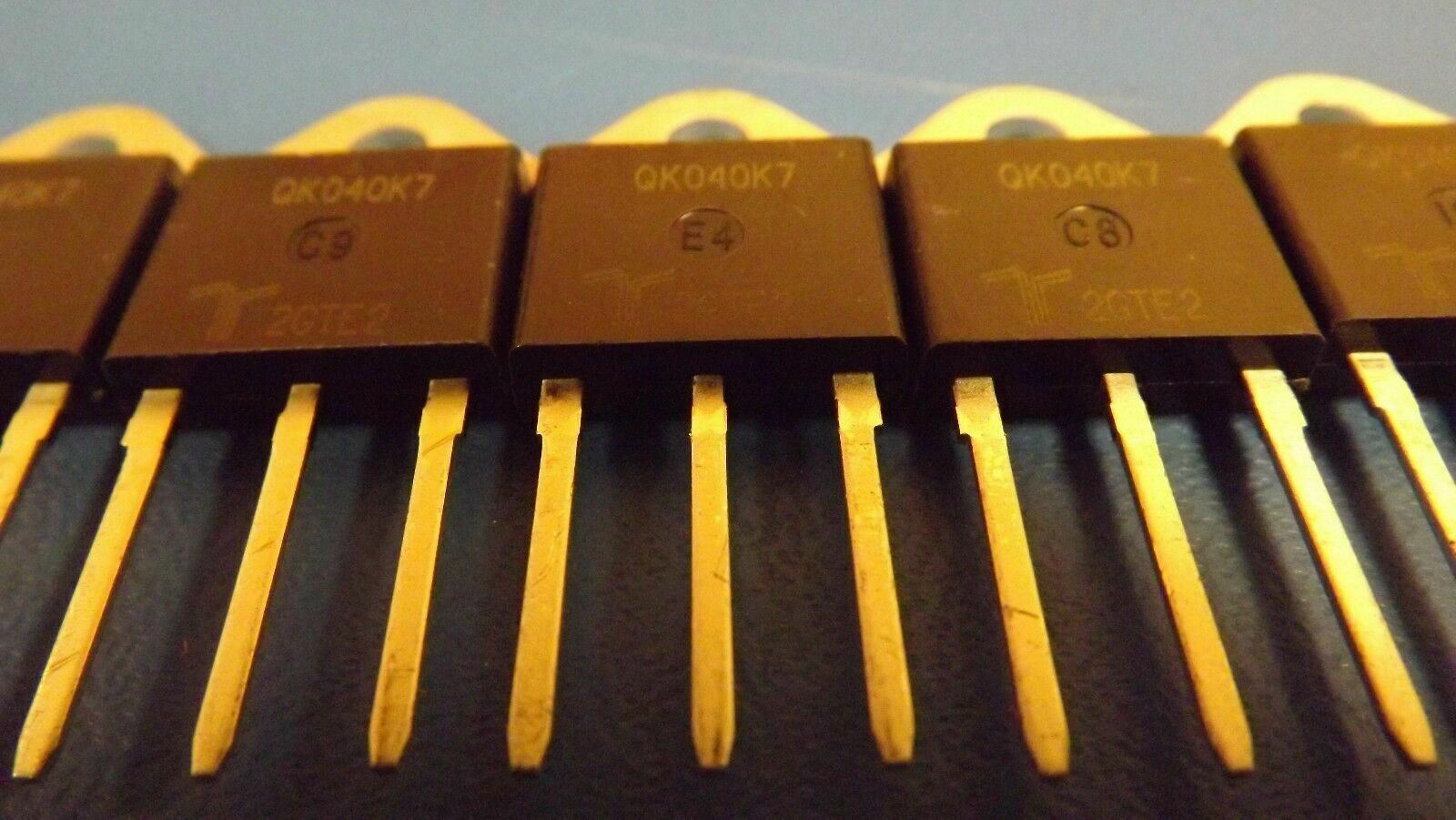

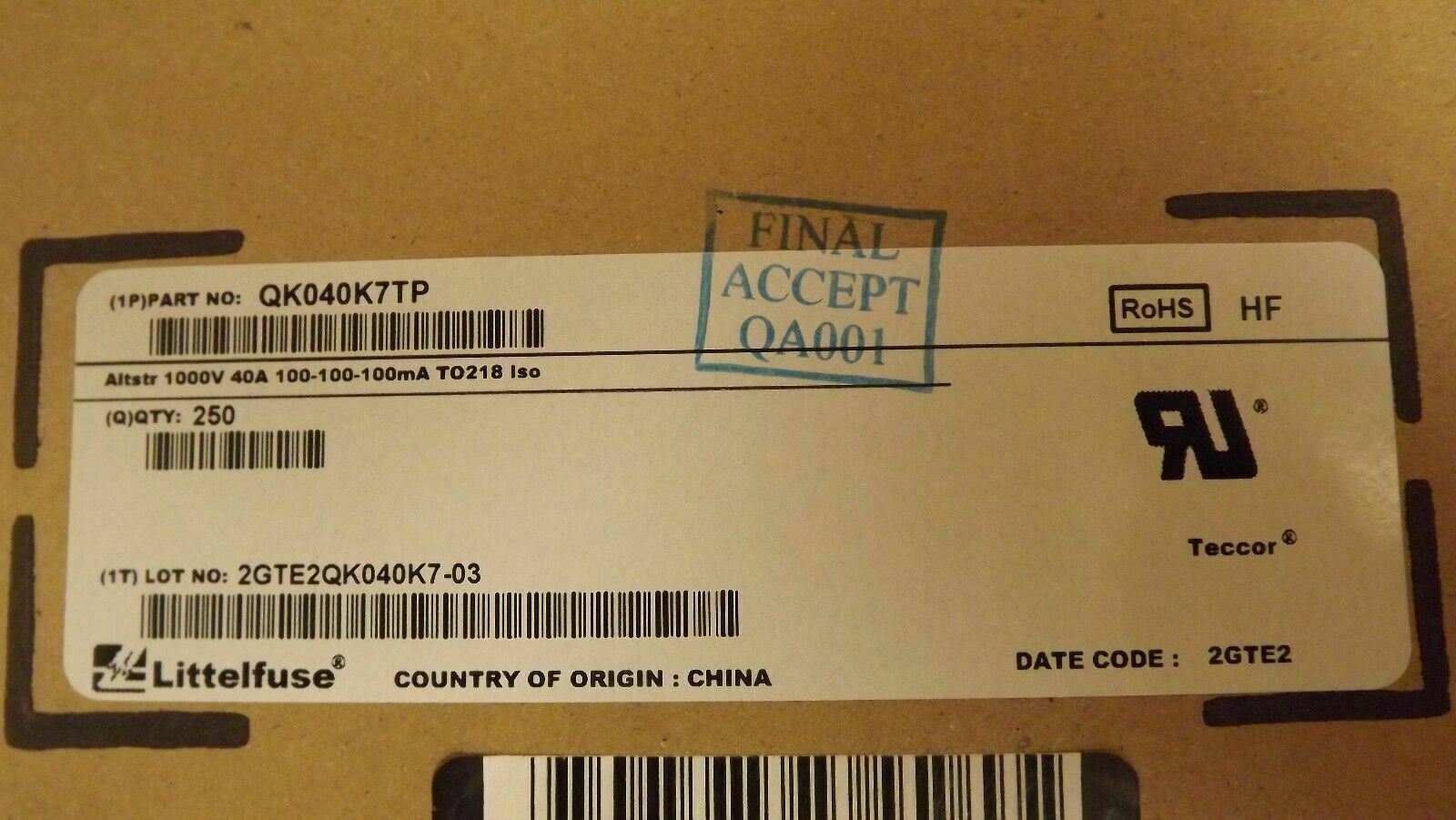

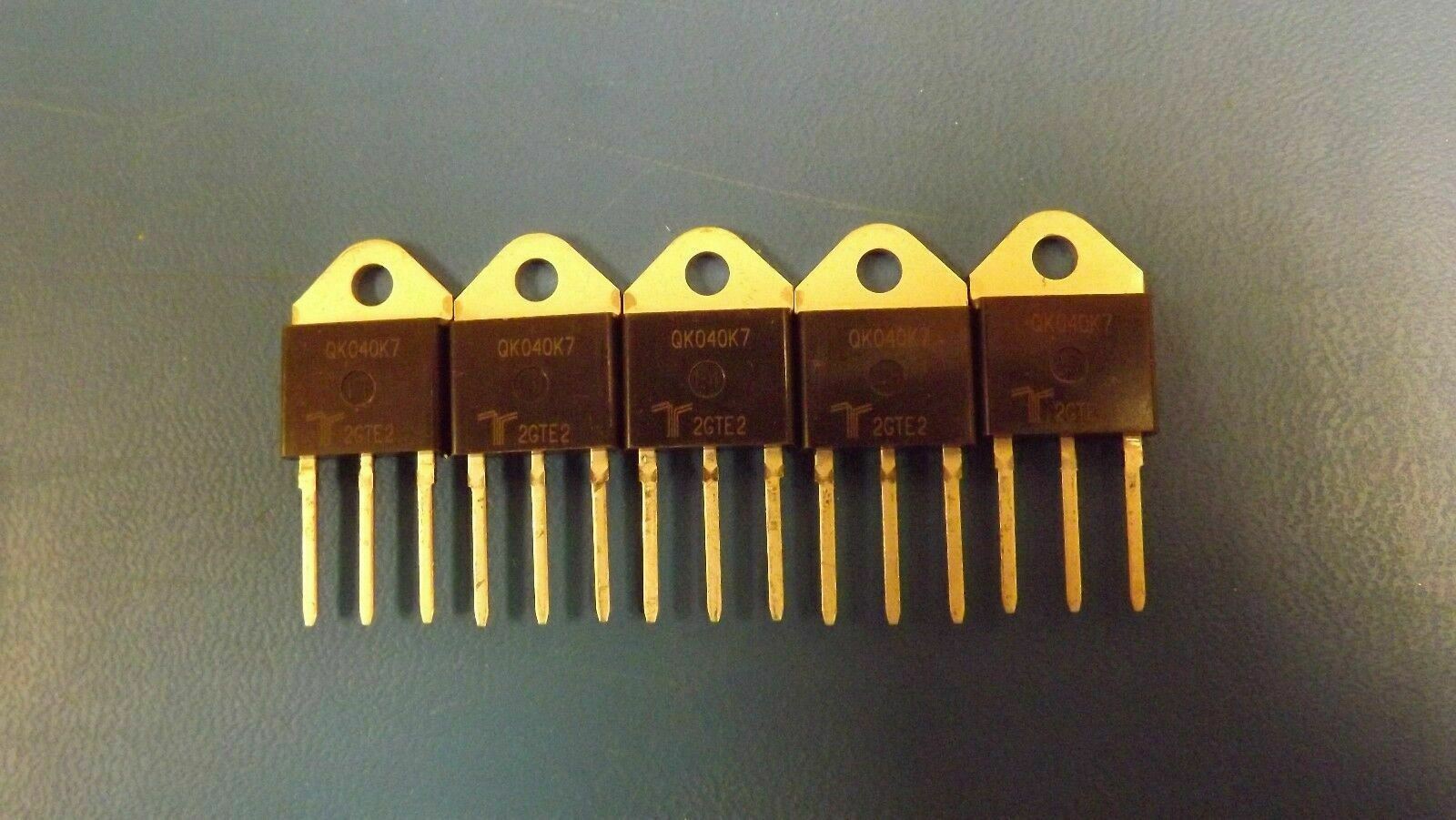

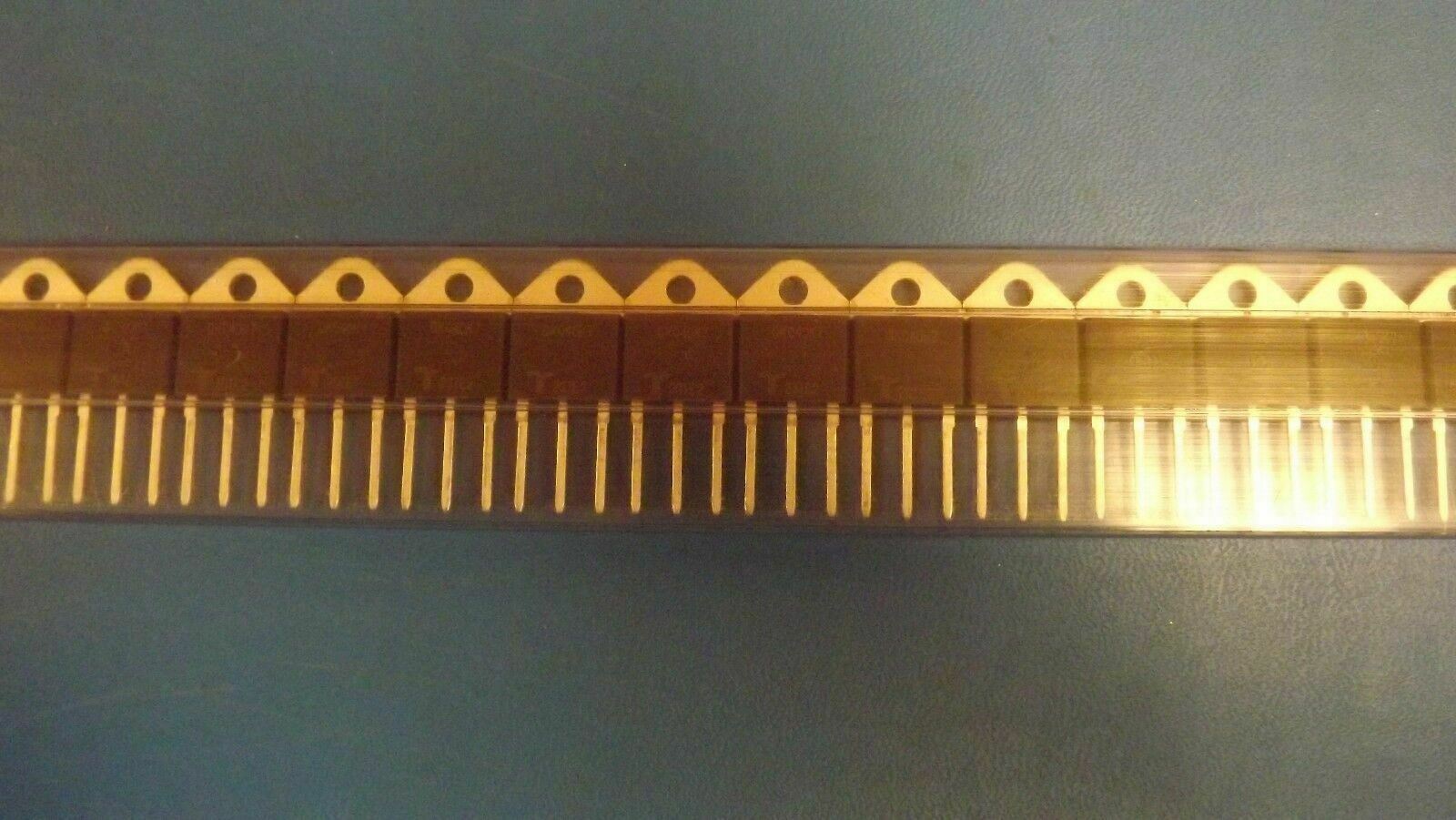

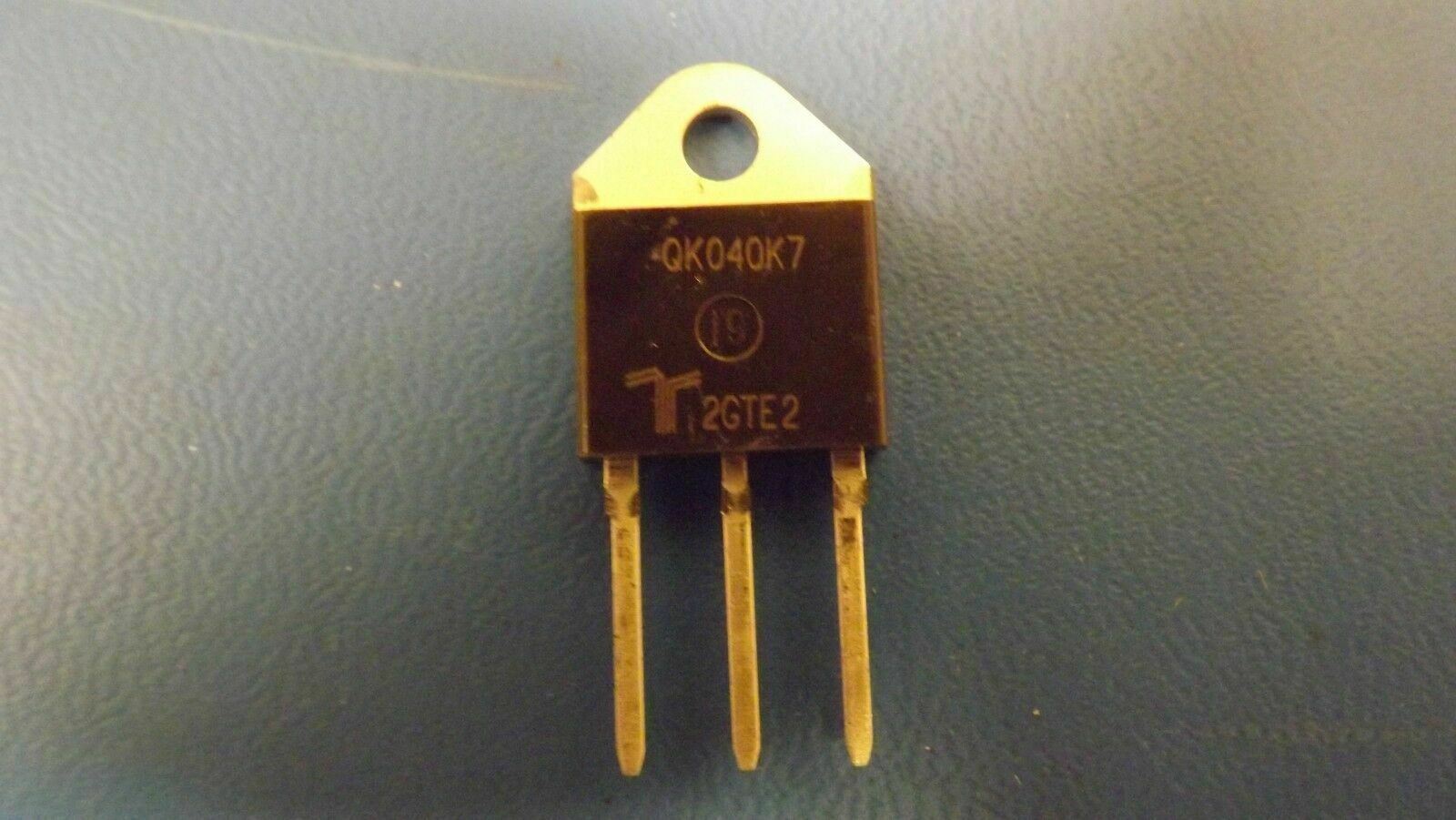

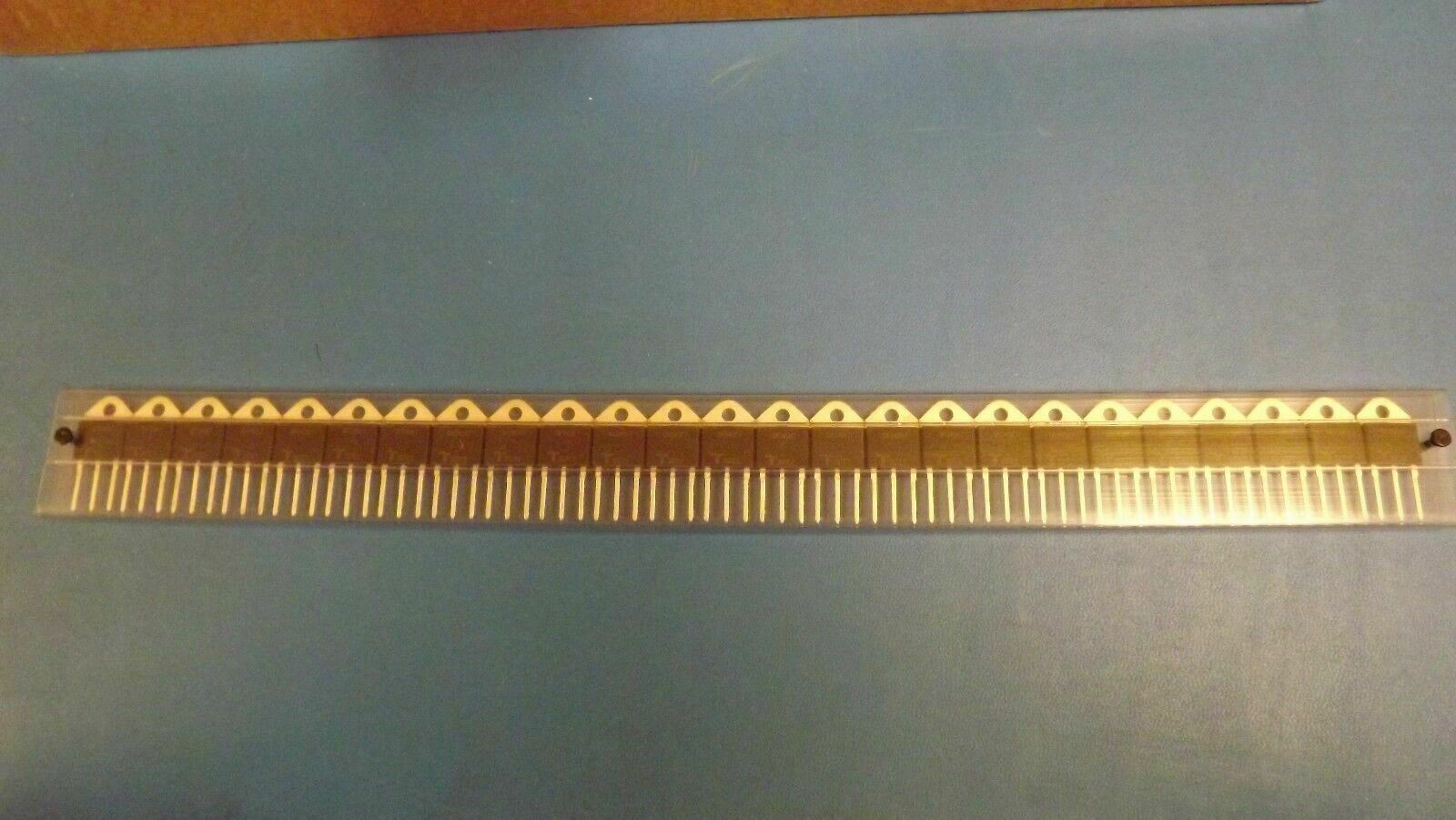

THIS LISTING IS FOR (5PCS) OF QK040K7TP BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-3 |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | ALTERNISTOR TRIAC |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Critical Rate of Rise of Commutation Voltage-Min | 50 V/us |
| Critical Rate of Rise of Off-state Voltage-Min | 500 V/us |
| DC Gate Trigger Current-Max | 100 mA |
| DC Gate Trigger Voltage-Max | 2 V |
| Holding Current-Max | 100 mA |
| JEDEC-95 Code | TO-218AC |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e3 |
| Leakage Current-Max | 5 mA |
| Moisture Sensitivity Level | 2 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Voltage | 1000 V |
| RMS On-state Current-Max | 40 A |
| Sub Category | TRIACs |
| Surface Mount | NO |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Additional Feature | UL RECOGNIZED |
