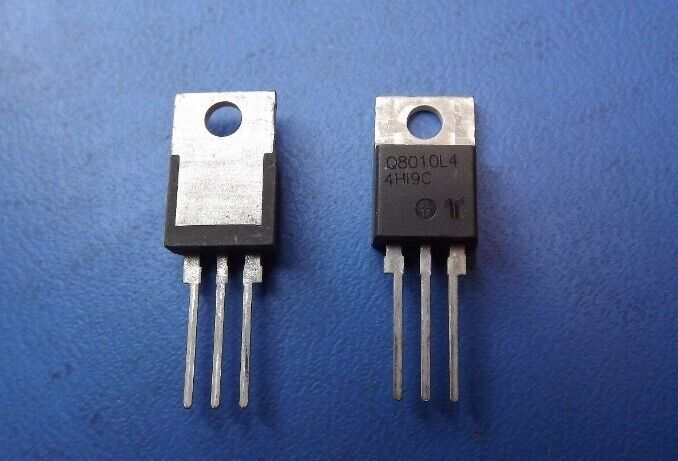

(5PCS) Q8010L4 LITTELFUSE/TECCOR TRIAC 800V 10A 25-25-25 MA TO220
Tax included.

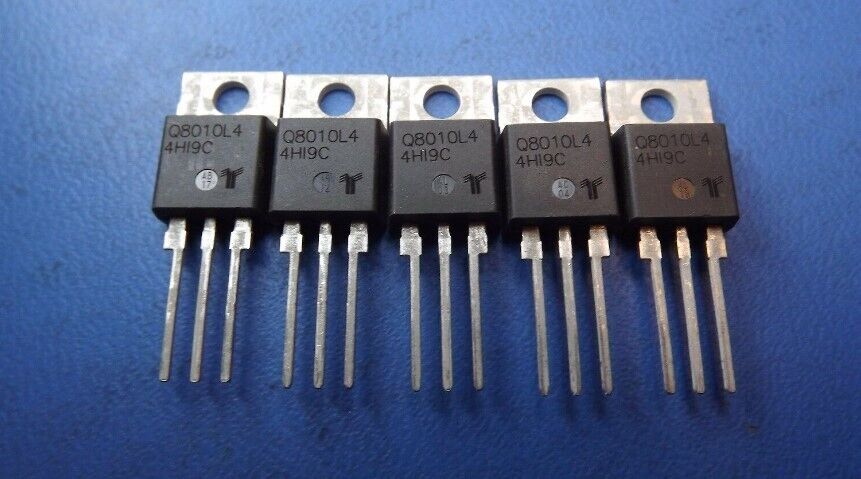

THIS LISTING IS FOR (5PCS) OF Q8010L4 BY LITTELFUSE
Mfr Package Description ISOLATED TO-220, 3 PIN
Status Transferred
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
Case Connection ISOLATED
Configuration SINGLE
DC Gate Trigger Current-Max 25.0 mA
DC Gate Trigger Voltage-Max 2.5 V
Holding Current-Max 35.0 mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Leakage Current-Max 0.01 mA
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 110.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 800.0 V
RMS On-state Current-Max 10.0 A
Sub Category TRIACs
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Additional Feature HIGH RELIABILITY
