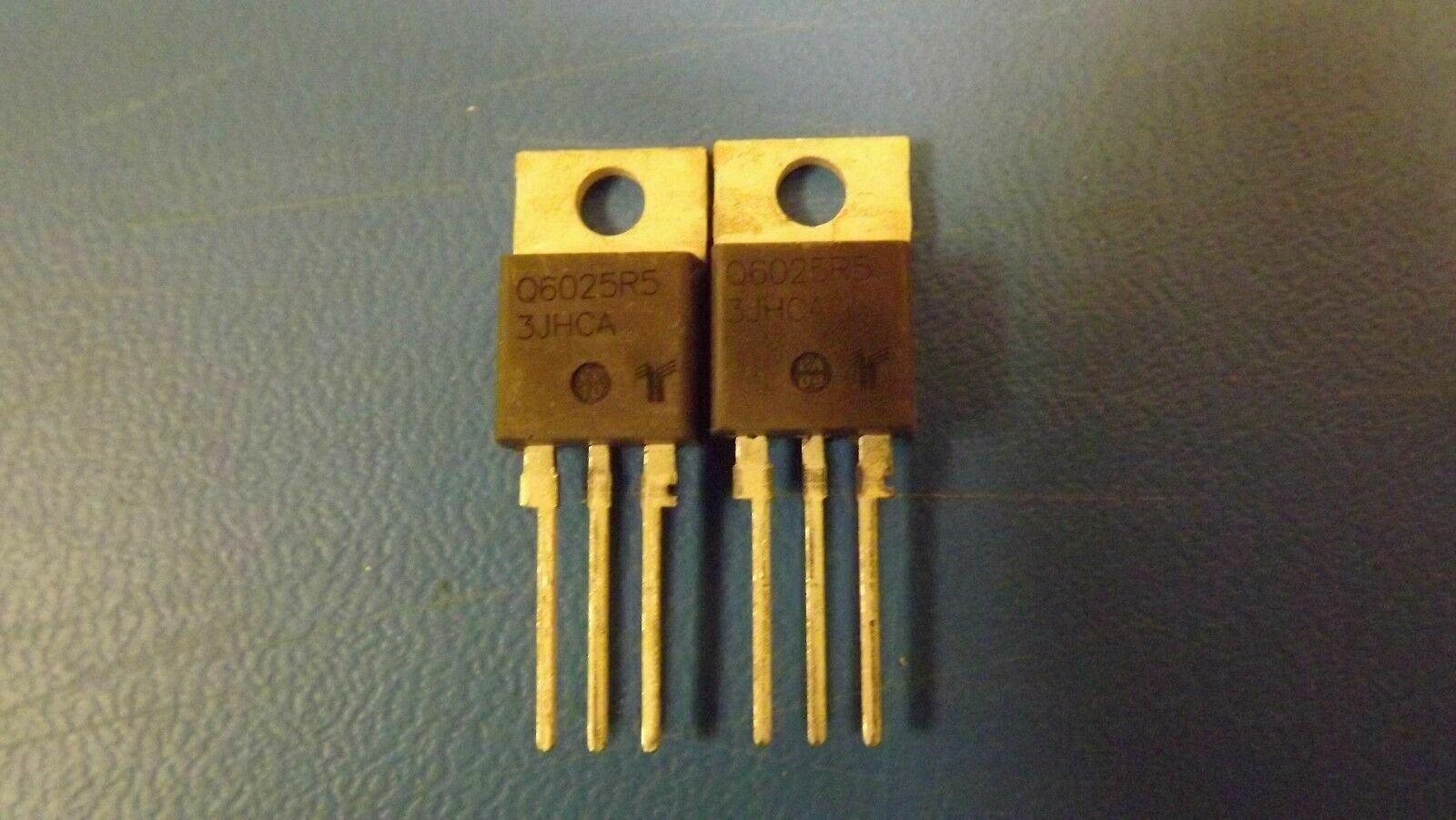

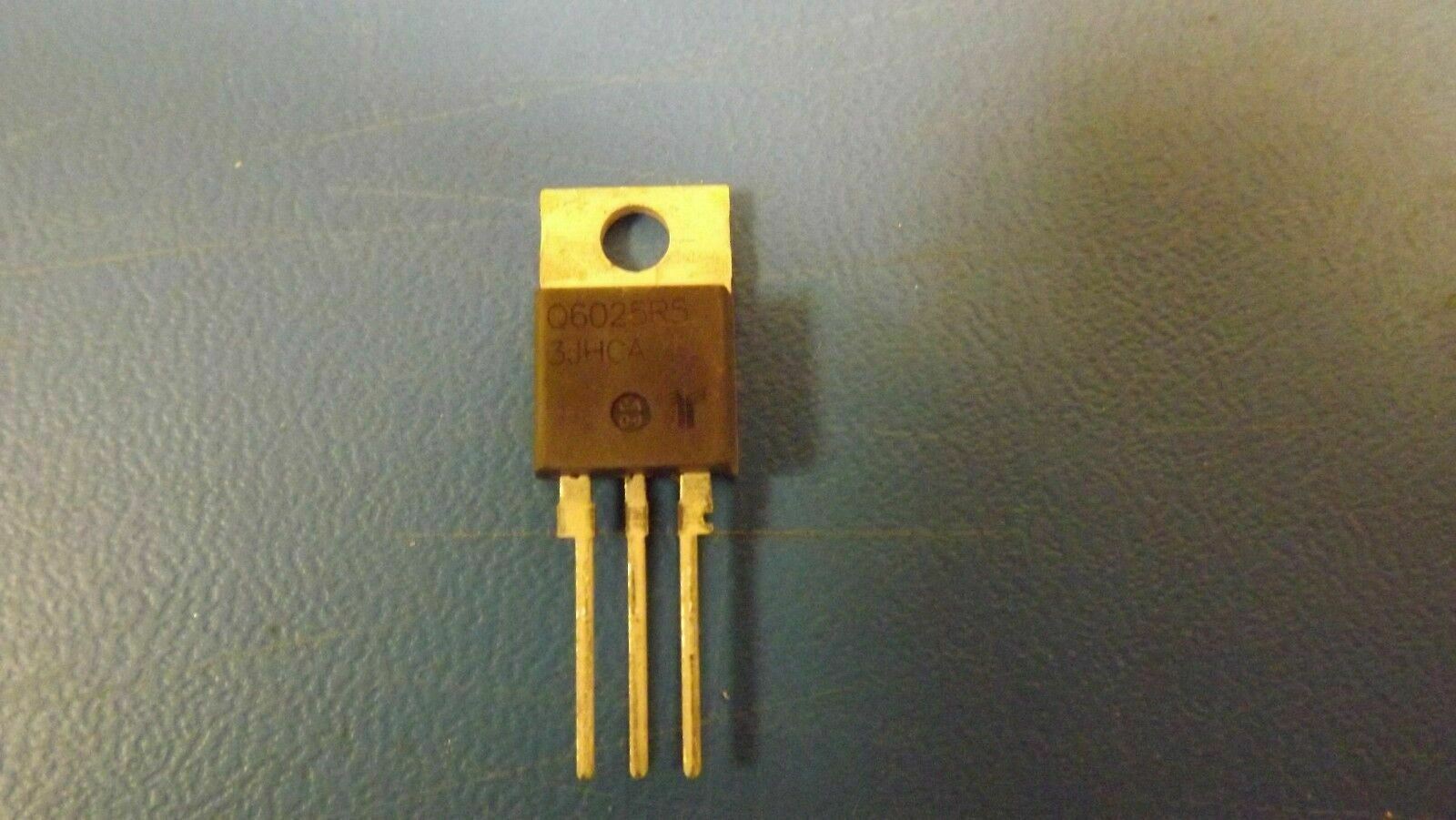

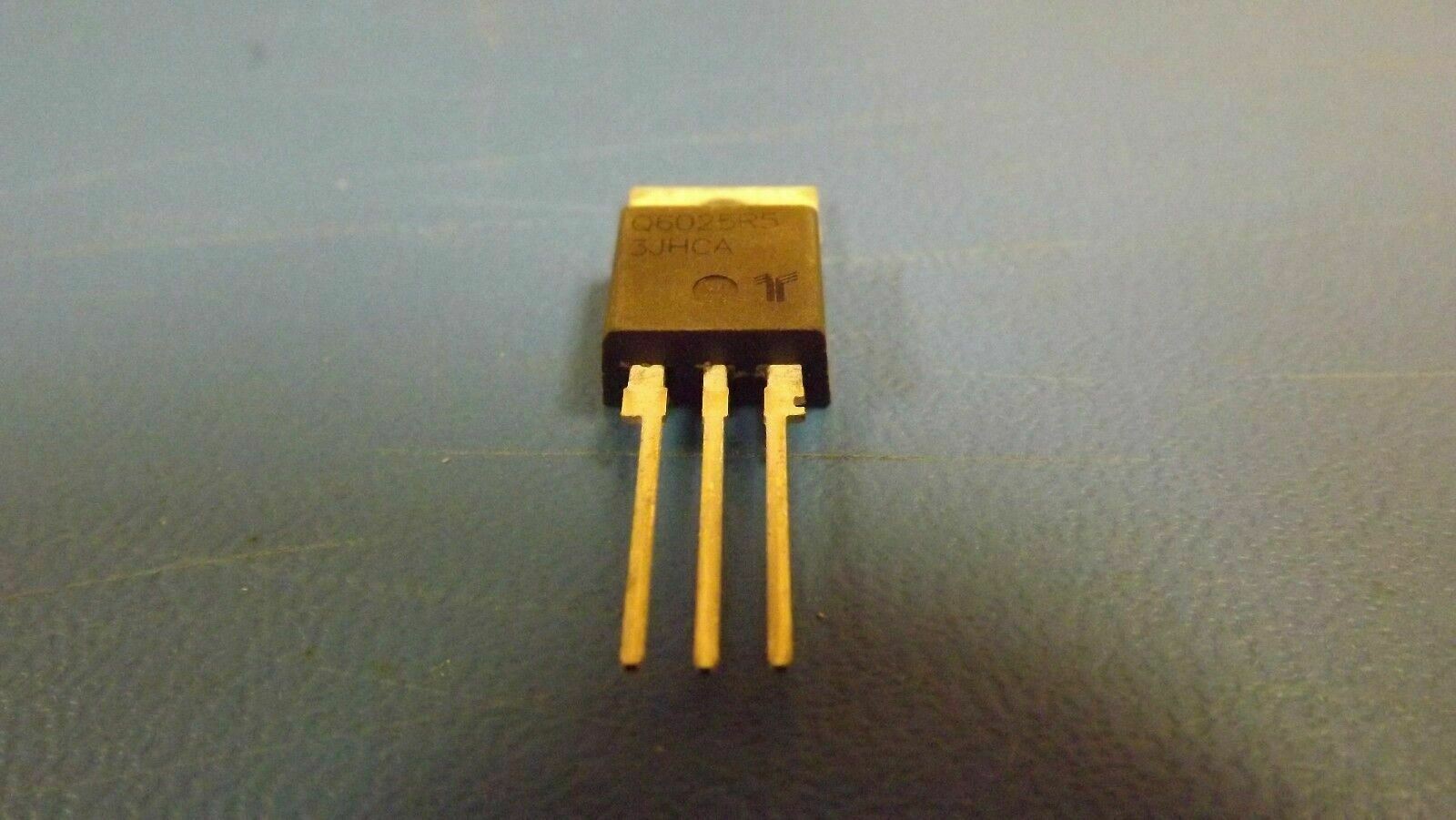

(5PCS) Q6025R5 LITTELFUSE/TECCOR TRIAC 600V 25A TO220
Tax included.

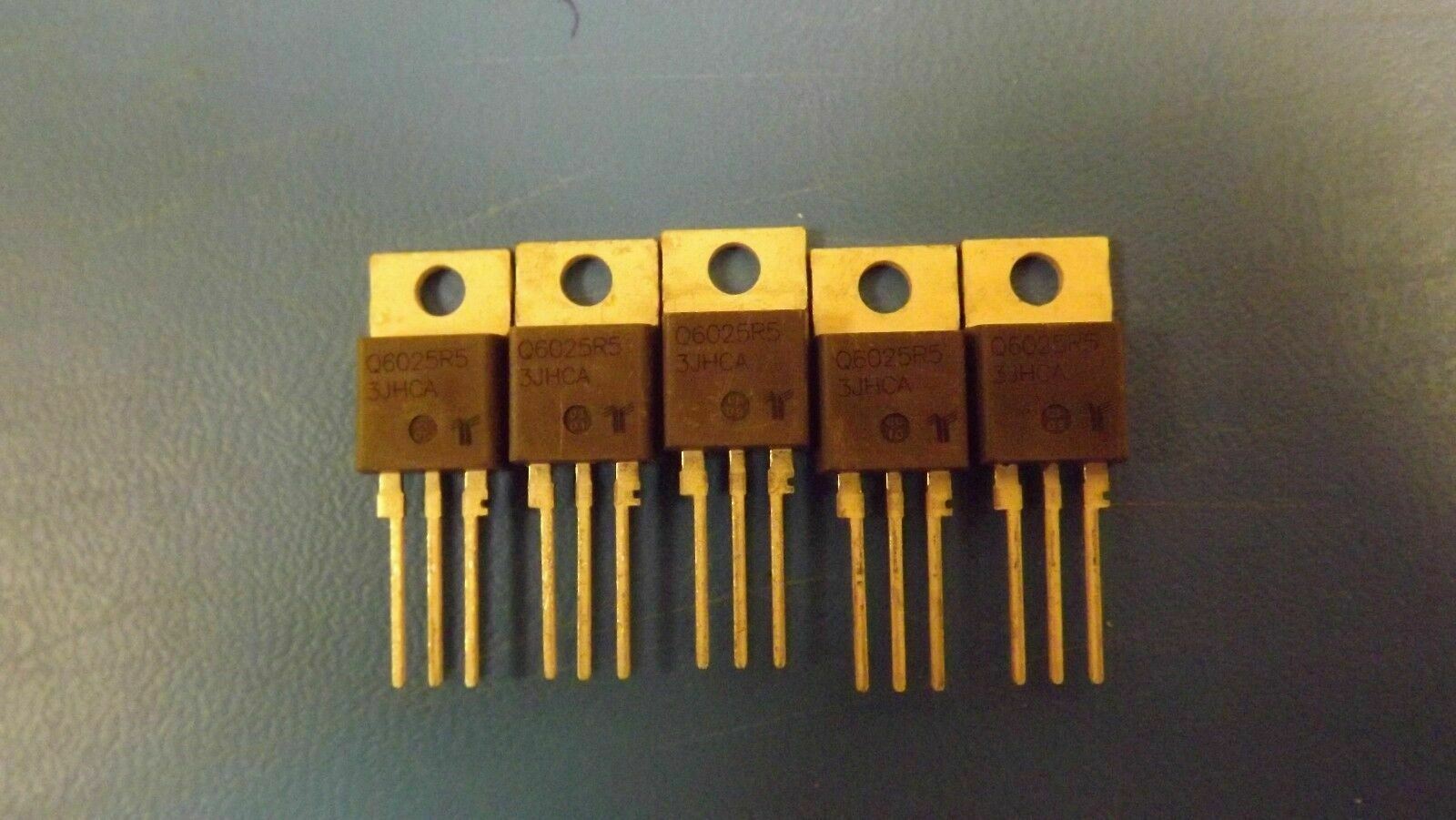

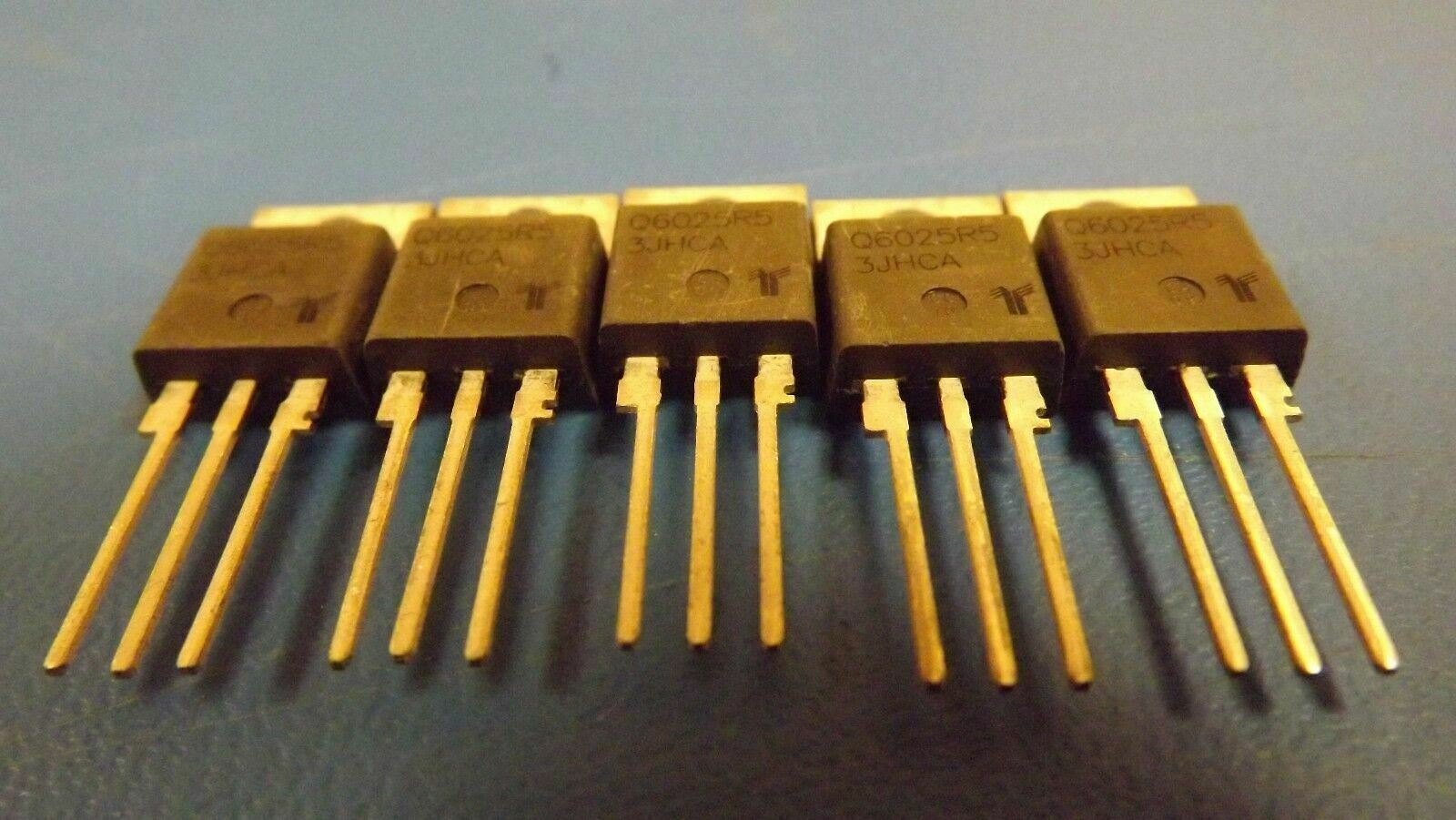

THIS LISTING IS FOR (5PCS) OF Q6025R5 BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | TO-220, 3 PIN |
| Status | Transferred |
| Trigger Device Type | TRIAC |
| Case Connection | MAIN TERMINAL 2 |
| Configuration | SINGLE |
| Critical Rate of Rise of Commutation Voltage-Min | 4 V/us |
| Critical Rate of Rise of Off-state Voltage-Min | 350 V/us |
| DC Gate Trigger Current-Max | 50 mA |
| DC Gate Trigger Voltage-Max | 2.5 V |
| Holding Current-Max | 100 mA |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| Leakage Current-Max | 1000 mA |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Leakage Current-Max | 100 µA |
| Repetitive Peak Off-state Voltage | 600 V |
| RMS On-state Current-Max | 25 A |
| Sub Category | TRIACs |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Additional Feature | HIGH RELIABILITY |
