(5PCS) Q6025NH6RP Triacs 600V 25A 80-80-80mA

  • $15.00
    Unit price per
Tax included.

Only 6 left!

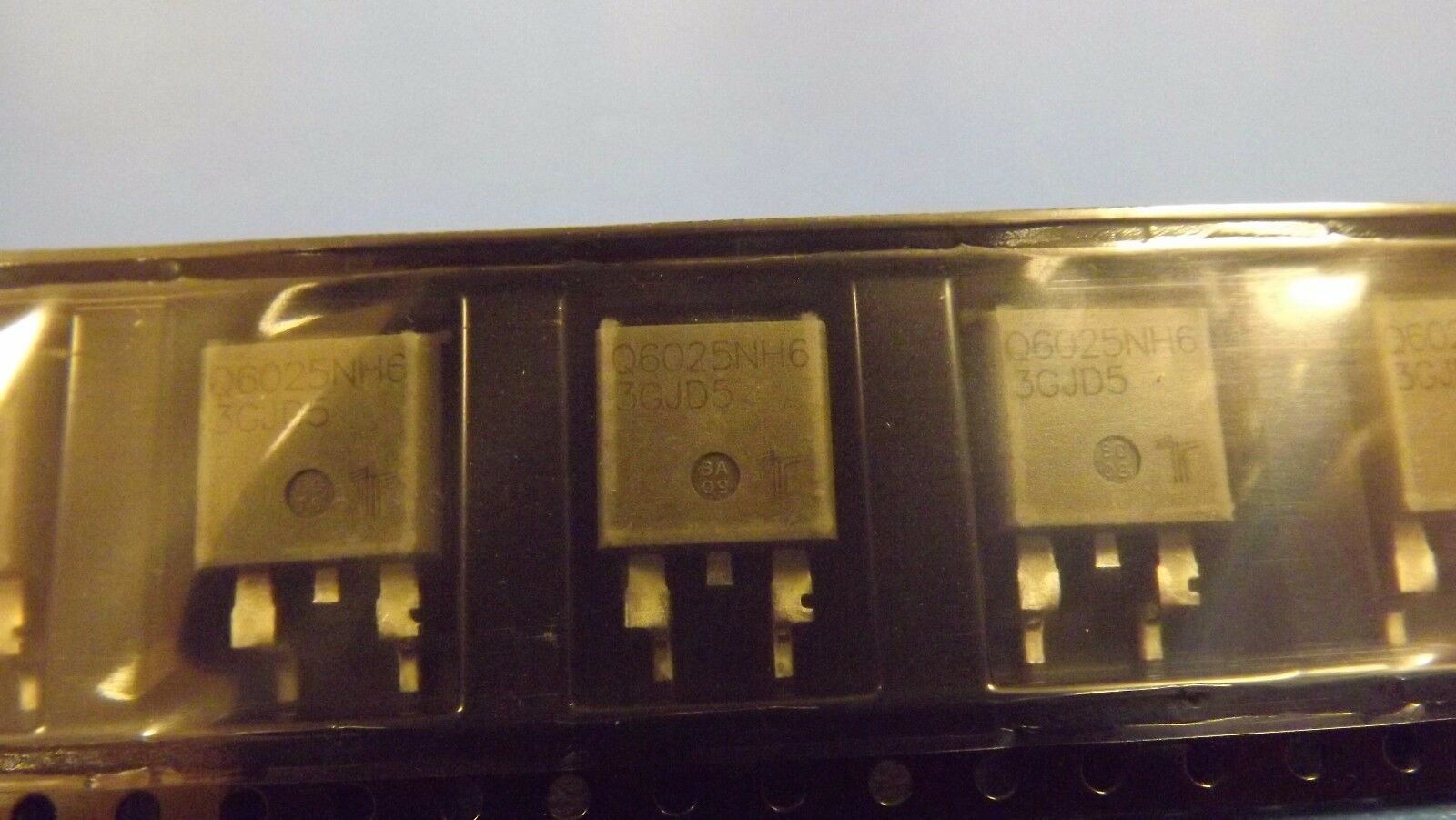

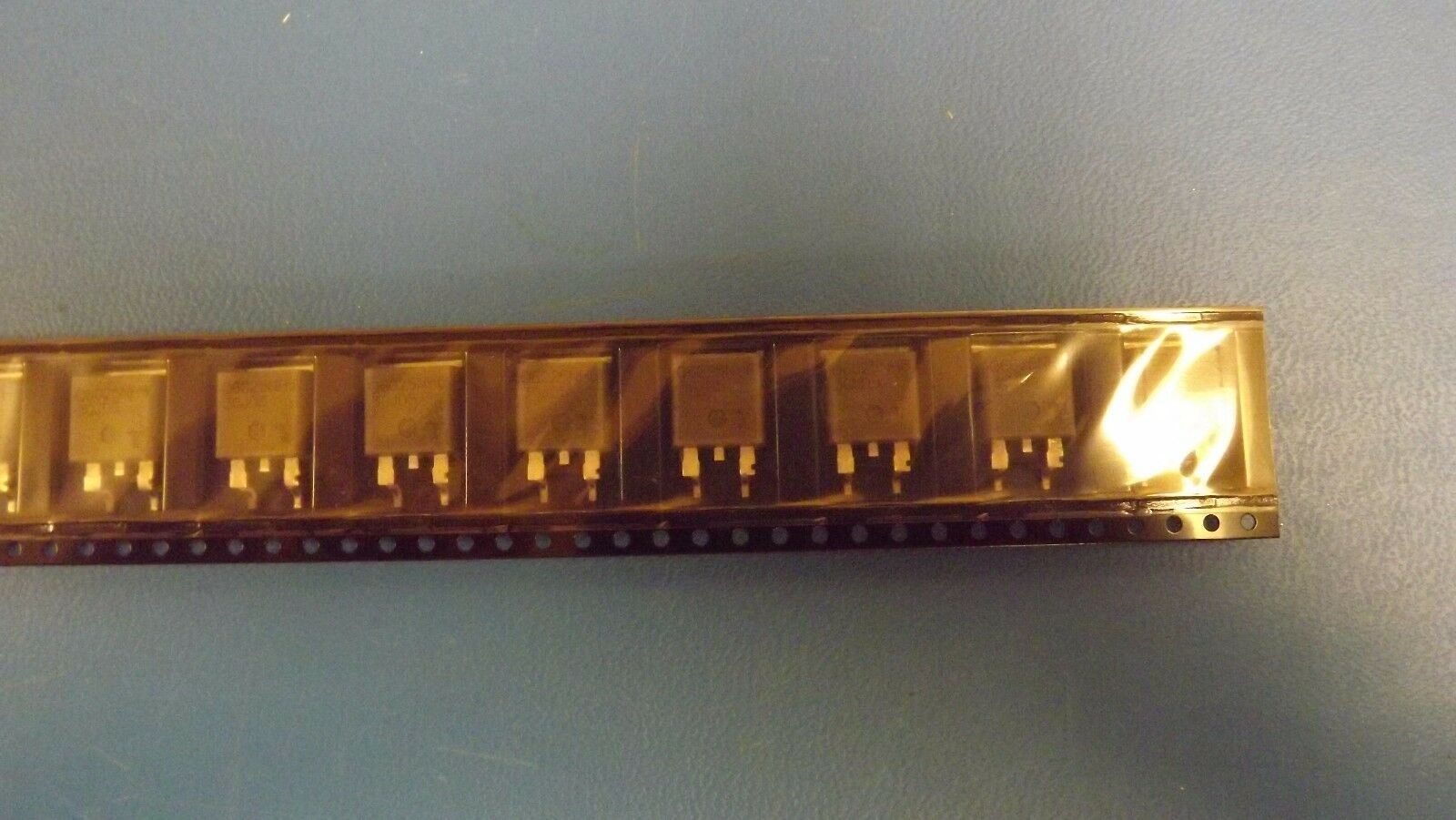

THIS LISTING IS FOR (5PCS) OF Q6025NH6RP BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description ROHS COMPLIANT, TO-263, D2PAK-3
EU RoHS Compliant Yes
Status Active
Trigger Device Type ALTERNISTOR TRIAC
Case Connection MAIN TERMINAL 2
Configuration SINGLE
Critical Rate of Rise of Commutation Voltage-Min 30 V/us
Critical Rate of Rise of Off-state Voltage-Min 600 V/us
DC Gate Trigger Current-Max 80 mA
DC Gate Trigger Voltage-Max 1.3 V
Holding Current-Max 100 mA
JEDEC-95 Code TO-263AB
JESD-30 Code R-PSSO-G2
JESD-609 Code e3
Number of Elements 1
Number of Terminals 2
Operating Temperature-Min -40 Cel
Operating Temperature-Max 125 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 600 V
RMS On-state Current-Max 25 A
Sub Category TRIACs
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature HIGH RELIABILITY
