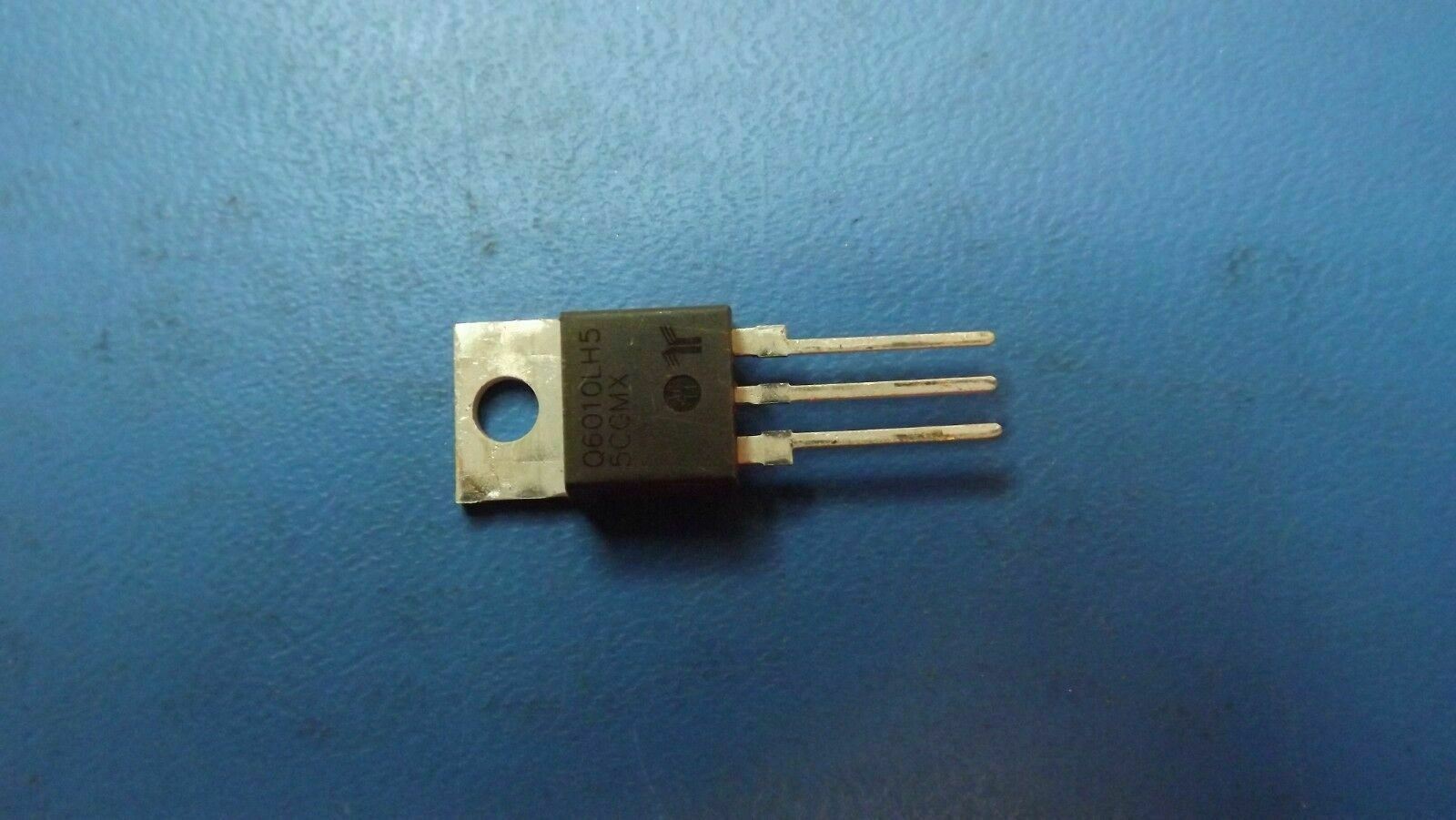

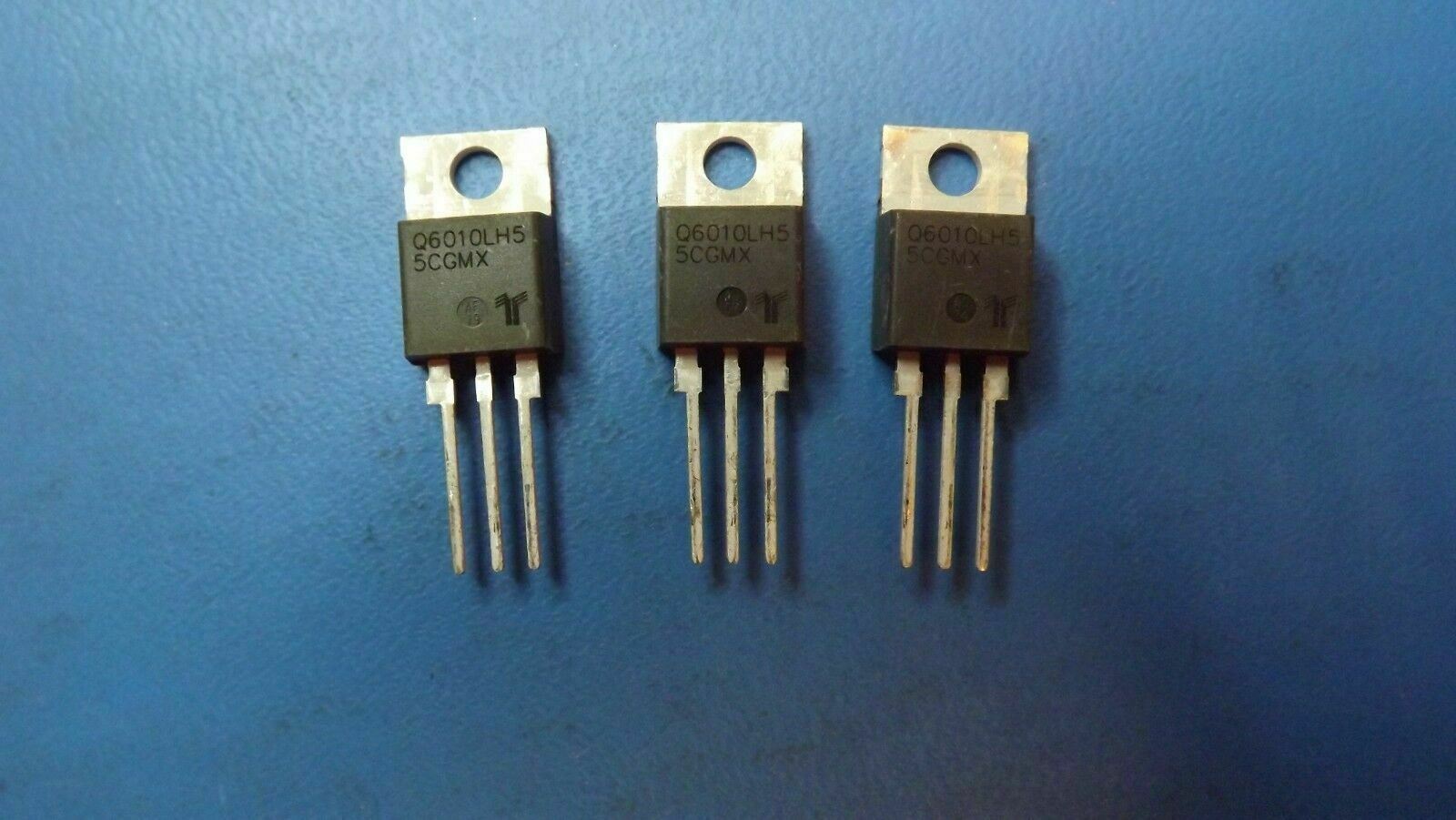

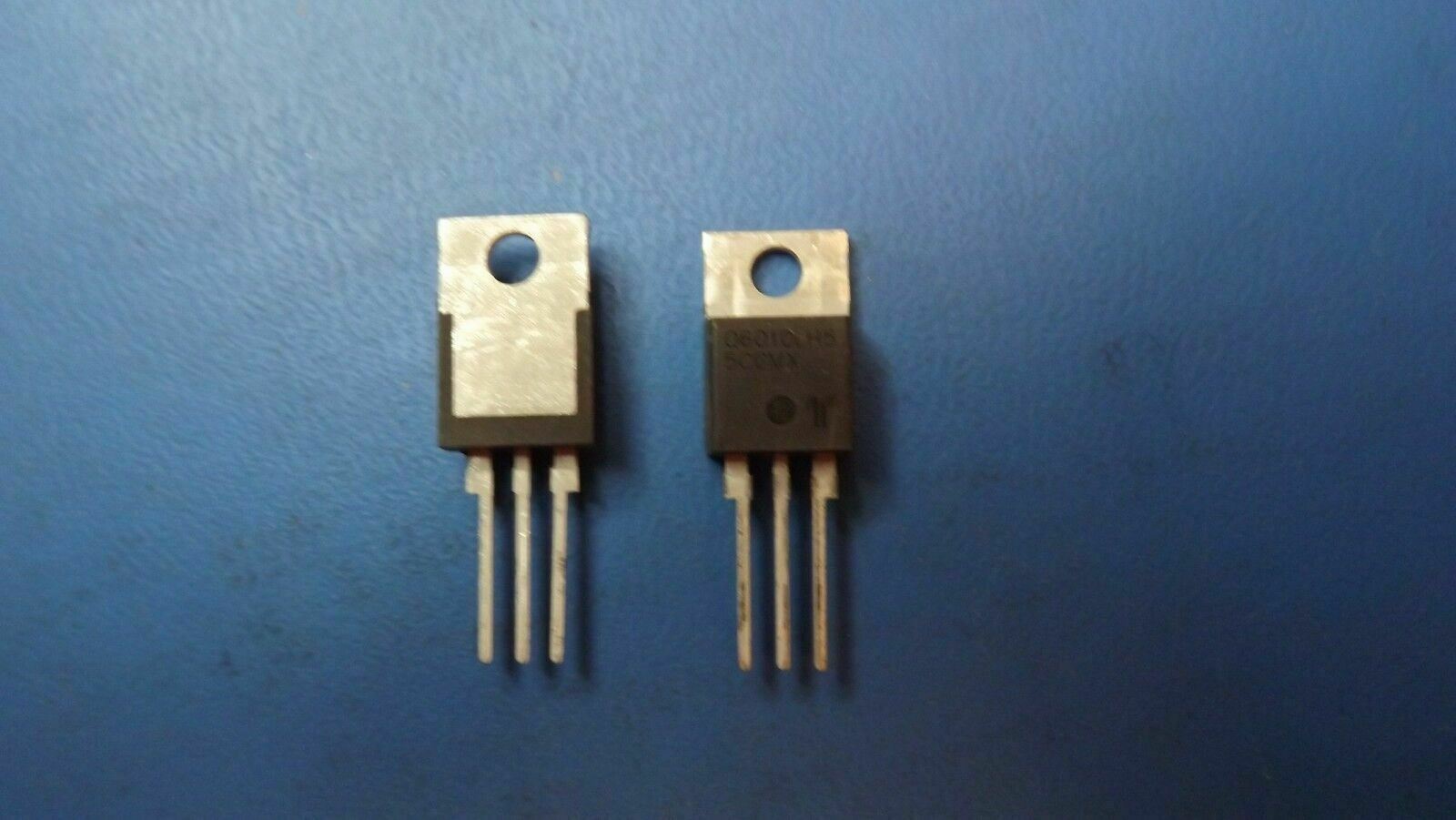

(5PCS) Q6010LH5 Q6010LH5TP LITTELFUSE/TECCOR TRIAC ALTERNISTOR 600V 10A TO220
Tax included.

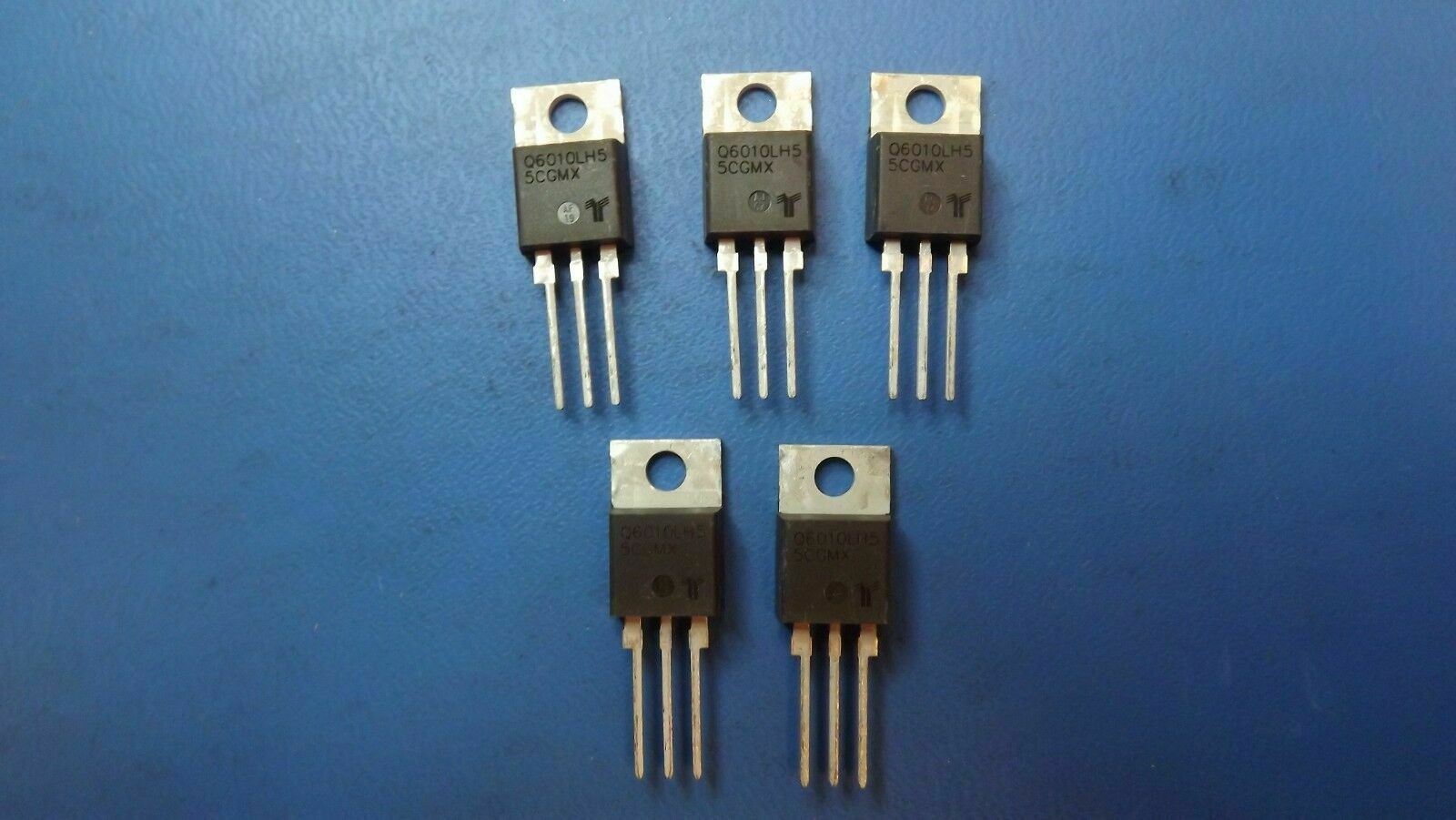

THIS LISTING IS FOR (5PCS) OF Q6010LH5 BY LITTELFUSE/TECCOR
SPECIFICATIONS
| Mfr Package Description | ISOLATED TO-220, 3 PIN |
| Status | Transferred |
| Trigger Device Type | ALTERNISTOR TRIAC |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Critical Rate of Rise of Commutation Voltage-Min | 30.0 V/us |
| Critical Rate of Rise of Off-state Voltage-Min | 850.0 V/us |
| DC Gate Trigger Current-Max | 50.0 mA |
| DC Gate Trigger Voltage-Max | 1.5 V |
| Holding Current-Max | 50.0 mA |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e0 |
| Leakage Current-Max | 0.01 mA |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Voltage | 600.0 V |
| RMS On-state Current-Max | 10.0 A |
| Sub Category | TRIACs |
| Surface Mount | NO |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Additional Feature | HIGH RELIABILITY |
