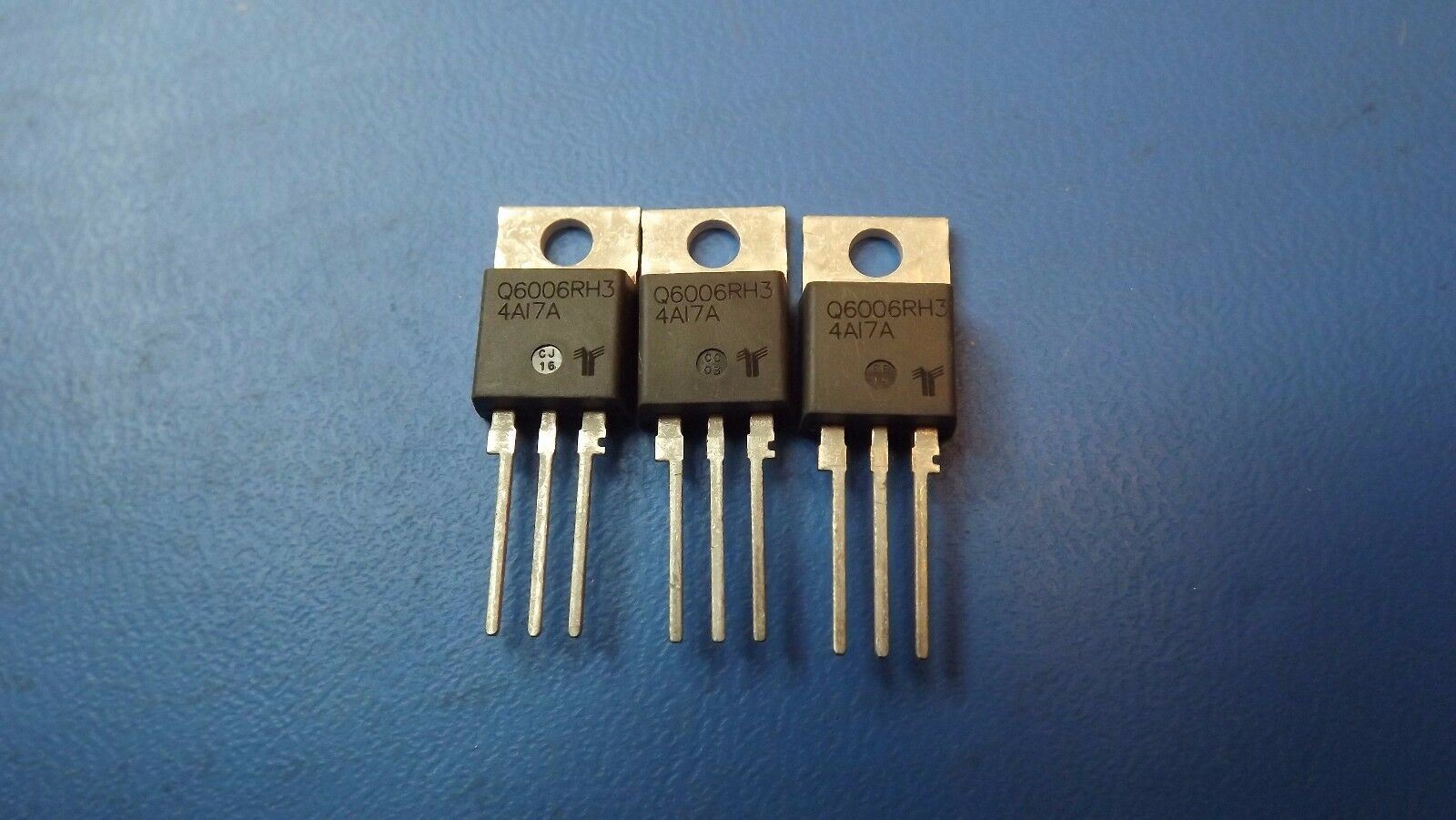

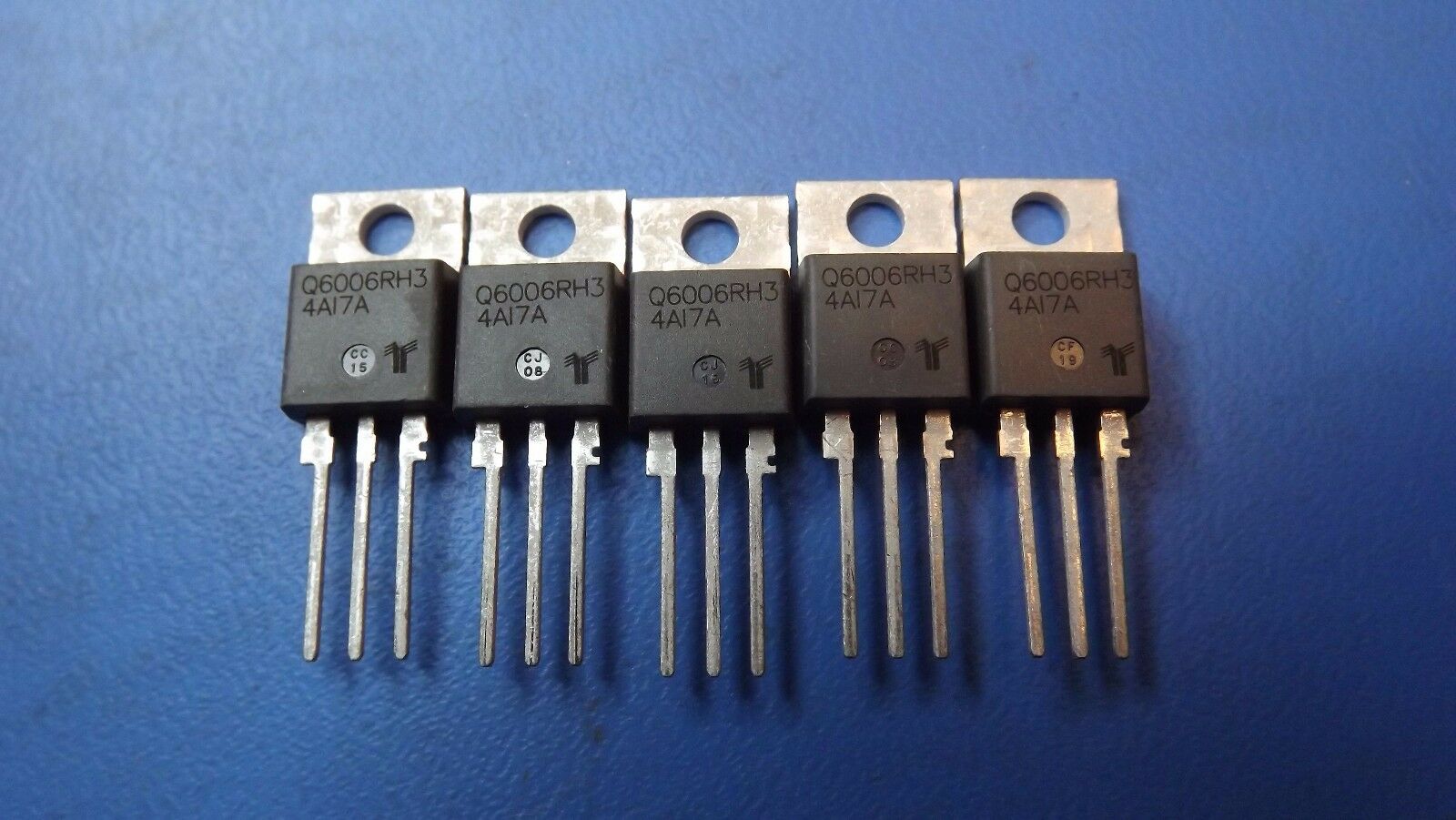

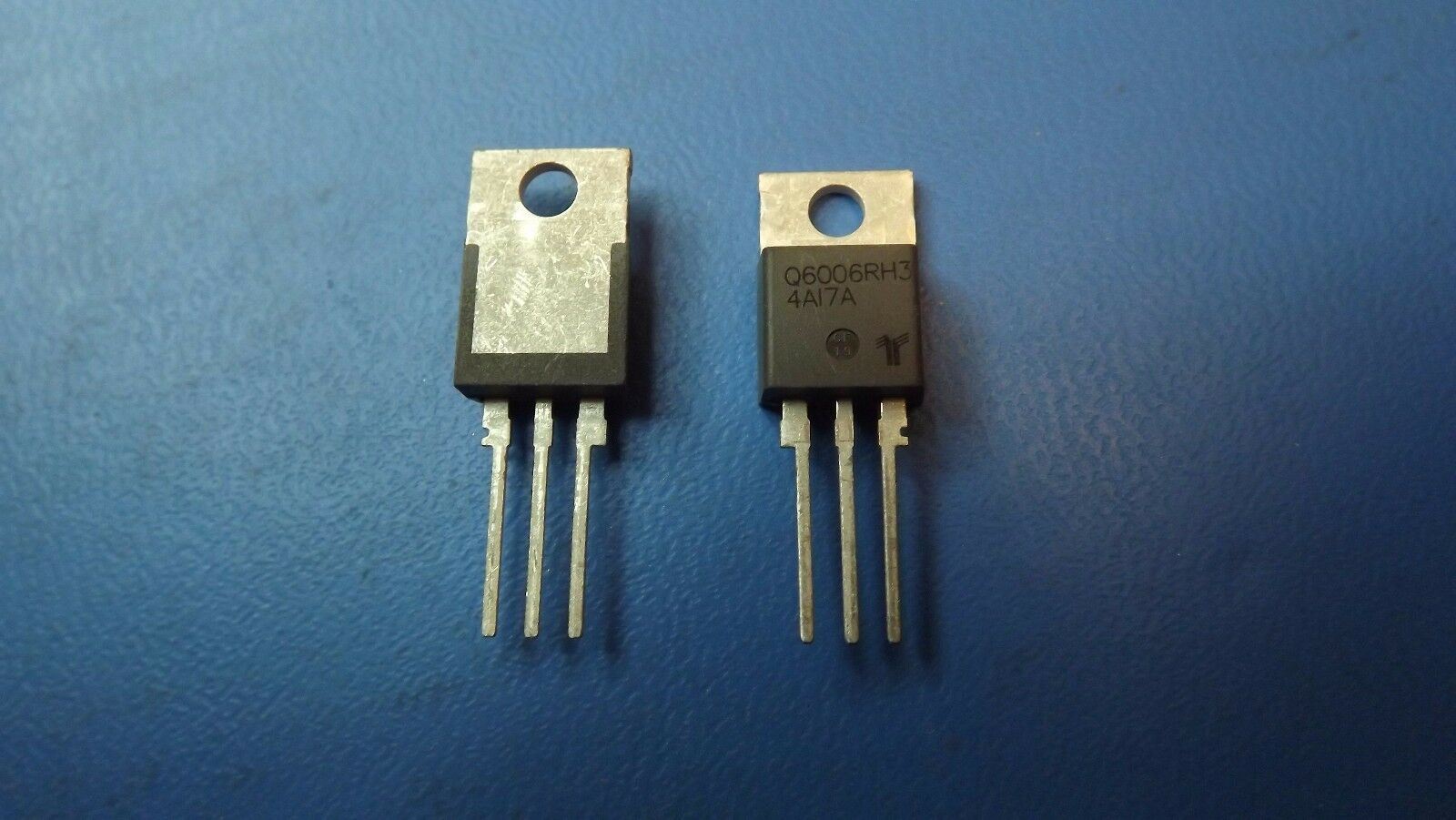

(5PCS) Q6006RH3 LITTELFUSE/TECCOR TRIAC ALTERNISTOR 600V 6A TO220

  • $9.95
    Unit price per
Tax included.

Only 180 left!

THIS LISTING IS FOR (5PCS) OF Q6006RH3 BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description ROHS COMPLIANT, PLASTIC PACKAGE-3
EU RoHS Compliant Yes
Status Discontinued
Trigger Device Type TRIAC
Case Connection MAIN TERMINAL 2
Configuration SINGLE
Critical Rate of Rise of Commutation Voltage-Min 20.0 V/us
Critical Rate of Rise of Off-state Voltage-Min 50.0 V/us
DC Gate Trigger Current-Max 10.0 mA
DC Gate Trigger Voltage-Max 1.3 V
Holding Current-Max 15.0 mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Leakage Current-Max 3.0 mA
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 260
Repetitive Peak Off-state Voltage 600.0 V
RMS On-state Current-Max 6.0 A
Sub Category TRIACs
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
