(5PCS) PS9121-F3-AX CEL OPTOISO 3.75KV OPN COLLECTOR 5SO
Tax included.

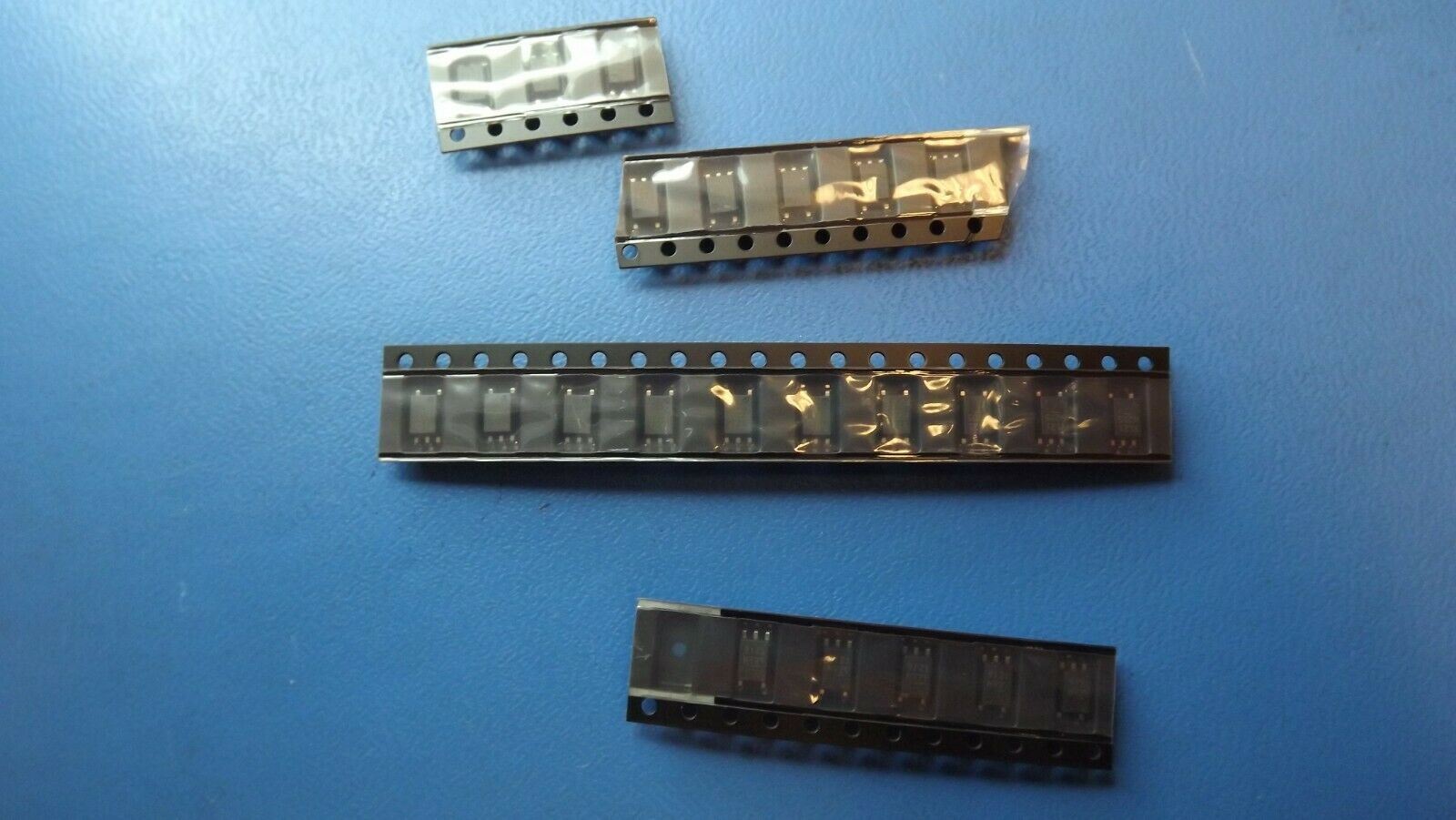

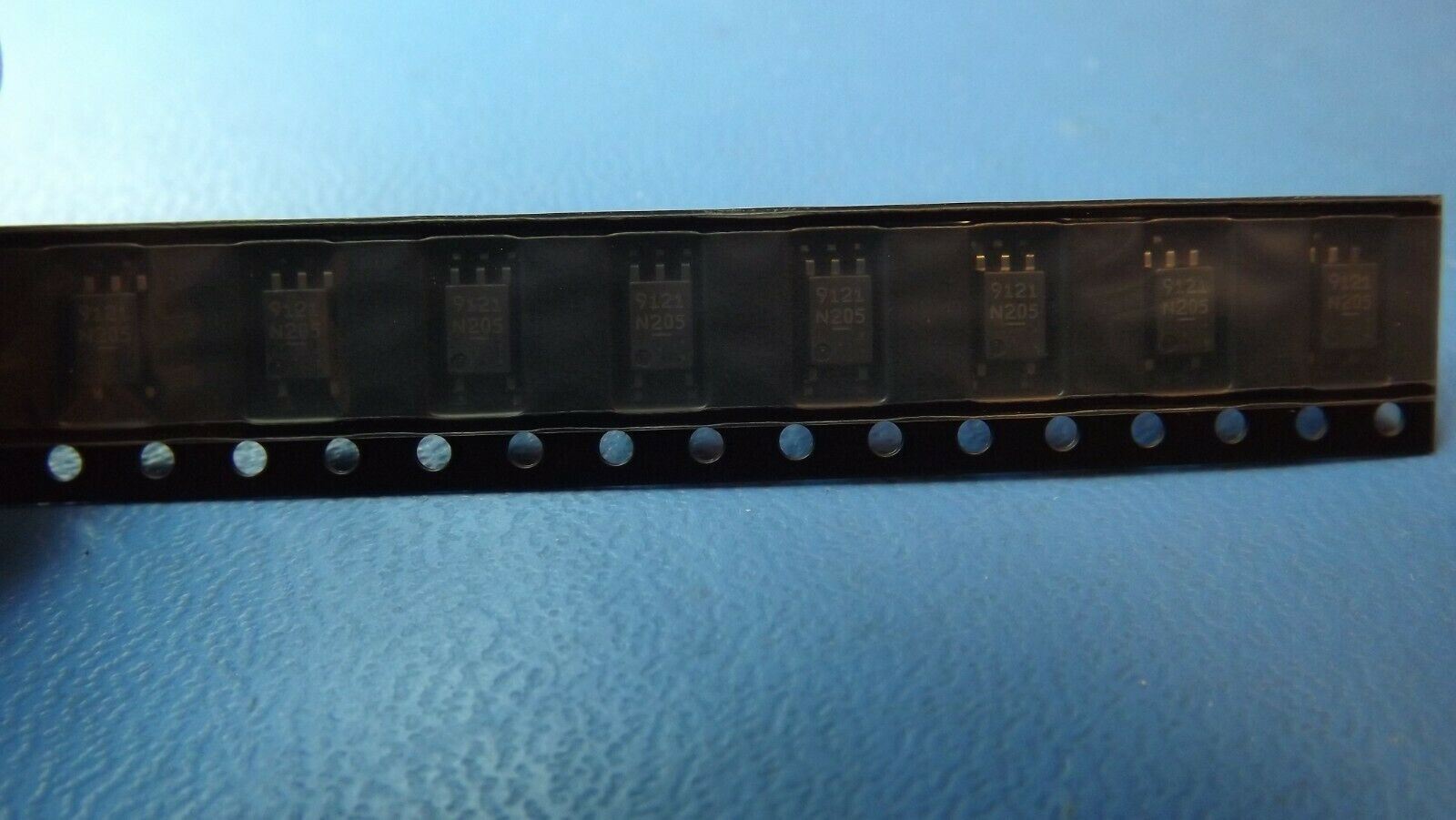

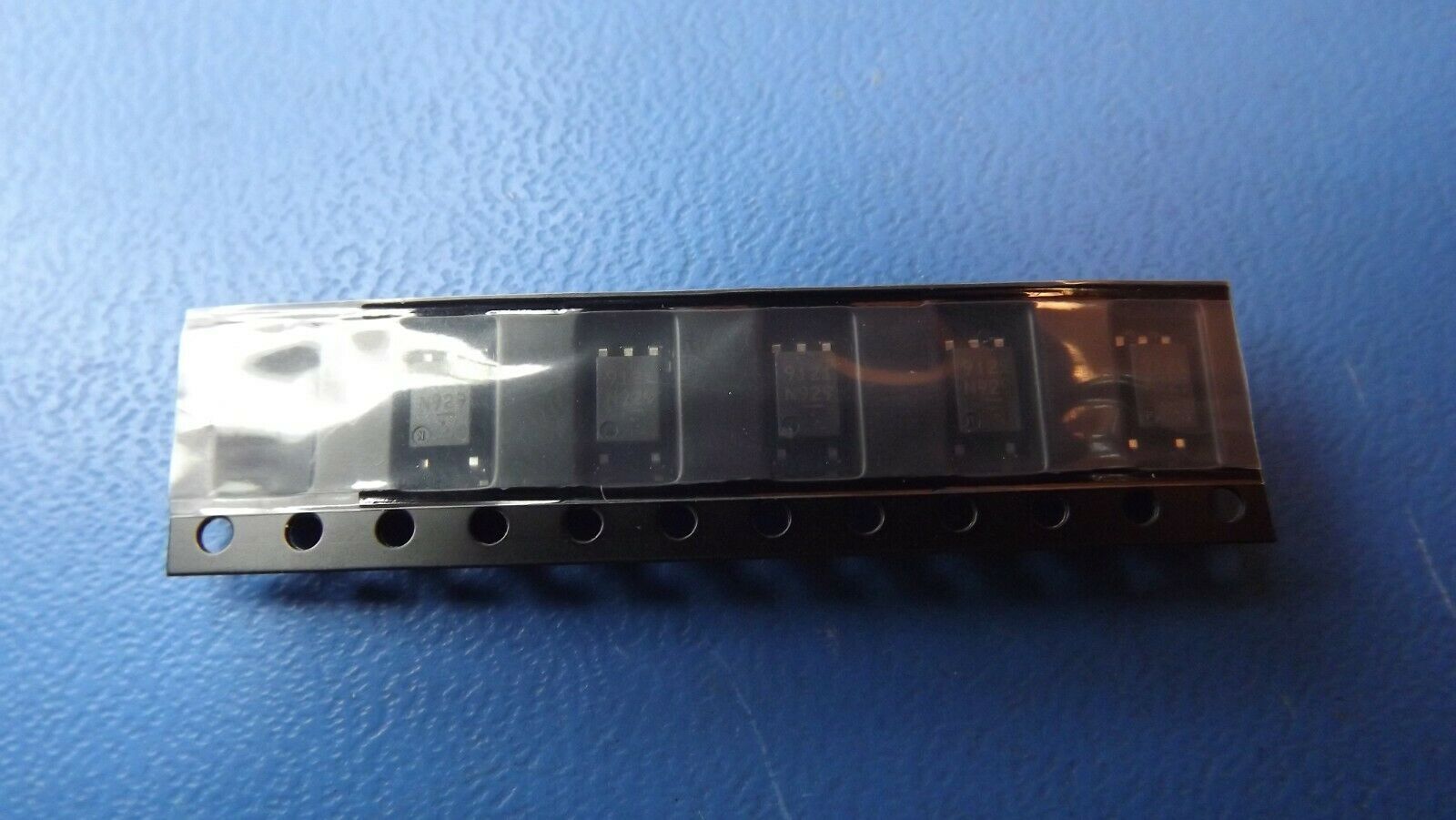

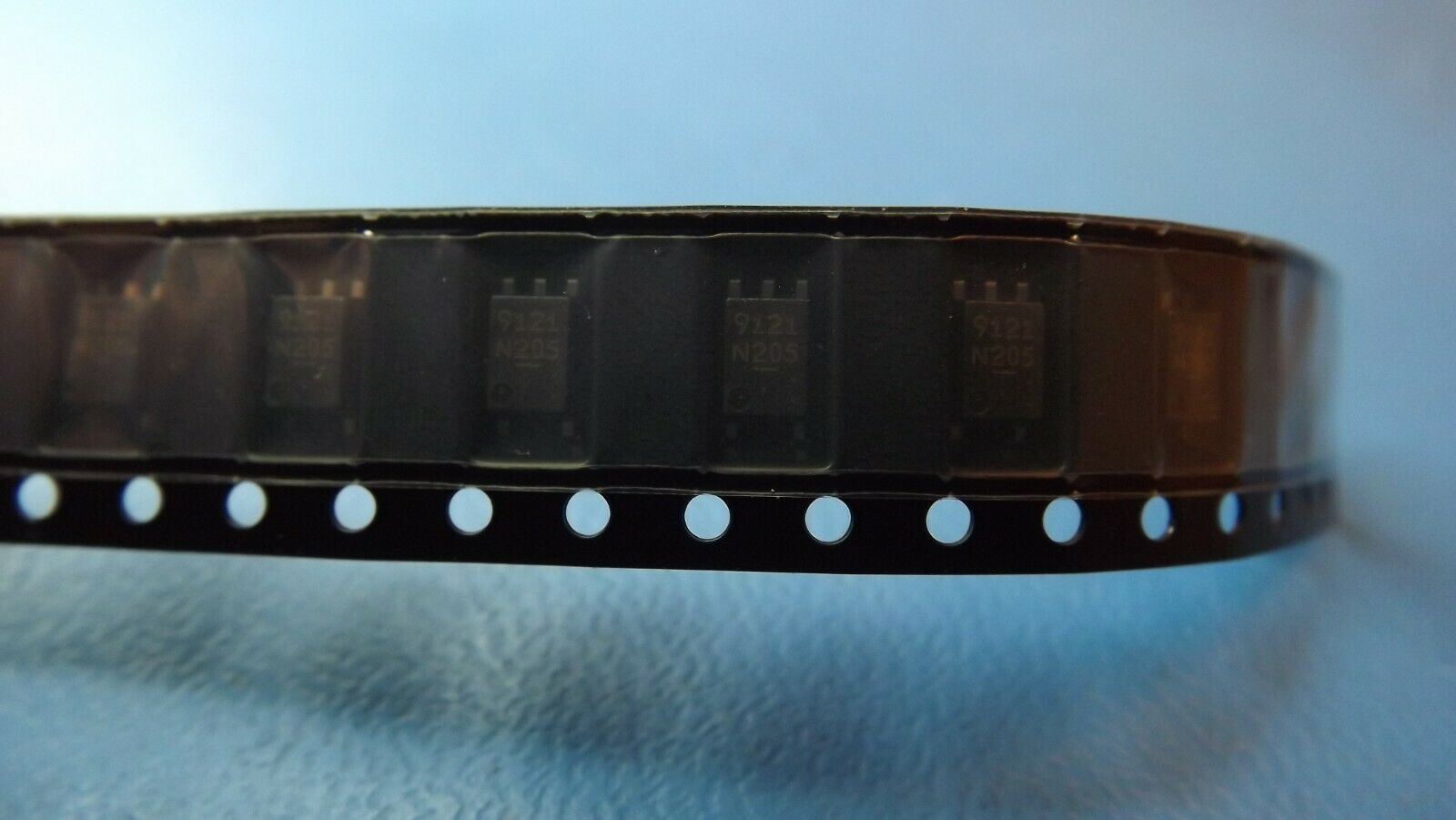

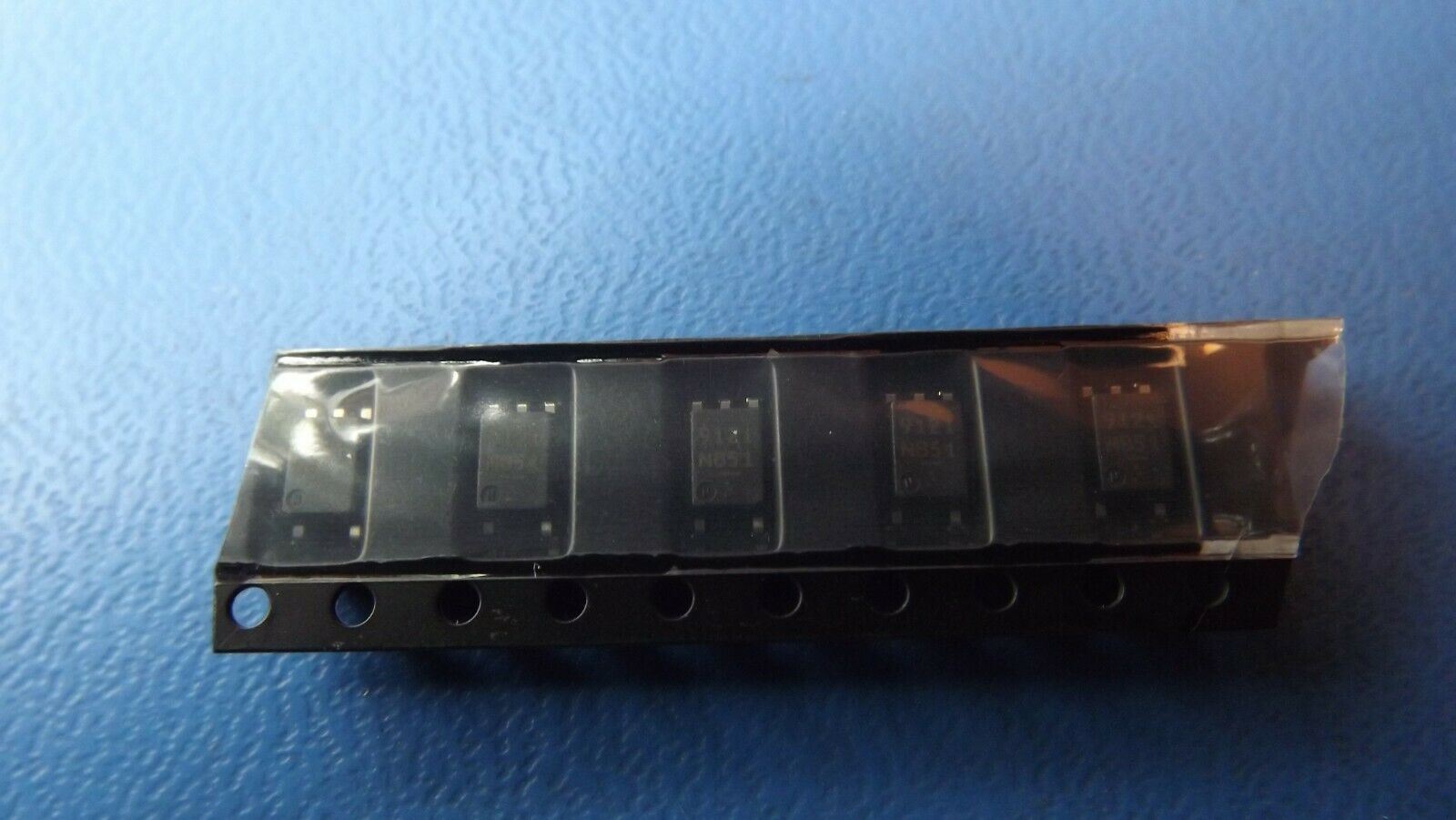

THIS LISTING IS FOR (5PCS) OF PS9121-F3-AX BY CEL
Categories Isolators
Optoisolators - Logic Output
Manufacturer CEL
Series NEPOC
Packaging Cut Tape (CT)
Part Status Discontinued at Digi-Key
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 15kV/µs
Input Type DC
Output Type Open Collector
Current - Output / Channel 25mA
Data Rate 15Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise / Fall Time (Typ) 20ns, 5ns
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Max) 30mA
Voltage - Supply 2.7V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package 5-SO
