(5PCS) PN3643 Transistor GP BJT NPN 30V 0.5A 3-Pin TO-92
Tax included.

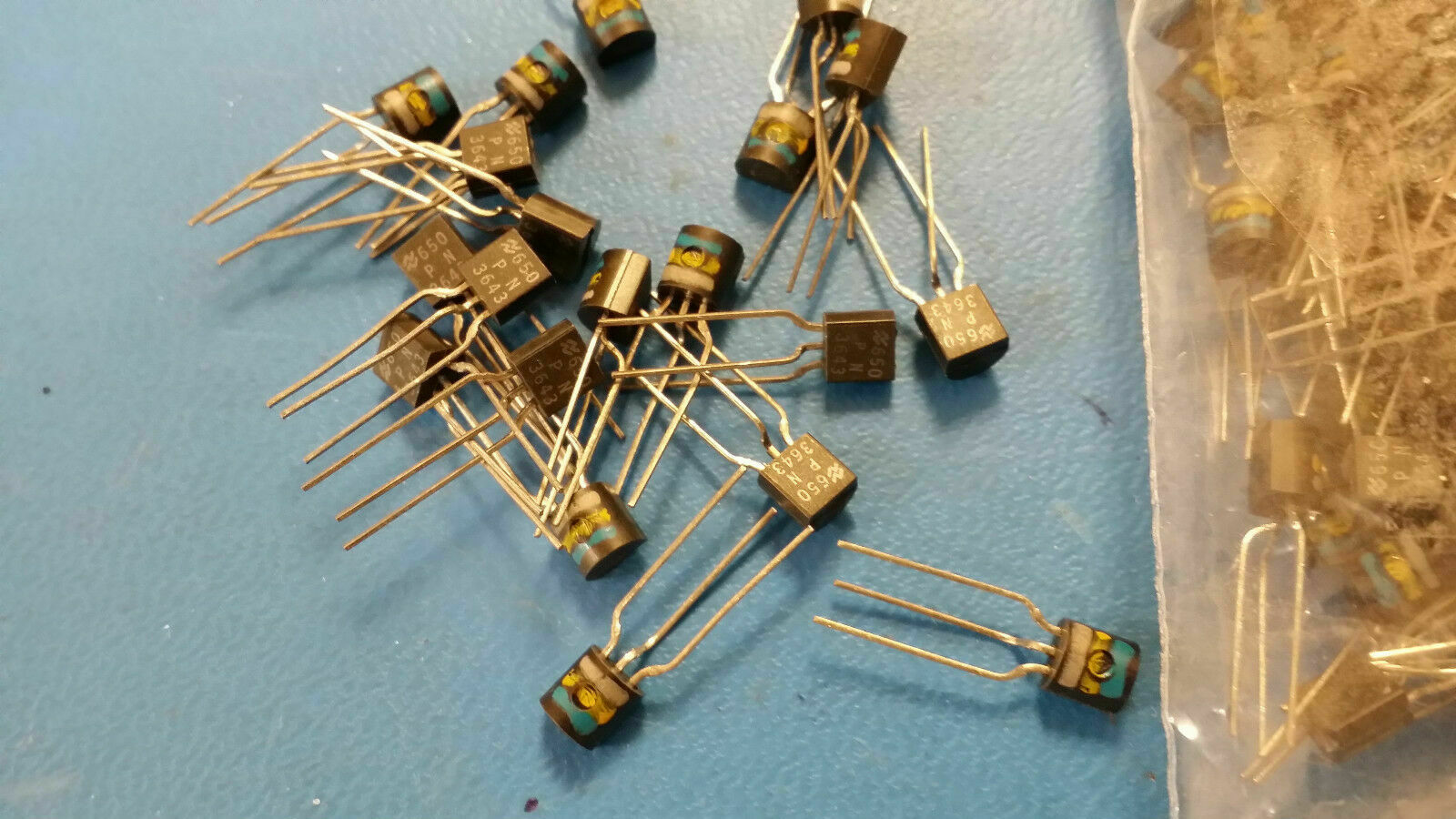

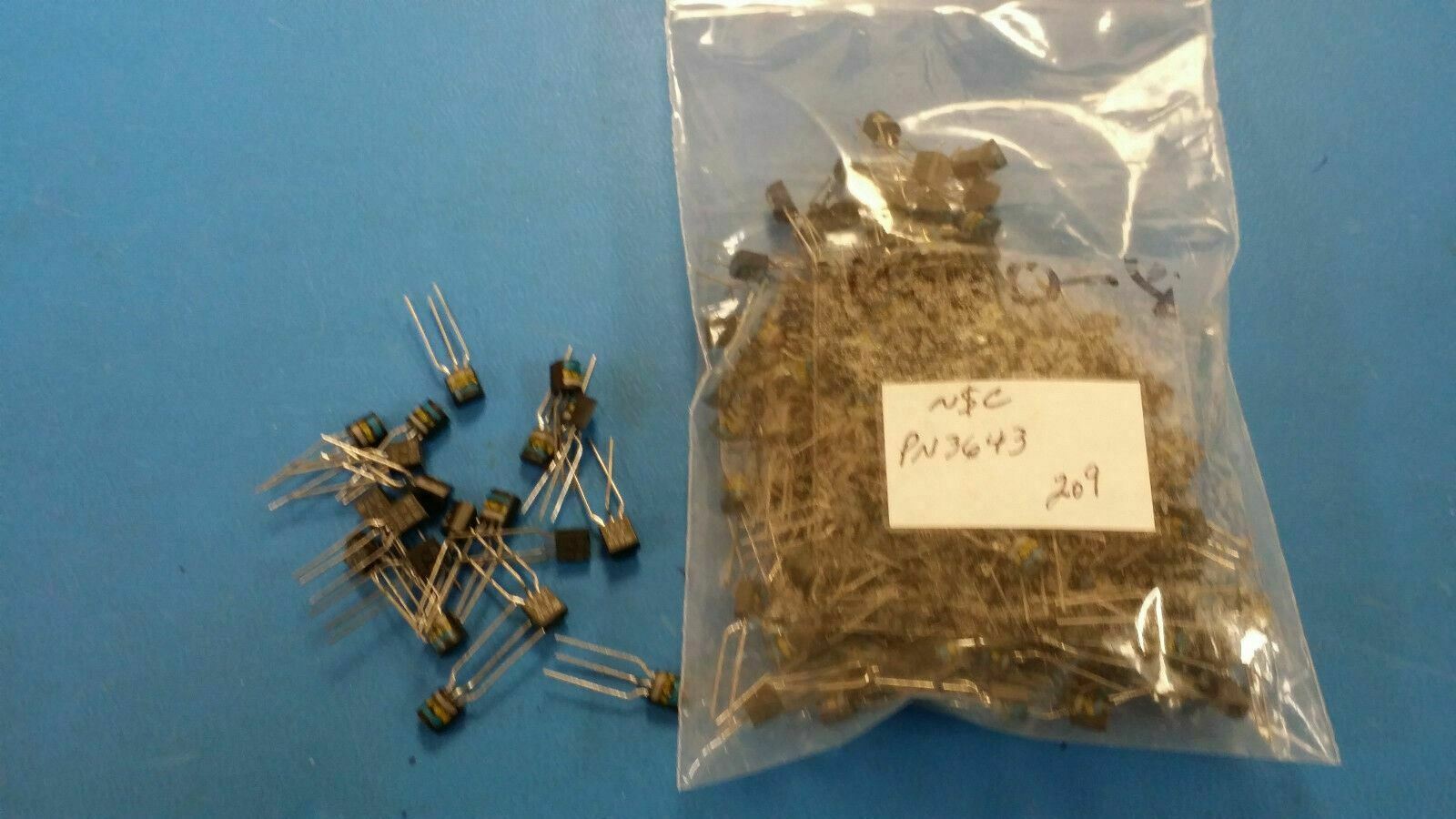

THIS LISTING IS FOR (5PCS) OF PN3643 BY NATIONAL SEMICONDUCTOR
PN3643 Part Details & Parametric
|
|
|
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Type | NPN |
| Maximum Collector Base Voltage (V) | 60 |
| Maximum Emitter Base Voltage (V) | 5 |
| Maximum Collector Emitter Voltage (V) | 30 |
| Maximum Power Dissipation (mW) | 625 |
| Maximum DC Collector Current (A) | 0.5 |
| Packaging | Bulk |
| Minimum DC Current Gain | 100@150mA@10V|20@500mA@10V |
| Number of Elements per Chip | 1 |
| Category | Bipolar Small Signal |
| Mounting | Through Hole |
| Package Height (mm) | 5.33(Max) |
| Package Length (mm) | 5.2(Max) |
| Package Width (mm) | 4.19(Max) |
| PCB | 3 |
| Standard Package Name | TO-92 |
| Supplier Package | TO-92 |
| Pin Count | 3 |
| Lead Shape | Through Hole |
