(5PCS) P6002SBLRP LITTELFUSE SIDACTOR BI 550V 100A DO214
Tax included.

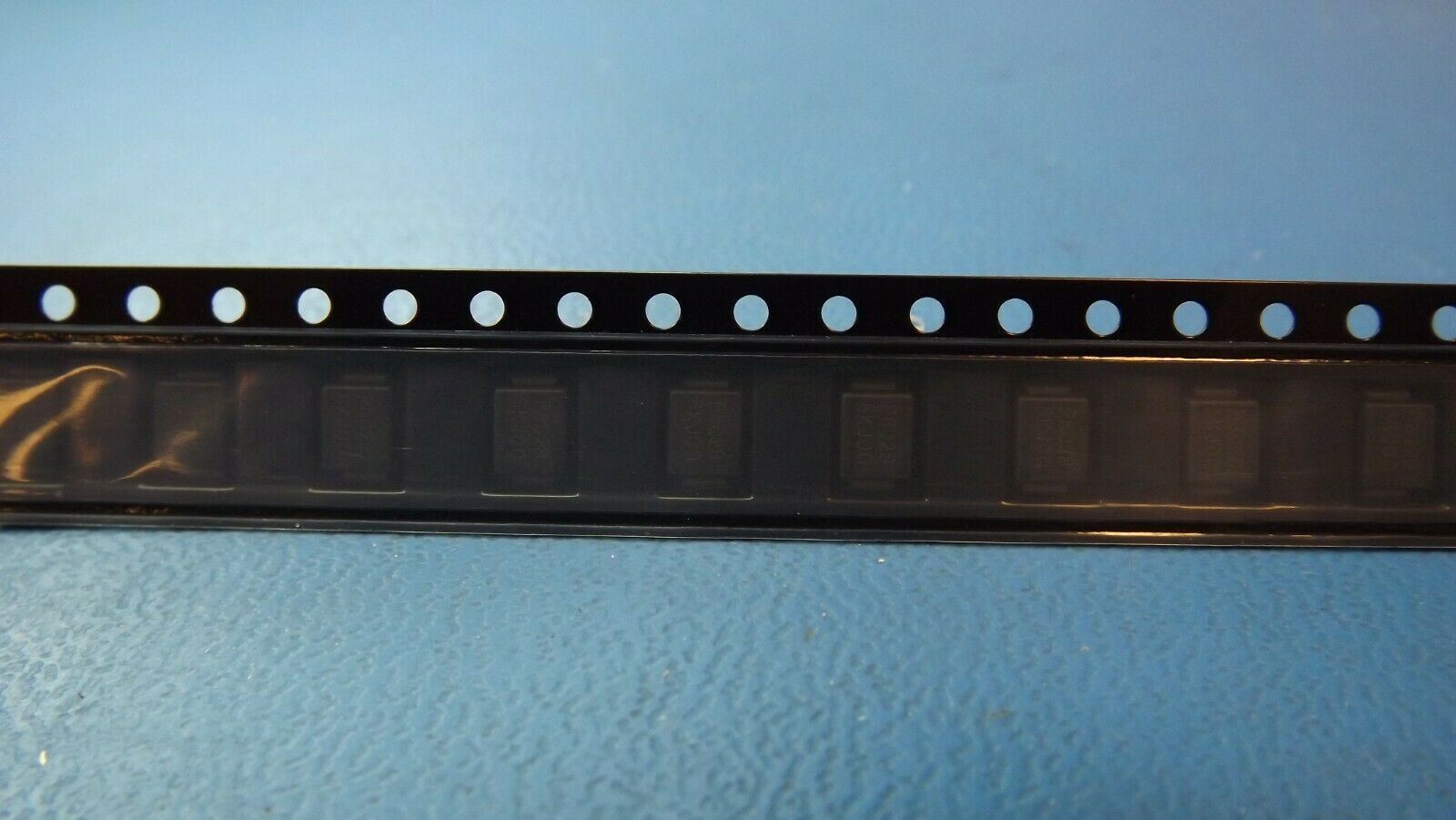

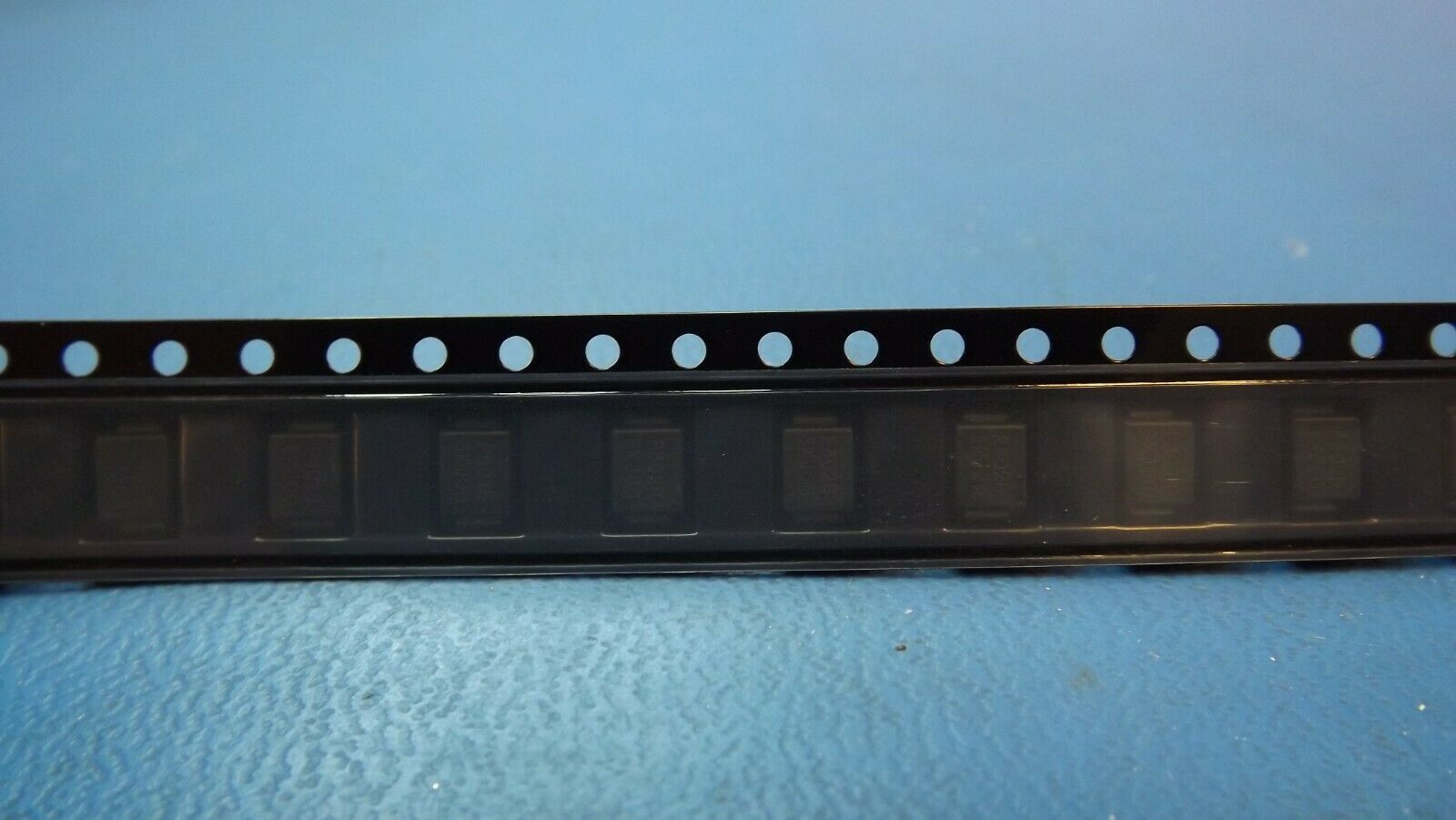

THIS LISTING IS FOR (5PCS) OF P6002SBLRP BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | SILICON SURGE PROTECTOR |
| Breakover Voltage-Max | 700.0 V |
| Configuration | SERIES CONNECTED, 2 ELEMENTS |
| DC Off-state Voltage-Max | 550.0 V |
| Holding Current-Max | 120.0 mA |
| JEDEC-95 Code | DO-214AA |
| JESD-30 Code | R-PDSO-C2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Non-Repetitive Pk On-state Cur | 25.0 A |
| Number of Elements | 2.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Sub Category | Silicon Surge Protectors |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | UL RECOGNIZED |
