(5PCS) P3500ECL LITTELFUSE SIDACTOR BI 320V 400A TO-92
Tax included.

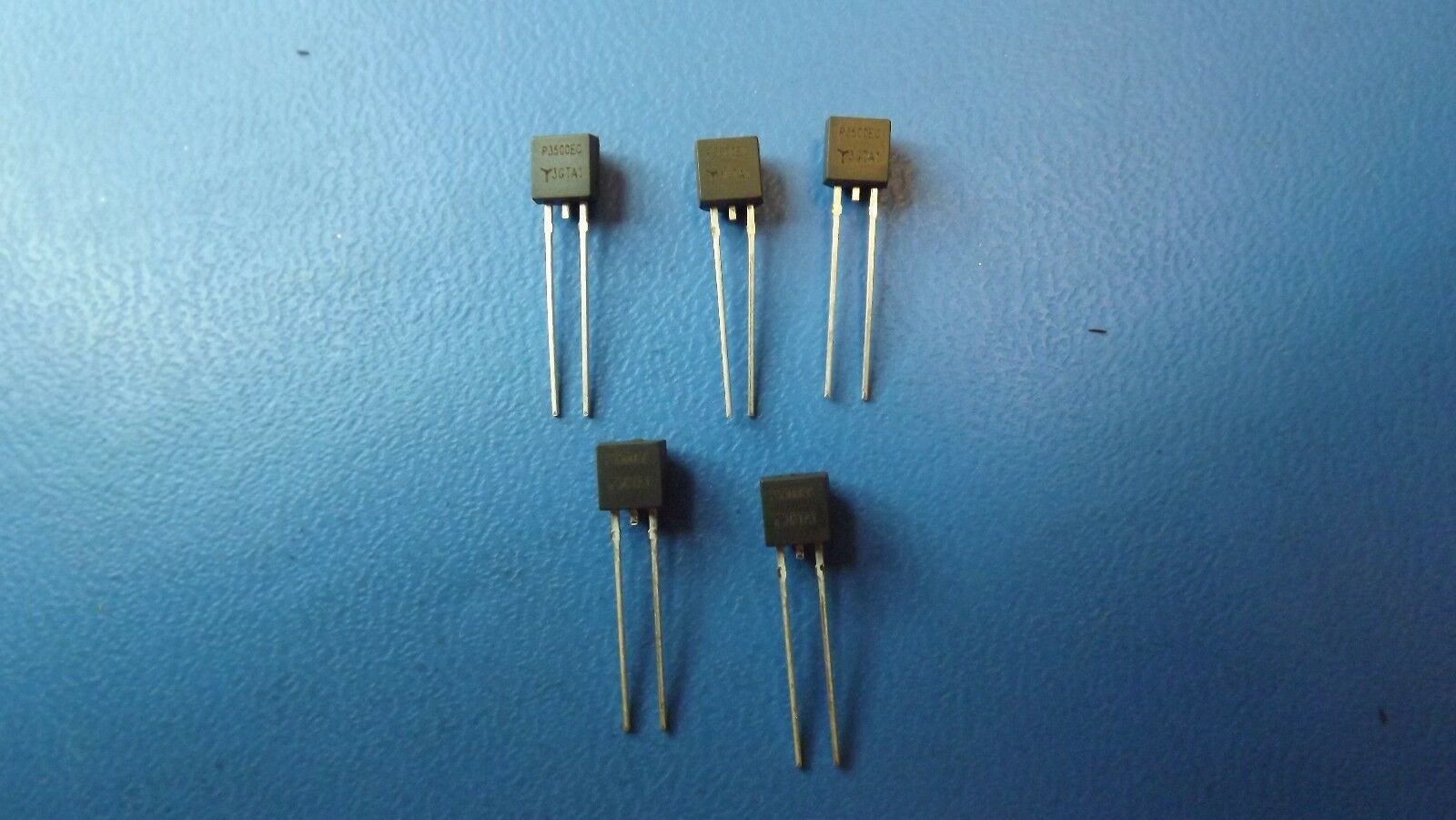

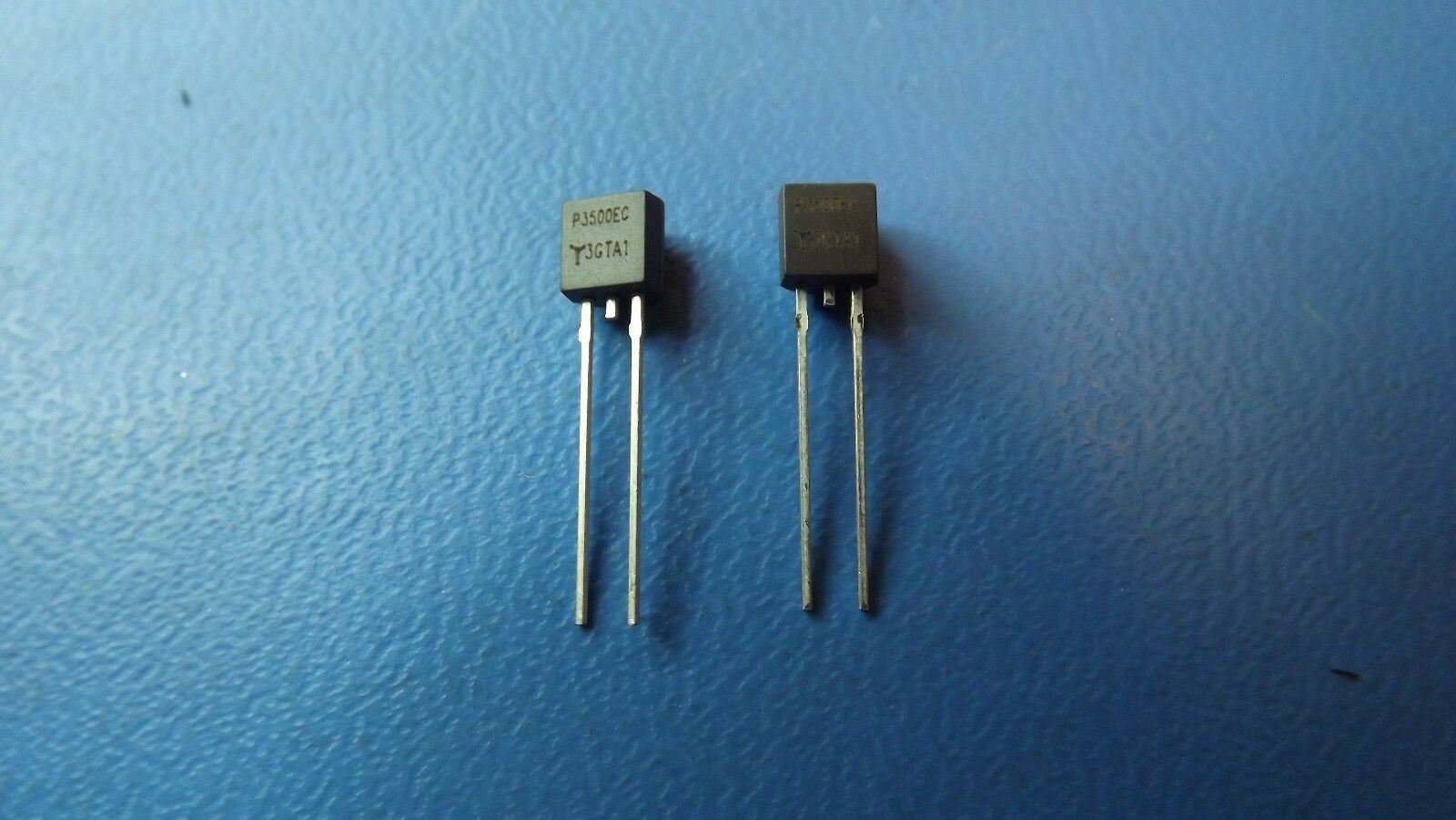

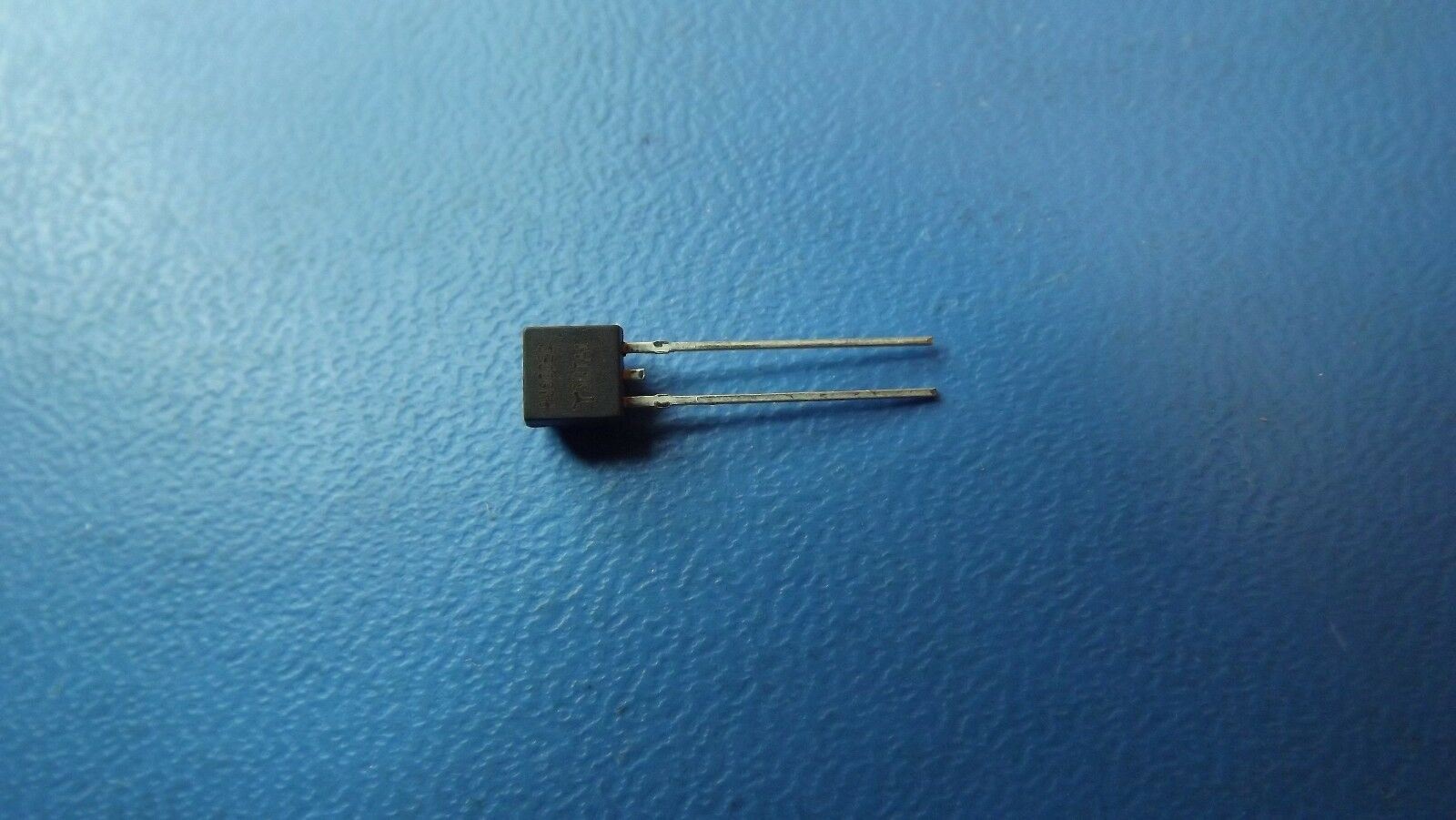

THIS LISTING IS FOR (5PCS) OF P3500ECL BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | TO-92, 2 PIN |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | SILICON SURGE PROTECTOR |
| Breakover Voltage-Max | 400.0 V |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| DC Off-state Voltage-Max | 320.0 V |
| Holding Current-Max | 150.0 mA |
| JEDEC-95 Code | TO-92 |
| JESD-30 Code | R-PBCY-T2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 2 |
| Non-Repetitive Pk On-state Cur | 50.0 A |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | CYLINDRICAL |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Sub Category | Silicon Surge Protectors |
| Surface Mount | NO |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Additional Feature | UL RECOGNIZED |
