(5PCS) P3500BA70 400 V, 60 A, SILICON SURGE PROTECTOR, TO-92

  • $5.00
    Unit price per
Tax included.

Only 500 left!

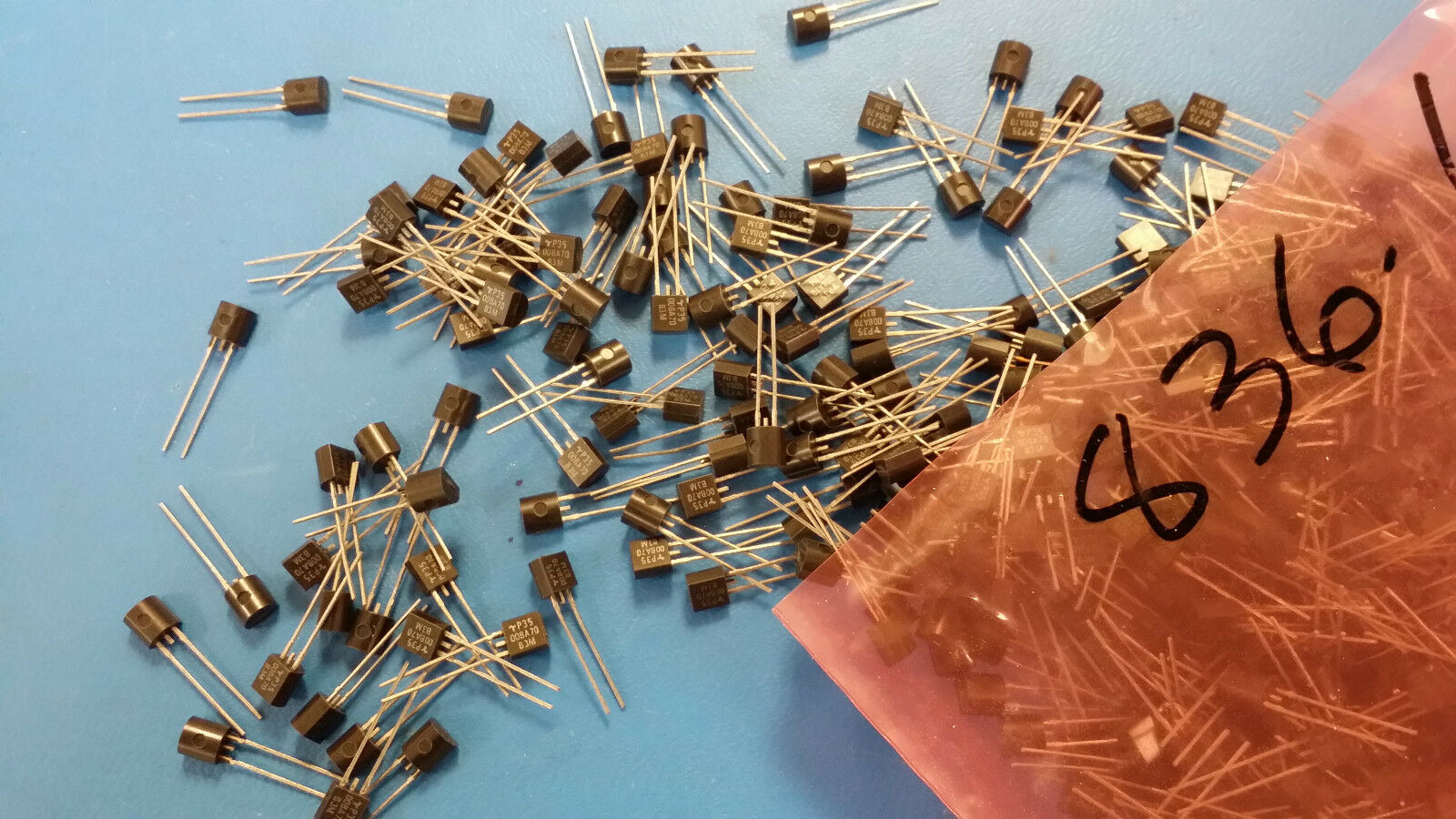

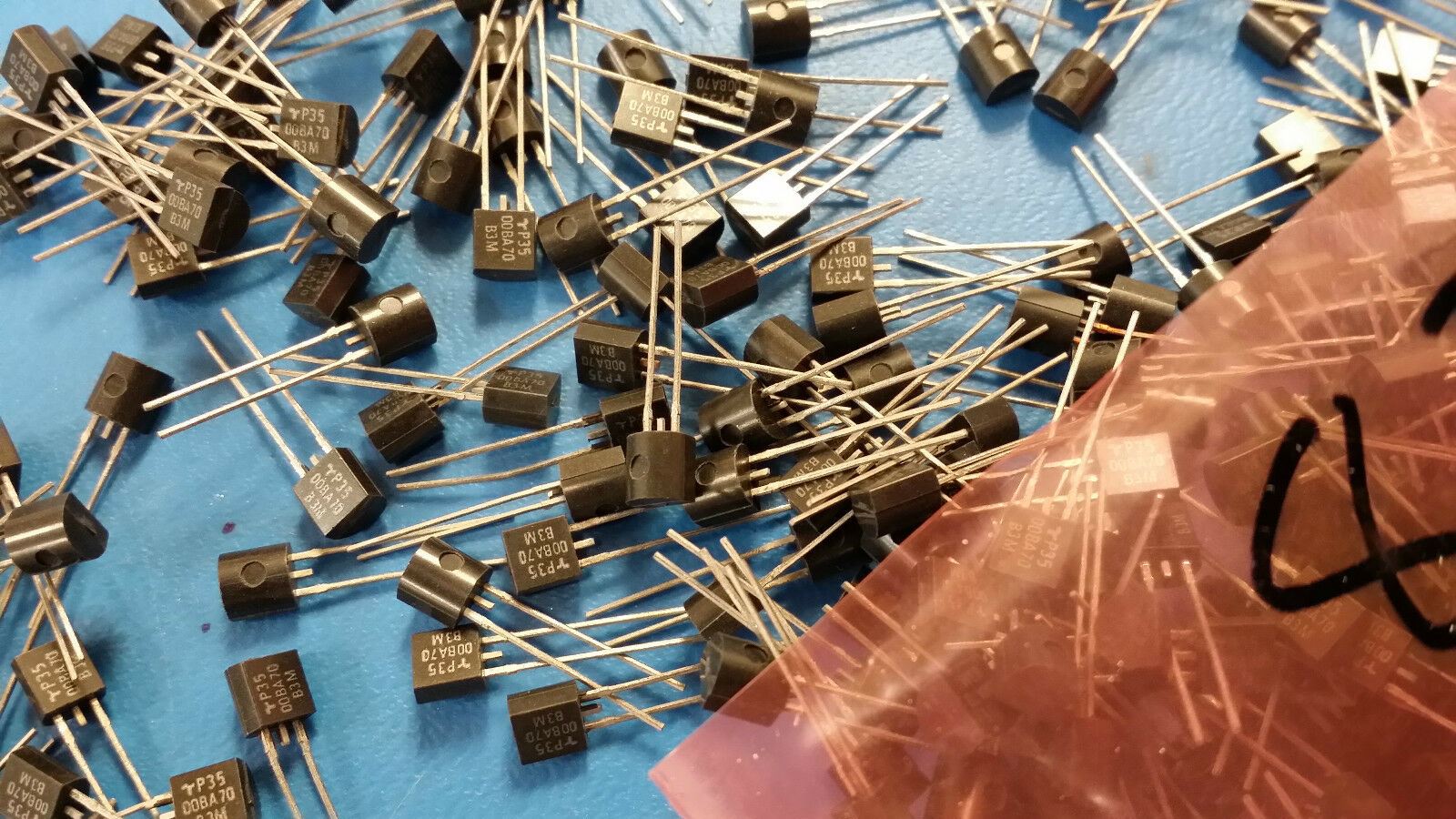

THIS LISTING IS FOR (5PCS) OF P3500BA70 BY TECCOR

400 V, 60 A, SILICON SURGE PROTECTOR, TO-92

WE HAVE 2500 PCS IN STOCK AND WILL GLADLY MAKE DEALS ON LARGER QUANTITIES. PLEASE SEND OFFERS OR INQUIRIES.


Mfr Package Description TO-92, 2 PIN
Status Transferred
Trigger Device Type SILICON SURGE PROTECTOR
Breakover Voltage-Min 300 V
Breakover Voltage-Max 400 V
Configuration SINGLE
Holding Current-Max 150000 mA
JEDEC-95 Code TO-92
JESD-30 Code O-PBCY-T2
Non-Repetitive Pk On-state Cur 60 A
Number of Elements 1
Number of Terminals 2
Operating Temperature-Min -40 Cel
Operating Temperature-Max 150 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Qualification Status COMMERCIAL
Repetitive Peak Reverse Voltage 240 V
Sub Category Silicon Surge Protectors
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
Additional Feature SINGLE OR DUAL CHIP
